1.     Technical parameters:

1.1  Material: carbon steel Q195, Q235, SPHC

1.2 Finished product:

Coil width: Max.630mm

Coil thickness: Min. 0.2mm

2.     Main equipment structure:

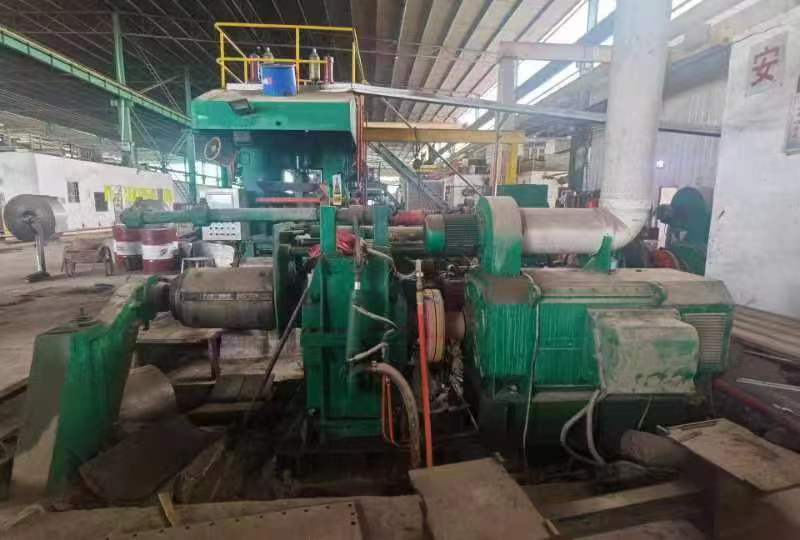

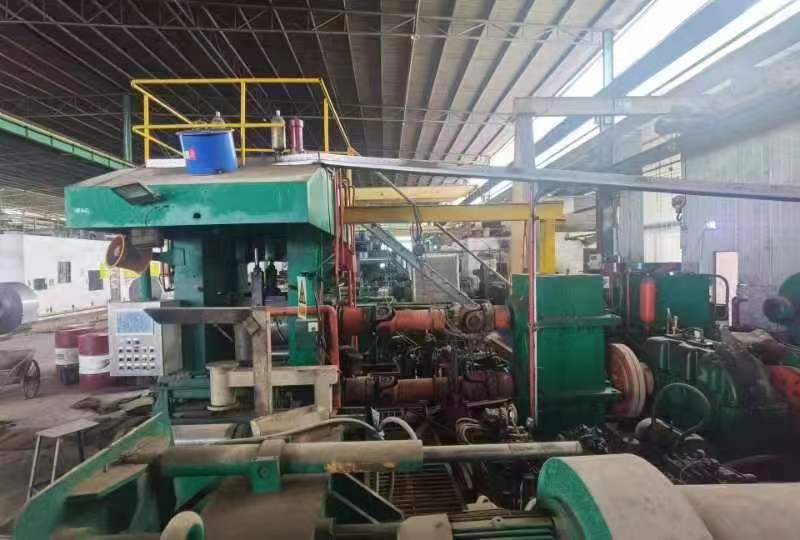

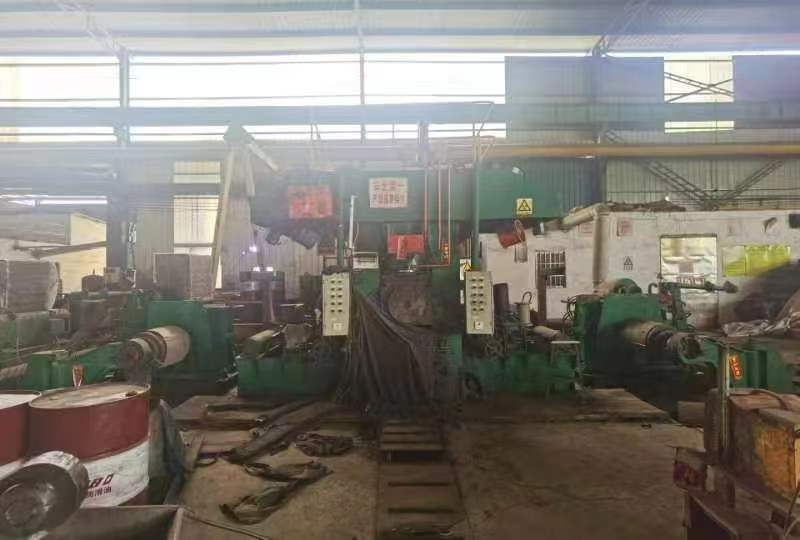

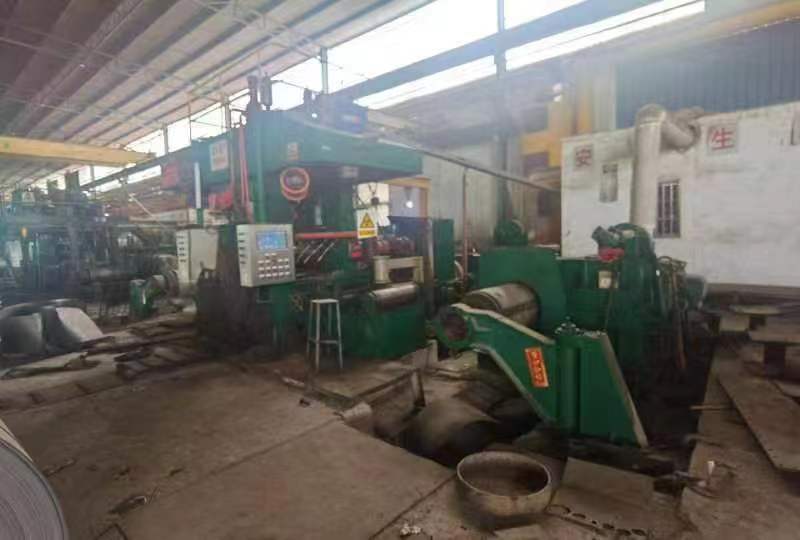

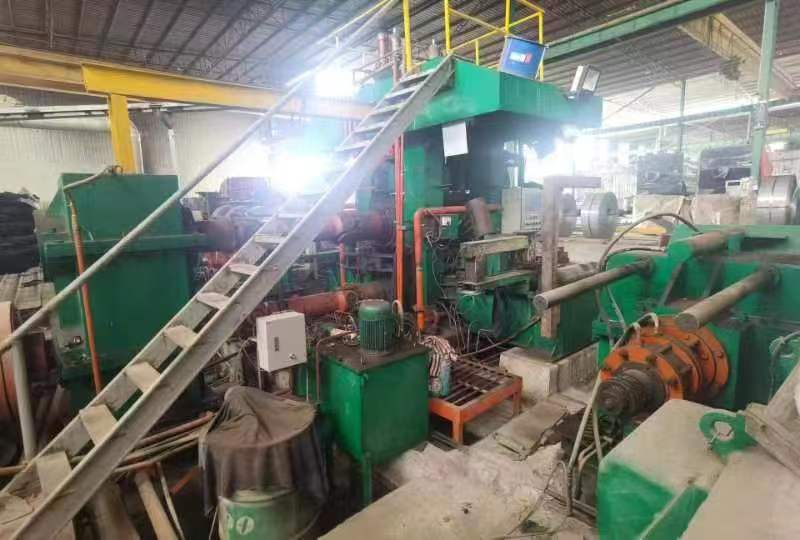

2.1 main rolling machine: OD150/OD560*700

2.1.1 Rolling force: 4,500K.N

2.1.2 Work roll: OD150-125 *780mm

Work roll material: 86CrMoV7

2.1.3 Back up roll: OD560-530*700mm

Back up roll material: 9Cr2Mo

2.1.4 Coil width: Max. 630mm

2.1.5 Roll speed: Max. 5m/s

2.1.6 Input coil thickness: Max. 2.75mm

2.1.7 Output coil thickness: Min. 0.2mm

2.1.8 Main motor: Z4-450-42 600KW 400V

           600-1100r/min (Hengli Motor)

2.1.9 Reducer: ZLY500

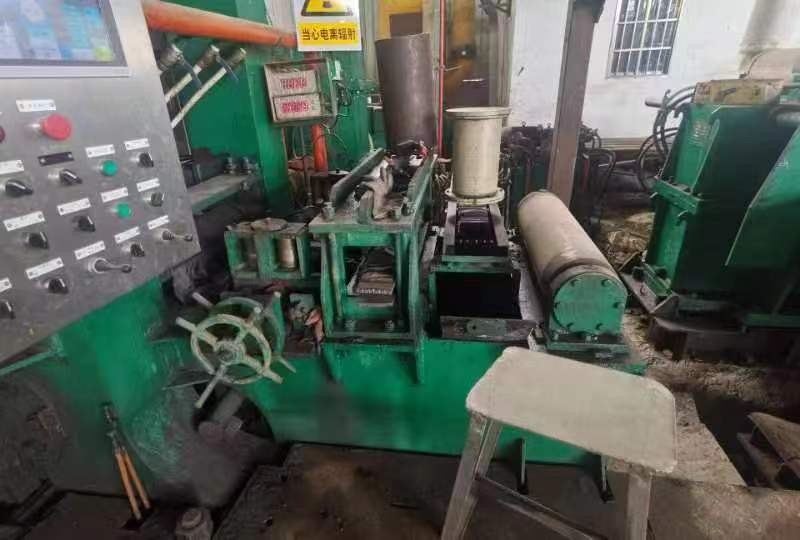

2.1.10 Exit devices: automatic thickness gauge, horizontal roll, squeeze roll process

2.1.11 Herringbone gear seat: A=820 Mn=12

2.1.12 Pressing down: hydraulic AGC

2.1.13 Upper roll balance: hydraulic

2.1.14 Work roll: hydraulic positive bending roll, hydraulic positive bending roll

2.1.15 Roll bearing: FCD6492300 (Oil mist lubrication)

2.1.16 Stand size: 300*350mm

2.1.17 Hydraulic roll changing trolley

2.1.18 Universal joint shaft: equipped with swc315 cross head universal joint

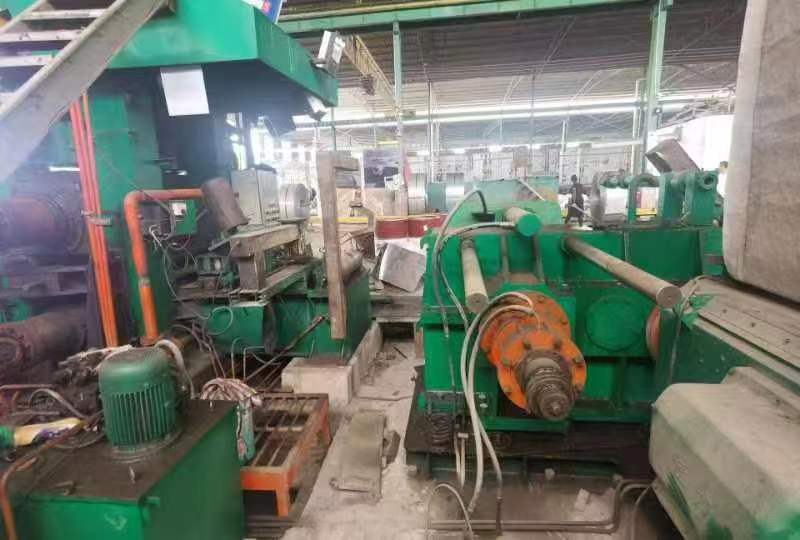

2.2 Recoiler 2 sets

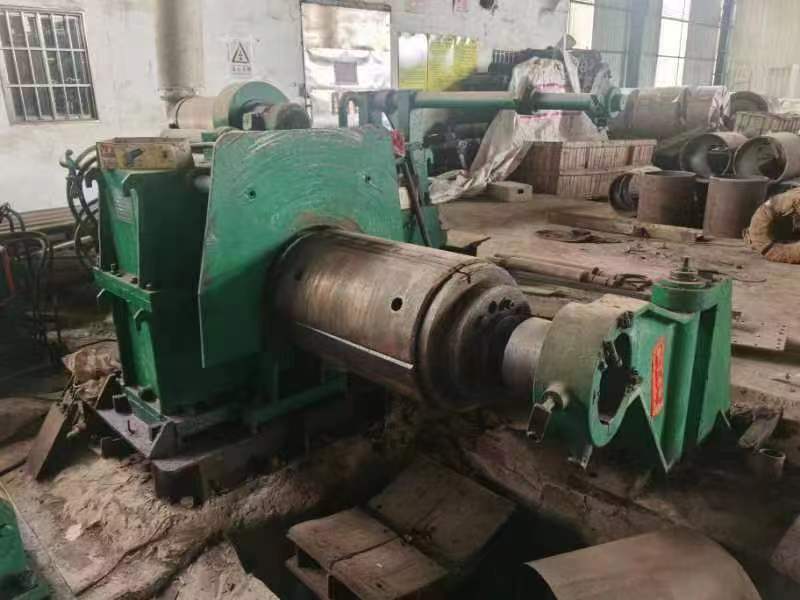

2.2.1 Hydraulic pyramid expansion and contraction drum: expansion and contraction range: OD508-488mm

Drum effective length: 700mm (with bracket and jaw)

2.2.2 Max. coil weight: 5000KG, max. coil OD:1500mm

2.2.3 Recoiler motor: Z4-355-22 315KW 600-1500r/min (Hengli motor)

2.2.4 Reducer: A850 (Non-standard self-designed, equipped with hydraulic pressing material)

2.2.5 Coiling tension: 5000KG

3. Hydraulic unloading car 2 sets, hydraulic lifting, horizontal movement

4. Hydraulic station: 1 pcs 400L system pressure: 6.3 Mpa, double pump 7.5kW, with cooler and accumulator. High voltage station: 25MPa

5. Thin oil station: for thin oil circulating lubrication of front and rear coiler, main reducer and herringbone gear box

6. Electric control and instrument

7. Thickness gauge: exclude radiation source for thickness gauge

above specifications are only reference, If there is any discrepancy, please follow all specifications at used machine site.
