used cold rolling mill

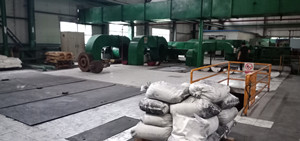

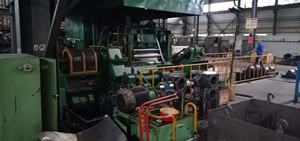

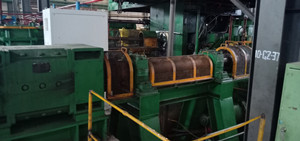

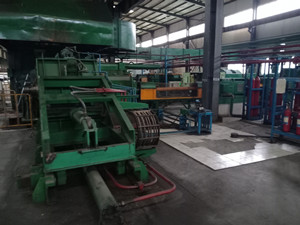

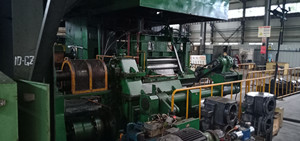

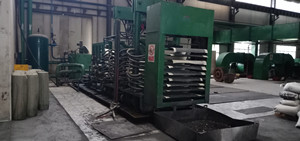

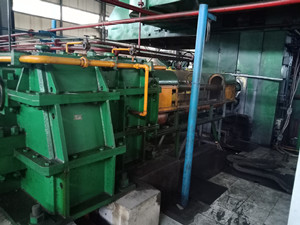

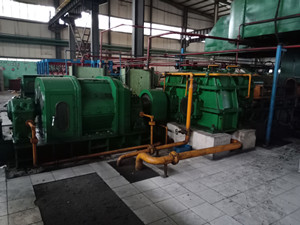

CR No.100 1250mm 4Hi Irreversible Aluminum Cold rolling mill

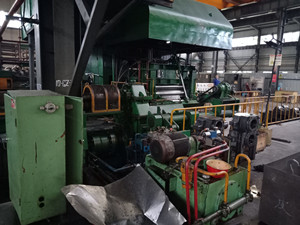

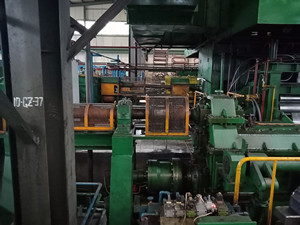

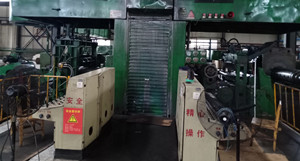

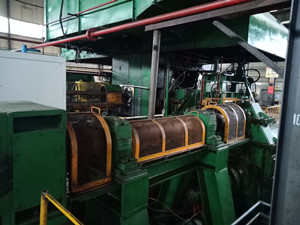

1250mm 4Hi Aluminum Cold rolling mill(Material:Aluminum and Aluminum alloy).It is made in 1988 and it is online now.The machine weight is approximate 500tons.The written time is Aug 3,2020.
- product description
- Technical Parameters
Max inlet material thickness:6--8mm
Coil width: Max. 1200mm
Coil OD:Max 1600mm
Coil ID:510mm
Max coil weight:6000kg
Min finished product thickness:0.4--2mm
Rolling force:8000KN,hydraulic pressing down
housing cross size: 430x450mm.
Rolling speed:Max 500m/min
Working roll size:φ360/330mm×1450mm
Back-up roll size:φ900/860mm×1400mm
Uncoiler tension: 8000kg, uncoiling speed ratio of reducer: 5.8
Recoiler tension:8000kg, recoiling speed ratio of reducer: 10.98

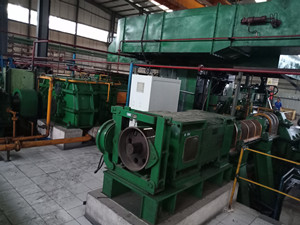

Main motor: DC 940kw x1
Uncoiler motor:DC 229kw
Recoiler motor:DC 229kw x2

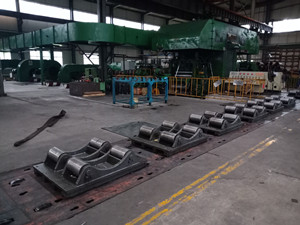

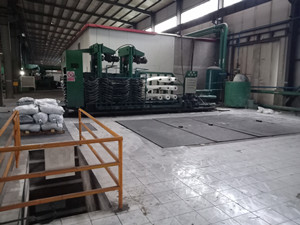

machine was dismantled now
