1. Steel type: silicon steel, stainless steel

2. Product specification

   Strip width: 350-650mm

   Maximum coil weight: ≤ 6 tons (excluding sleeve)

   Coil diameter: 508mm (inner diameter)

               1500mm (maximum outer diameter)

               800mm (minimum outer diameter)

  A. input material: silicon steel

   input thickness: 1.8-2.5mm (pickling roll)

                             0.28-0.75mm (annealed coil)

B. input material: stainless steel

input thickness: 2.0-2.5mm

output min. thickness:

                   0.1mm at 600mm coil width

                    0.05mm at 300mm coil width

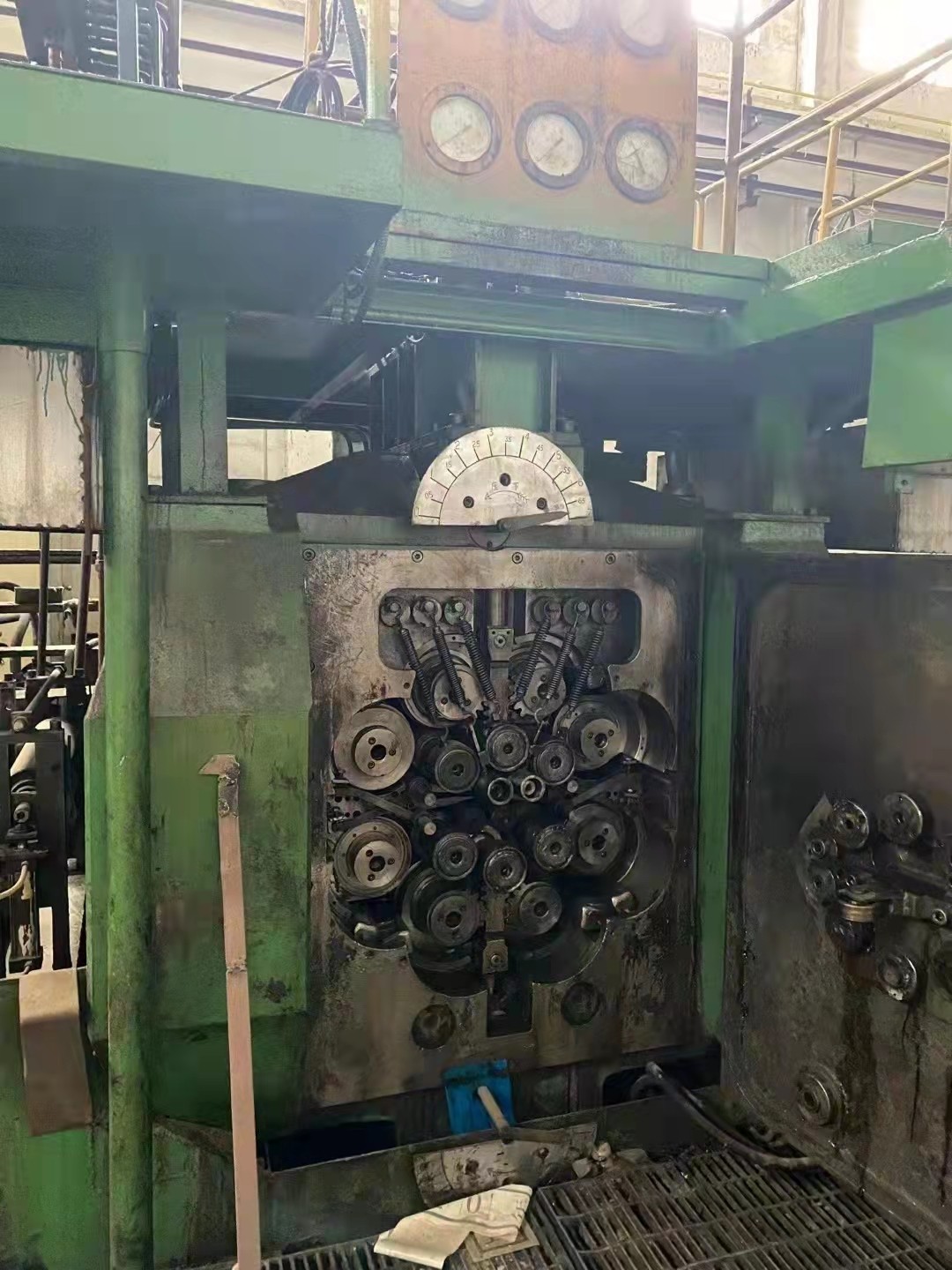

3. Roll

   Work roll: roll diameter Φ 40mm, roll width 700mm

   intermediate Ⅰroll: roll diameter Φ 72mm, roll width 800mm

   intermediate Ⅱroll: roll diameter Φ 128mm, roll width 700mm

   Backup roll: Φ225x660 (rolling mill bearings are finished products Φ90/Φ225 × 125）

4. line speed: 250m/min

Approximate total weight: 110KG

machine is dismantled, made in 2011

Chinese brand
