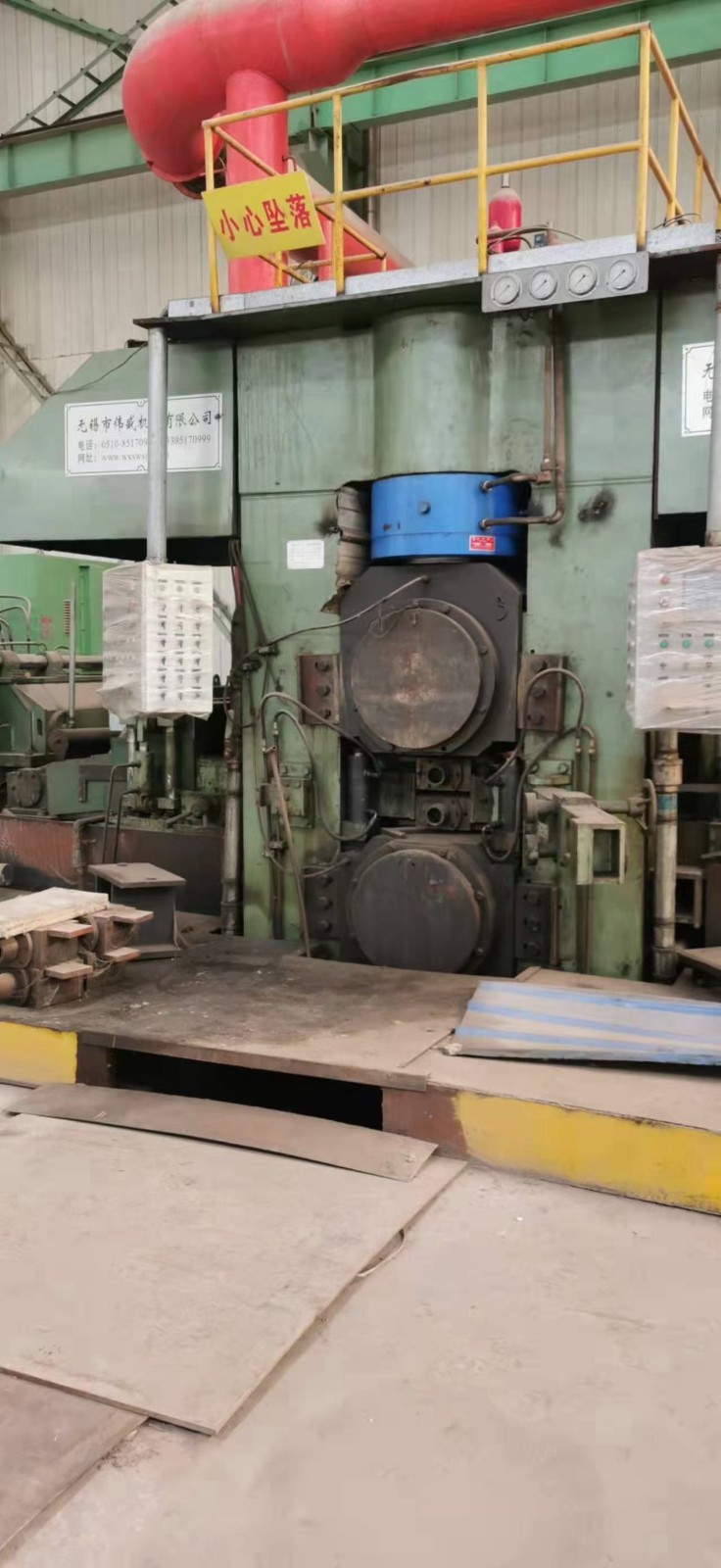

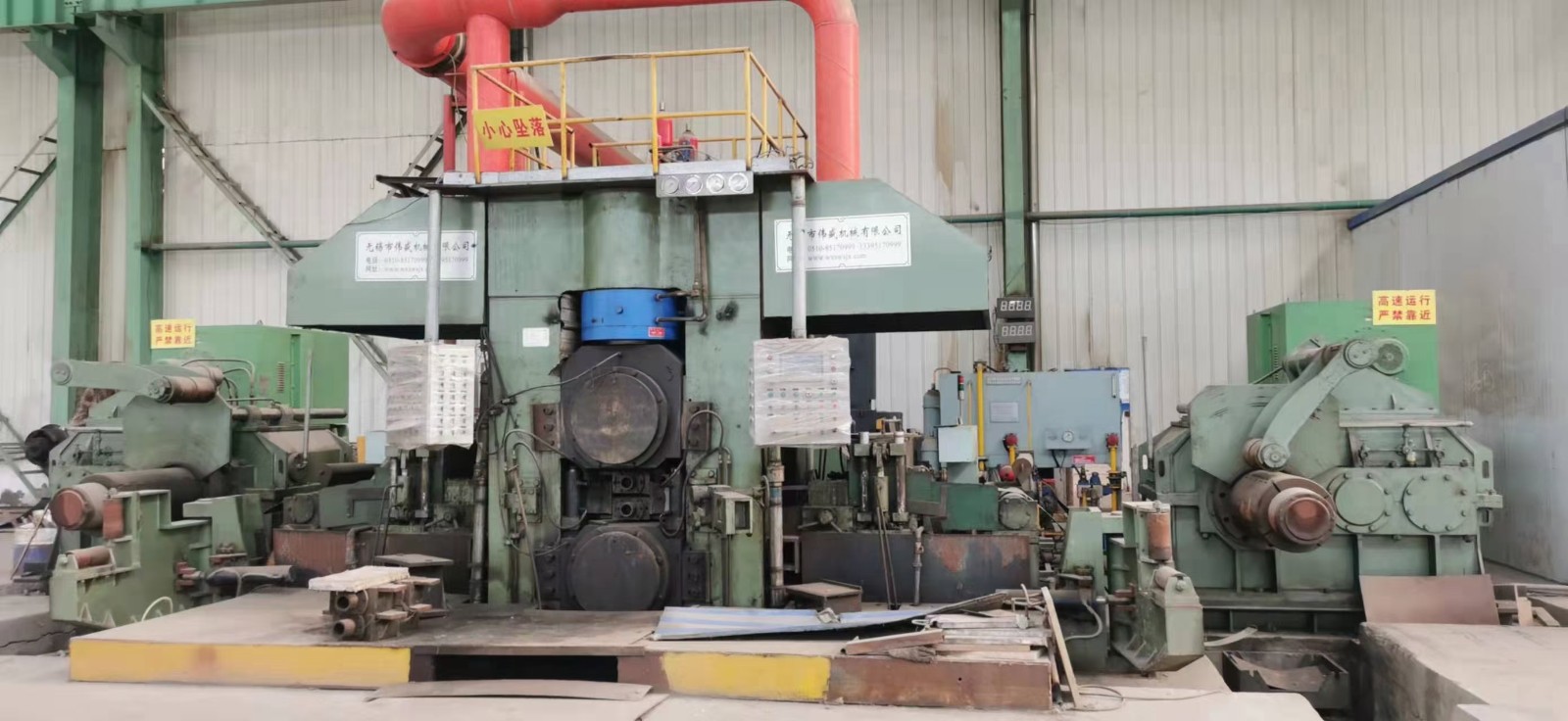

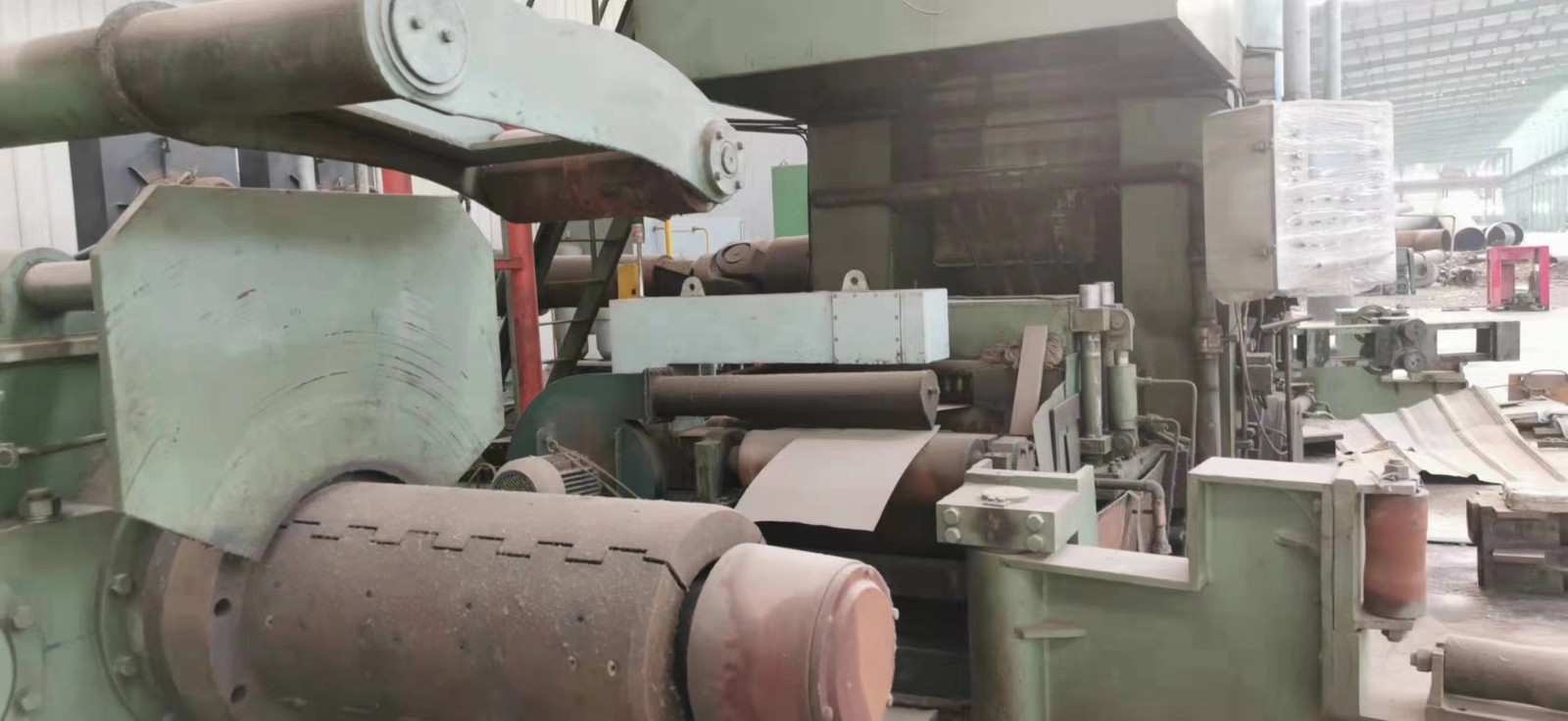

2018 Wuxi 700mm 4hi reverse cold rolling mill AGC stainless steel

stock No.: 363, it is written on June 23, 2022
  • product description
  • Technical Parameters



max coil width: 700mm  max coil weight: 12 t
made by Wuxi in 2018.
material: stainless steel.
rolling ofrce max 8,000KN
incoming material thickness: 2.5-3mm
product thickness min 0.25mm
AGC

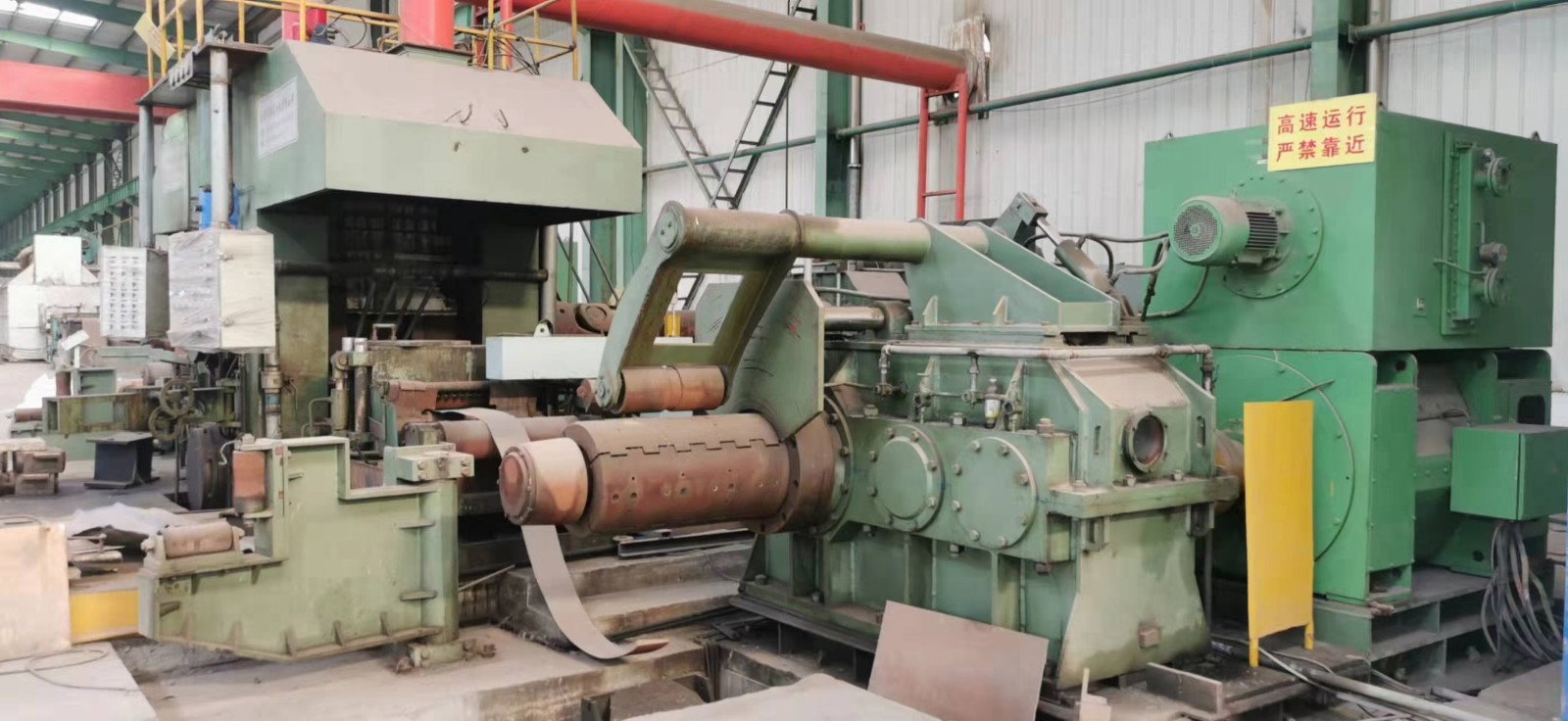

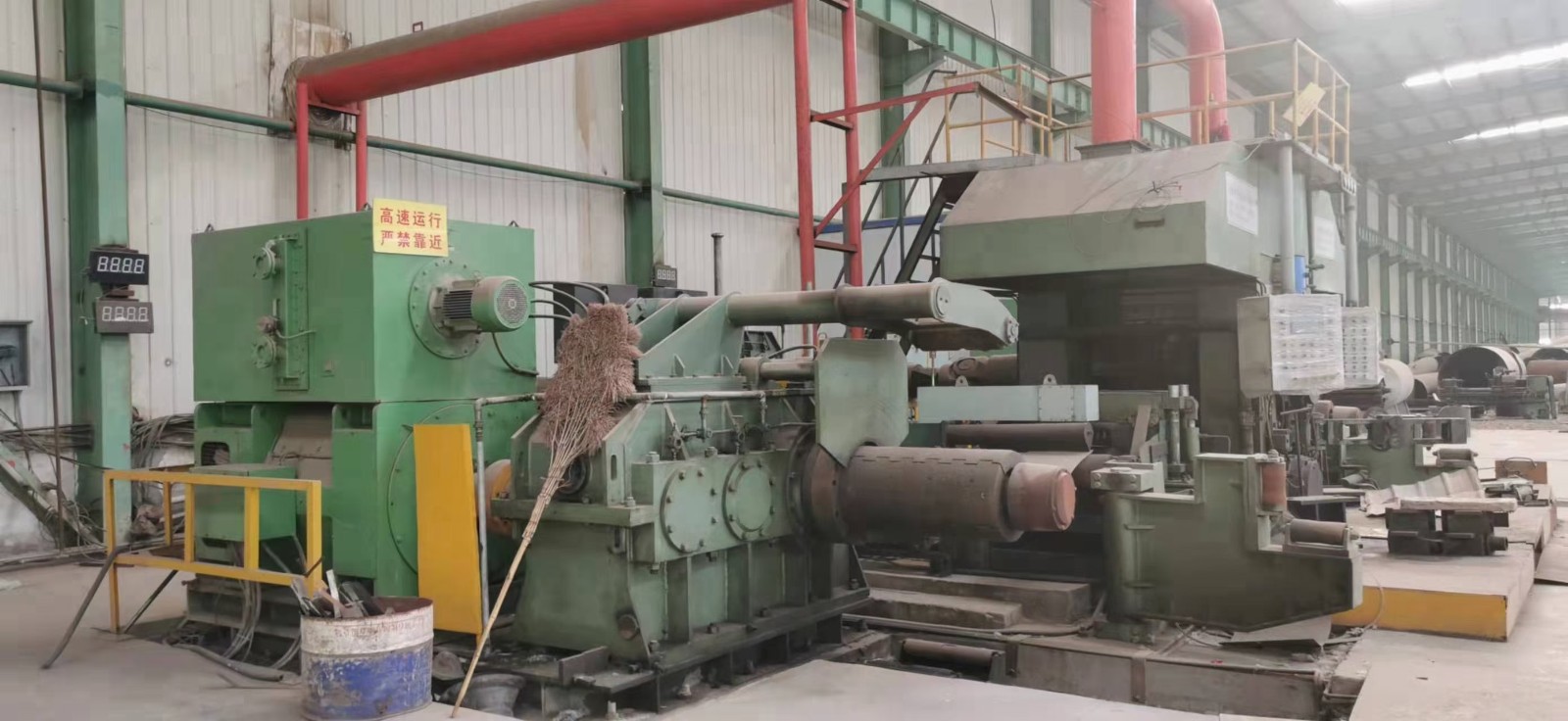

coiler: DC motor 750kw x2
rolling mill DC motor 750 kw x2
max speed: 500m/min
            roll  diameter  width
back up roll   700         800  mm
working roll   160         800  mm
driven by back up rolls
coiler tension max 75 KN
machine is on foundation.
