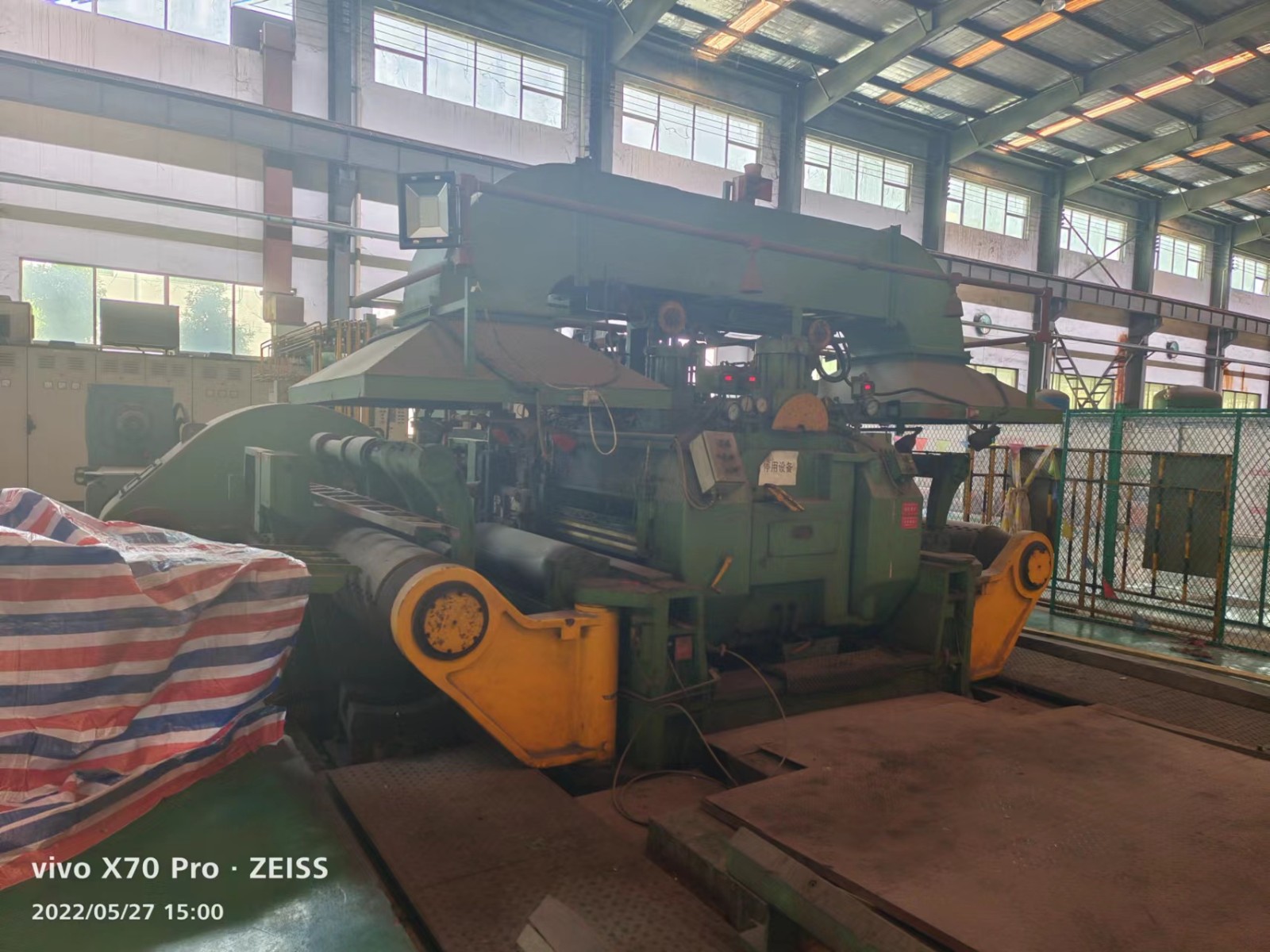

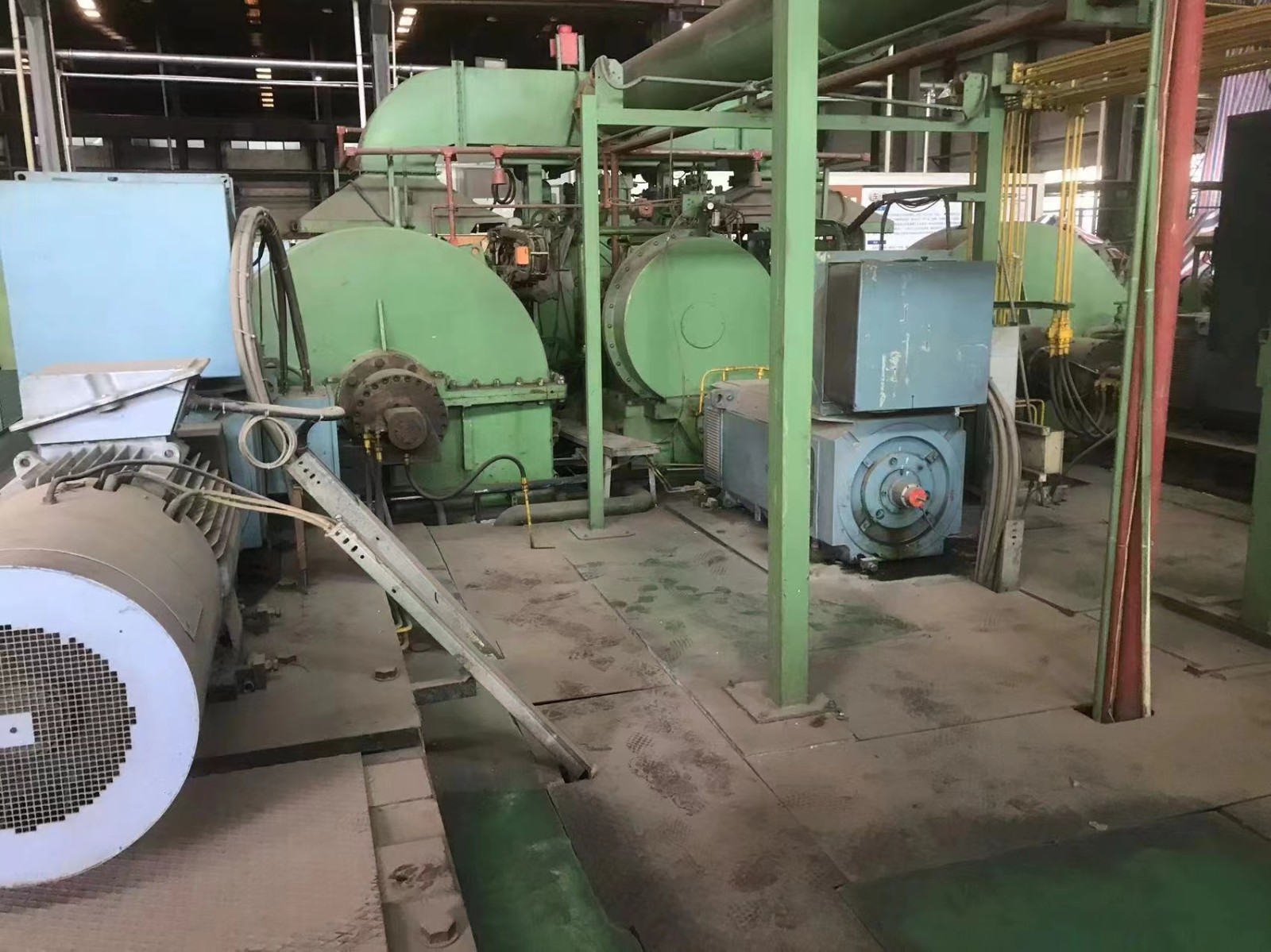

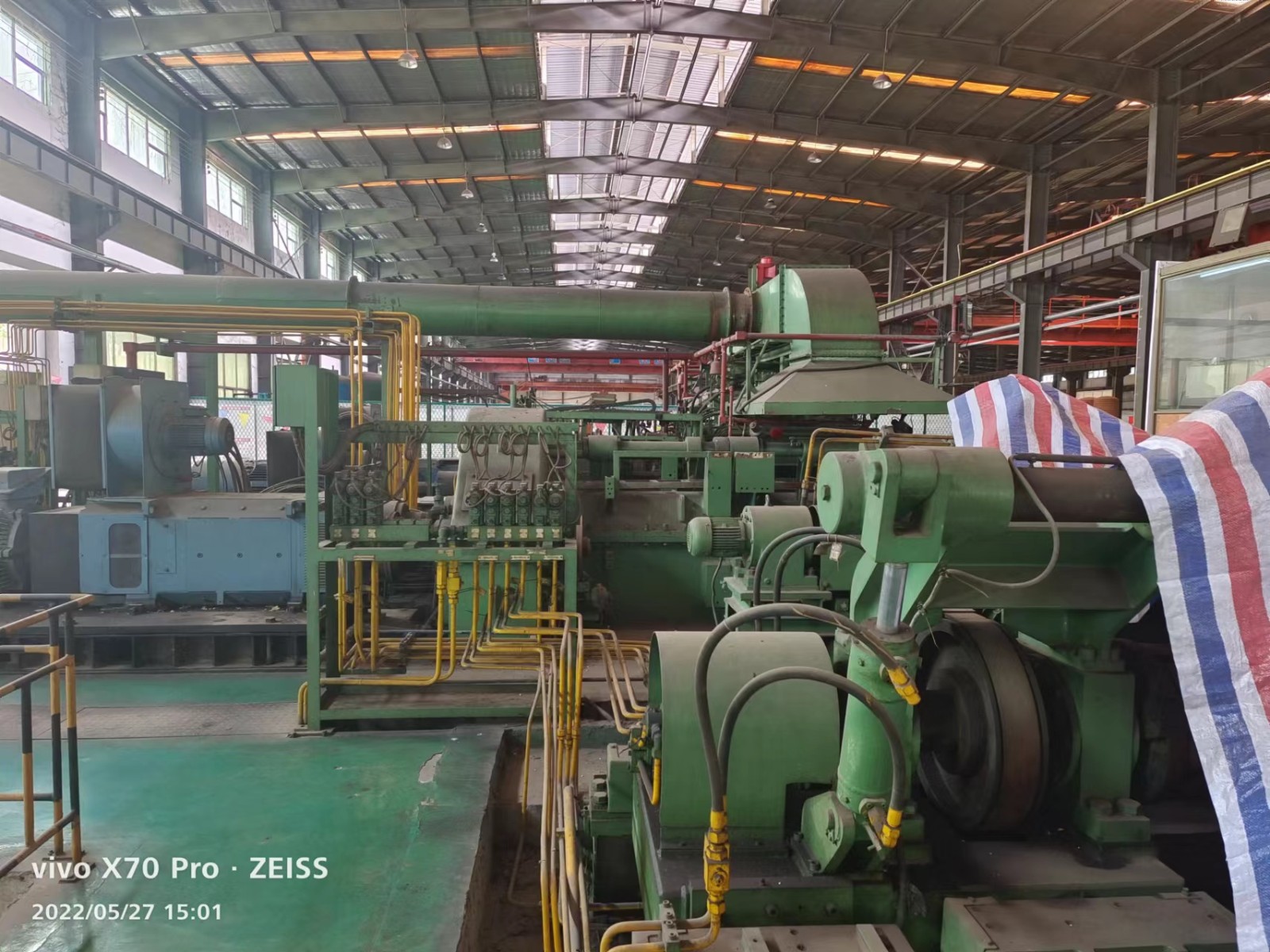

machine is made by VOLLMER, in 2001

max. coil width: 900mm

material: copper

input thickness: max. 3mm

output thickness: 0.06-0.2mm

coil width: max. 1080mm

coil ID: 510-600mm

coil OD: max. 1400mm

coil weight: max. 8 ton

work roll diameter: 40mm

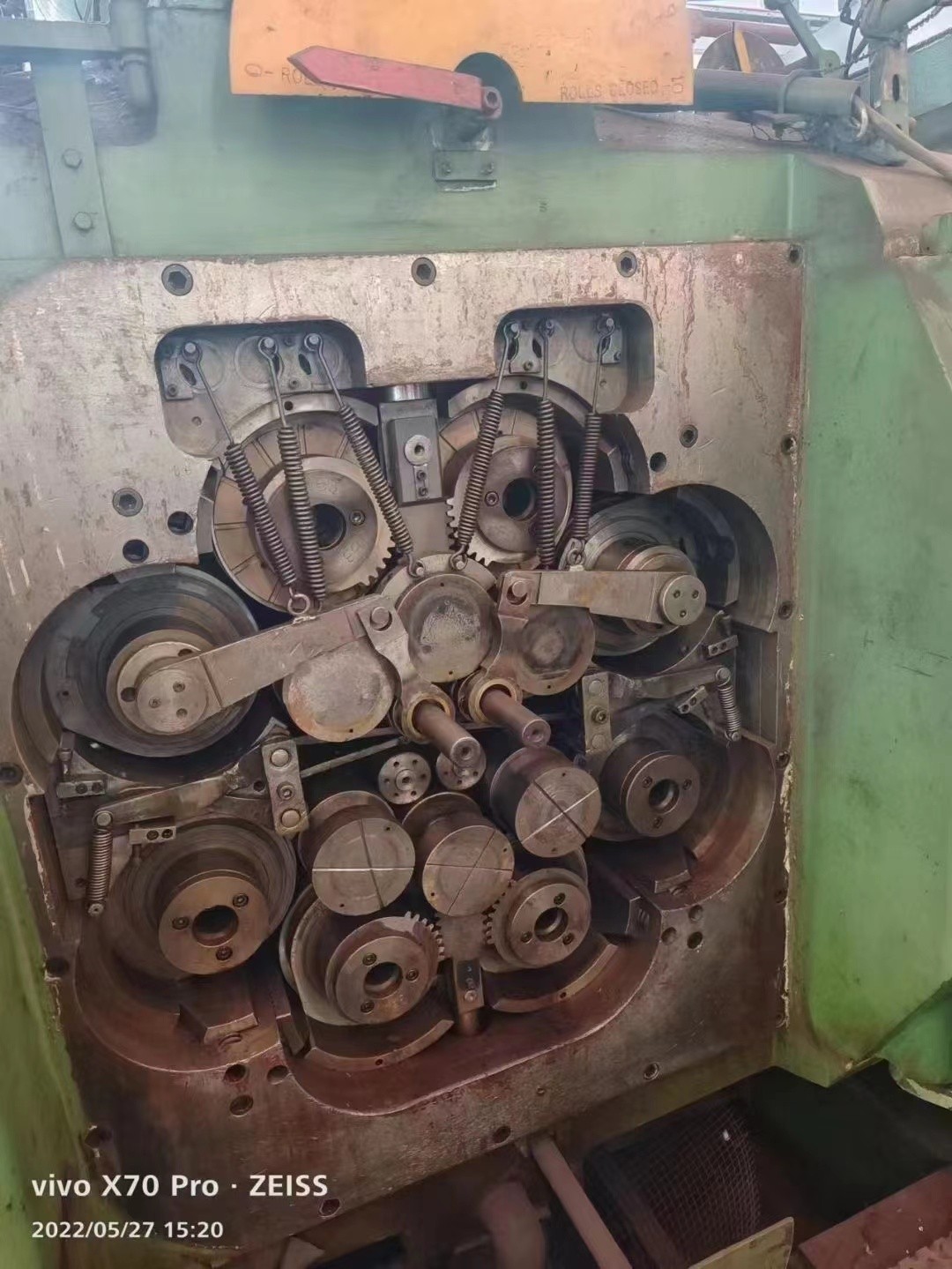

middle roll diameter: 78-127mm

driven roll diameter: 42-71mm

back up bearing quantity: 122 pcs / 56 pairs

rolling direction: from left to right

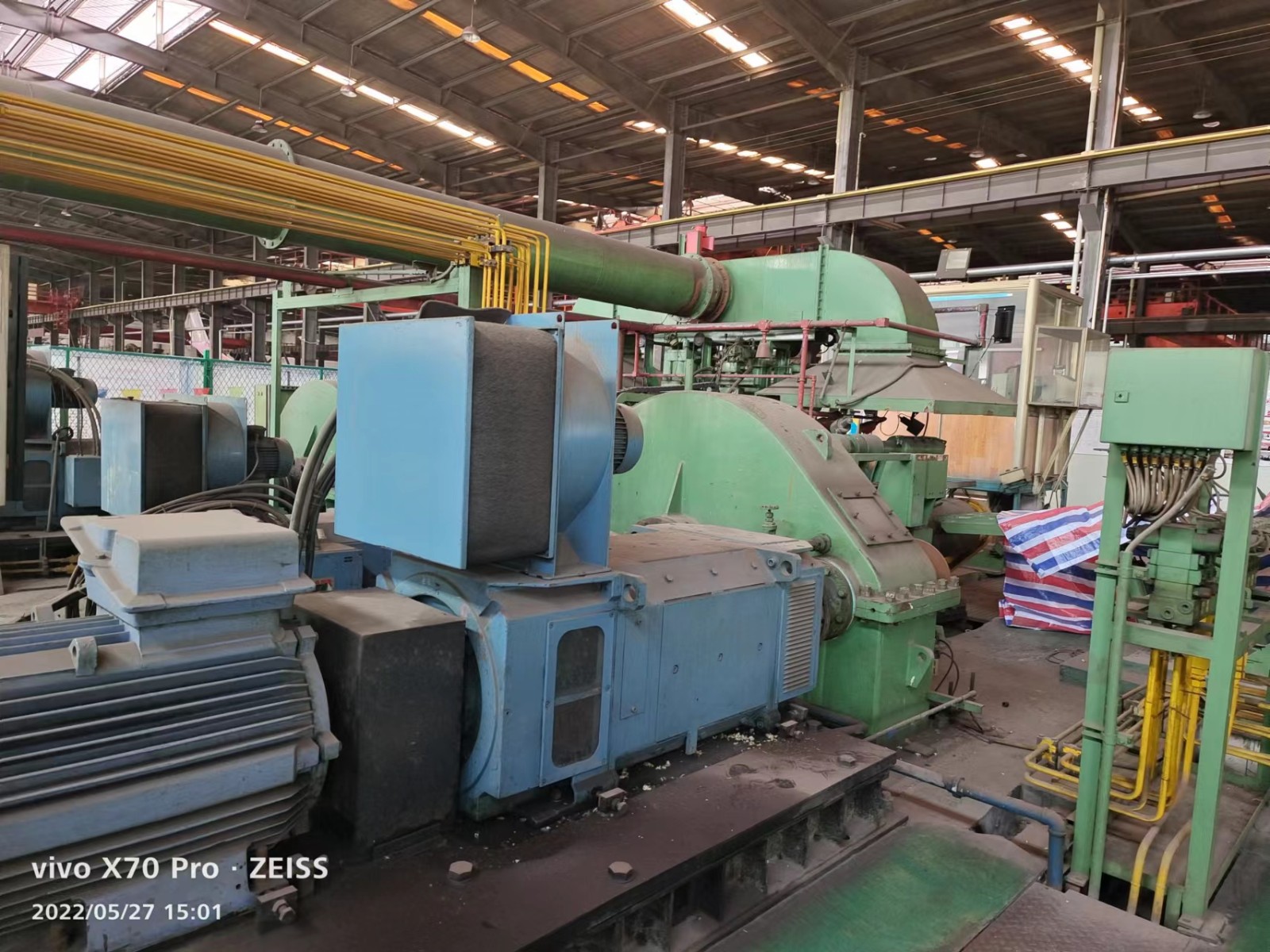

main motor power: ABB 440 KW

uncoiler motor: A) 300KW DC

                          B) 75KW AC

                          A) ABB 300KW DC

                          B) 75KW AC

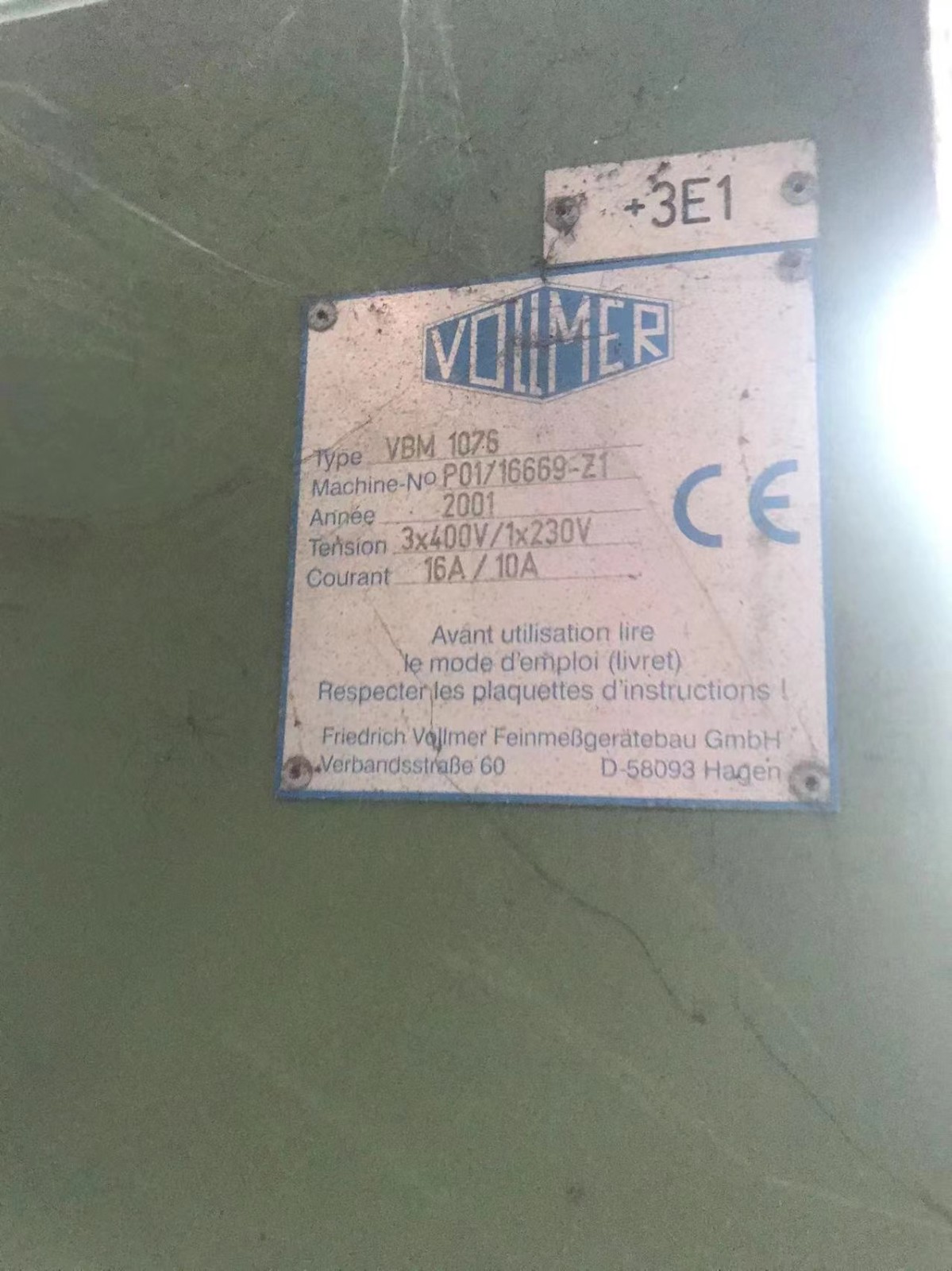

Vollmer VBM1076 thickness gauge

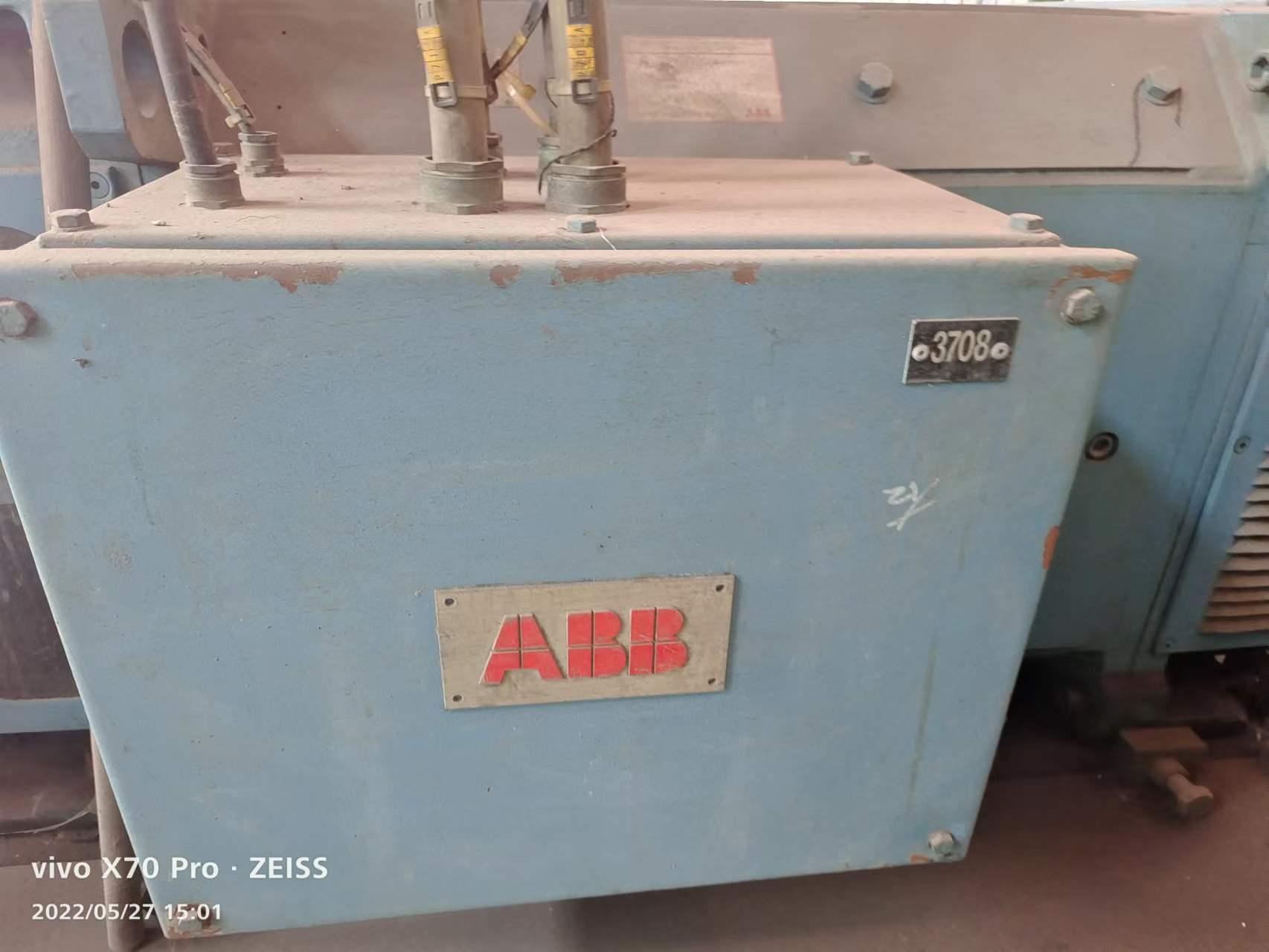

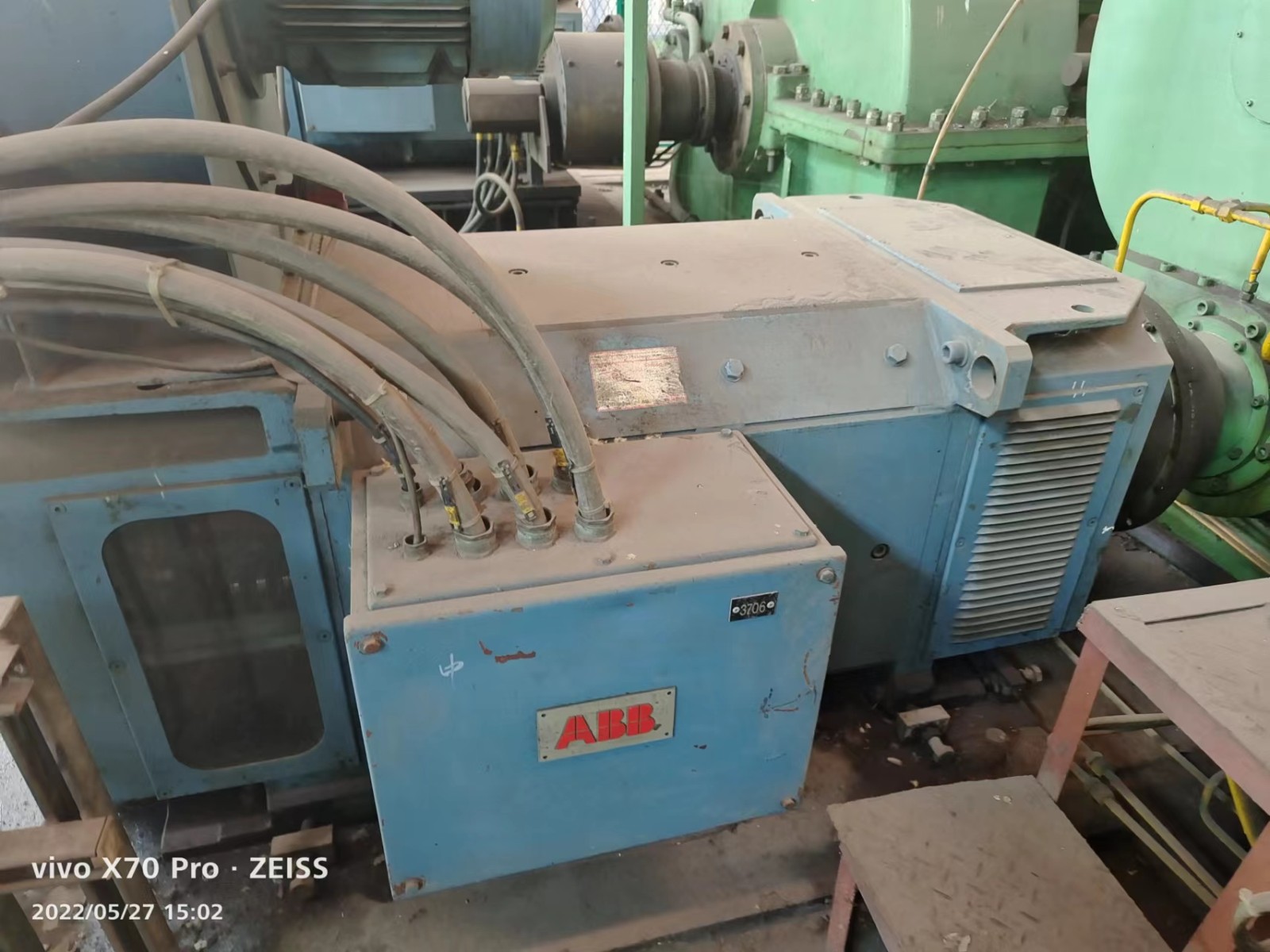

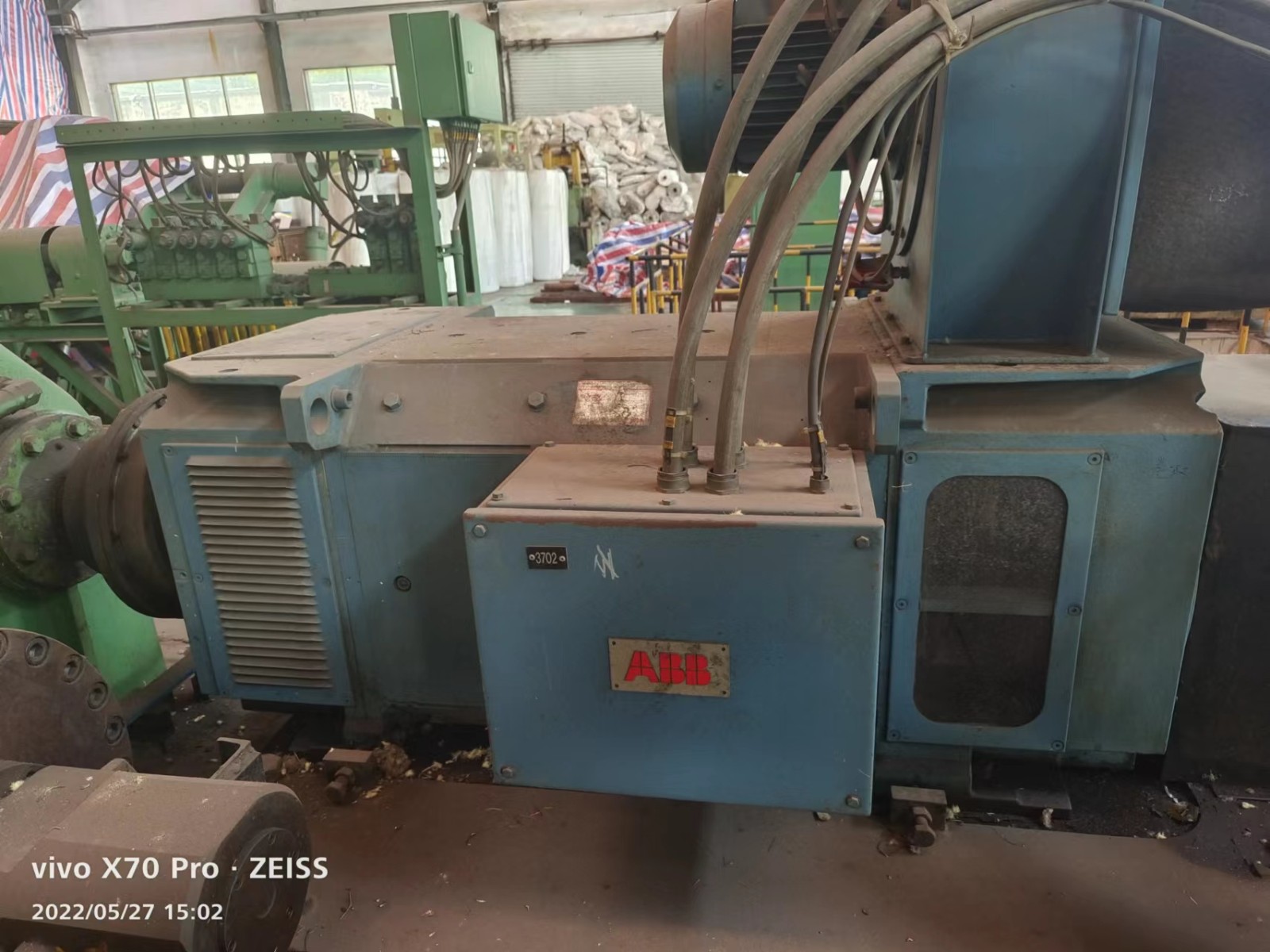

ABB motor: 2 pcs

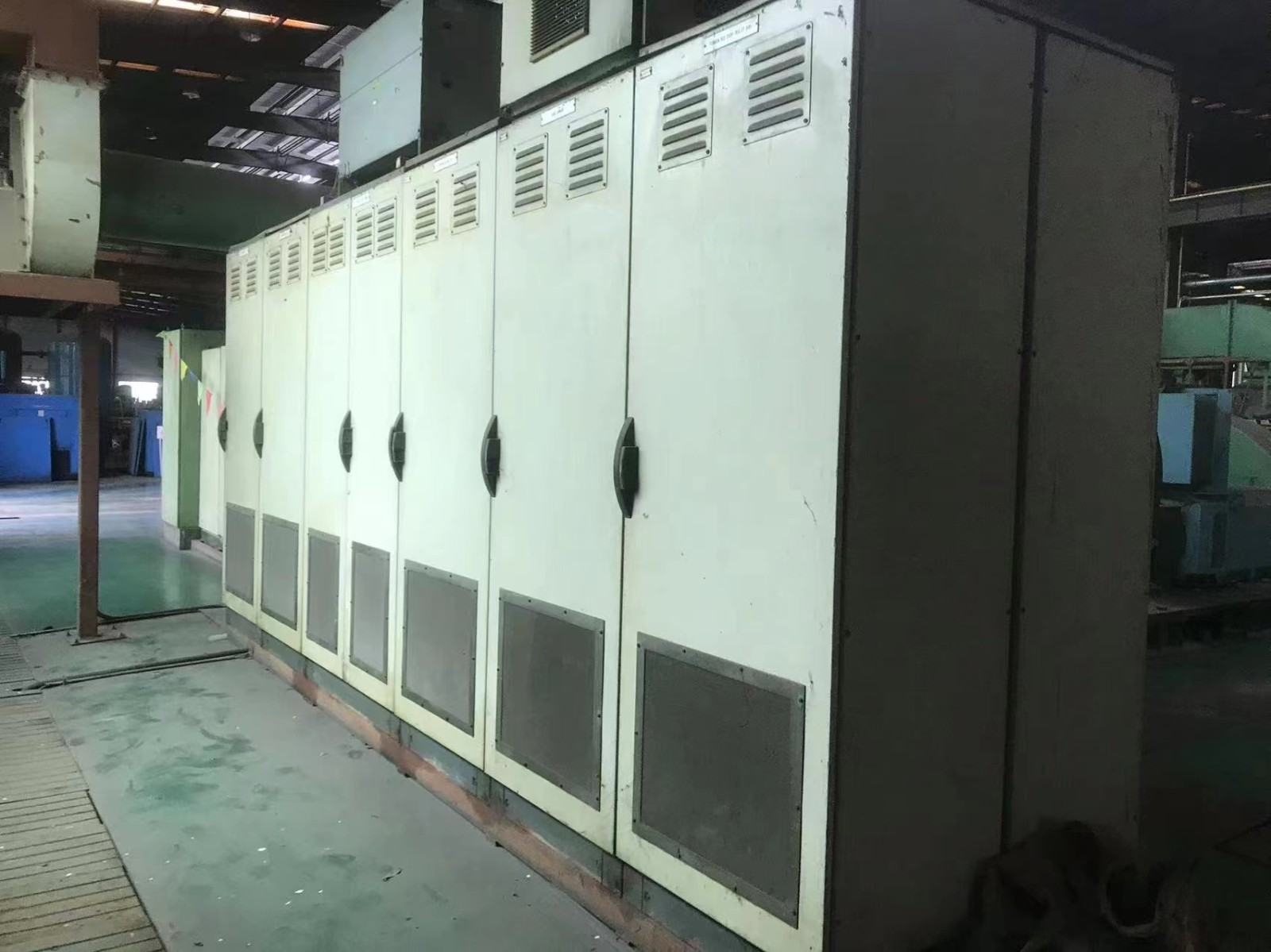

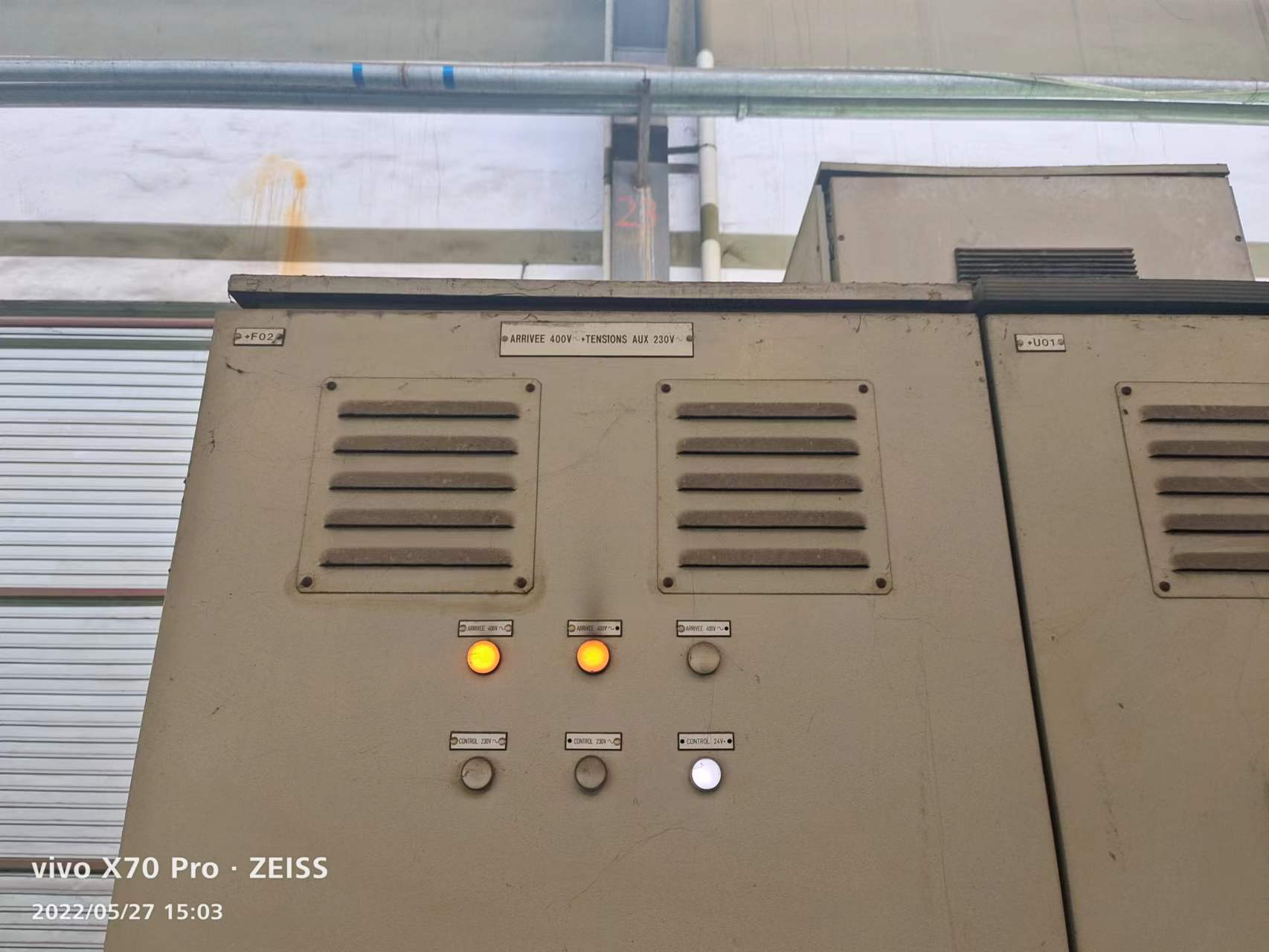

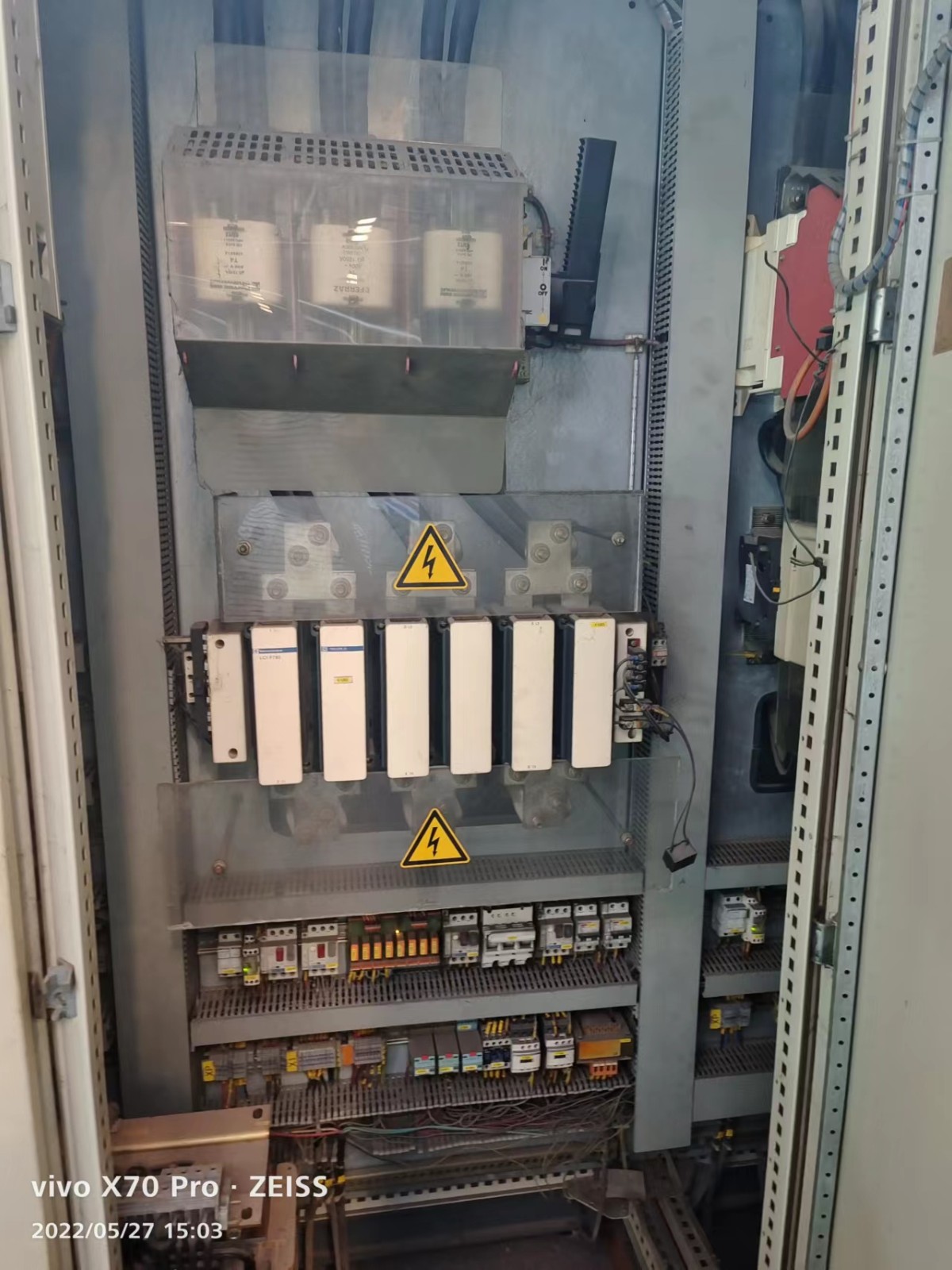

electric control system: 2 pcs

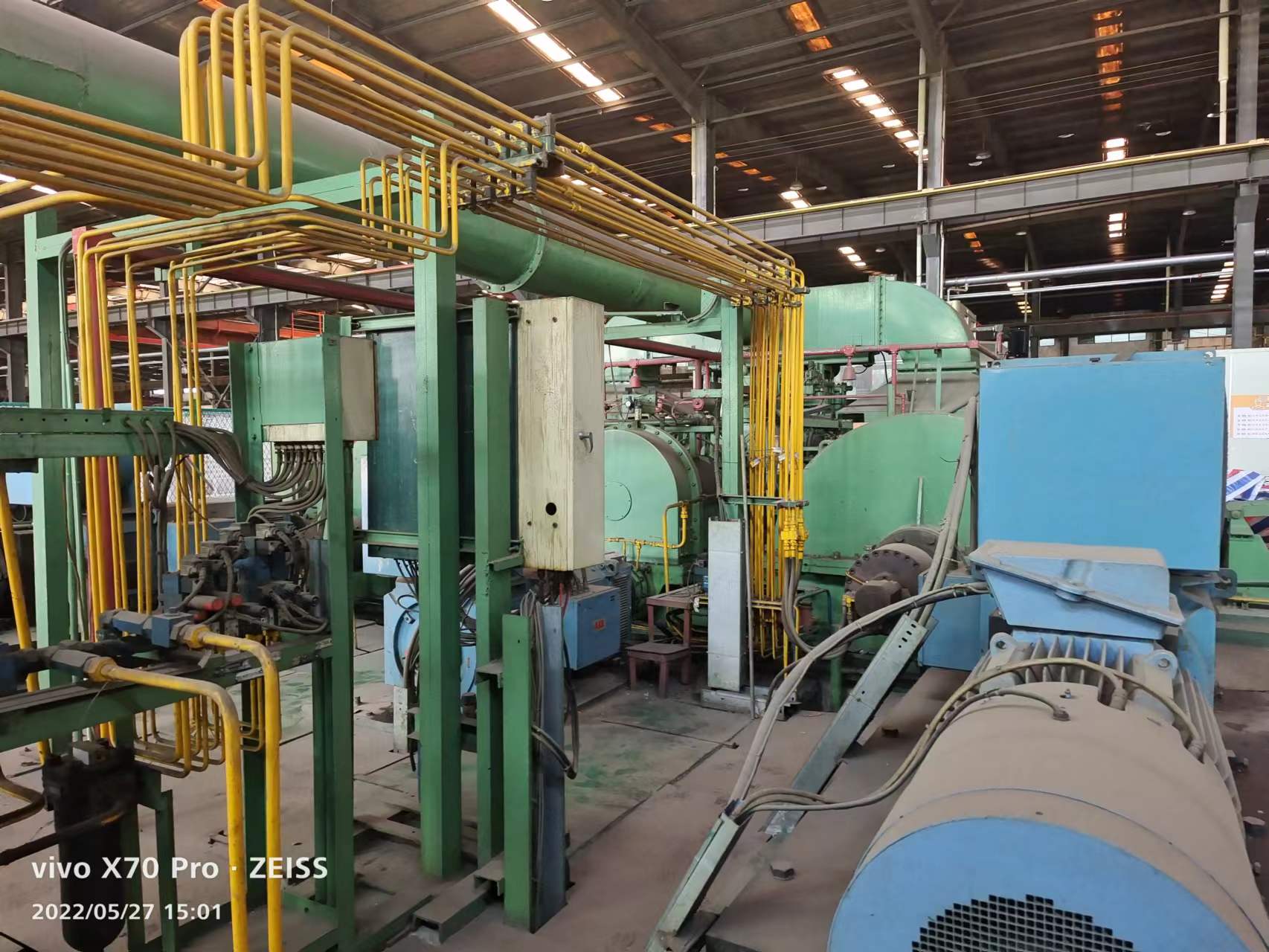

REXROTH hydraulic components

operation console
