used cold rolling mill

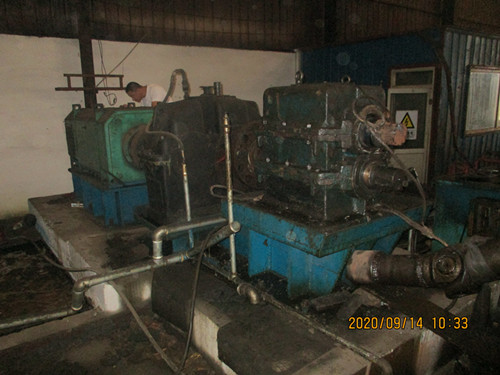

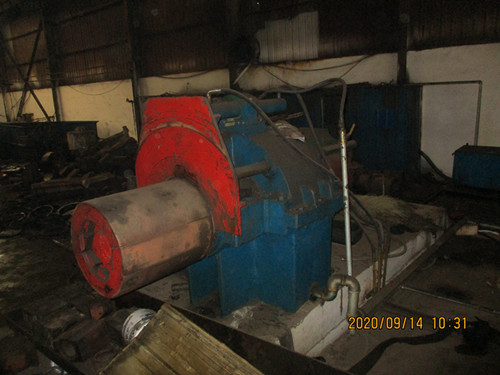

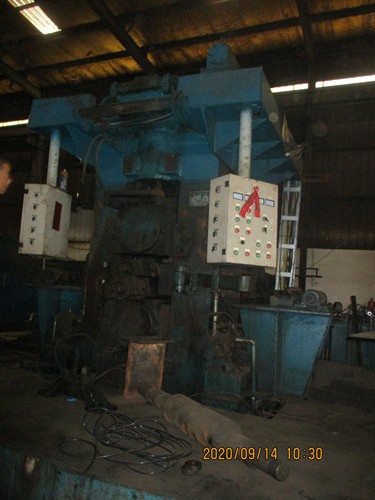

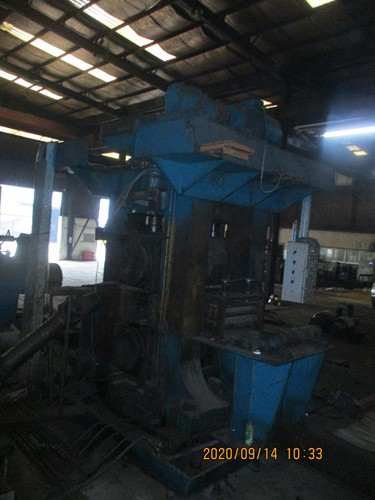

CR No.123 Used 400mm 4Hi Cold rolling mill
Used 400mm 4Hi Cold rolling mill.It was made in 2009.The written time is October 20,2020- product description
- Technical Parameters
4Hi reverse used cold rolling mill, model Ø460×460/Ø170×500
A. Technical parameters:
Material:mild steel
Max coil width：400mm
Coil ID: 508mm, max coil weight: 5t
Incoming thickness: max 3mm
Product min thickness:0.6mm
Max speed: 120m/min
Main rolling mill motor:DC 361KW
Coiler motor: 185KW
Pressing down,motor screw down
Driven by working rolls
Housing cross size: 350x250mm
Working roll diameter：170mm roll width：500mm
Back up roll diameter：460mm roll width：460mm
B:Scope of supply：
4Hi cold rolling mill
including mechanics
hydraulic and electric system
hydraulic station
thin oil tank
Exclude electric cables, cooling and oil pipes, thickness gauge, spare parts
