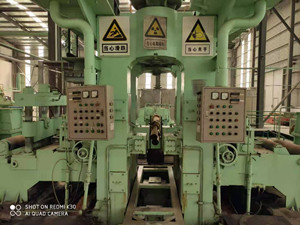

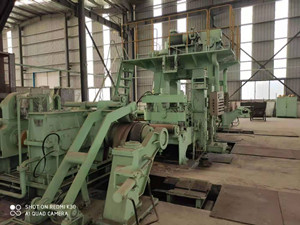

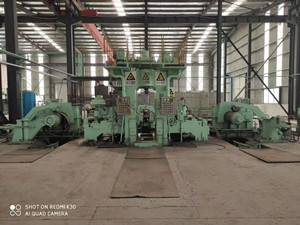

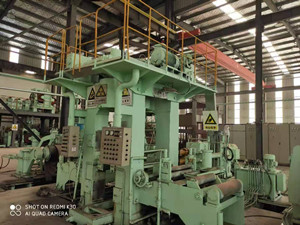

CR No.149 Used 5*550mm 4Hi Reversible Cold rolling mill
Used 5*550mm 4Hi Reversible Cold rolling mill.It was made in 2007 and online now.The written time is December 3,2020.
- product description
- Technical Parameters
Material:Mild steel
Material thickness:3-5mm
Product thickness:0.6-1.5mm
Coil width: Max 550mm
Coil ID:508mm
Coil OD:1700mm
Coil weight:Max 6000kg
Rolling force:6000KN
Coil tension:60KN
Max rolling speed: 180m/min
Main rolling mill motor:550KW
Recoiler motor:252KW
Working roll:diameter φ180*width 680mm
Back-up roll:diameter φ600*width 680mm
Electric press down
Drive by working roll
exclude thickness gauge
