Material:Mild steel,low alloy steel  (SPCC,Q195LD,Q195,Q215,Q235,Q345,20#)

Tension strength:610MPa(20#steel)

Yield strength:360MPa(20#steel)

Raw material parameters:

Thickness 1.8-4.0mm

Coil width: 700-1300mm

Coil ID:610mm

Coil OD:900-2000mm

Max coil weight:24t

Product parameters:

Thickness:0.2-1.25mm

Coil width:700-1300mm

Max coil weight:24tons

Coil ID:610mm

Coil OD:900-2000mm

Max rolling force 20000KN

Max rolling torque:135KNM

Max rolling speed:900m/min

Threading speed:30m/min

Max uncoiler speed:300m/min

Max coiler speed:960m/min

Uncoiler tension:6-60KN

Coiler tension:6.75-67.5KN( 1 motor); 13.5-135KN(2 motors)

Working roll specifications: φ425/φ385×1480 mm

Intermediate roll specifications:φ490 /φ440×1480mm

Back-up roll specifications: φ1300/φ1200×1450mm

Uncoiler drum diameter: φ630/φ570mm

Coiler drum diameter: φ610/φ590mm

Frame column section:65*78=5070cm2

Max opening of working roll: 20mm

Work roll bending force (single side positive / negative): 360/200KN

Single side bending force of intermediate roll: 400KN

Intermediate roll lateral displacement:350mm

Roll bending traverse: 25MPa

General hydraulic drive: 14MPa

AGC pressing down:28MPa

Main mill motor:Z560-5AP   N=1200KW,   n=380/890      4sets

Uncoiler motor:Z450-2    N=332KW,   n=361/1200        1set

Left coiler motor:Z560-5A   N=950KW,  n=380/1140        2sets

Right coiler motor:Z560-5A   N=950KW,  n=380/1140      2sets

Scope of supply

Coil car

Uncoiler

coil opener

Left coiler

Left discharging car

Front guard device

Thickness gauge stand

 thickness gauge (except radiation sources)

Front pressing table

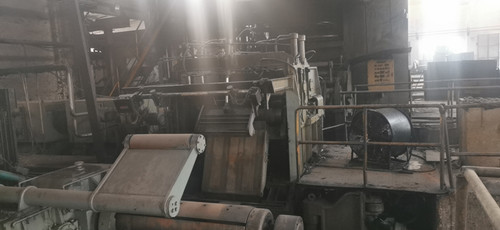

one stand 6-Hi main reverse cold rolling mill

Rear pressing table

Rear guide device

Right coiler

Right coil discharging car

Backup roll changing device

Work roll and intermediate roll changing device

Gear Box

Motor coupling

Upper sleeve device

Hydraulic system

lubrication system

Cooling system

Electrical control system (with DC Motors)
