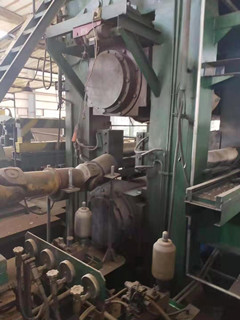

1250mm AGC 4Hi Skin Pass

Coil width is max 1250mm

Coil inner diameter is 508-520mm

Coil outer diameter is max 2200mm

Back-up roll diameter is 850mm

Working roll diameter is 420mm

Roll surface is 1400mm

Arch size is 420x520mm

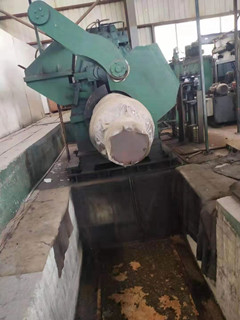

Left uncoiler motor is 225KW

Left up roll motor is 315KW

Left bottom roll motor is 110KW

Main machine motor is 480kw

Right up roll motor is 315KW

Right bottom roll motor is 110KW

Recoiler motor is 400KW

Rolling pressure is 8000kN

Rolling speed is max 240m/min

Max coil weight is approximately 20t
