used cold rolling mill

Your current location:首页 > Products > used cold rolling mill > 2012 650mm 4hi reverse cold rolling mill ss

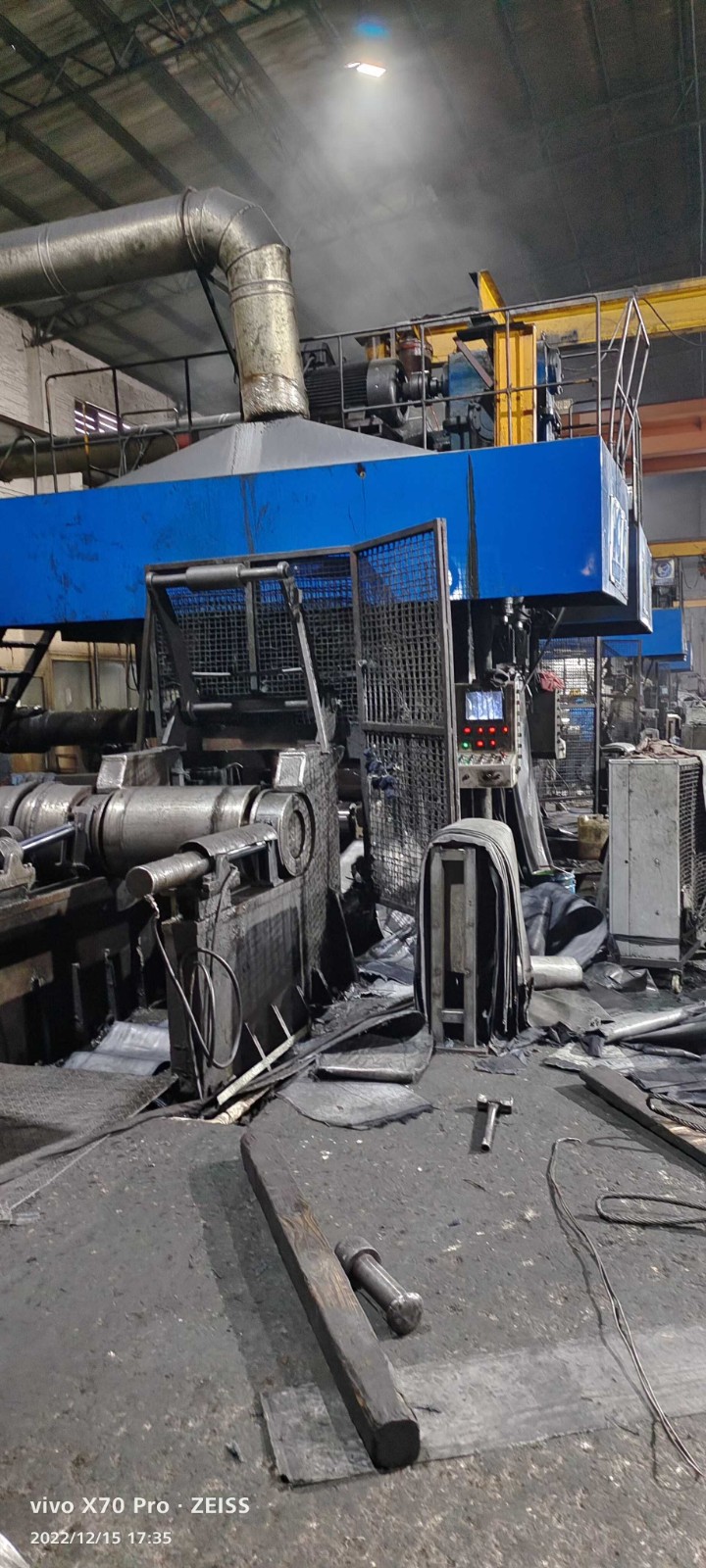

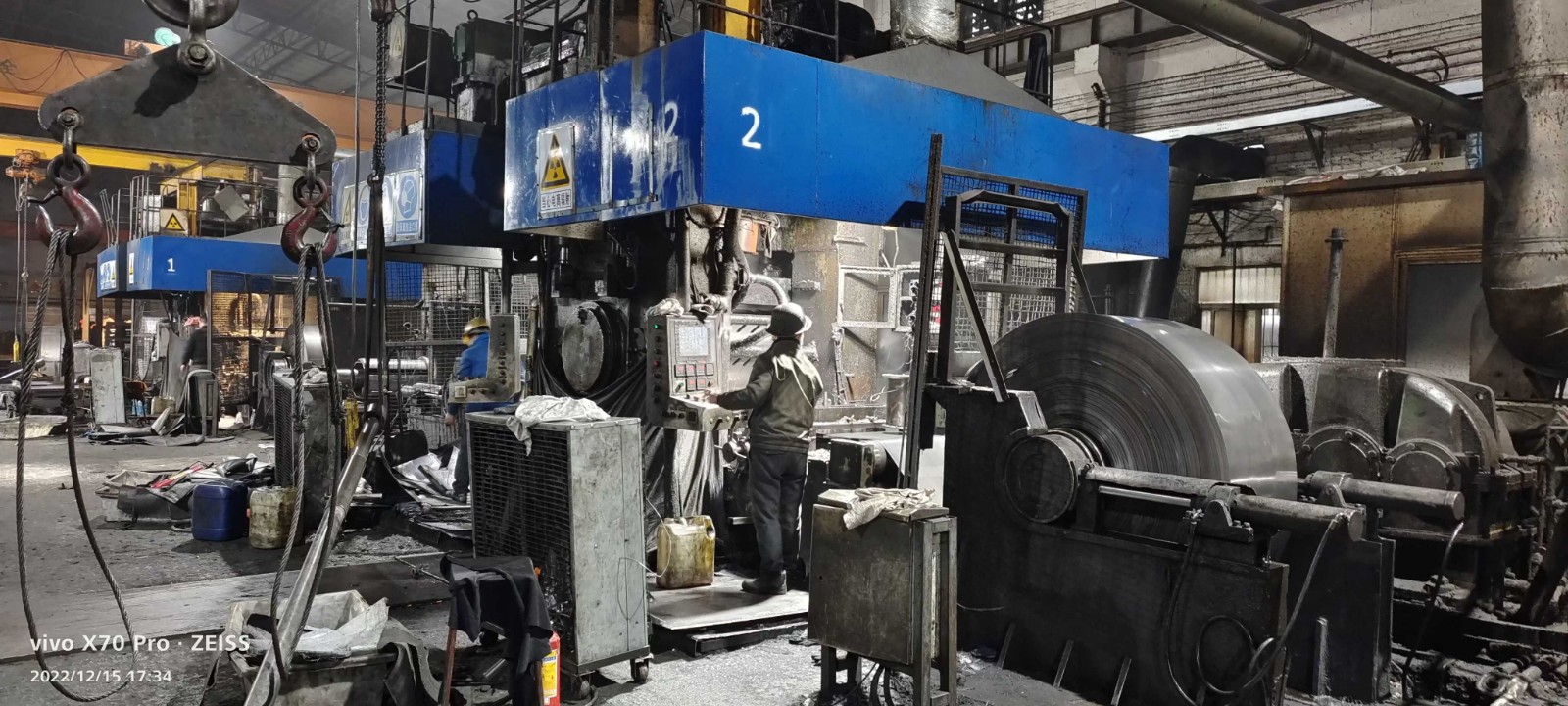

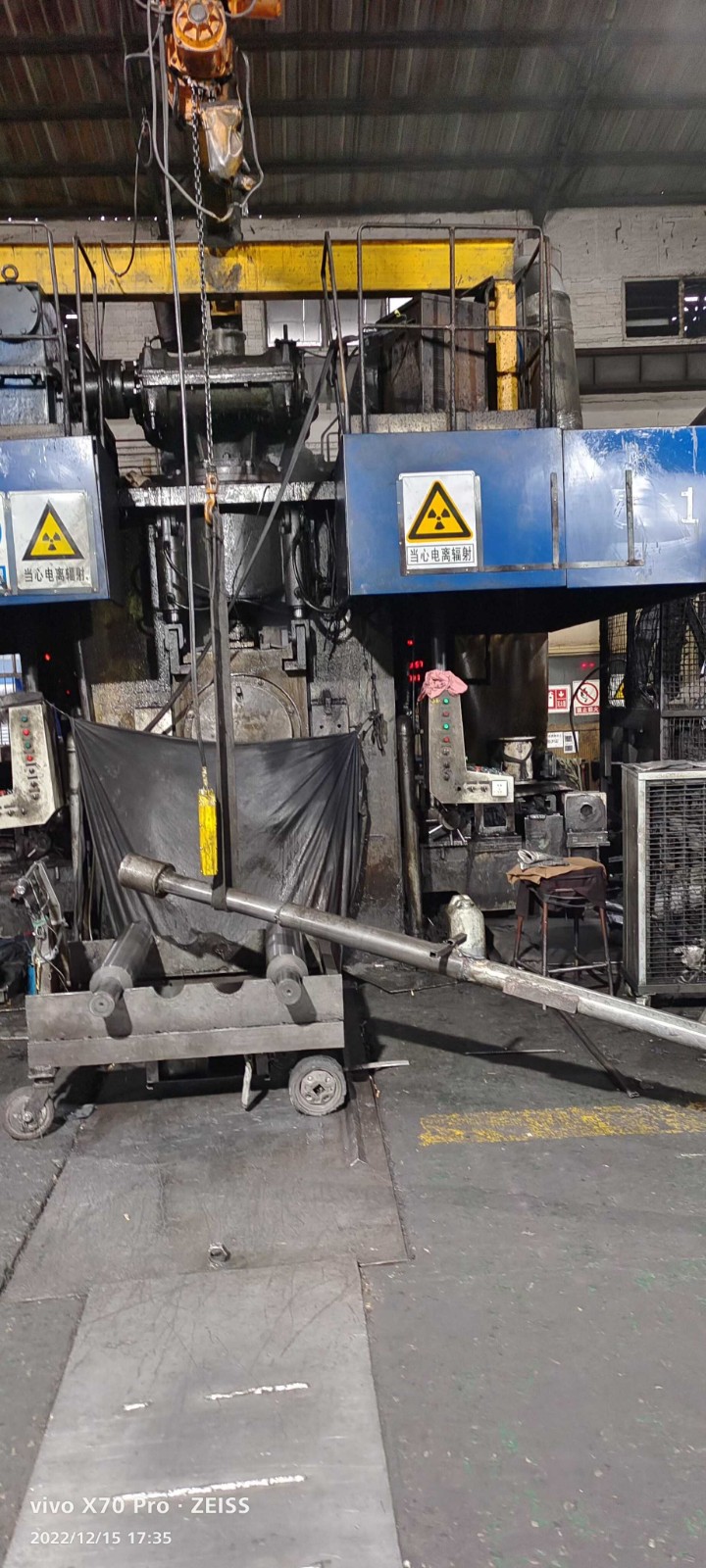

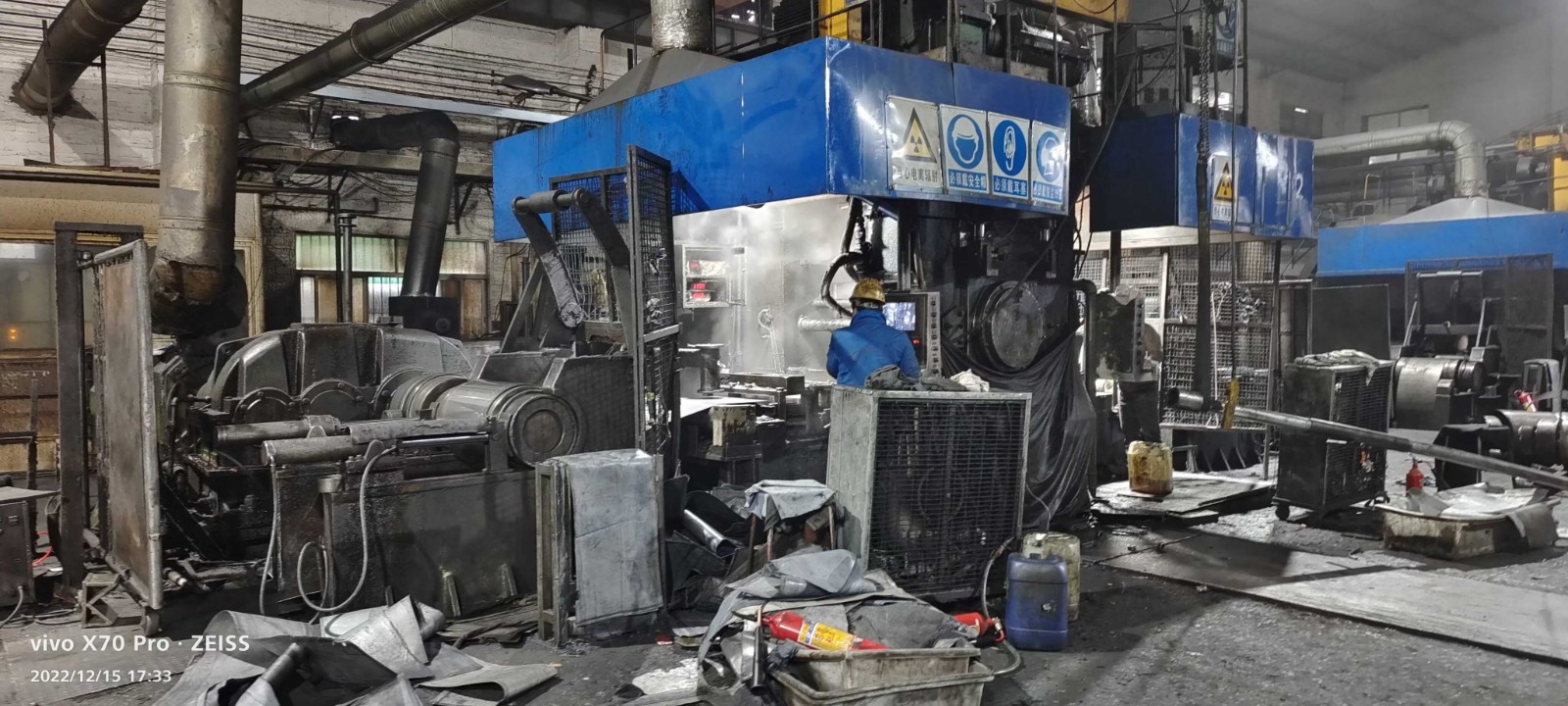

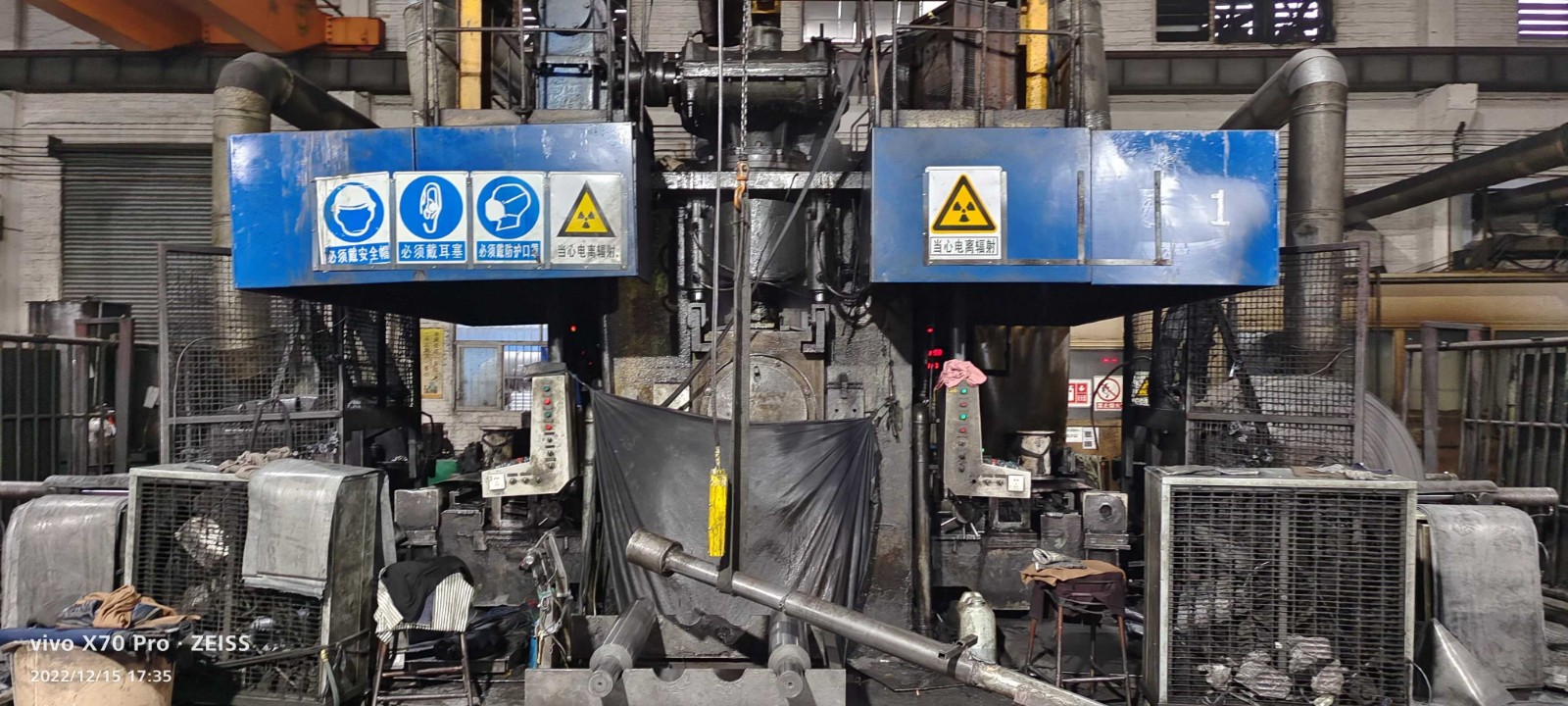

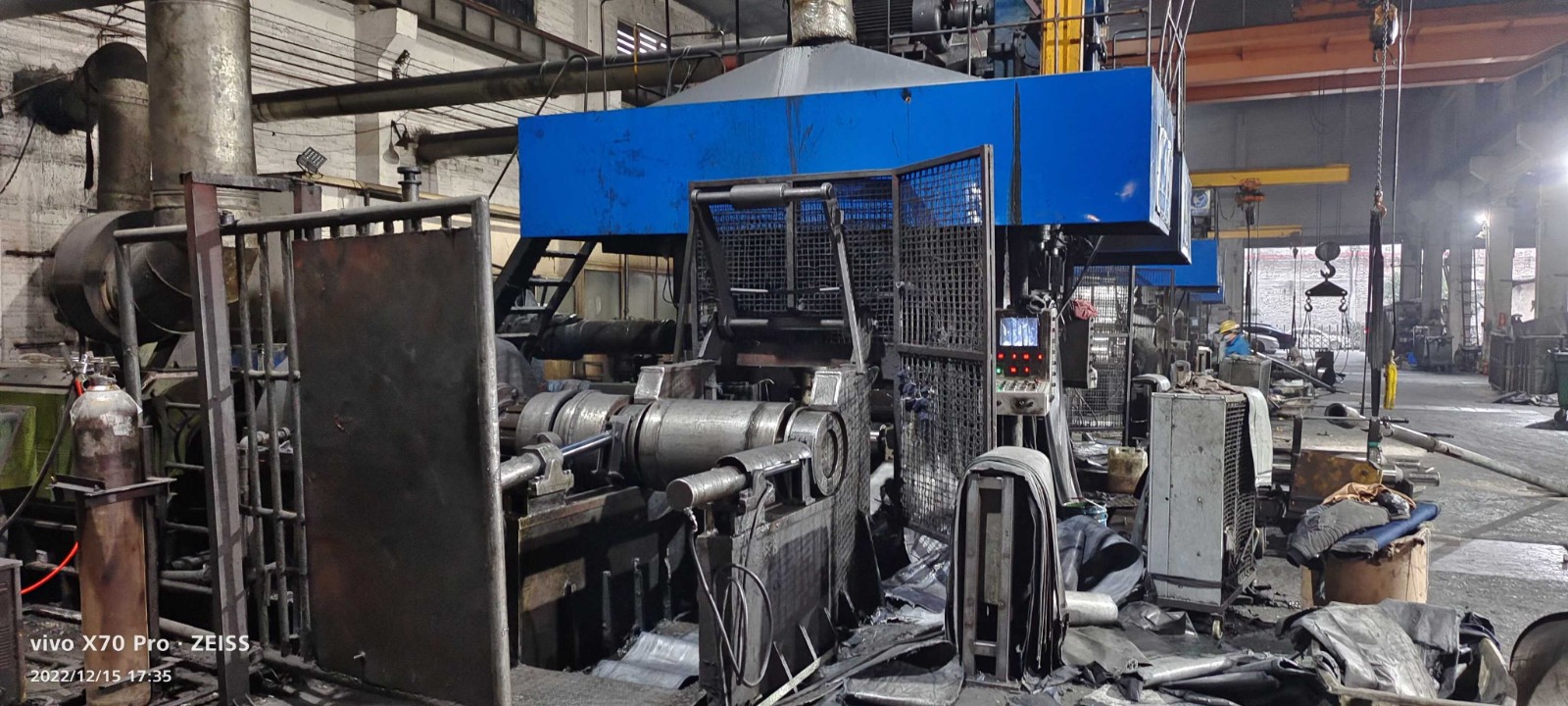

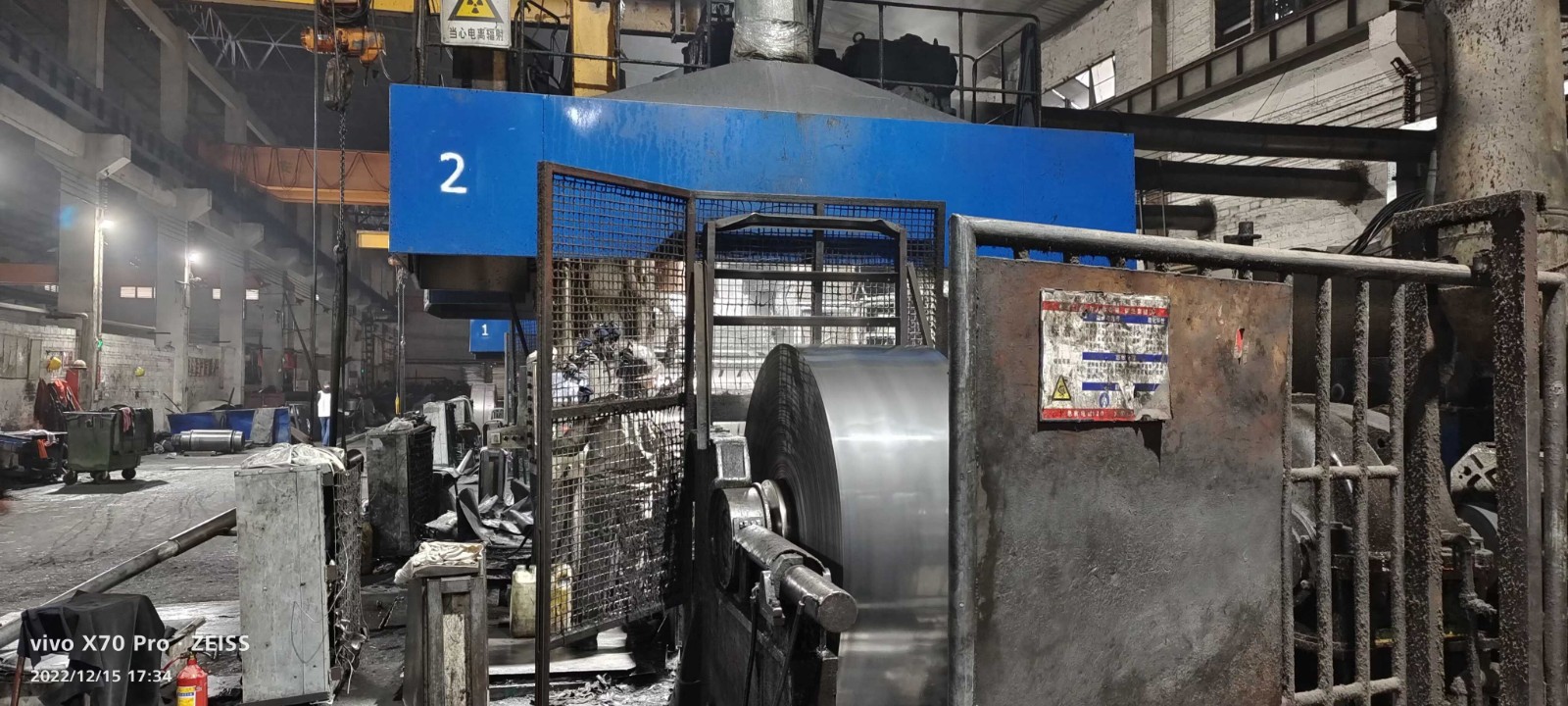

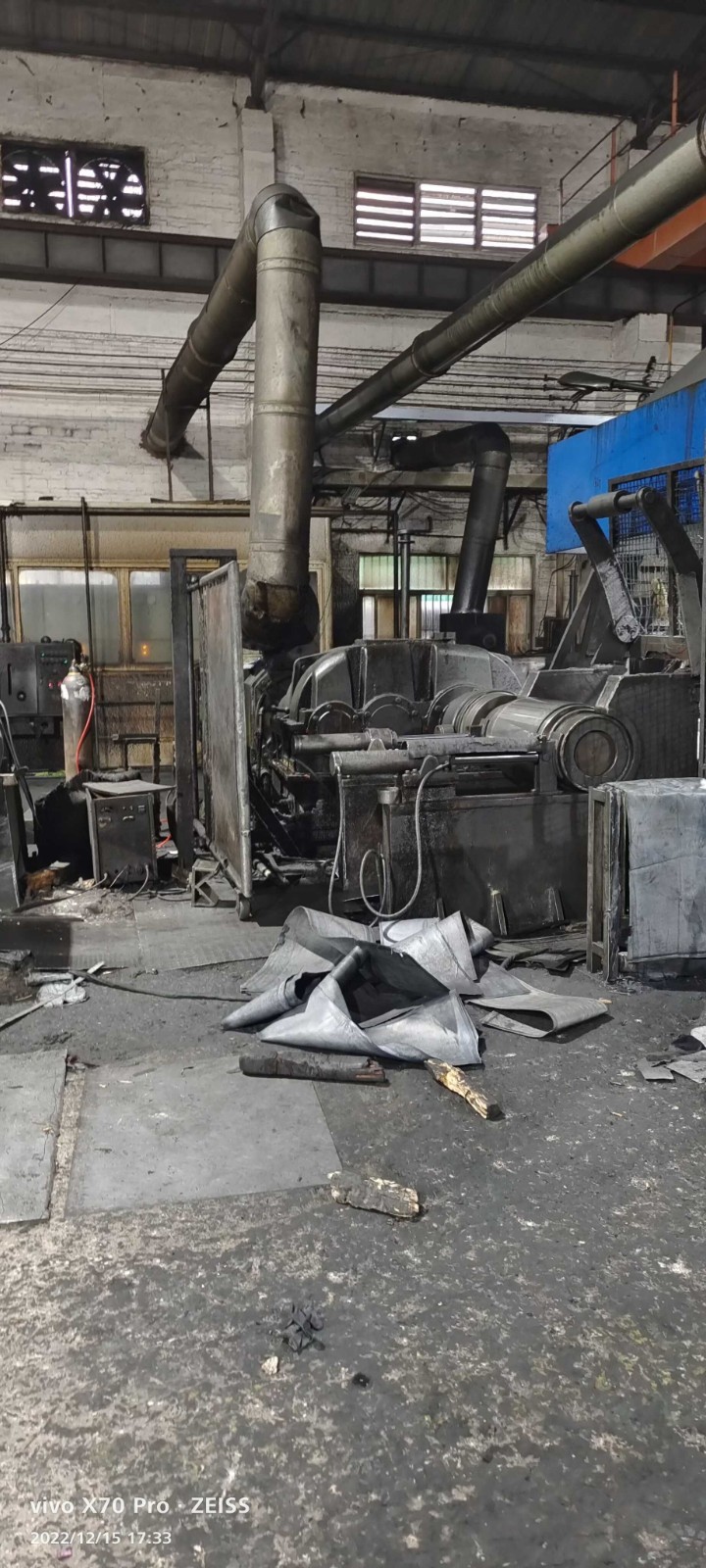

2012 650mm 4hi reverse cold rolling mill ss

Stock No.: 481, it is written on February 17, 2023
  • product description
  • Technical Parameters

machine is made in 2012

material: stainless steel 304, 202, 201, 430

input thickness: 2.5-3.0mm

output thickness: min. 0.25mm

output coil width: max. 650mm

total area for this machine: 12500×15100mm

main motor power: 750kw

recoiler motor power: 430kw

max. rolling force: 7,000kN

max. recoiling tension: 120kN

line speed: max. 180m/min

work roll size: OD165×750mm

back up roll size: OD680×750mm

machine total weight: approx. 150-160 ton

machine is dismantle
