Scope of supply:

Feeding device One set

Hydraulic expanding and zooming uncoiler One set

Shearing machine One set

Welding table and Welder One set (Welder is provided by customer)

Roller table One set

Pinching and leveler One set

Horizontal disc accumulator(Provided by user)  One set

Feeding process table  One set

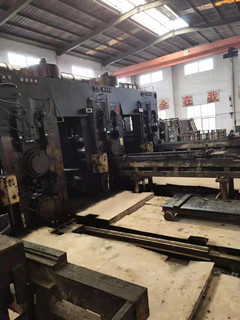

Four Hi roll Mill(Including driving part)  Three sets

Six Hi rolling mills Two sets

Roll changing device  Five sets

Run-out process table  One set

Hydraulic quadrangular cone recoiler One set

Electric control system One set

Thin oil station One set

Hydraulic stations (Including AGC) Six sets

Parameters:

Material: Mild steel Q195-Q235

Raw material thickness: Max 2.75mm

 Max coil width 1000mm

Product thickness：Min 0.3mm

Max coil diameter: φ 508 / φ 1800mm

Max coil weight: 18000kg

Max rolling force: 10000kN

Rolling speed: Max 200m/min

Total weight:>2,500 tons
