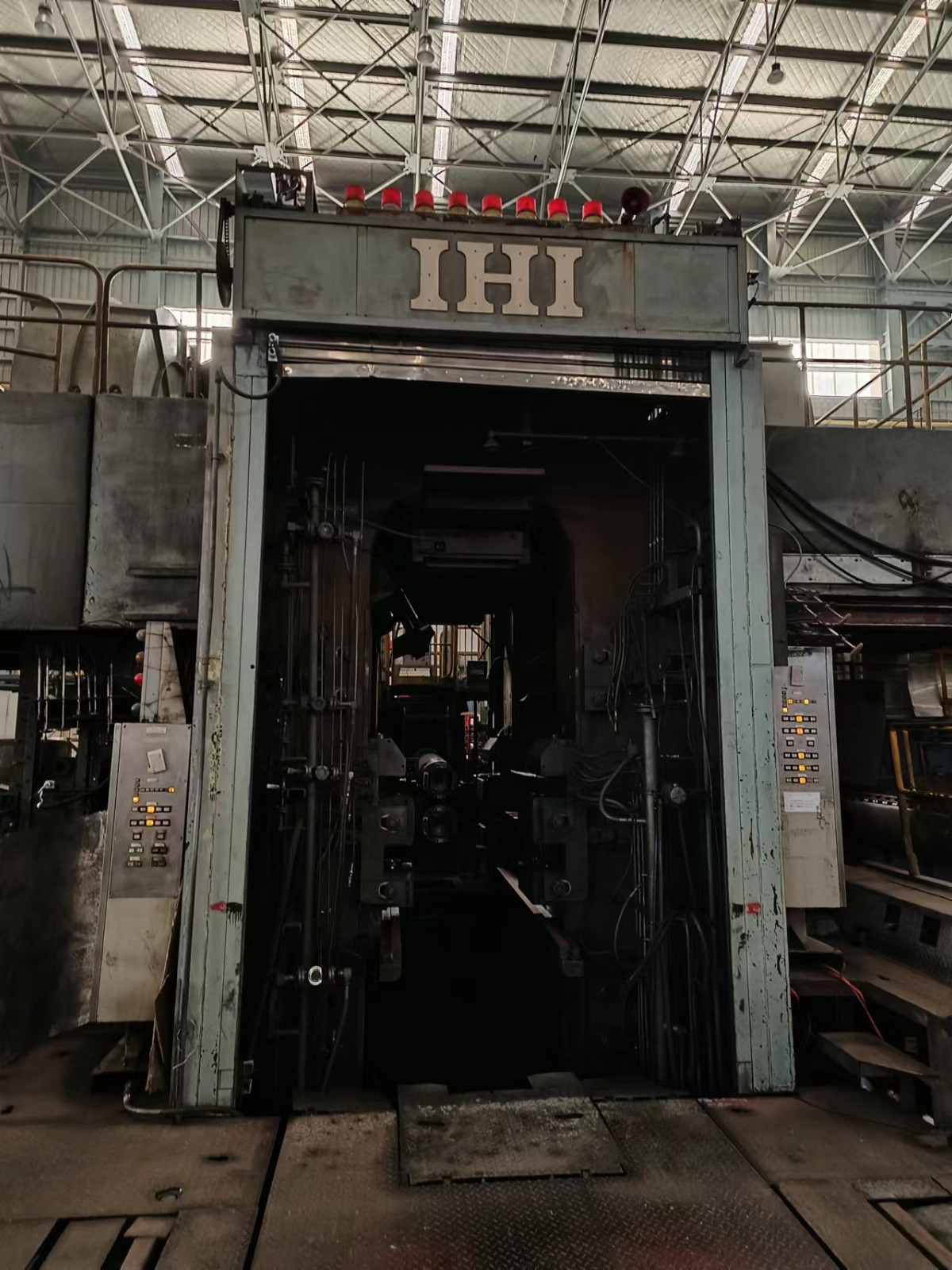

2004 1700mm 4hi cold rolling mill IHI
it is written on November 17, 2022. stock No.: 440- product description
- Technical Parameters
Machine is made in 2004
Put into production in March, 2005

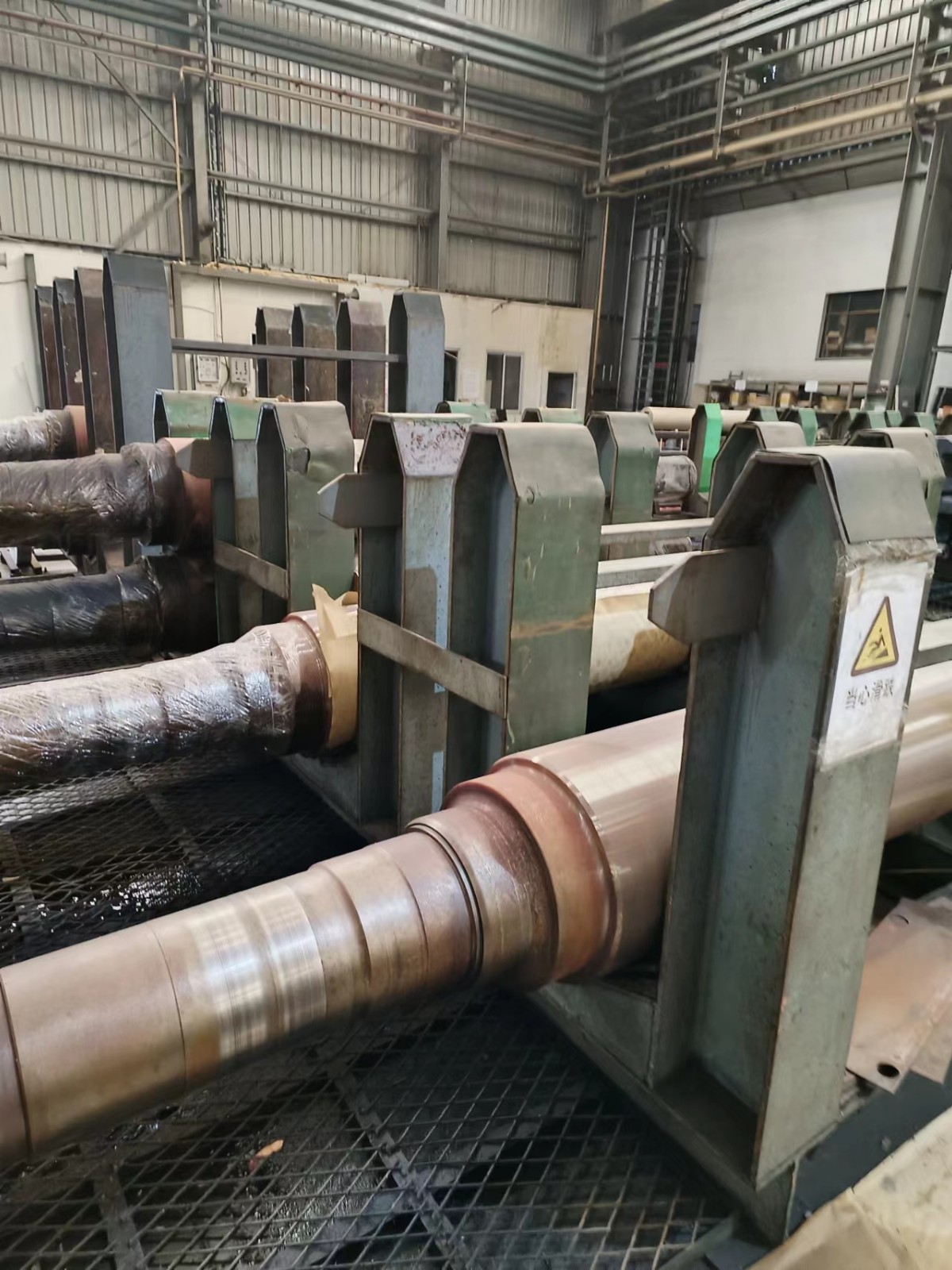

Work roll: Φ470×1850mm

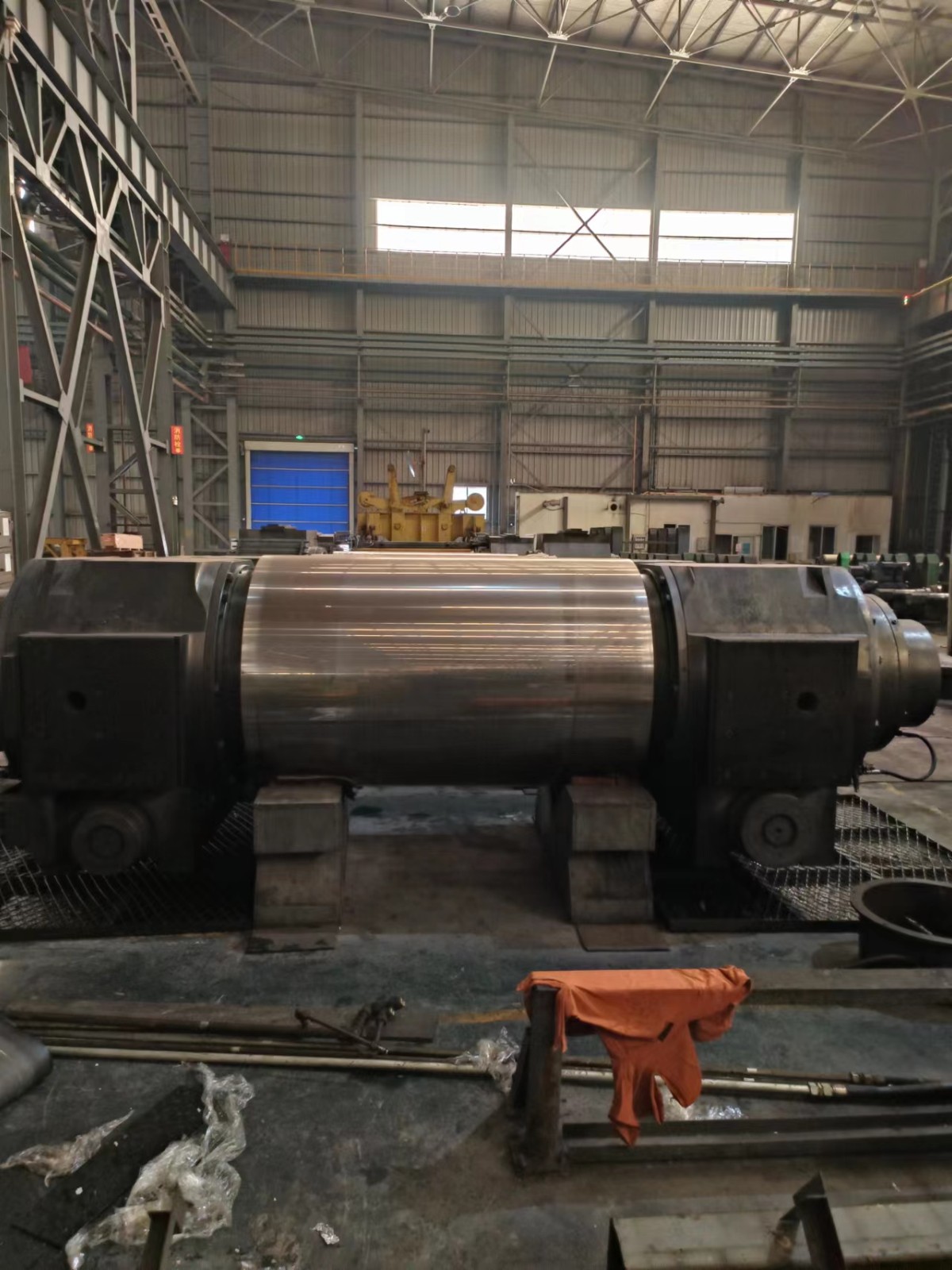

Back up roll: Φ1220×1800mm
Coil OD: max. 2100
Coil weight: max. 14,500KG
Input thickness: max. 8mm
Input width: max. 1700mm
Output thickness: 0.1-7.0mm
Output coil width: 800-1700mm
Output coil ID/OD: 610/2100mm
