1 Material specifications

Material:Mild steel

Thickness:1.5-4.0mm

Width:900-1150mm

Coil weight:Max 20t

Coil ID:φ610mm

Coil OD:Max φ2100 mm

2 Products specifications

Coil thickness:0.3-1.0 mm

Coil width: Max. 1150mm

Coil ID:φ510mm

Coil OD:Max φ2000mm

Coil weight:Max 20T

3 Main unit technical specifications

Max rolling pressure:1000 ton

Threading speed:Max 30m/min

Speed: Max. 500m/min

Uncoiler tension:Max 60 KN

Recoil tension:Max 160KN

Working roll specifications:φ255*1380*2926mm,

Intermediate roll specifications:φ330*1270*2904mm

Backing-up roll specifications:φ960*1280*2970mm

Backing-up roll bearing model: 114156550

Working roll bending force(Unilateral positive/negative):350/210KN

Intermediate roll unilateral bending force:350KN

Intermediate roll transverse displacement:200mm

Main rolling mill motor power:1150kw x2 DC motors

Coiler :630kwx2x2 DC motors

Uncoiler:330kw x1 DC motor

Total machine weight: Approximate 600tons

Scope of supply:

uncoiler

Coil car

Head leveler

left coiler

Upper unloading device

Front device(left)

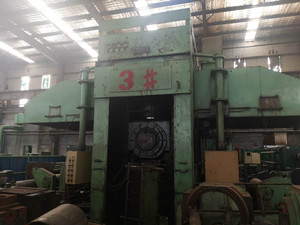

1150mm 6Hi reversible cold rolling mill

Rear device(right)

Right coiler

Upper unloading device

Coiler aid

Supporting roll change system

Fluid equipment

Electrical instrument system
