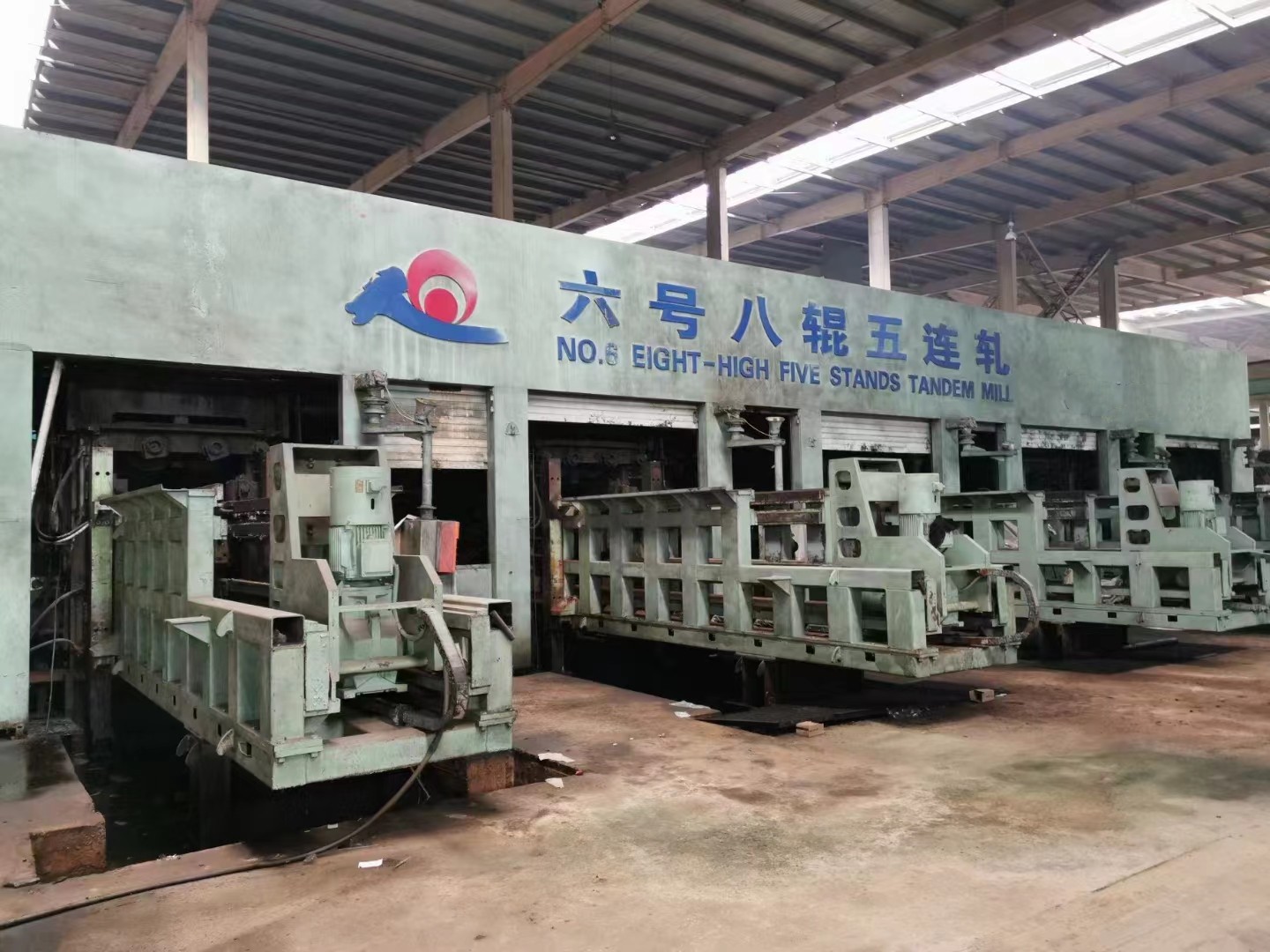

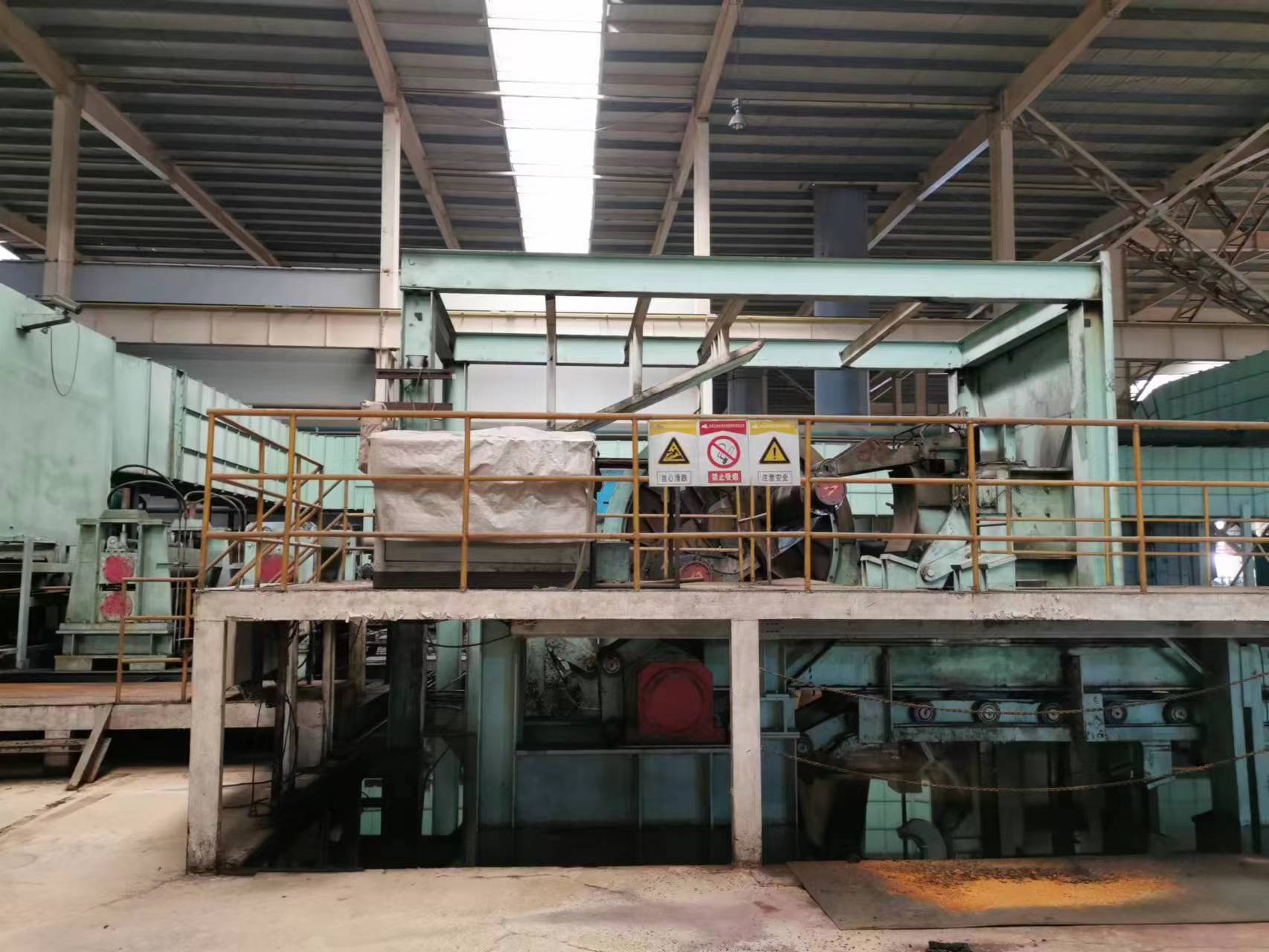

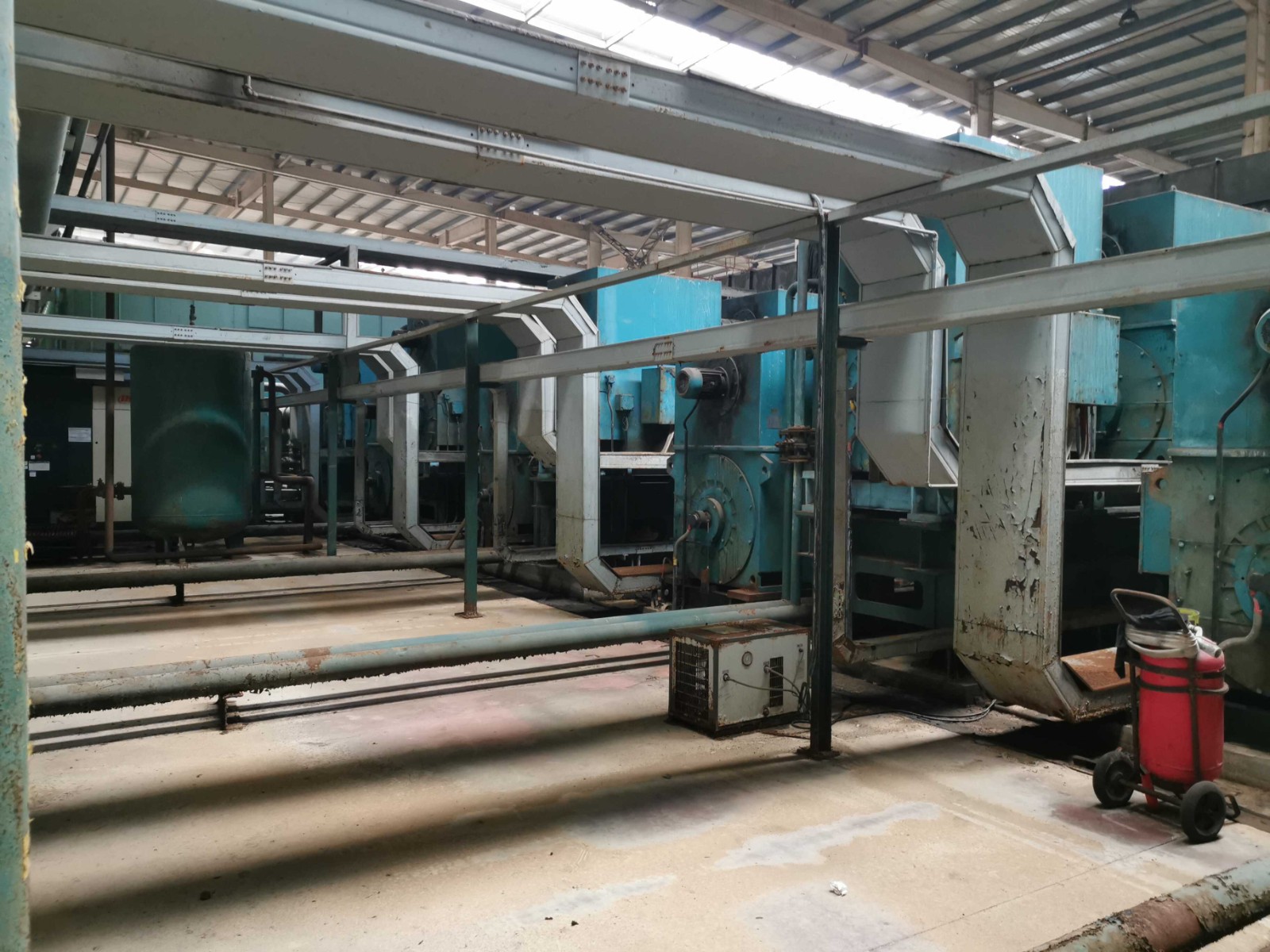

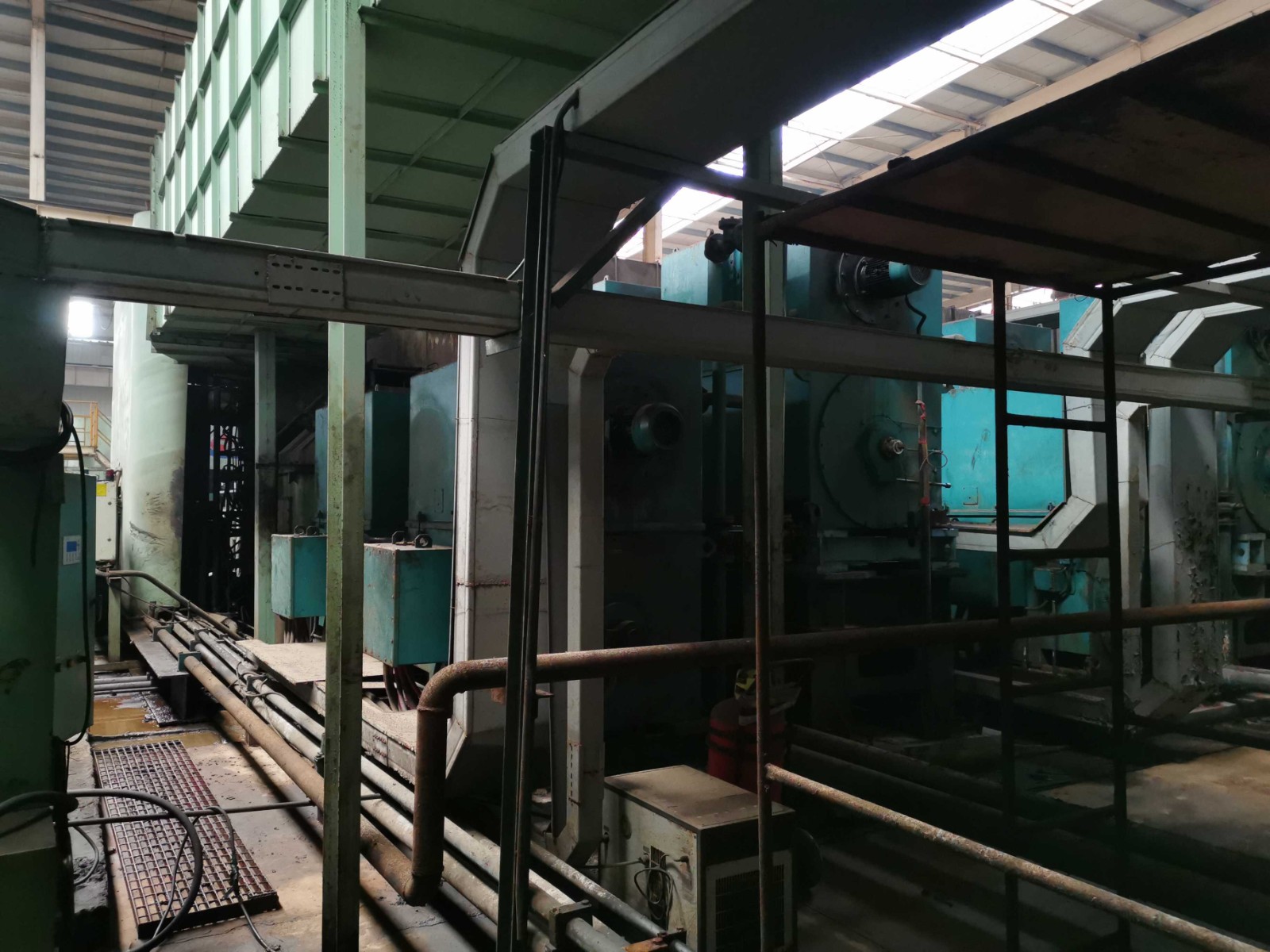

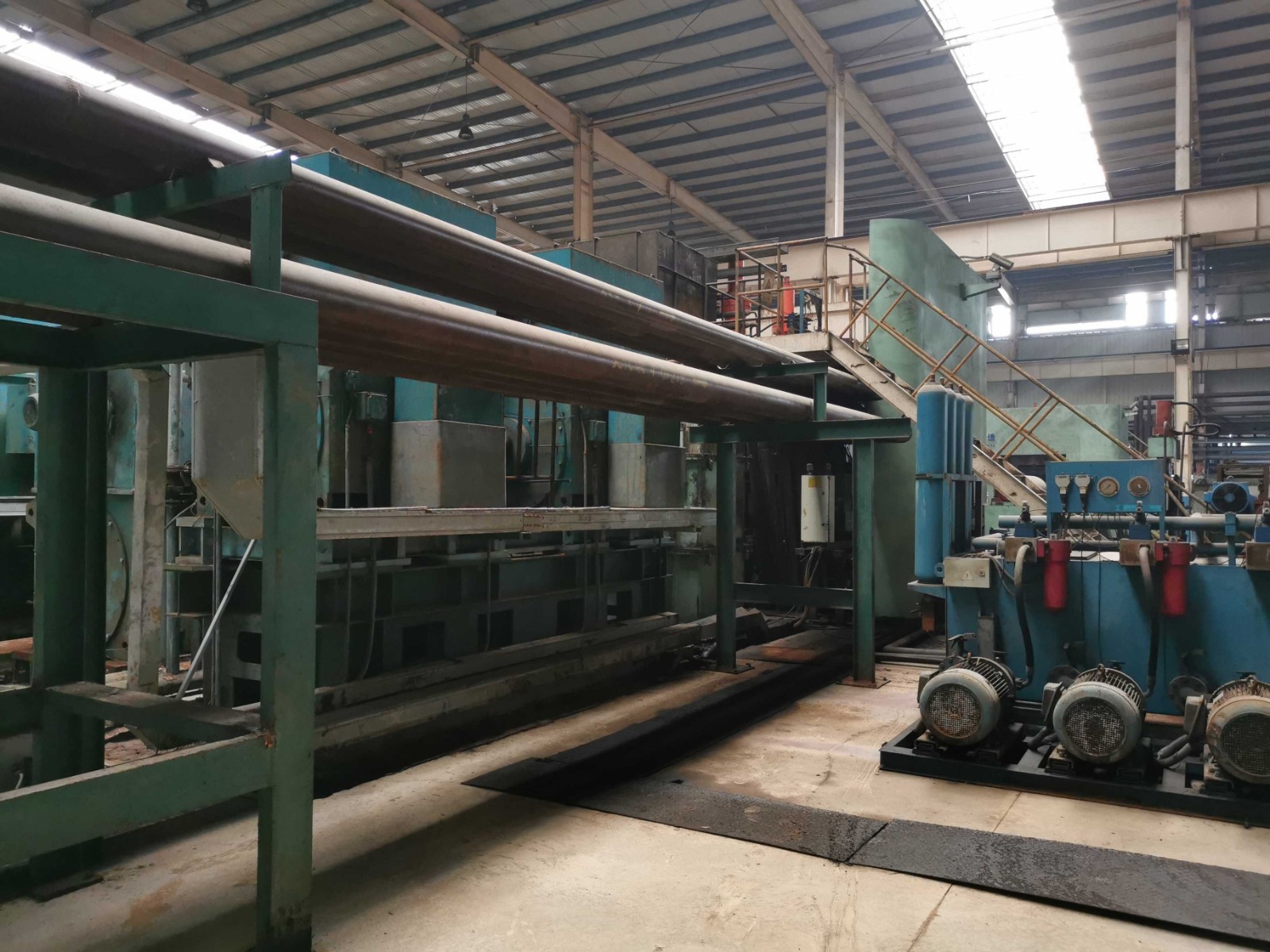

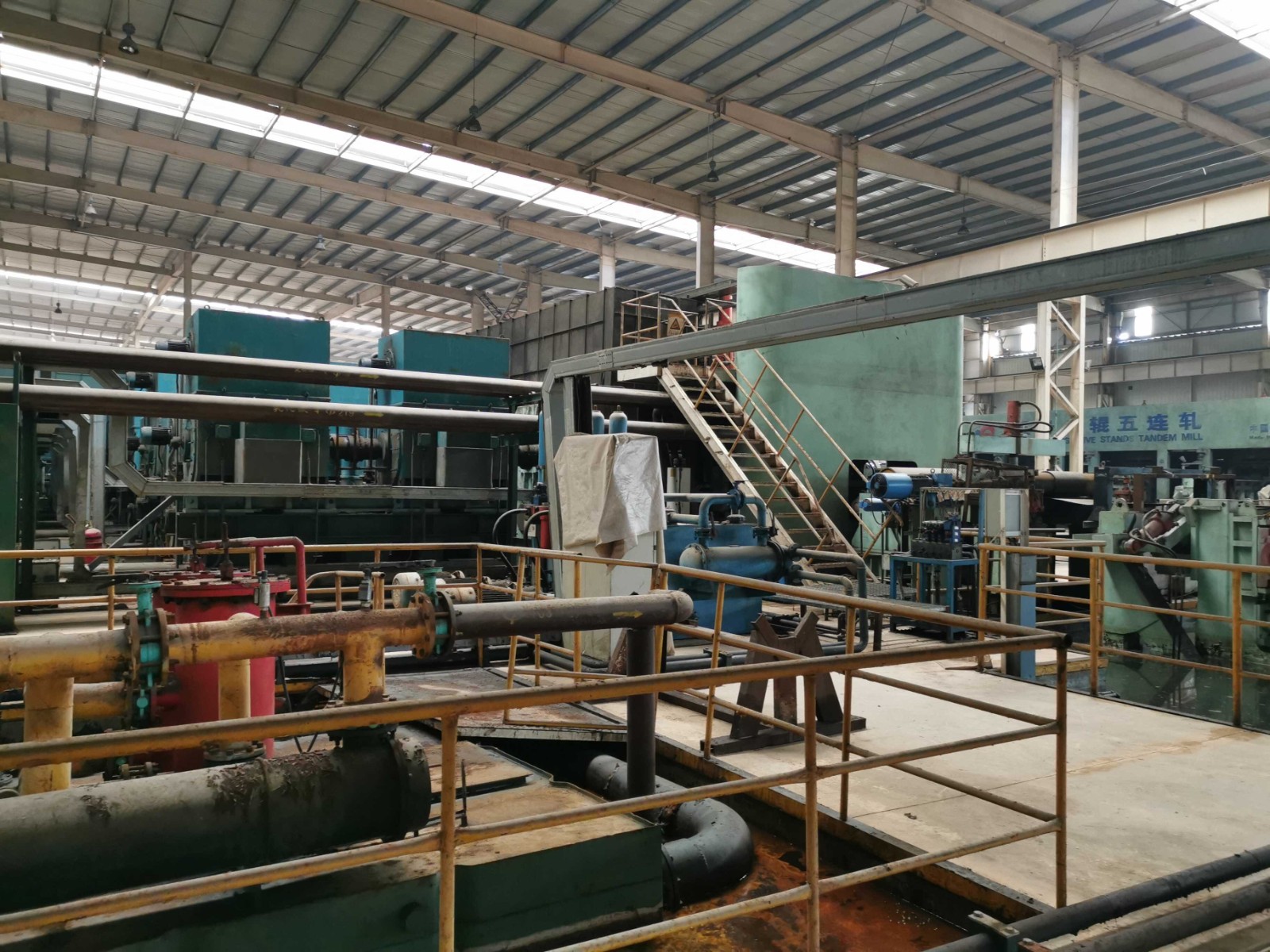

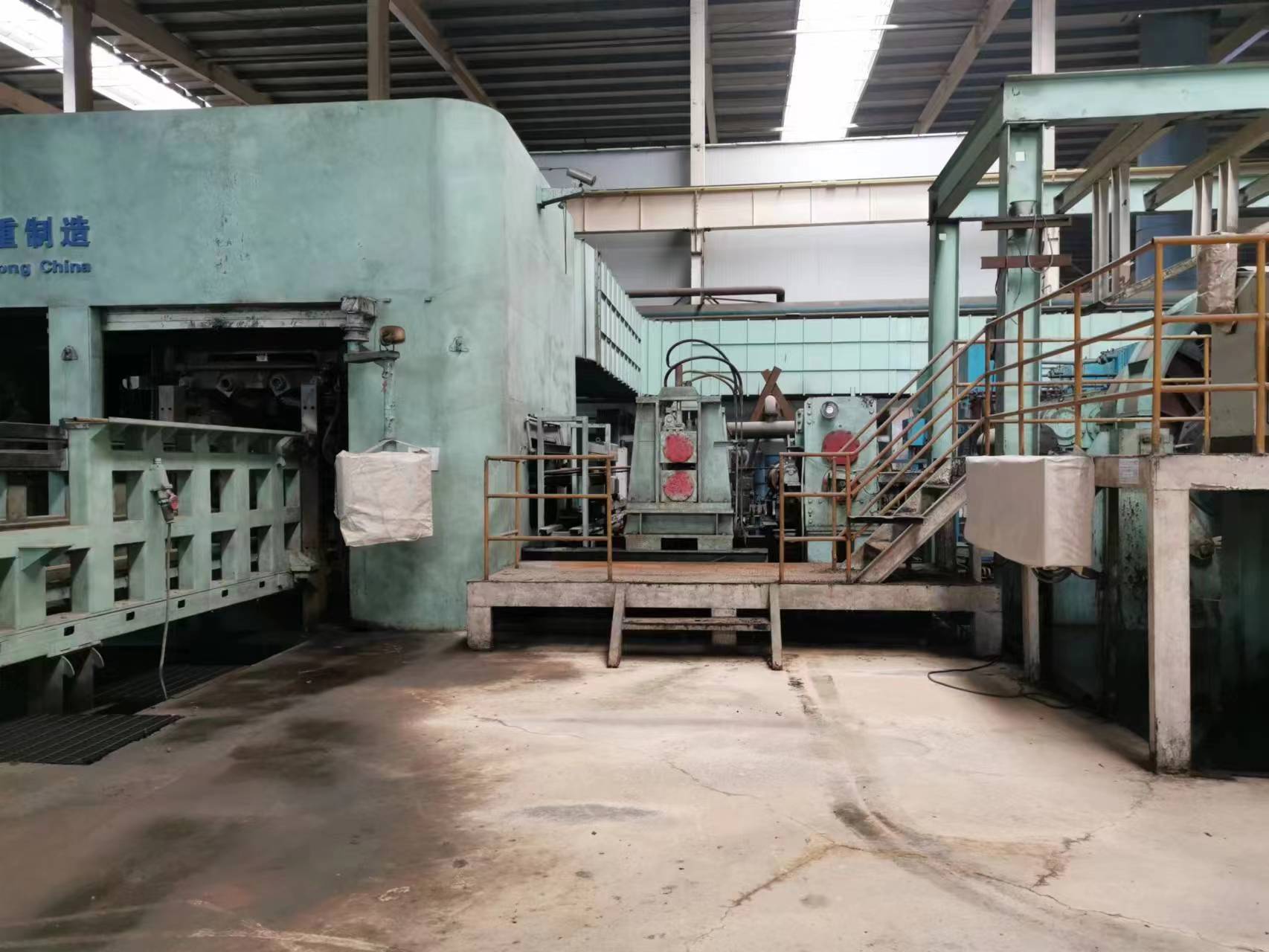

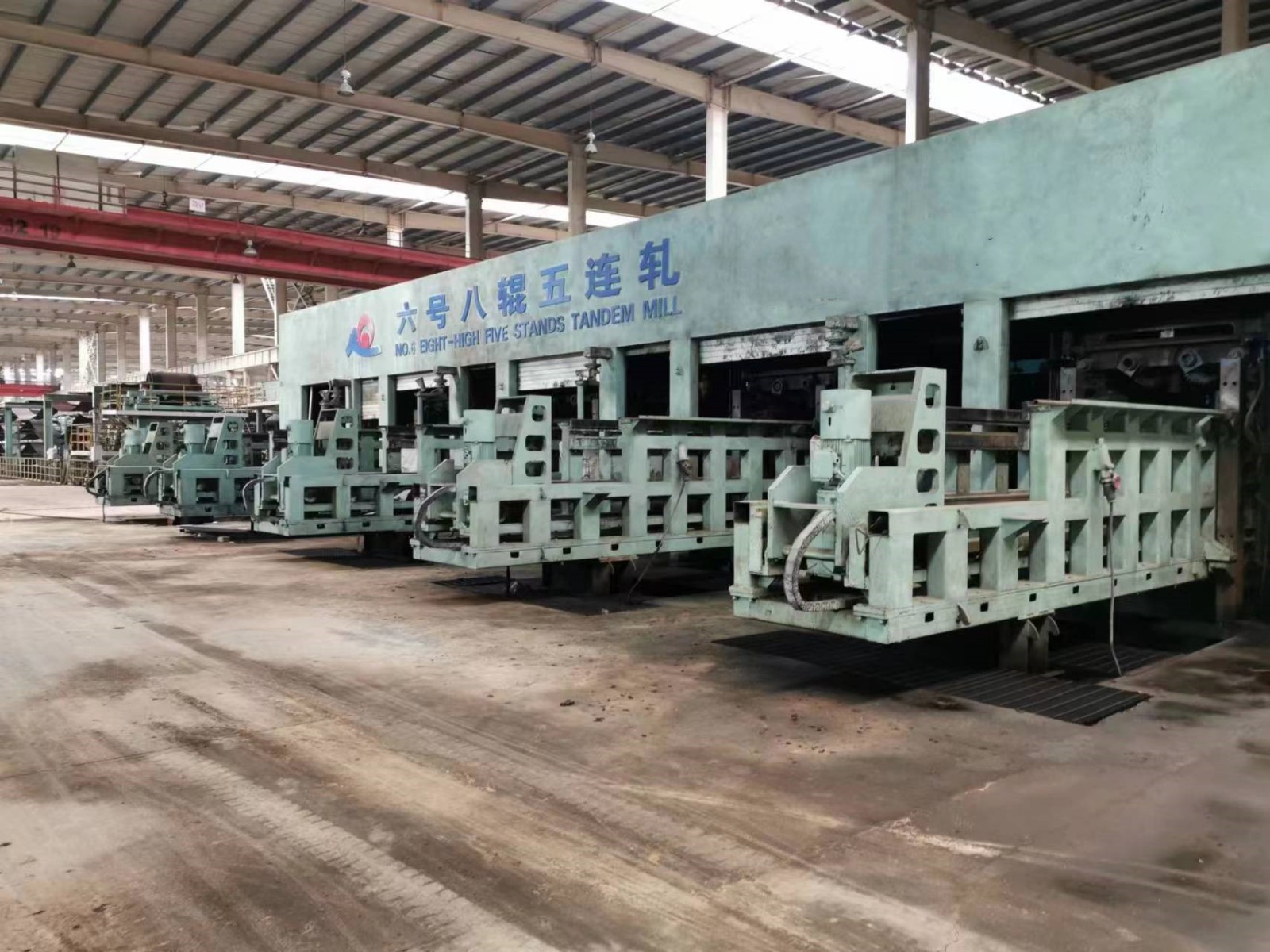

2009 Hubei Jiangzhong Machinery 1250mm 8hi 5 stands TANDEM CRM

stock No.: 302, it is written on May 5, 2022
  • product description
  • Technical Parameters







machine was made in 2009-2010.
coil width: max 1250mm
raw material: thickness  2.2-3mm
product thickness: 0.3--0.6mm
material: carbon steel.

max speed: 800m/min

2 uncoiler: 160kw AC motor x2
2 leveler: 200kw pole AC motor x2

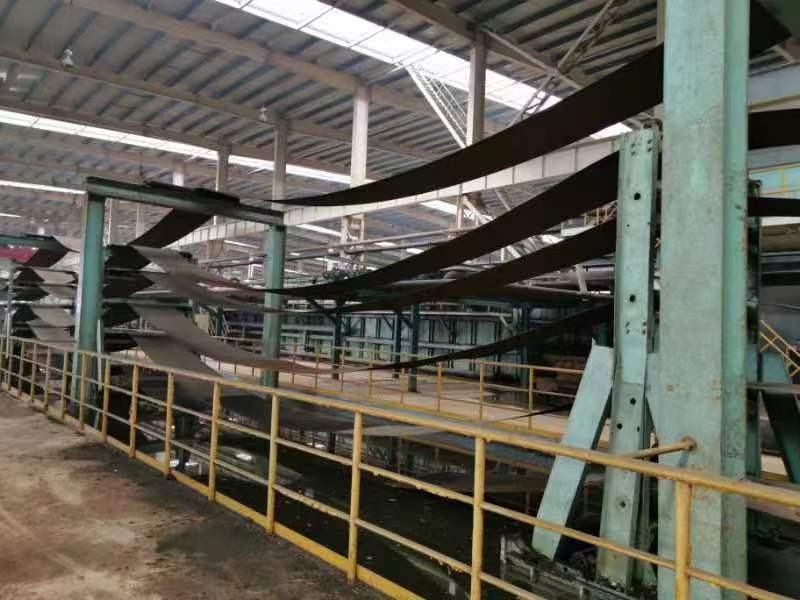

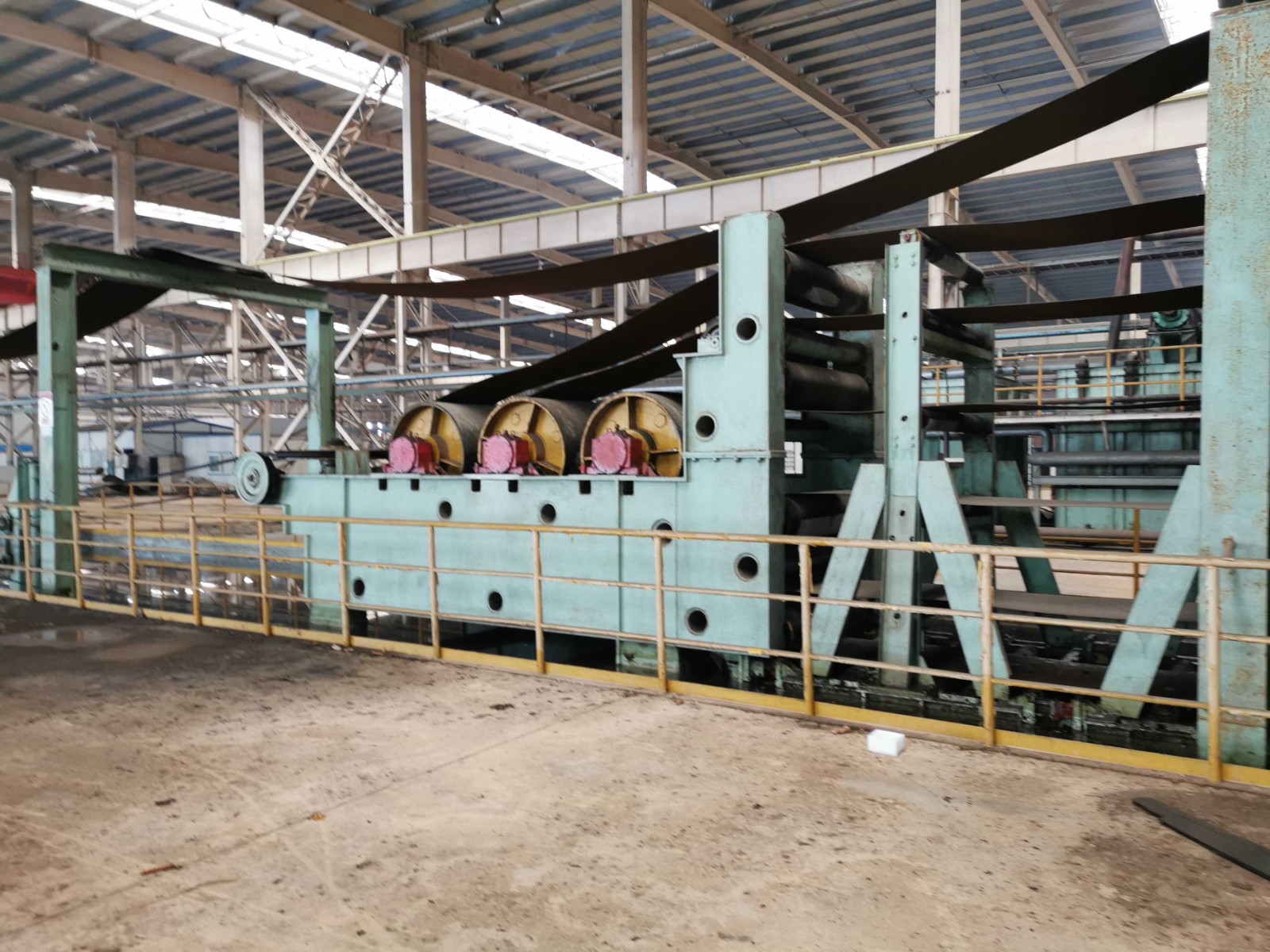

Accumulator: 250kw AC motorx 3

1st cold rolling mill:  630kwx4 AC motors
2nd-5th cold rolling mill: 875kwx 16 AC motors

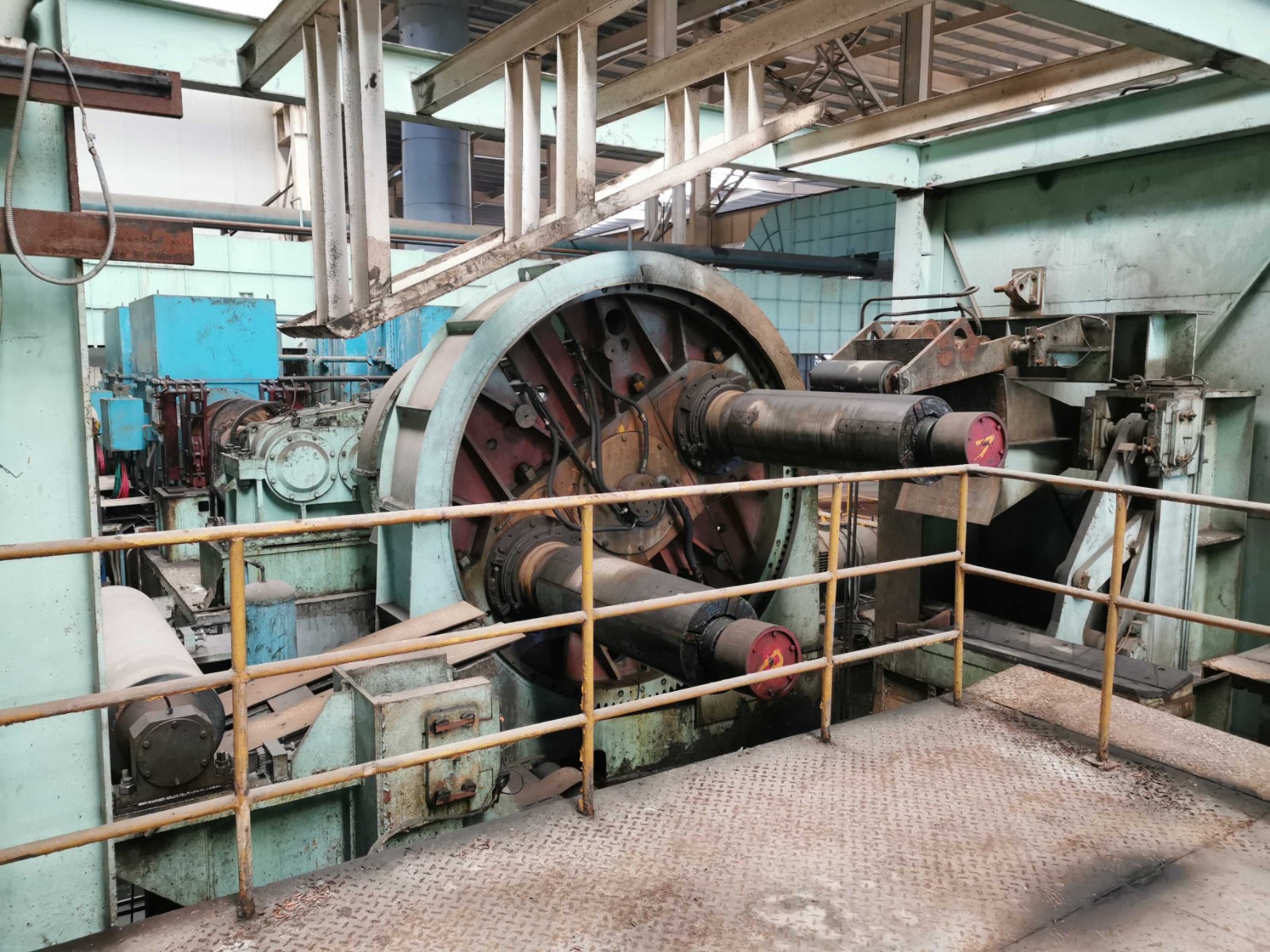

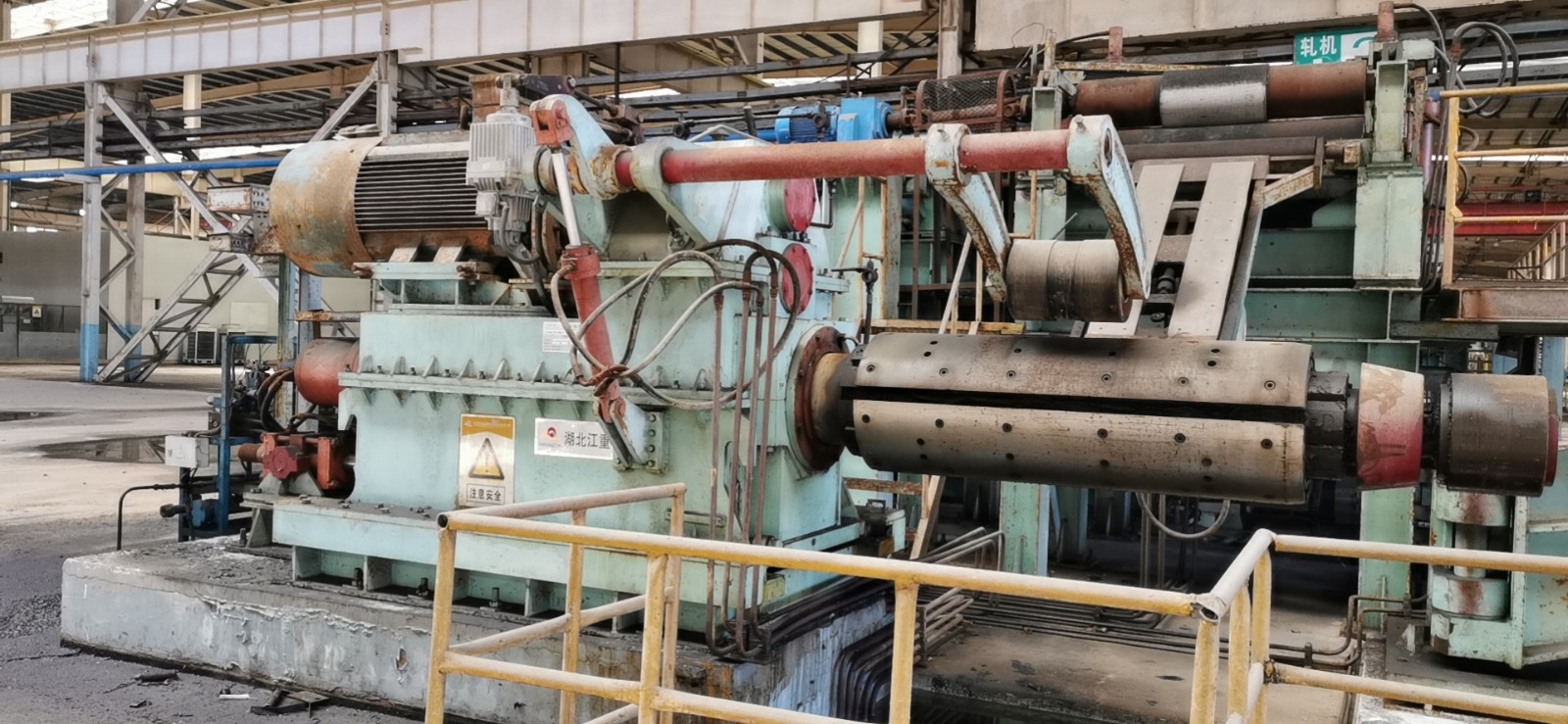

double head recoiler: 750kw x4 AC motors

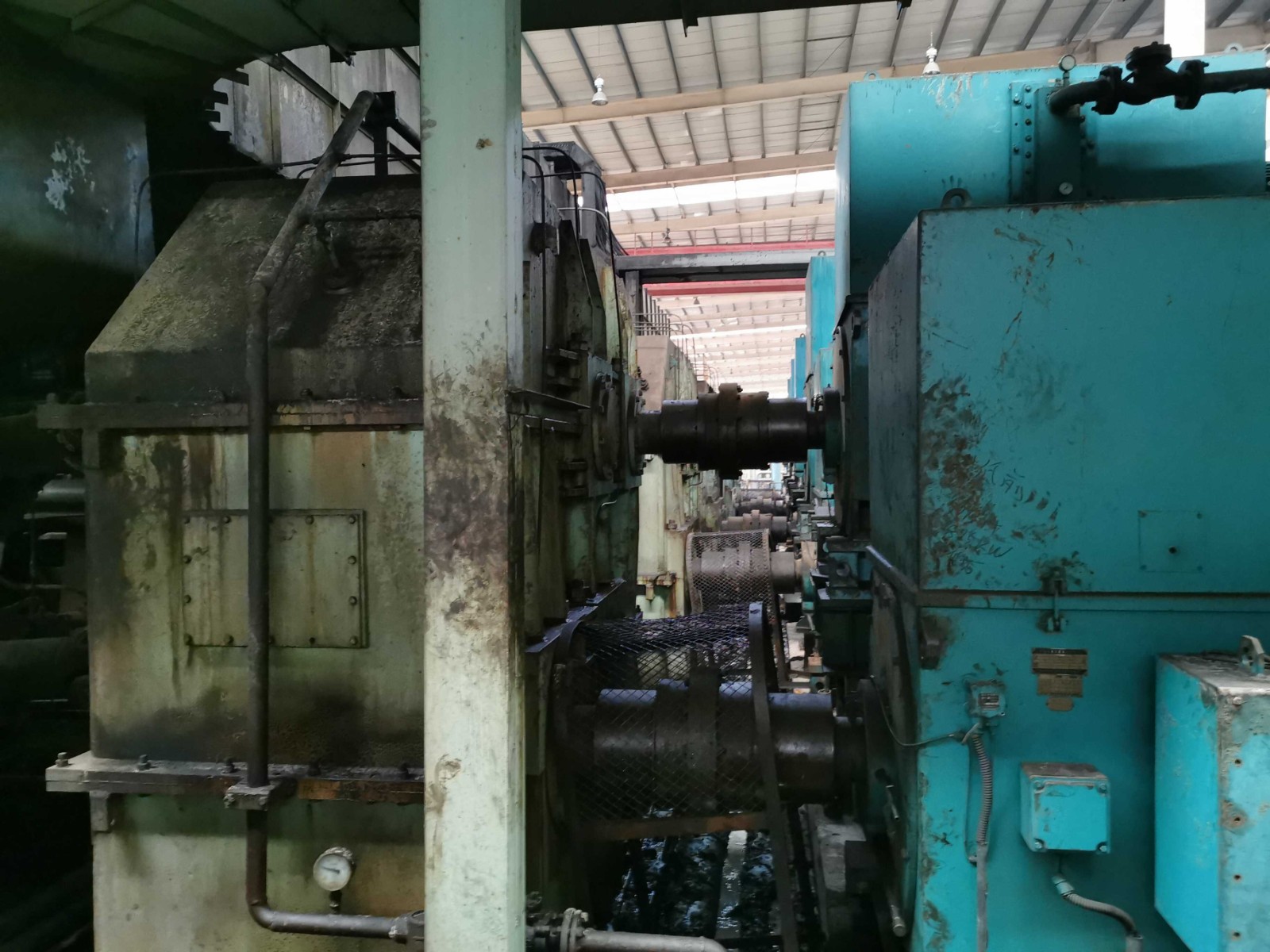

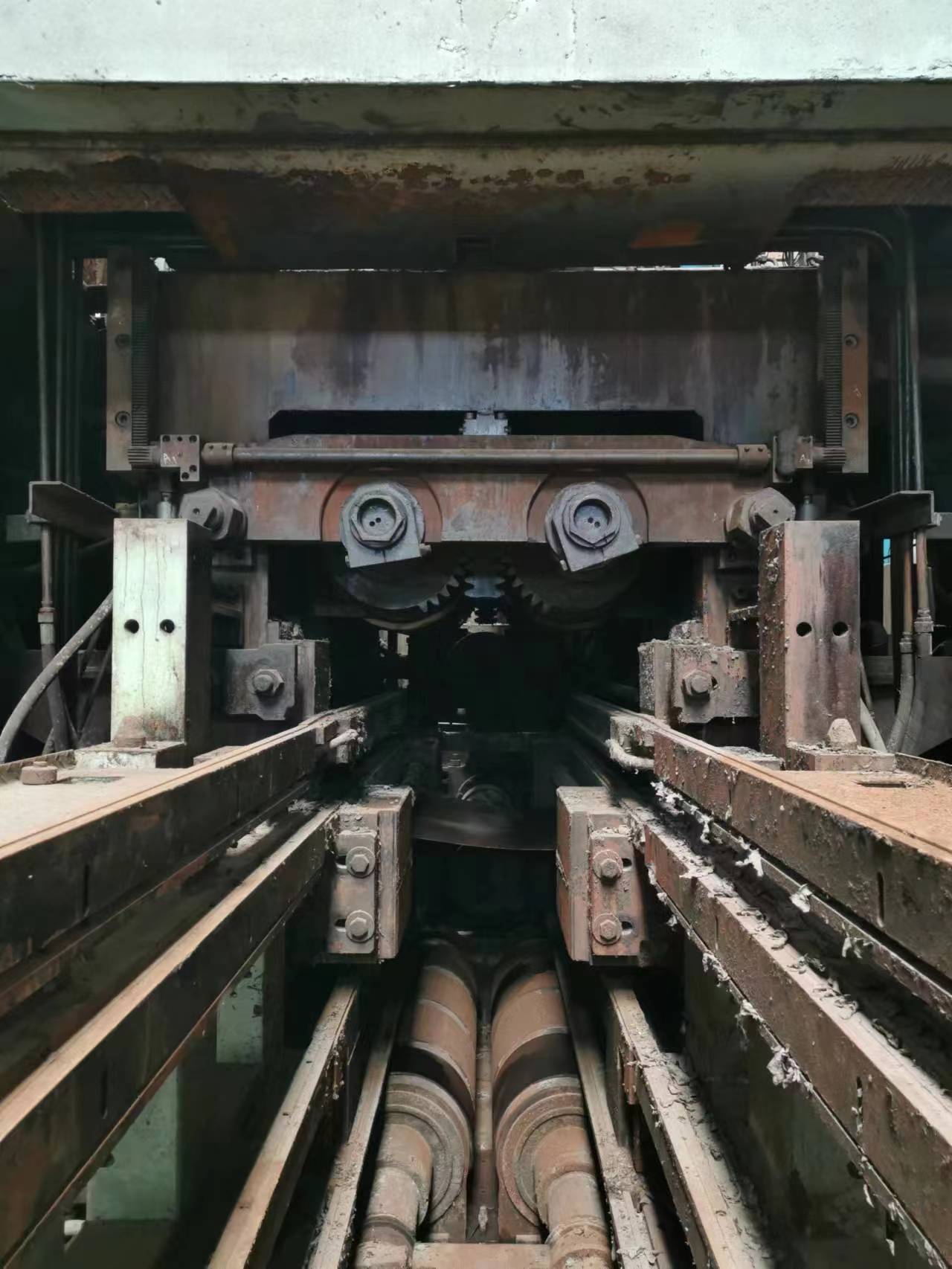

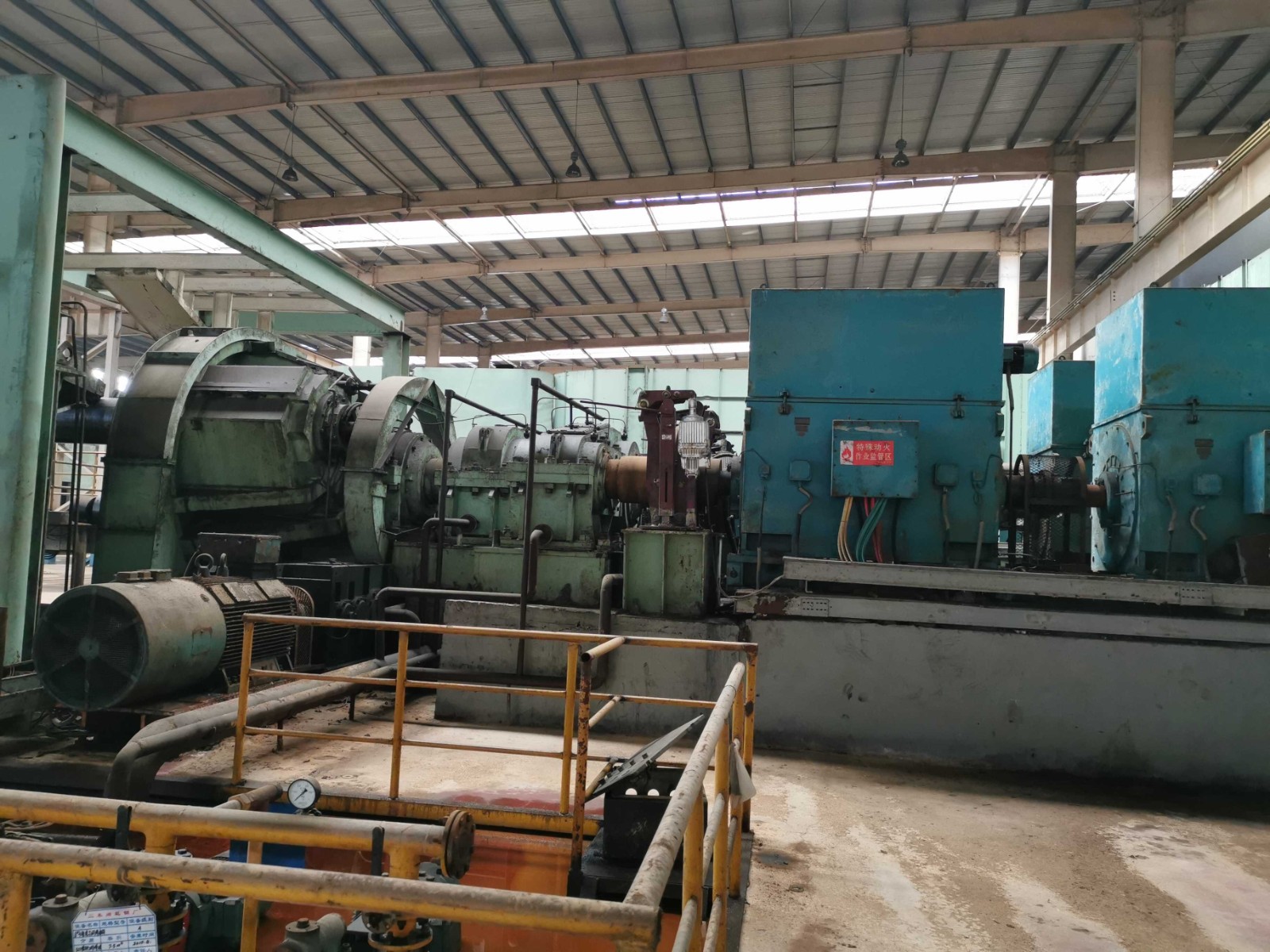

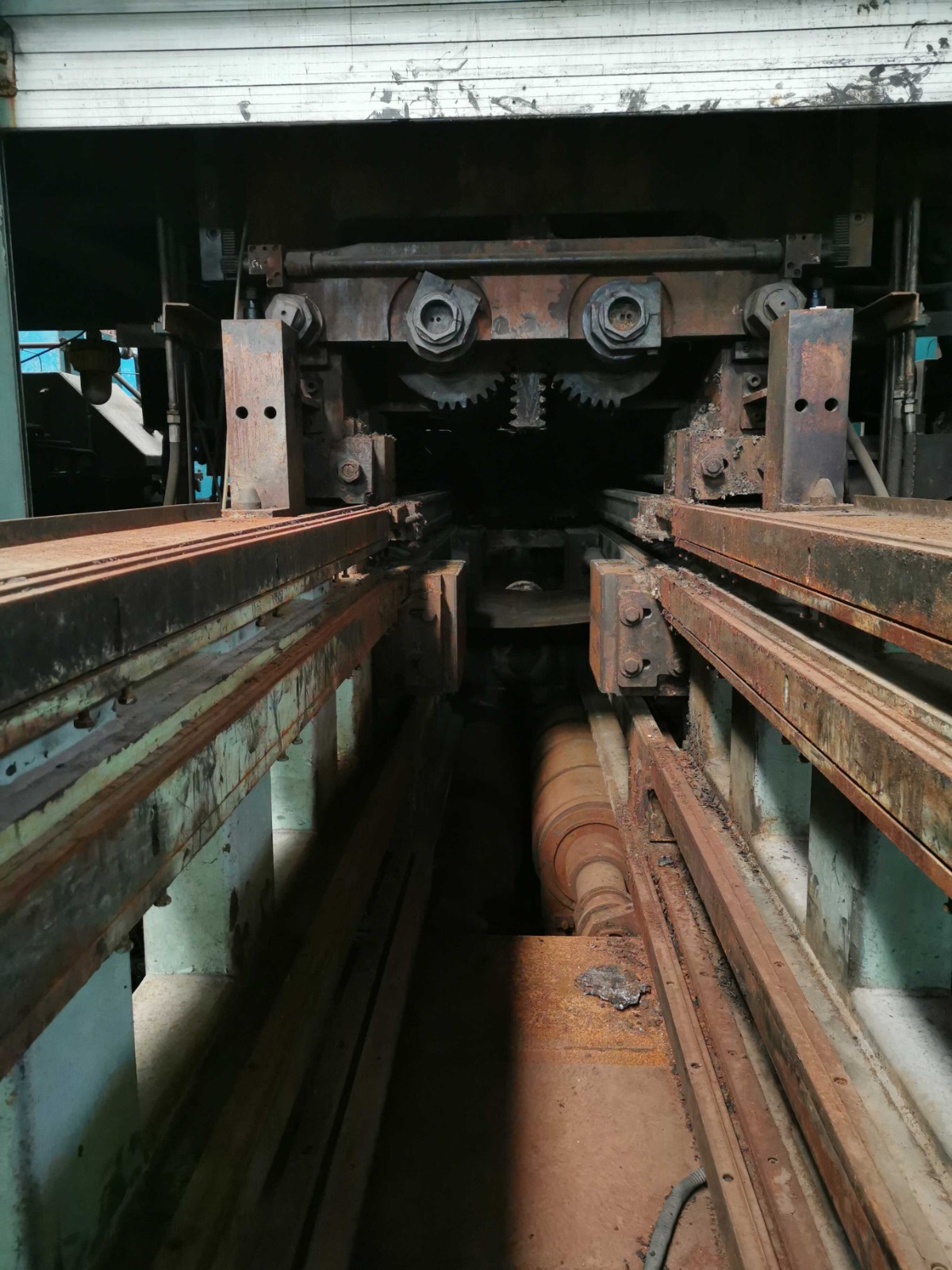

cold rolling mill, each stand: 4 DC motor, 875KW, total 20 DC motors.
recoiler QTY: 2, DC motor 875kwx4.

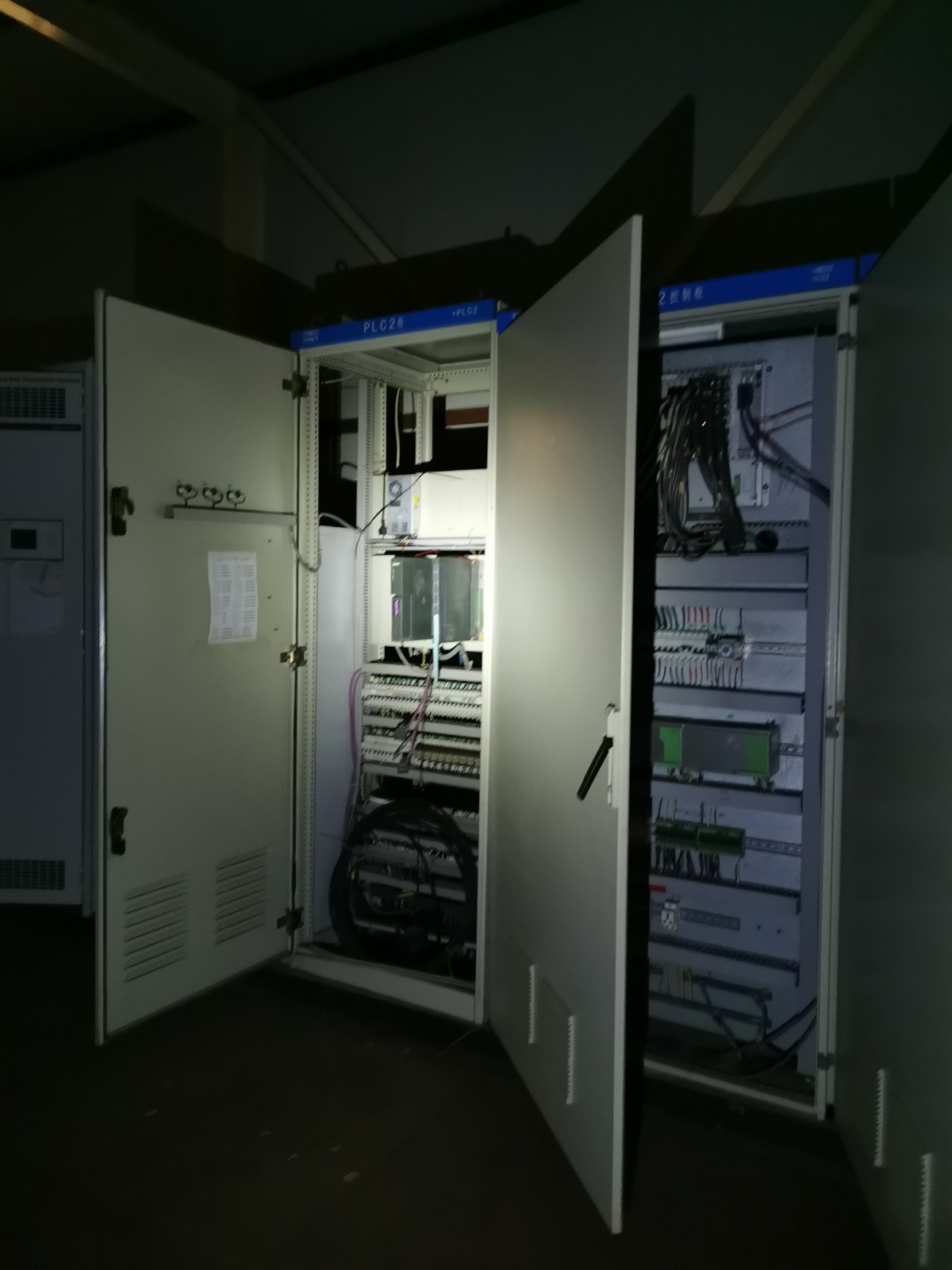

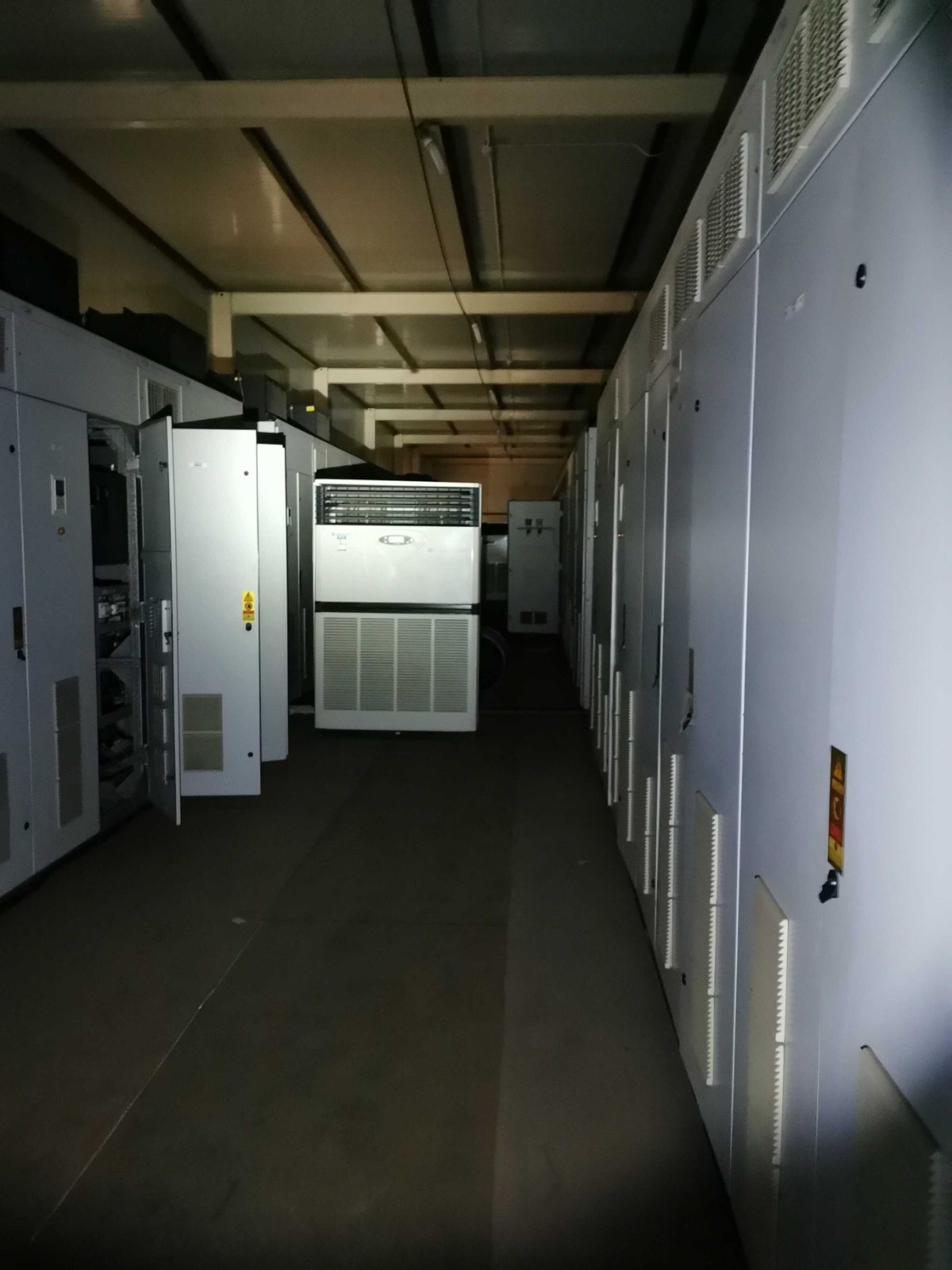

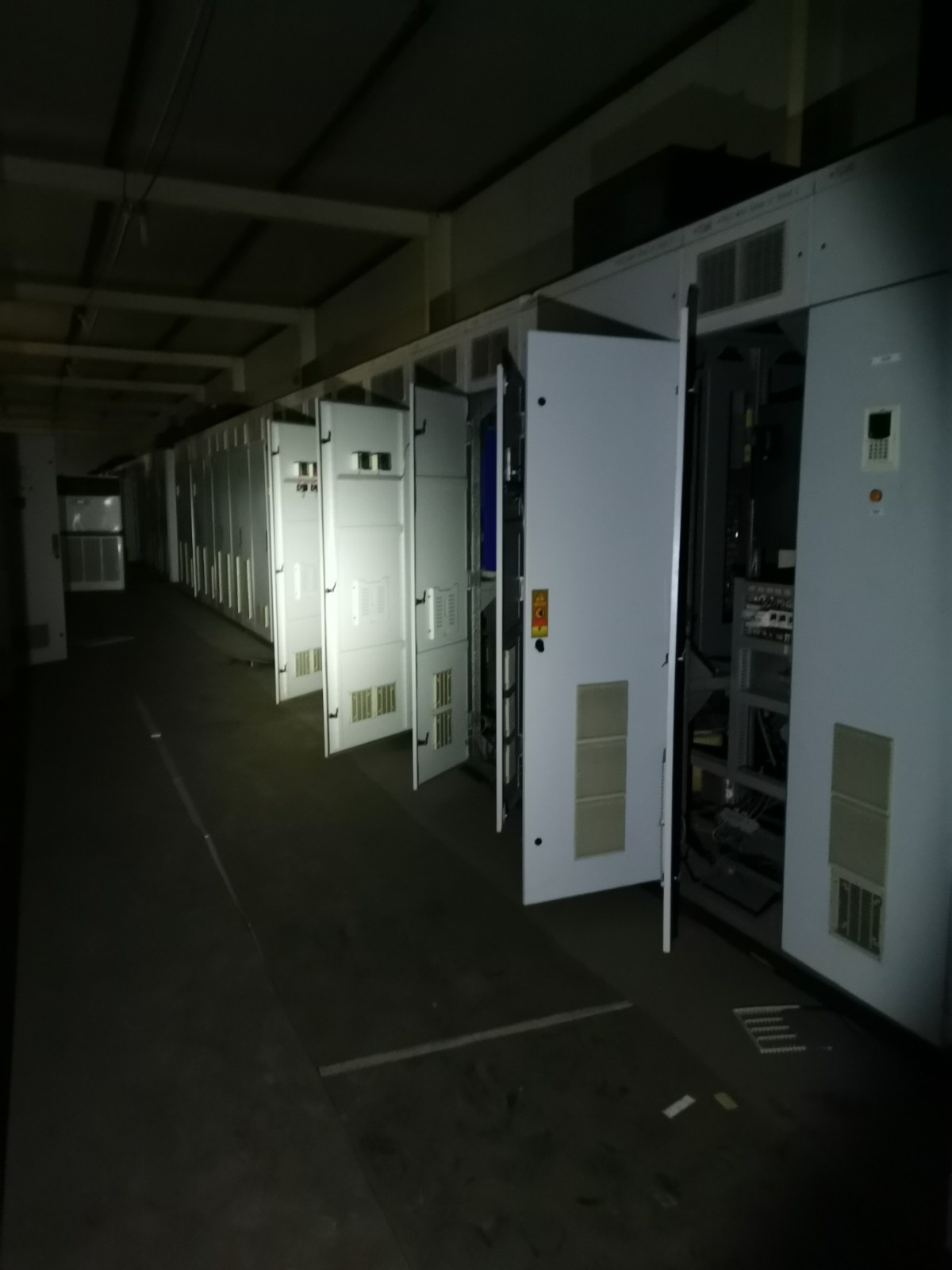

some electric parts and the rolls are missing

machine was used for very short time.

machine total weight: approximate 2500t
