Material: Hot rolled steel coil 08A1, Q195, SPHC, SPHD, SPHE, STW

yield strength: ≤360N/mm2

input thickness:2.0-3.5mm

output thickness: 0.15-1.2mm

coil width: 700-1050mm

coil ID: 610mm

coil OD: 800-1900mm

coil weight: max. 20ton

rolling force: max. 8000kn

rolling torque: max. 50KNm

rolling speed: max. 720m/min

uncoiling speed: max. 360m/min

uncoiling tension: 50KN

recoiling tension: 7.5-75-130KN

uncoiler core OD: 620/560mm

recoiler core OD: 610/590mm

work roll size: Φ220/190×1150mm

intermediate roll size: Φ350/320×1100mm

back up roll size: Φ950/890×1050mm

Transverse displacement of intermediate roll: 150mm

Aperture:20mm

Roll bending force of work roll: +150KN/ -110KN

Roll bending force of intermediate roll: +150KN

Stand section size: 650×400cm=2600cm2

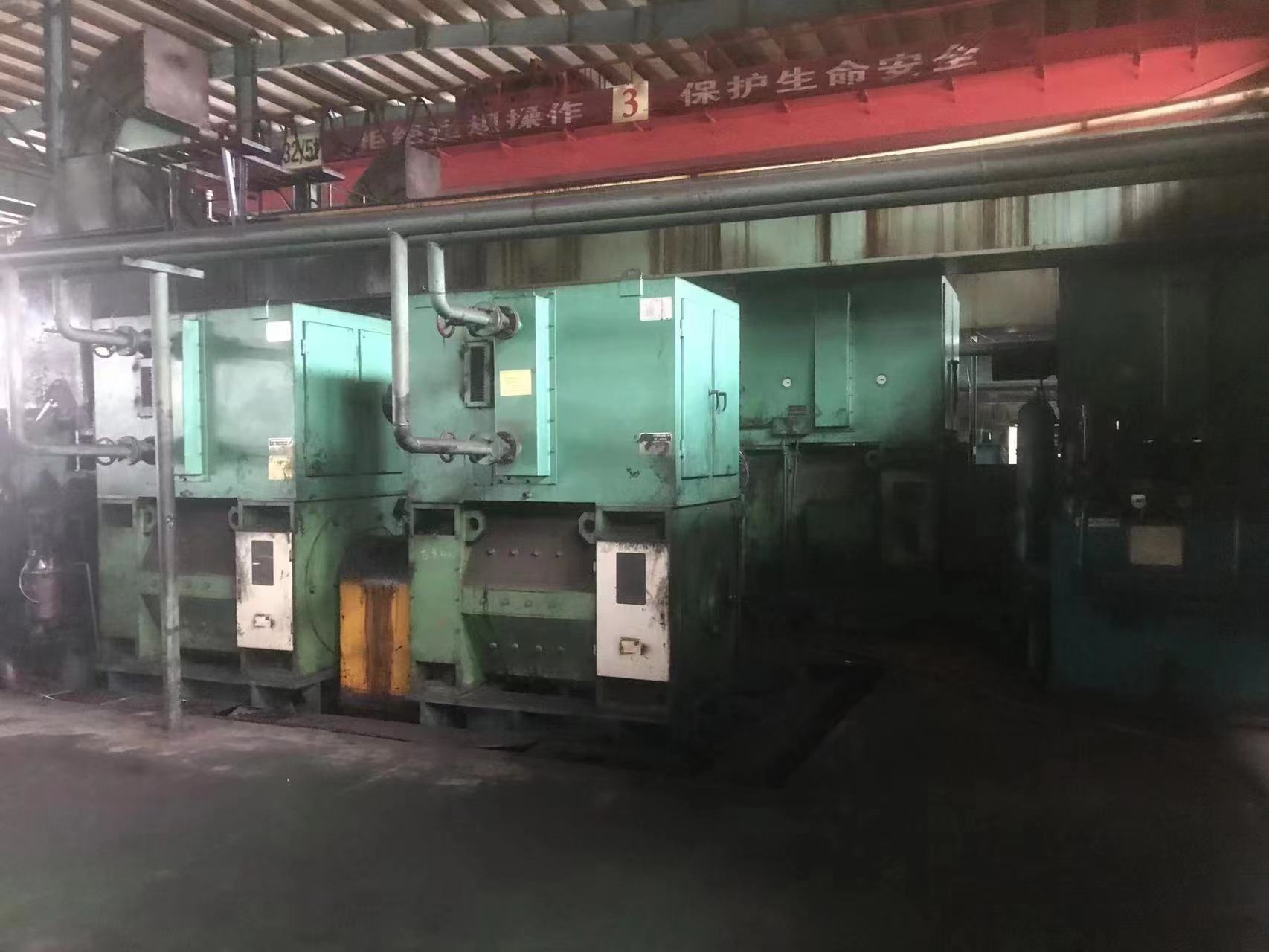

Main motor: 1250KW×2

Recoiler motor: 618KW×2×2

Uncoiler motor: 300KW

Total capacity of power: 5,531KW

Oil cylinder piston diameter: Φ560/450mm

Design stroke of oil cylinder: 55mm
