2005 Chinese brand 550mm 4hi cold rolling mill

stock No.:226, it is written on April 5, 2022
  • product description
  • Technical Parameters

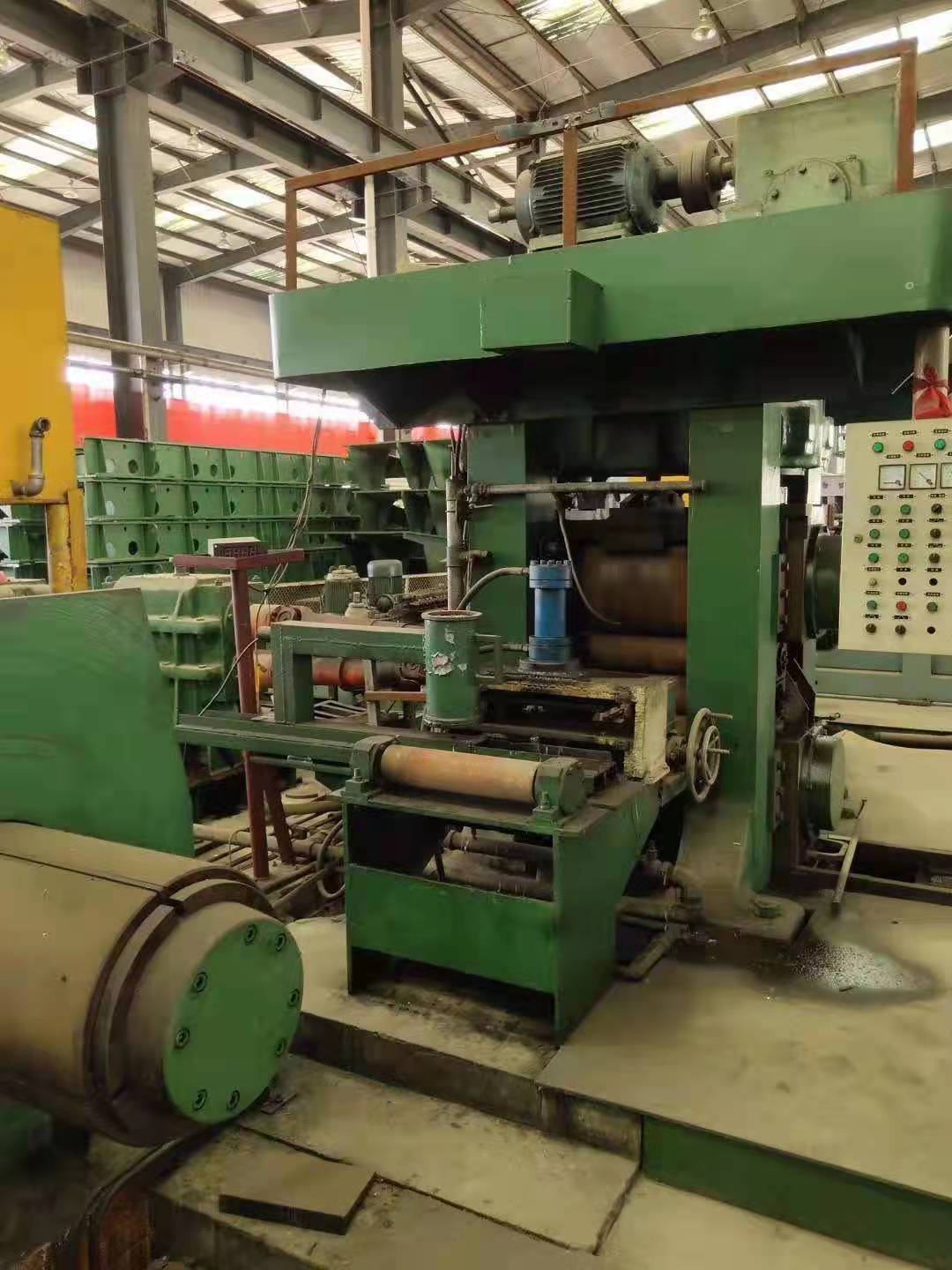

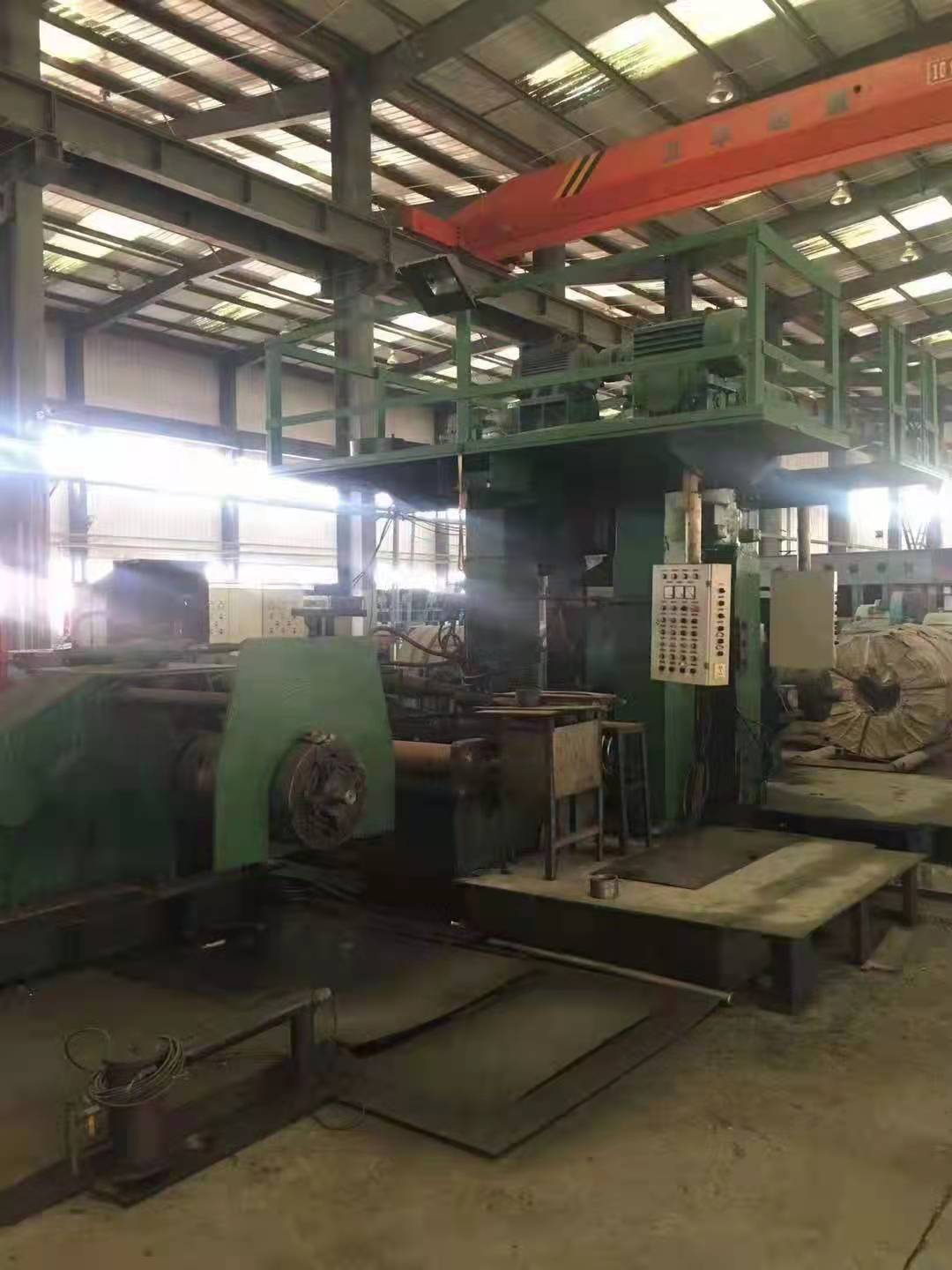

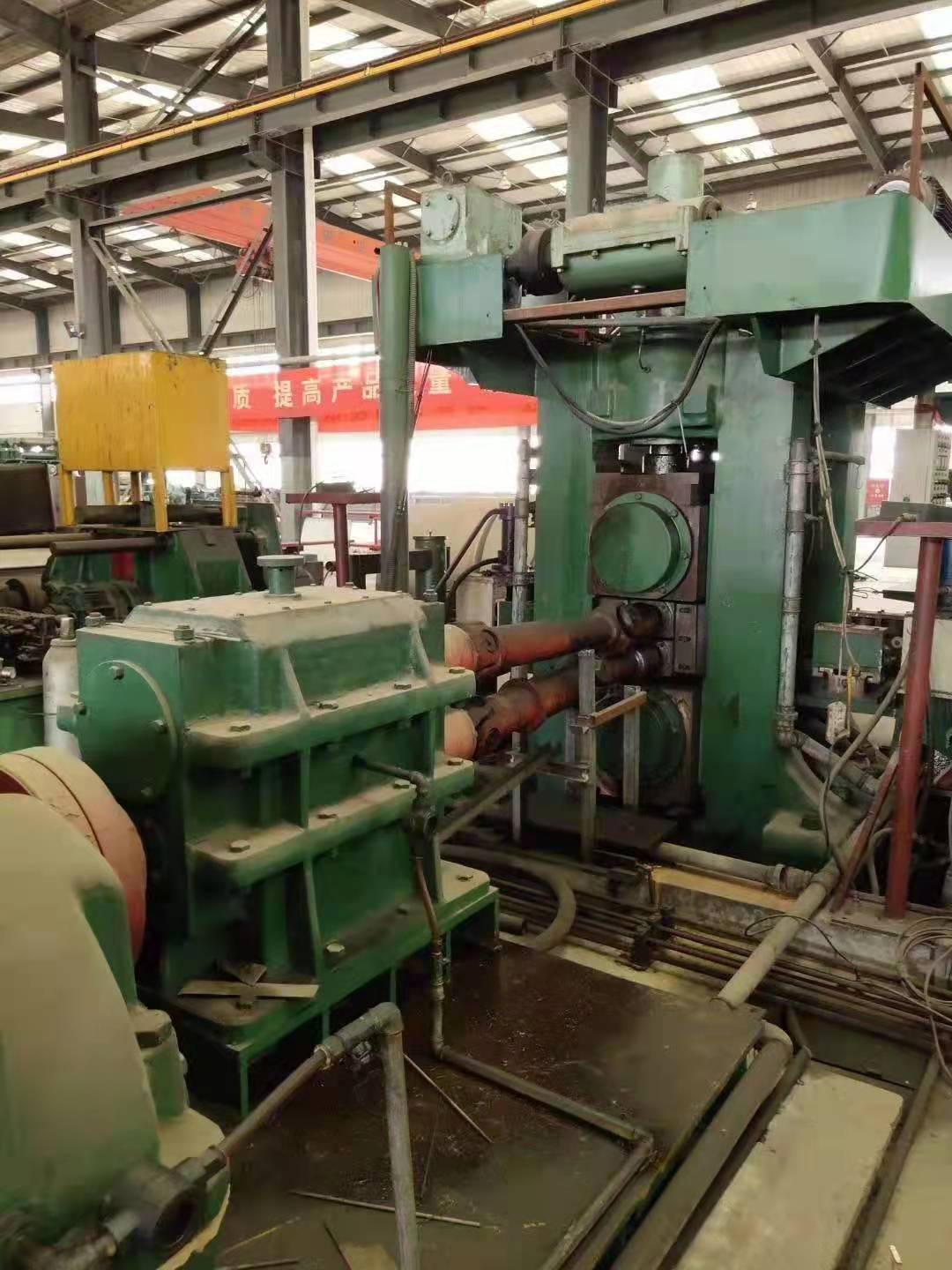

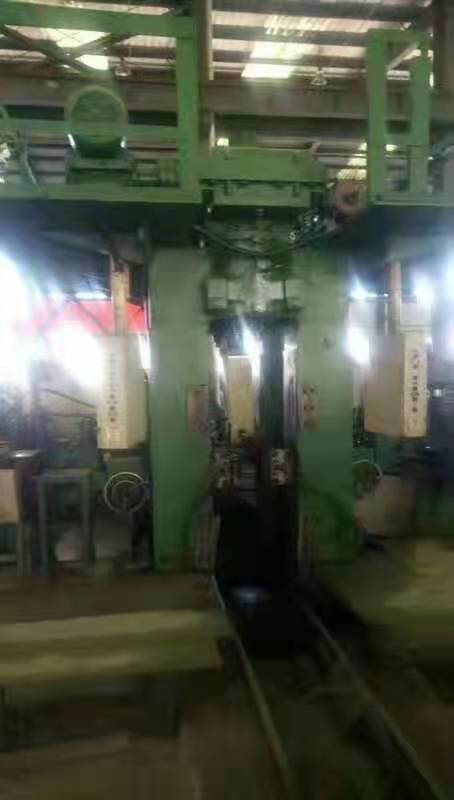

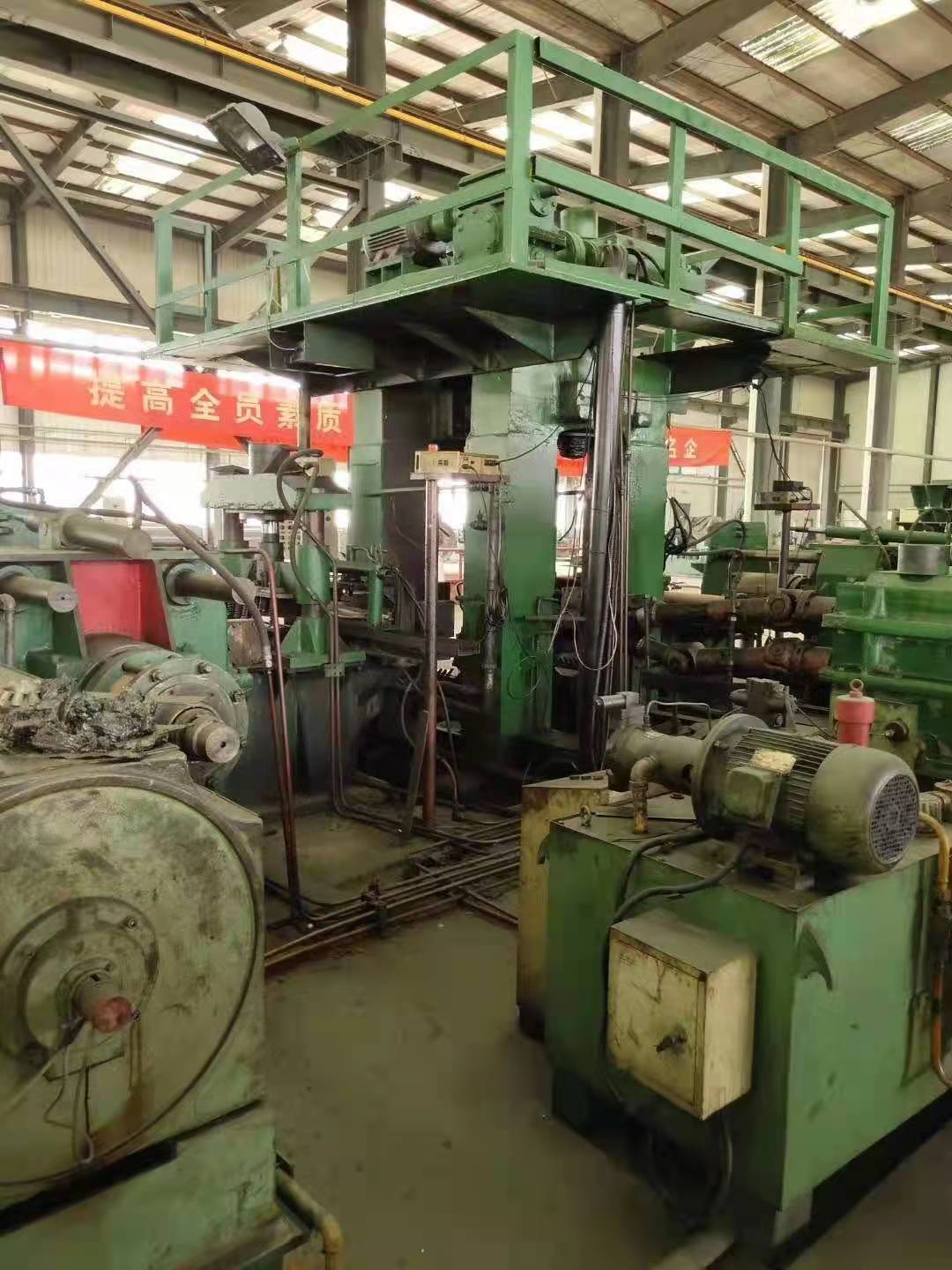

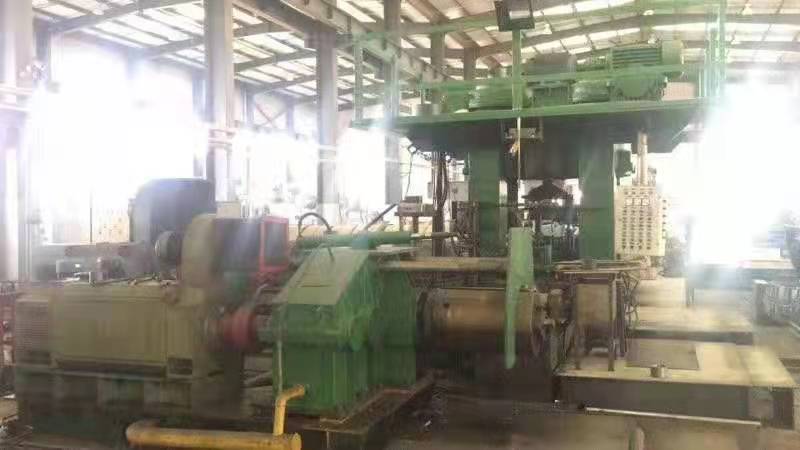

4 hi reverse used cold rolling mill. motor pressing down.
max coil width: 550mm
working roll diameter: 180mm, width: 650 mm
back up roll diameter: 550mm, width:650mm
machine is dismantled.
max speed: 200m/min.
mild carbon steel, driven by working roll.
Mill DC motor: 500kw
coiler DC motors: 2x 315 kw
incoming material thickness: 2.5--3mm
prodict thickness: 0.5--1.0mm
exclude spare parts, thickness gauge.
mill was made in 2005--2006
