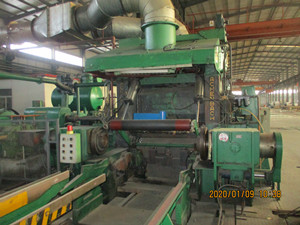

CR No.132 1280mm Double zero Aluminum foil finishing cold rolling mill

1280mm Double zero Aluminum foil finishing cold rolling mill(Material:Aluminum).It is made in 1970 and shutdown in 2016.The written time is November 2,2020.

  • product description
  • Technical Parameters


Material:Aluminum

Raw material thickness:Max 0.05mm

Coil width:600-1280mm

Coil OD:Max 1700mm

Coil ID:305,415,565mm

Max coil weight:7000kg

Min product thickness:2*0.005mm

Coil width:600-1280mm

Coil OD:Max 1700mm

Coil ID:305,415,565mm

Max coil weight:7000kg

Rolling speed:Max 600m/min

Uncoiler speed:450m/min

Recoiler speed:720m/min

Rolling force:560tons

Working roll size:φ228mm×1400mm

Back-up roll size:φ550mm×1400mm

Main drive motor:DC 340KW

Uncoiler motor:41KW

Recoiler motor:41KW
