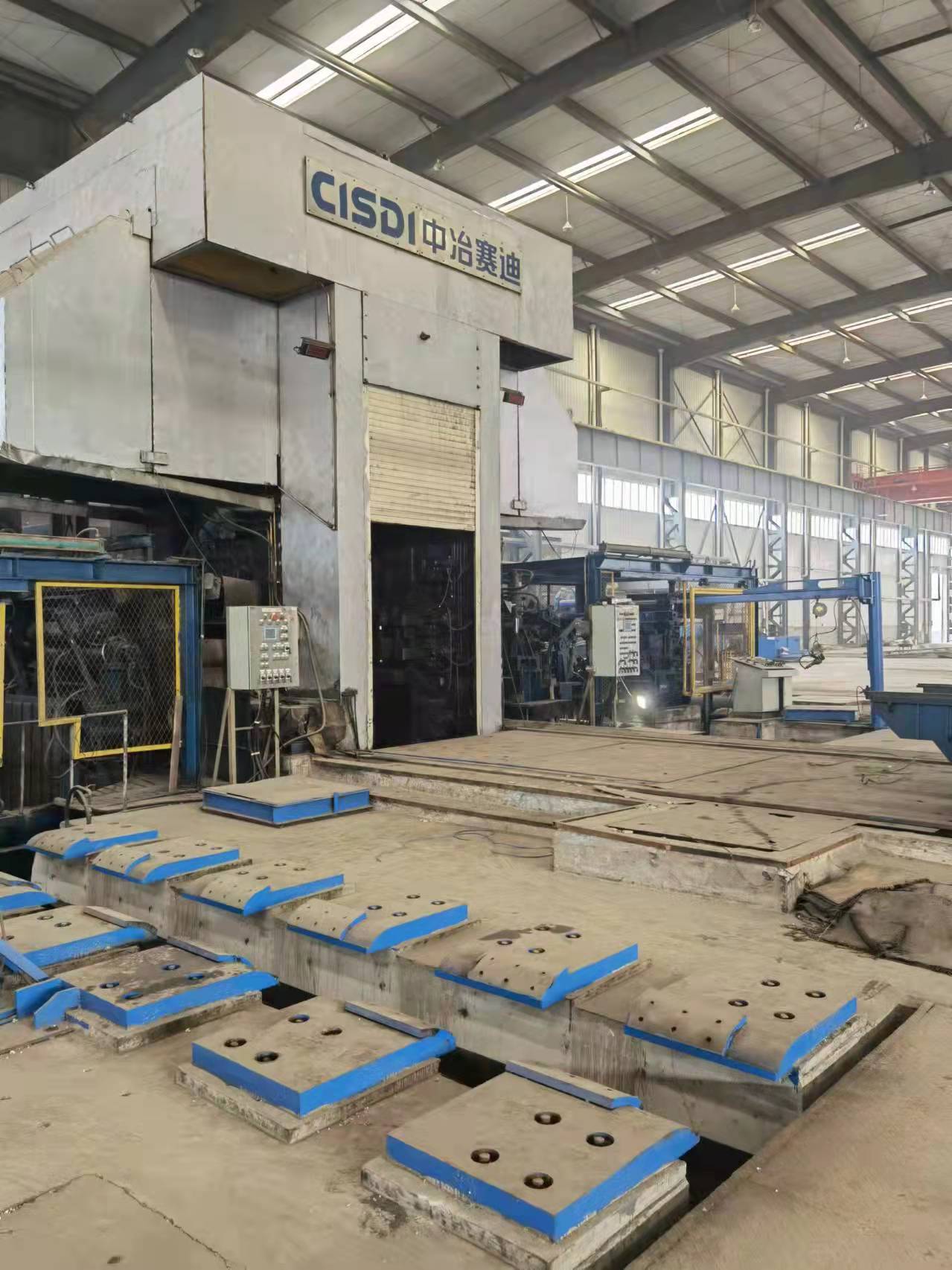

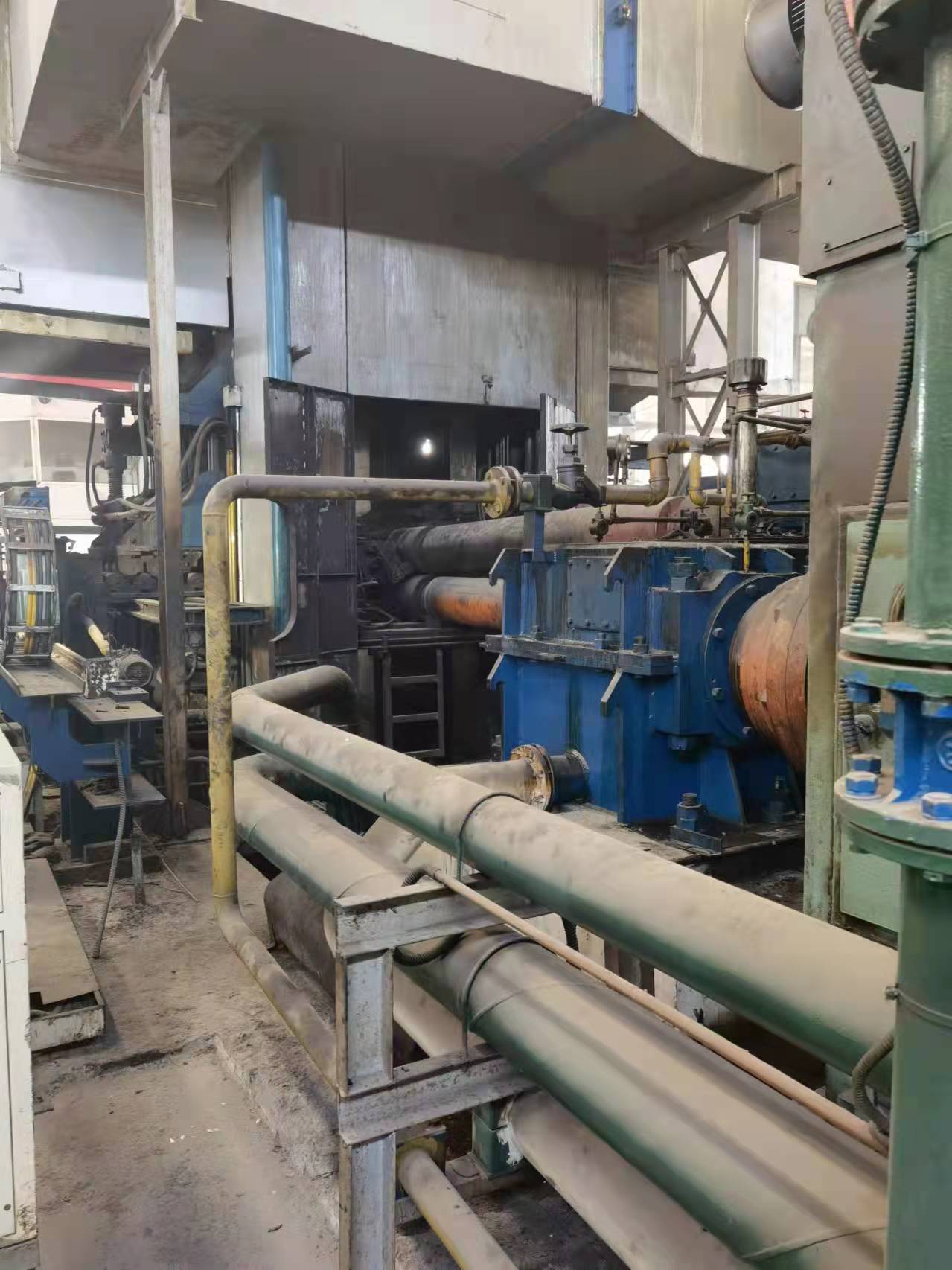

used 1250mm 4 Hi reverse cold rolling mill

used 1250mm 4 Hi reverse cold rolling mill. model No.: 209. It's written on Jan.13,2022.
  • product description
  • Technical Parameters
used 1250mm 4 Hi reverse cold rolling mill. model No.: 209. It's written on Jan.13,2022.
max coil width: 1250mm
4 hi one stand reverse.
coil width: 800-1250mm
material; mild steel after pickling.
income material thickness: 1.5--5mm
product thickness:0.3-1.6mm

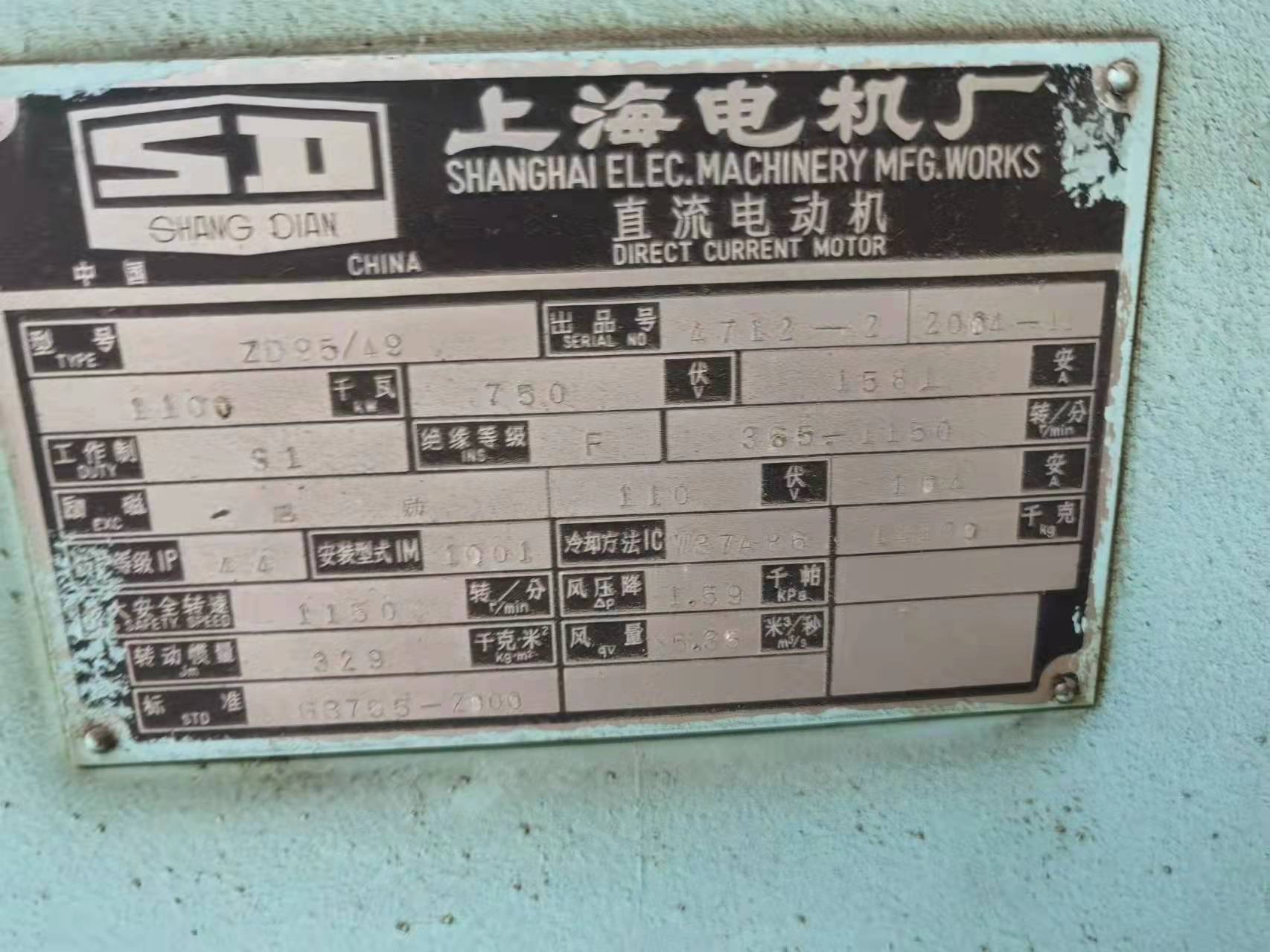

rolling mill: 4 DC motor: 1350kw

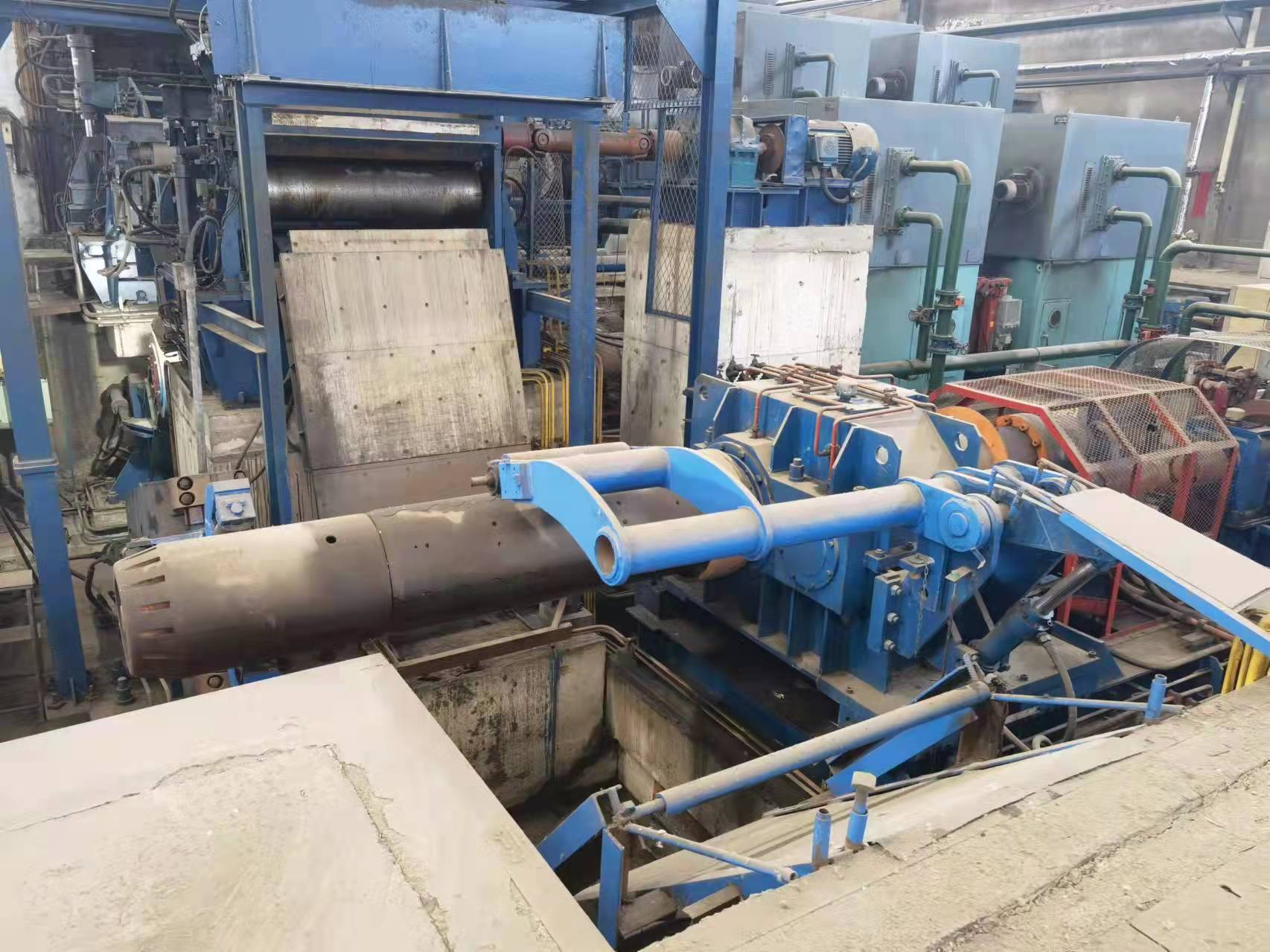

2x coiler: 2x2 DC motor, 1100kw
uncoiler DC motor: 500 kwx1
max speed: 1200m/min
annual production: 220,000 ton
working roll diameter: 400--450mm  width: 1420mm
back up roll diameter: 1220-1350mm, width: 1420mm
max rolling force: 20,000kN
mill was made in 2011-2012. Brand; CISD

machine is dismantled

this is very good condition mill
