used cold rolling mill

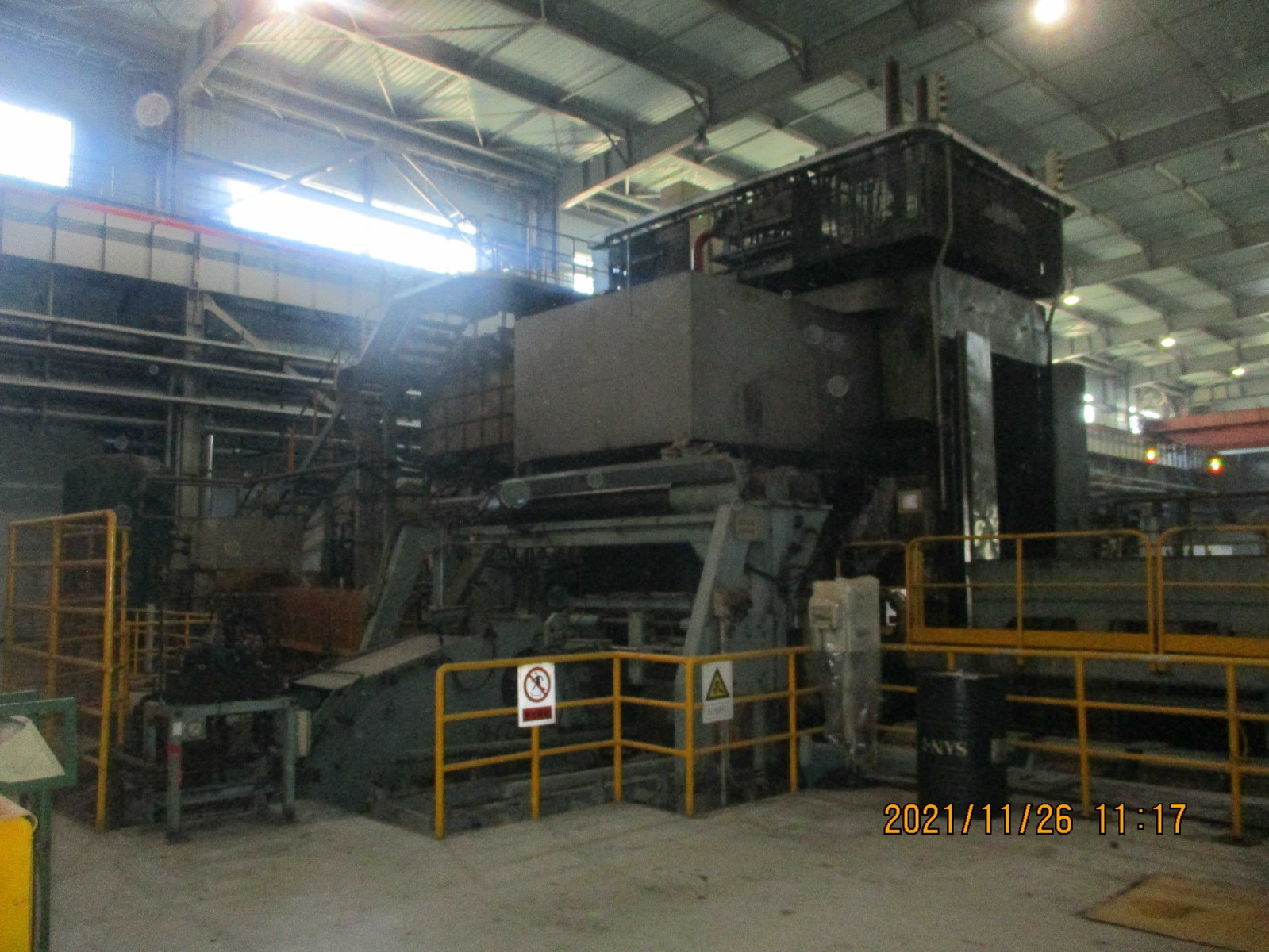

2004 MINO 1250mm 4hi reverse cold rolling mill
stock No.: 353, it is written on June 9, 2022- product description
- Technical Parameters
machine is made in 2004-2005, by MINO
machine total weight: approx. 600 ton (exclude rolls)
coil width: max. 1250mm
input thickness: 2.0mm
output thickness: 0.2mm
coil ID: 610mm
coil OD: 1800mm
coil weight: max. 21.8 ton
back up roll size:OD1150-1250*1400mm

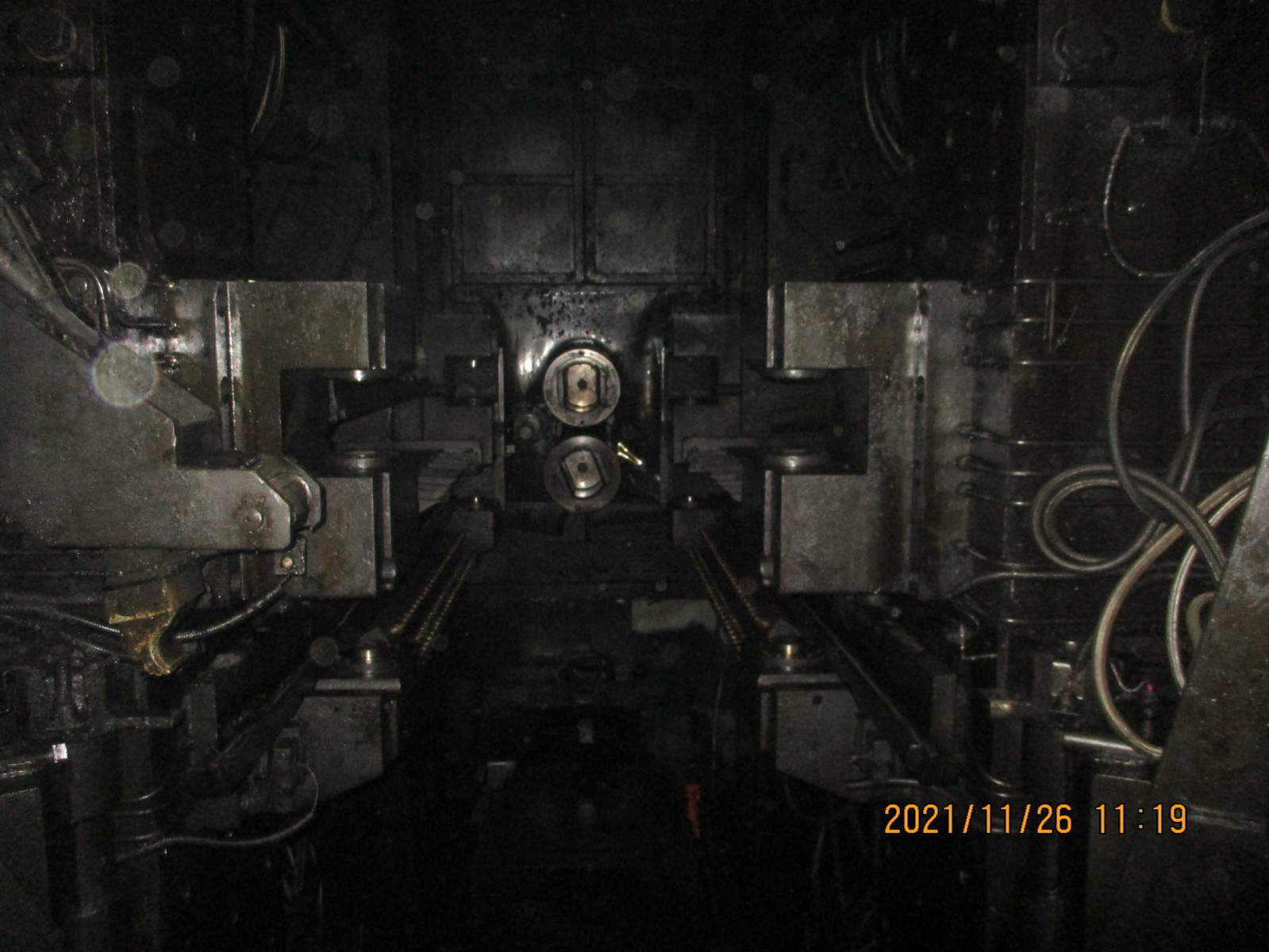

work roll size: OD 380-430*1450mm
line speed: max. 1100m/min

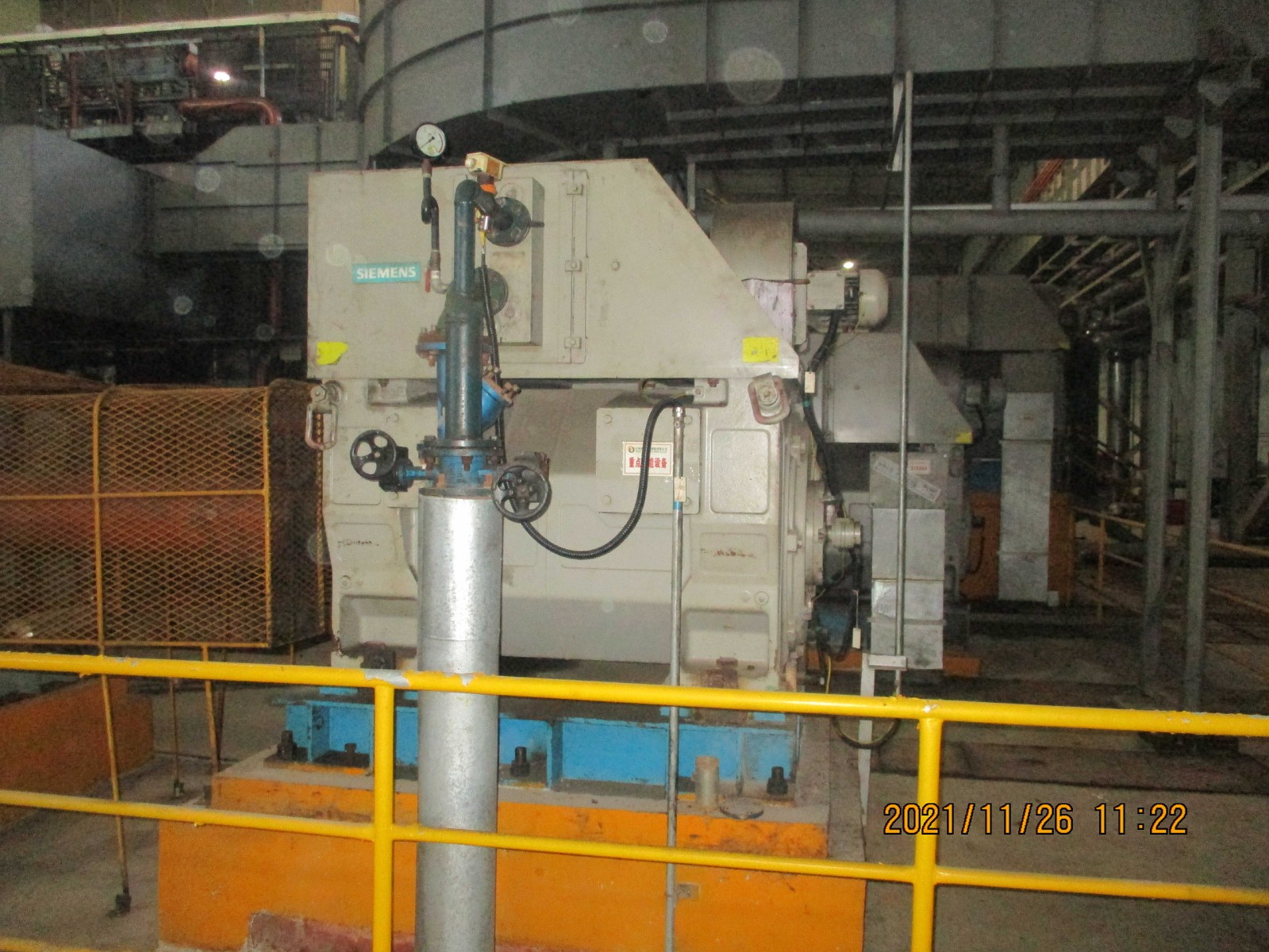

uncoiler motor power: AC 400KW Siemens

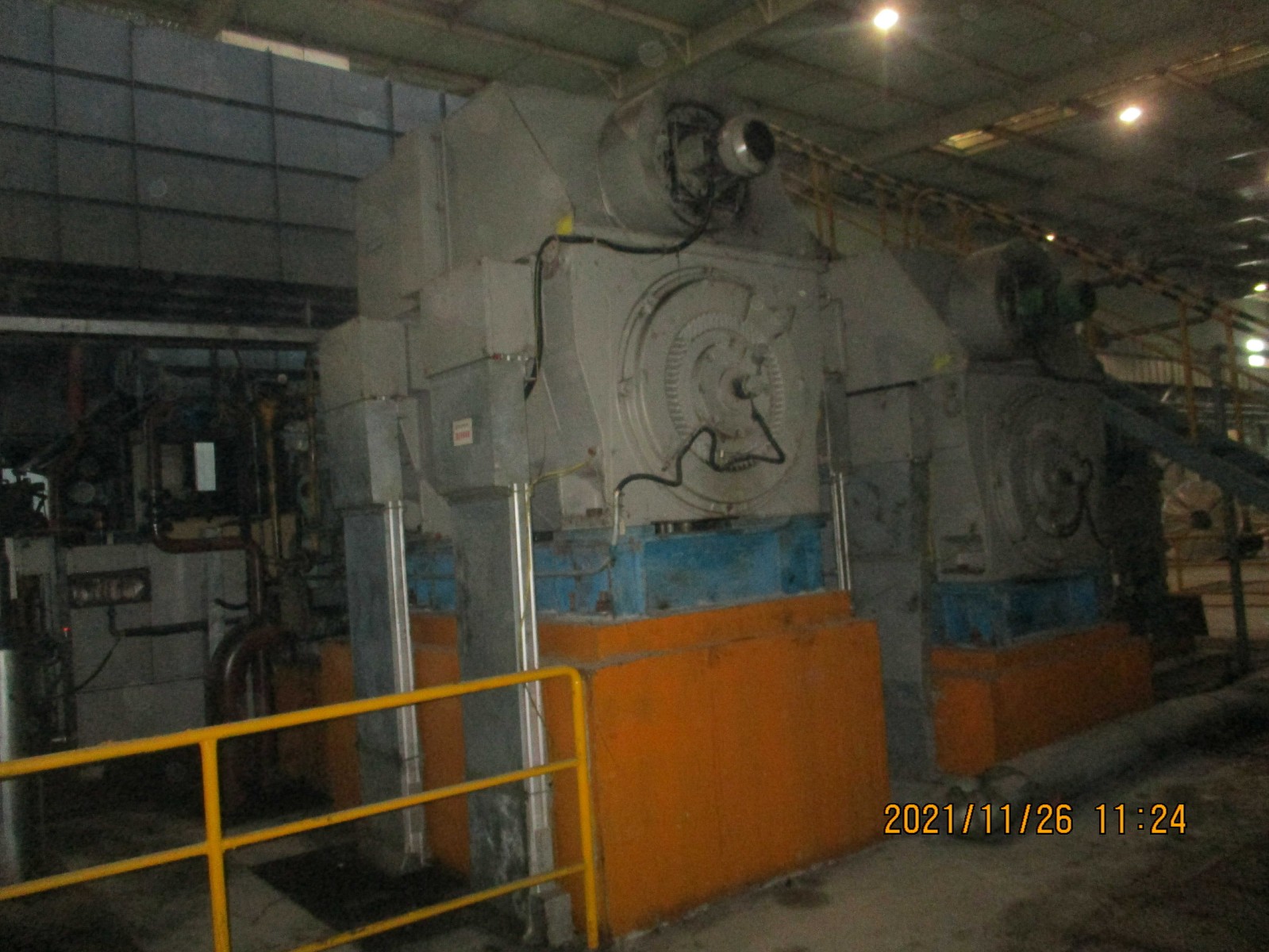

main motor power: AC 2400KW*2 Siemens
recoiler motor power: AC 1400KW*2 Siemens
