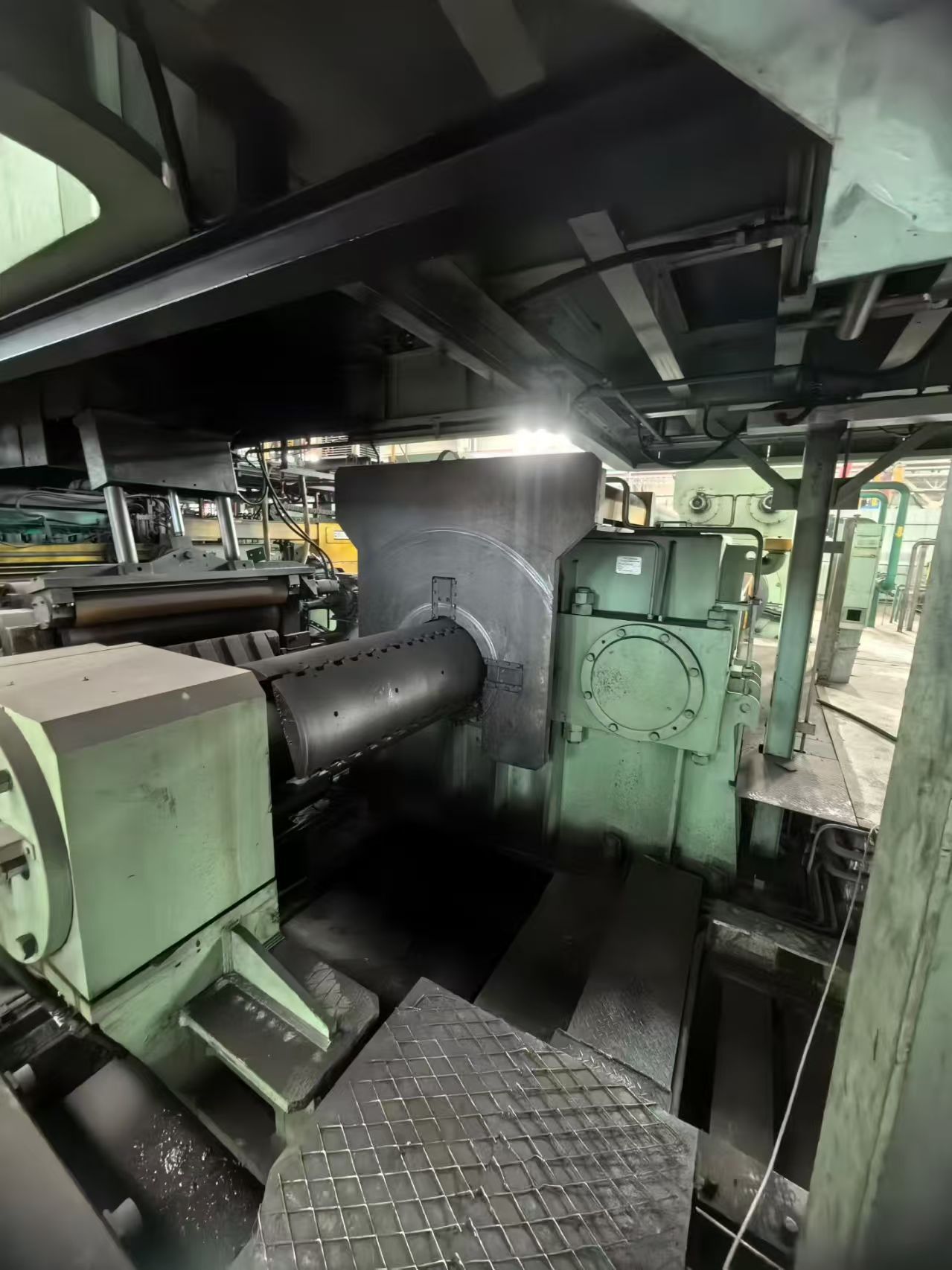

1966 LOEWY ROBERTSON 1600mm 4hi one stand one directioncold rolling mill aluminum foil

stock No.: 344, it is written on June 1, 2022. C-3
  • product description
  • Technical Parameters



machine is made in 1966, by LOEWY ROBERTSON

material: aluminum

coil width: max.1600mm

input thickness: 0.1mm

output thickness: 0.01-0.018 mm

uncoiler motor: 40KW ×1 DC

main motor: 55KW×1  DC

recoiler motor: 825KW×1  DC

line speed: max. 600m/min

work roll size: OD280×1950mm

back up roll size: OD760×1850mm

total weight: approximate 500 ton

exclude electric control system

above specifications are only reference, If there is any discrepancy,

please follow all specifications at used machine site
