used cold rolling mill

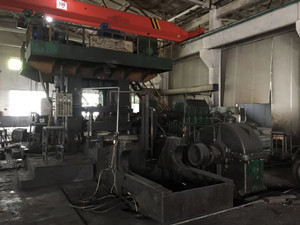

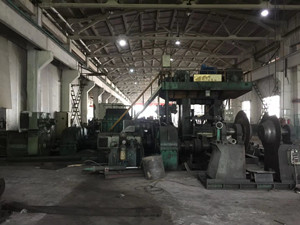

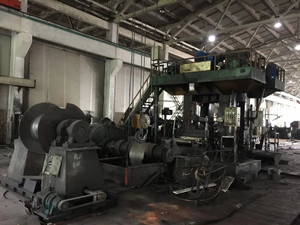

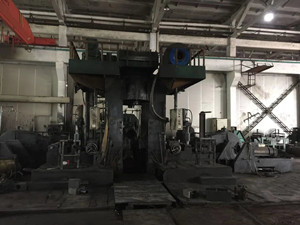

CR No.136 Used 750mm 4Hi reversible Cold rolling mill
Used 4Hi 750mm reversible cold rolling mill.(Material:stainless steel).The written time is November 10,2020.
- product description
- Technical Parameters
Material:Stainless steel
Coil width: Max 750mm
Coil OD:Max 1600mm
Coil weight:Max 10tons
Max rolling speed: 160m/min
Drive by back-up roll
Working roll:φ180*850*1460mm
Back-up roll:φ720/410*820*2740mm
Drum:φ500*1725mm
Cardan shaft:W390
Main motor:840KW
Recoiler motor:400KW*2sets
Pressdown motor:30KW*2sets
Archway column section:400*520mm
If you want to quote or further information on this product, please fill out the form below.
