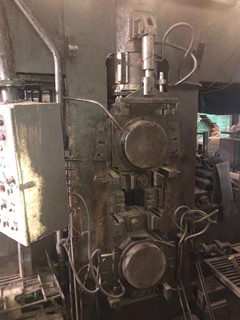

CR No.69 Used 420mm 6 Hi Cold rolling mill AGC

6Hi Reversible Cold rolling mill with AGC.it is made in 2007, stopped running in 2019(Material:mild steel).The written time is March 6,2020.

  • product description
  • Technical Parameters


Technical parameters:

Material:mild steel

Max coil width: 420mm

Working roll width: 520mm  diameter: 140mm
Middle roll width: 500mm, diameter:240mm
Back up roll width: 500mm, diameter: 480mm
Mill DC motor: 550KW
Coiler DC motor: 285KW
Max speed: 240m/min

Online without thickness gauge.

Min products thickness:0.2mm


Scope of supply:

Mainframe                                                     1set

working roll                                                      2

back up roll                                                      2

intermediate roll                                                2

left and right roll up with electrial                     1 set for each

left and right working table                              1 set for each

Host drive with electrial                                       1

High pressure station                                        1 set

Low pressure station                                         1 set

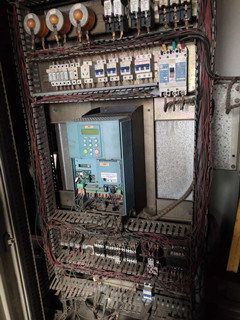

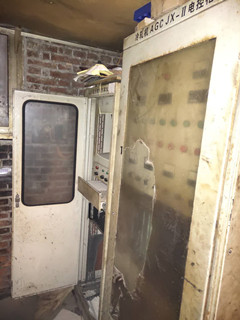

Drive electric cabinet                                         1 set


Spare part weight:5500 tons,include 2 back up roll  and 12 working roll .
