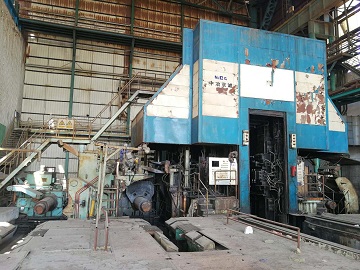

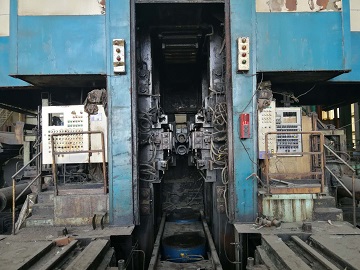

CR No.23 Used 1250mm 6Hi Cold Rolling Mill
Used 6Hi Cold Rolling Mill,which is made in China.It is made in 2009 and shut down in 2017.Material:Mild steel The written date is July 5,2019.- product description
- Technical Parameters
Annual capacity 220,000 Tons/Year
Material:Mild steel
Material Thickness 1.5-3.5mm
Material Width 800-1250mm
Material Coil OD 1000~2000mm
Material Coil ID 610mm
Material Coil Weight Max 25t
Production Thickness 0.2~1.2mm
Production Width 800-1250mm
Production Coil OD 1000-2000mm
Production Coil ID 610mm
Production Coil Weight Max 25t
Mill Max Speed 1300 m/min
Threading speed 30m/min
Payoff tension 6KN
Payoff speed 550m/min
Recoiler tension 140KN
Recoiler speed 1300m/min
Payoff motor power 650KW AC
Recoiler motor power 3000KW AC
Mill motor power 2*3000KW AC
Max seperating force 18000KN
Working roll size φ385-340*1450mm
Intermediate roll size φ440-390*1410mm
Backup roll size φ1250-1100*1420mm
