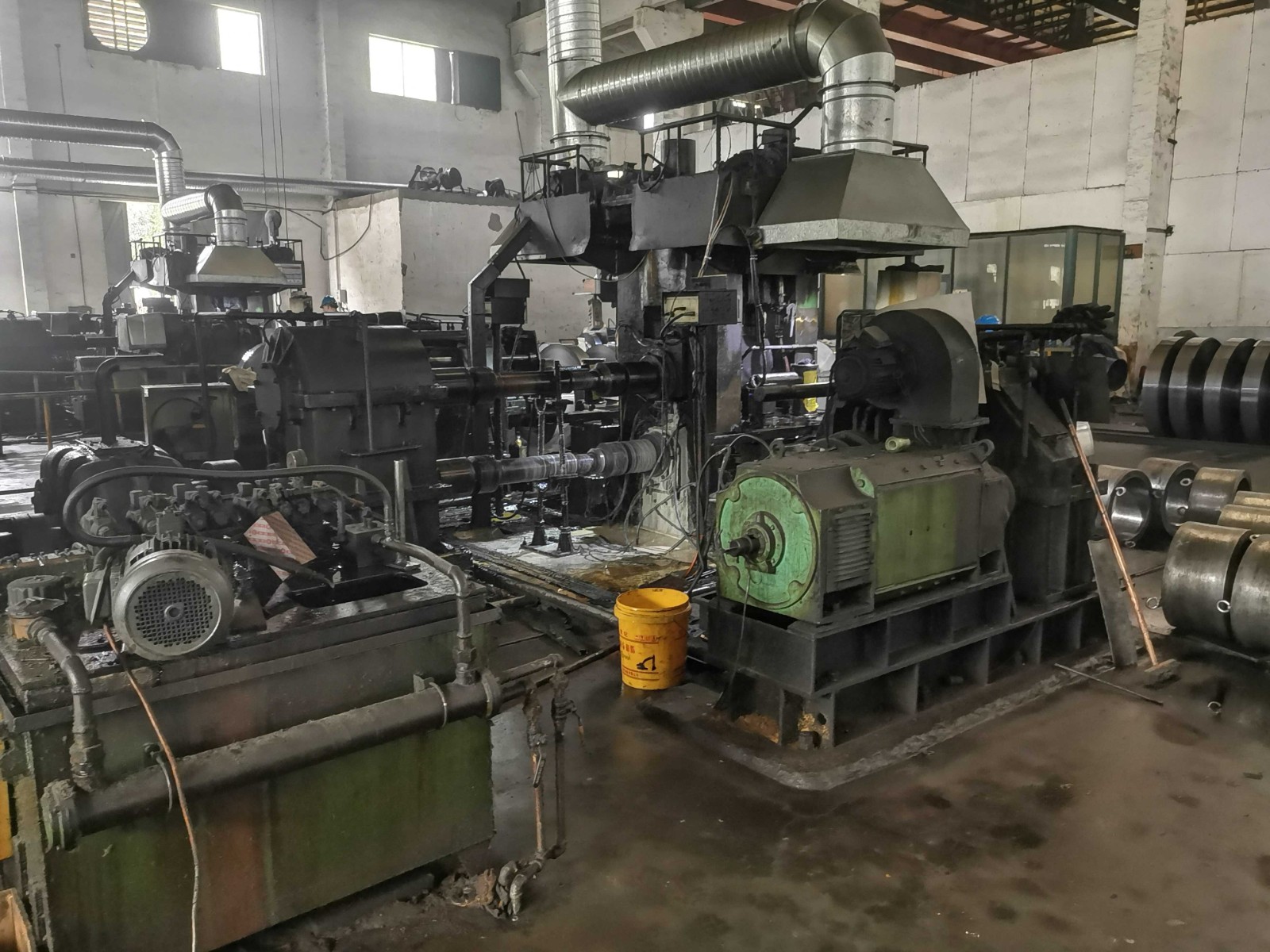

2006 Wuxi Jinjie 250mm 4hi Cold Rolling mill
stock No.: 250, it is written on May 7, 2022- product description
- Technical Parameters

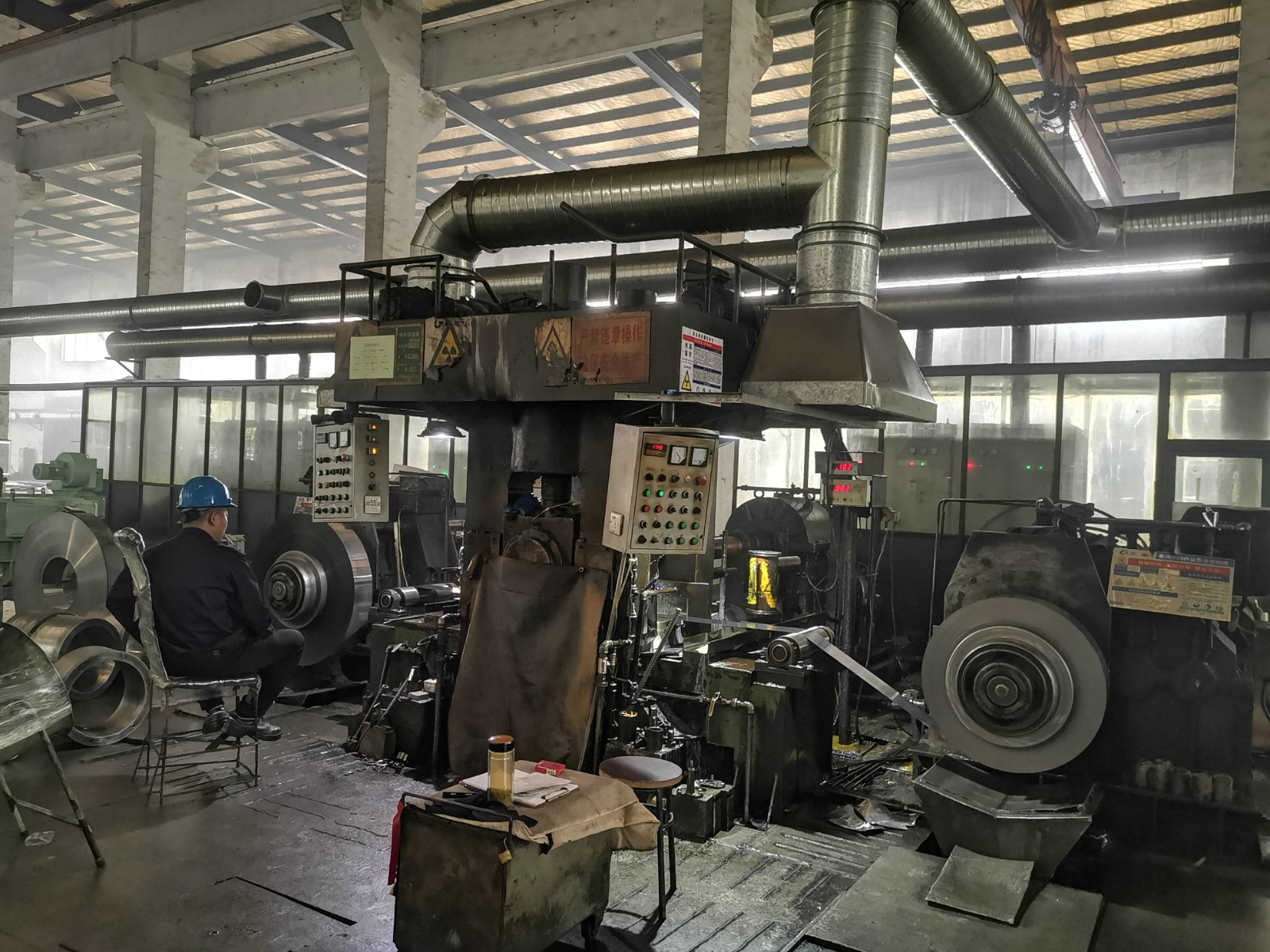

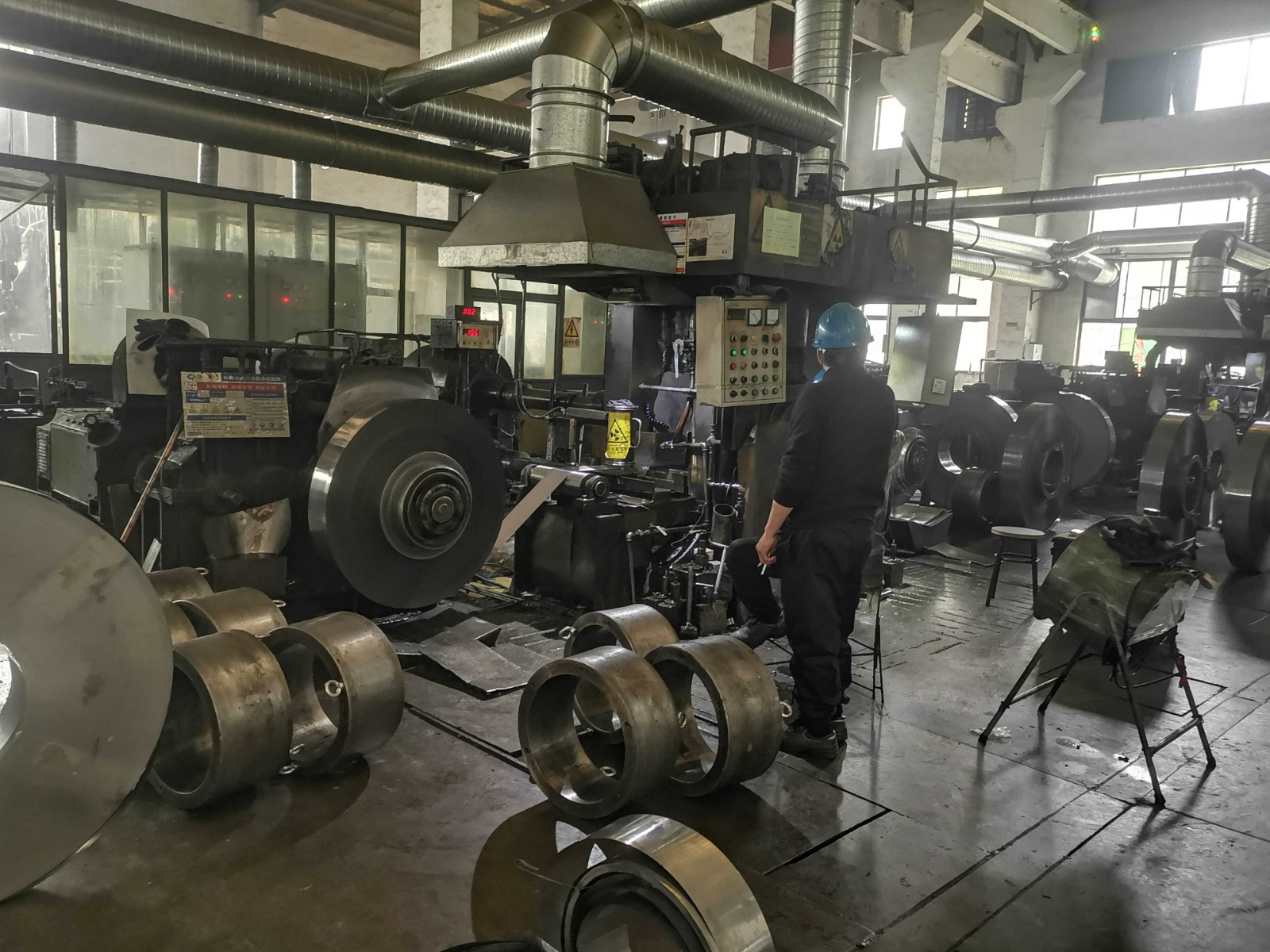

it is a working mill, still on line
manufacture date: 2006-2007
manufacturer: Wuxi Jinjie
total weight: 41 tons
material: 65 Mn or Q 195, Q235
support roll: OD350*350mm
work roll: OD90*350mm

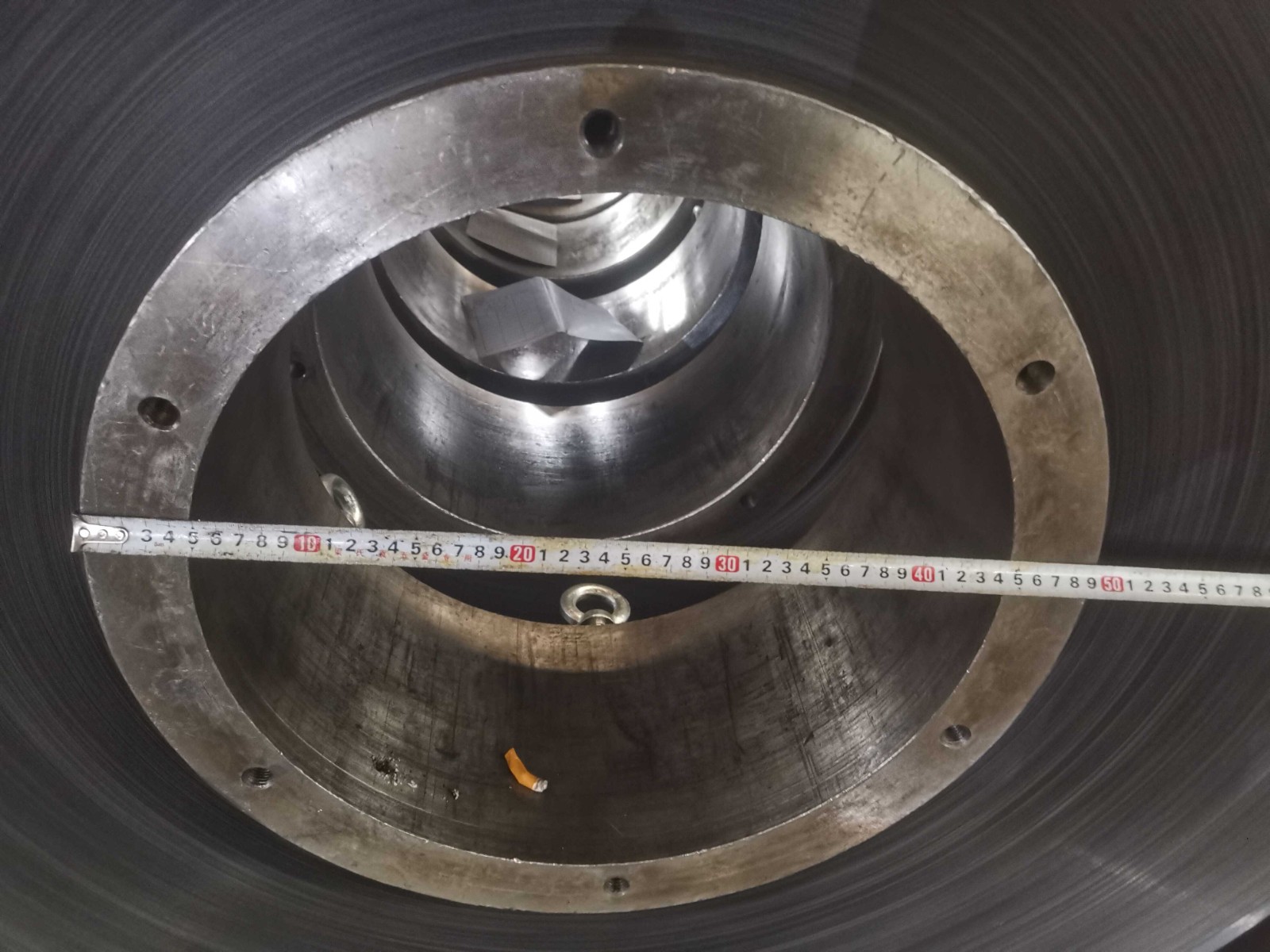

recoiler: OD400mm
max speed: 150m/min
input thickness: max. 1.5mm
output thickness: min 1.0mm
main motor: DC160KW
recoiler motor: 67KW*2

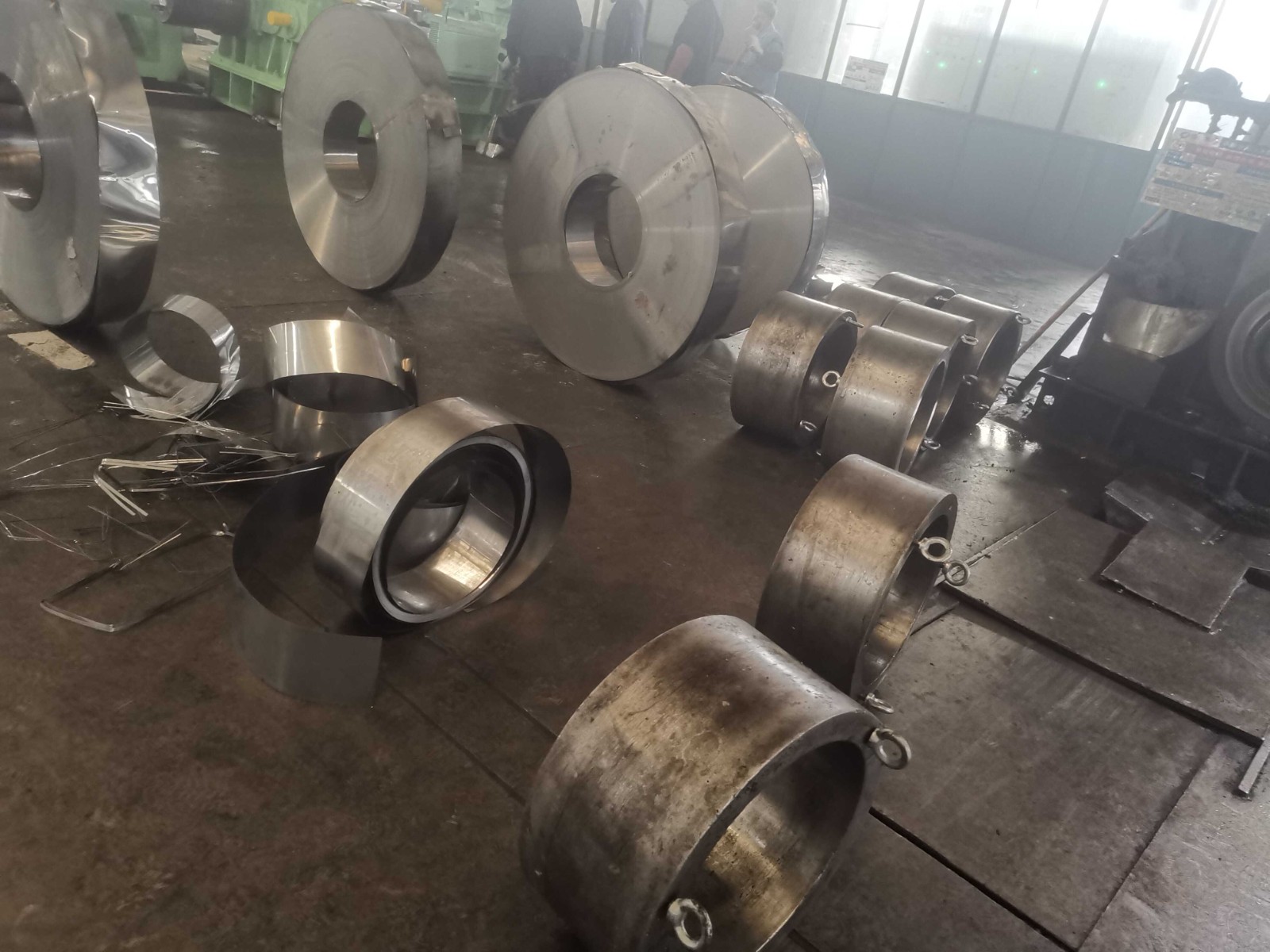

coil width: max. 250mm

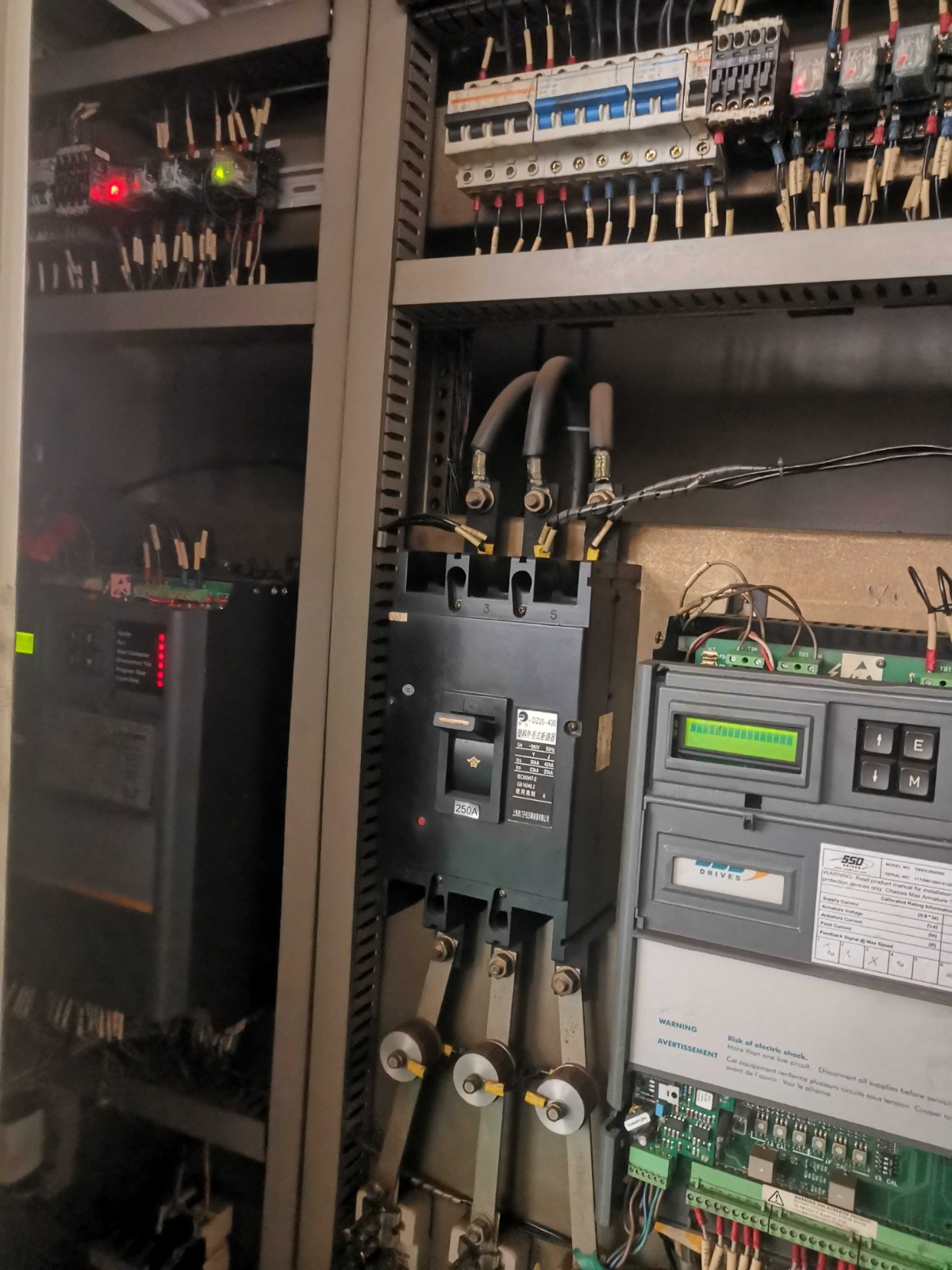

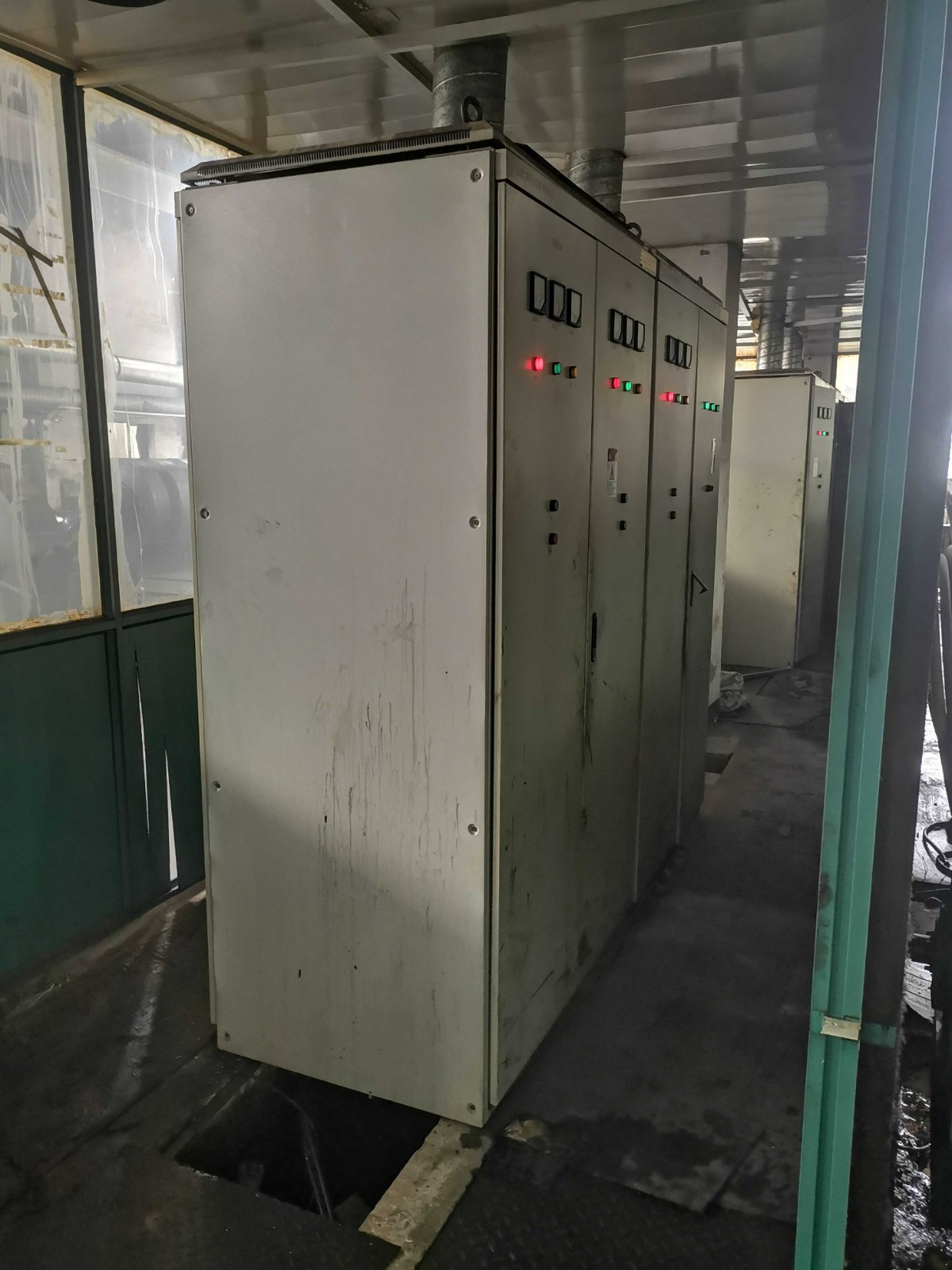

electric diagram, foundation drawing

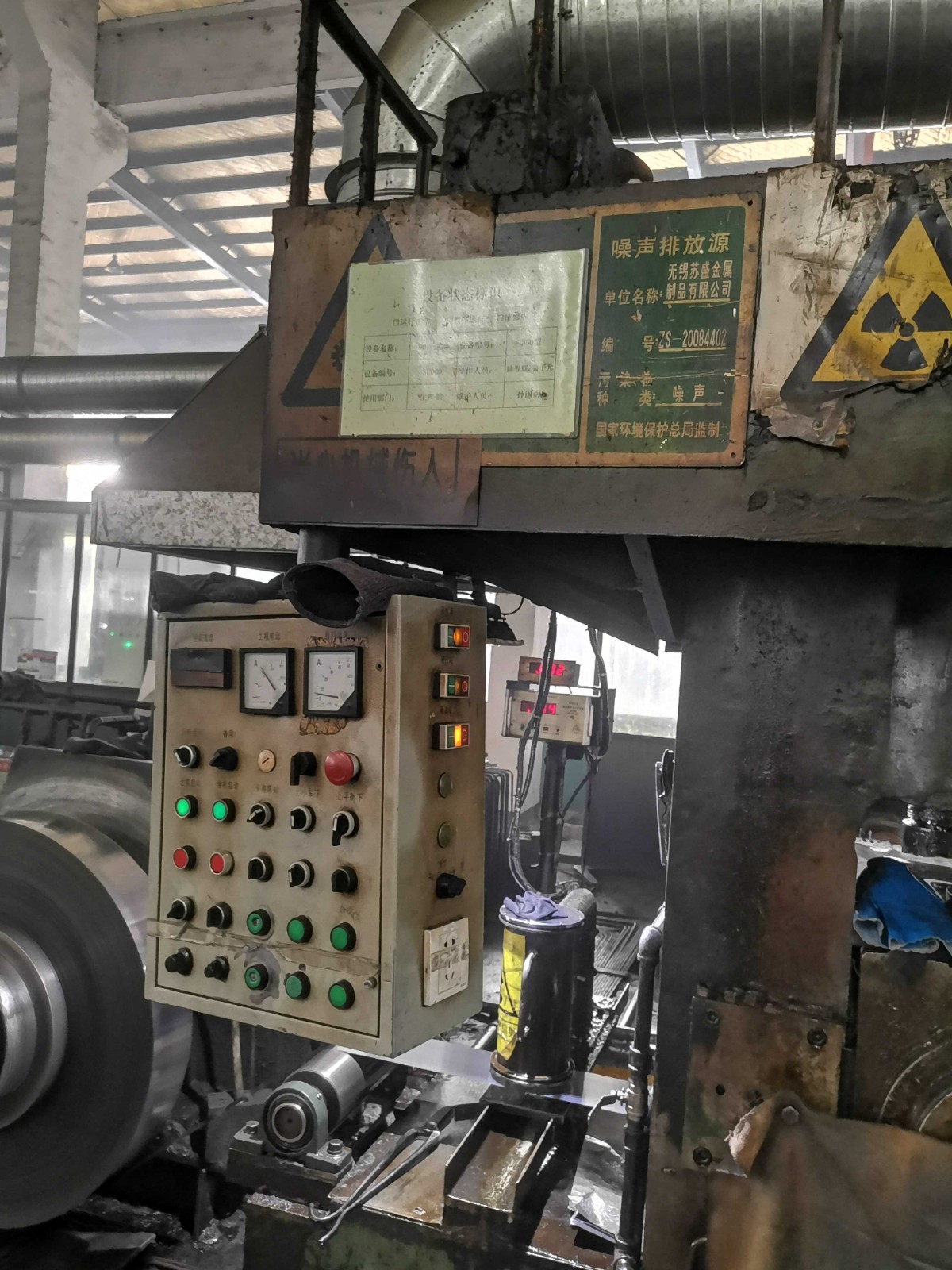

Gamma ray thickness gauge (the radioactive source cannot be exported
randomly and needs to be submitted to the Environmental Protection Bureau)
thickness: 0.45--0.28--0.18---0.13
between those thickness you need to do the annealing
