used cold rolling mill

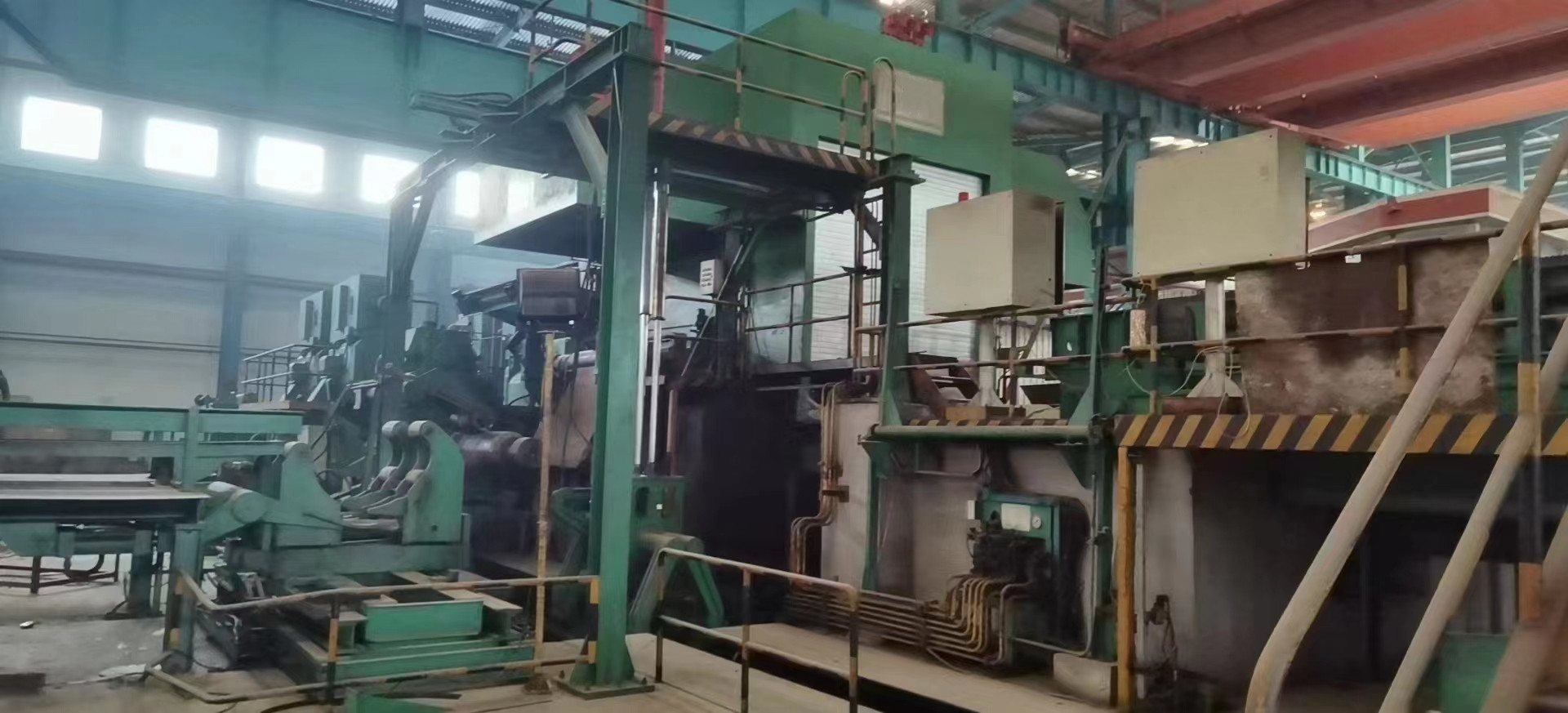

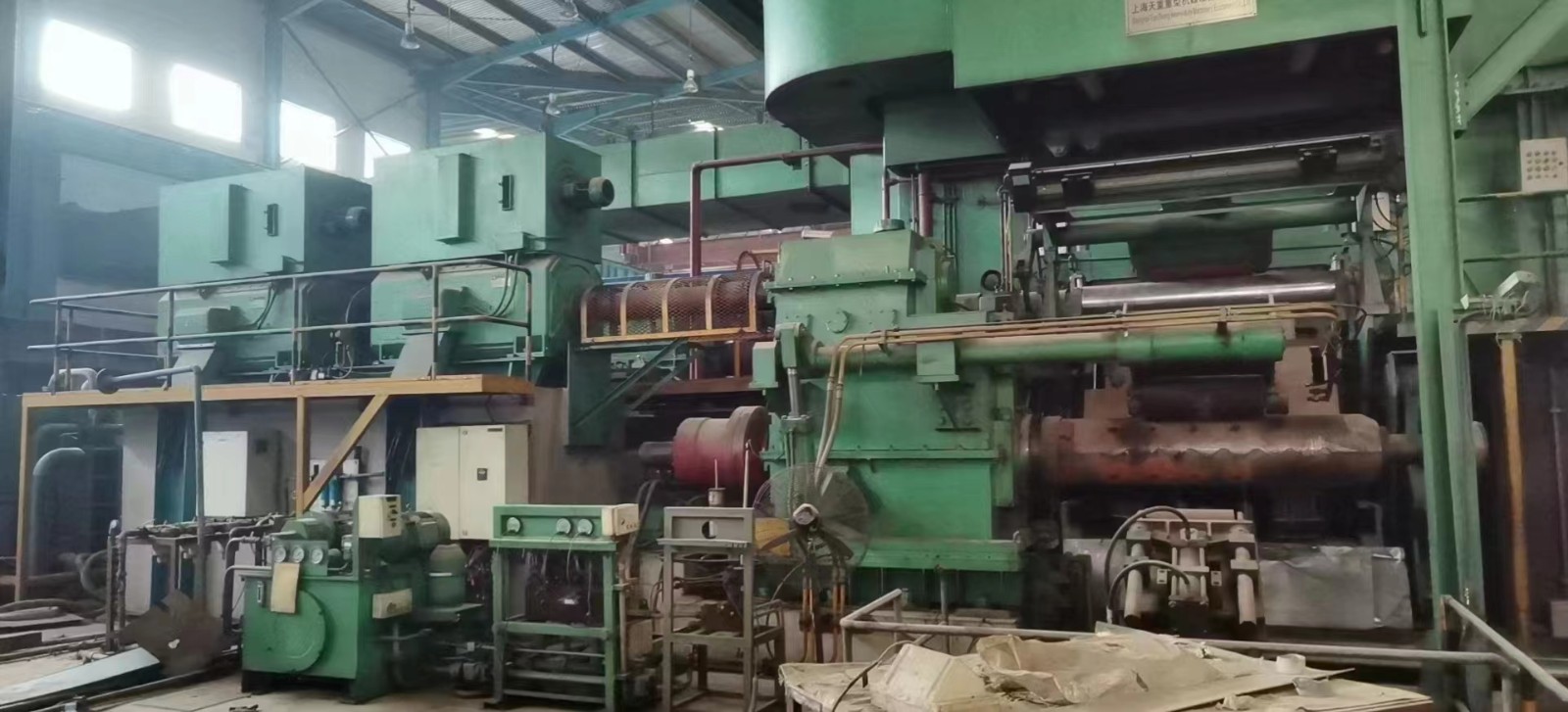

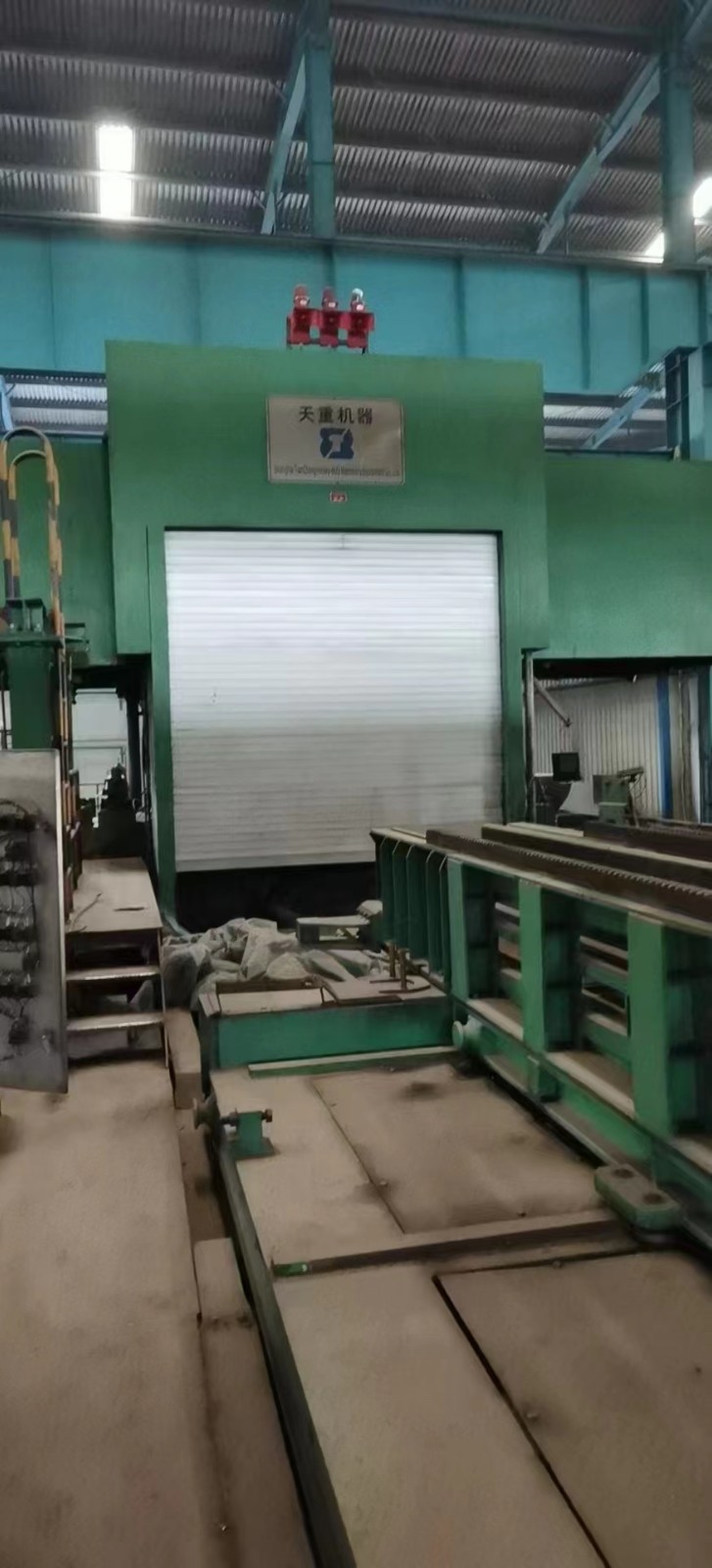

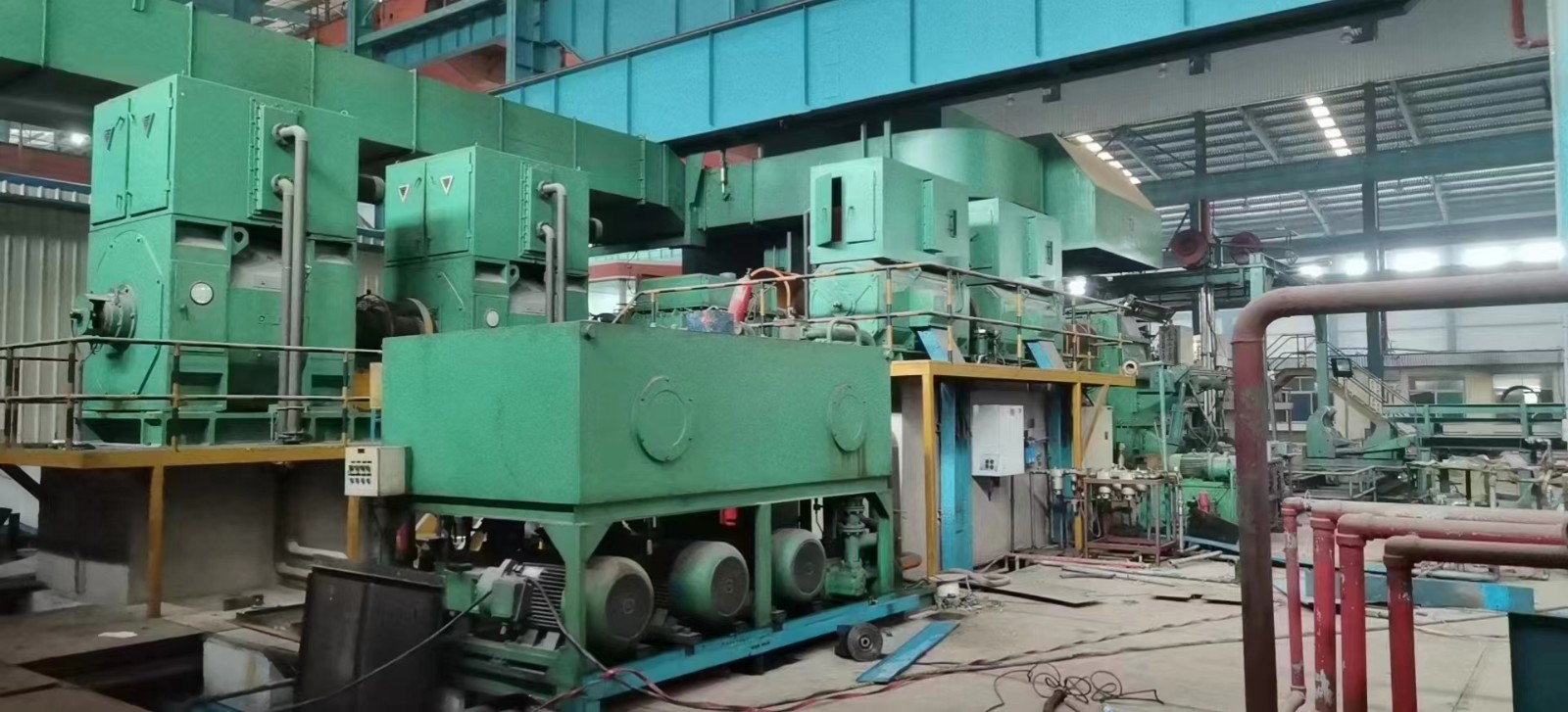

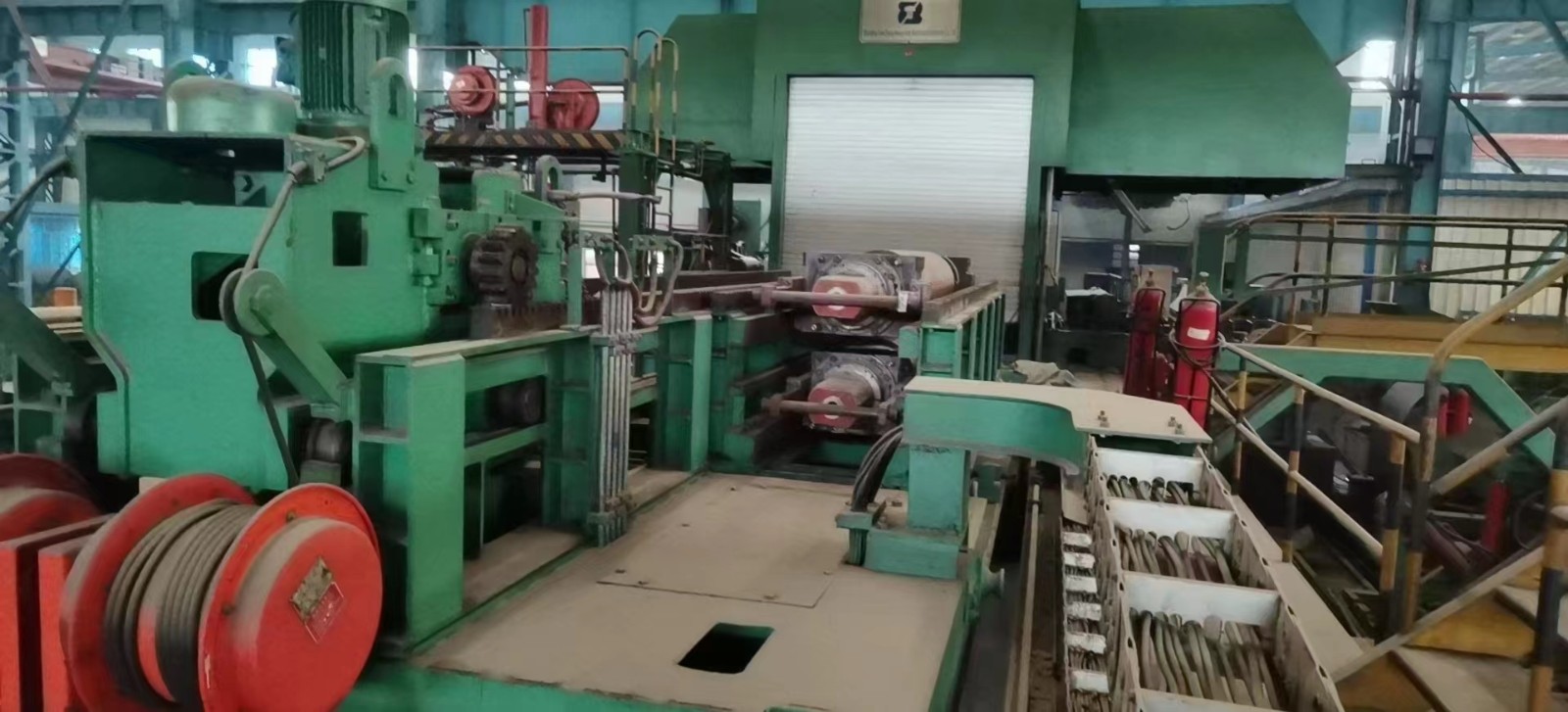

1700mm cold rolling mill aluminum
stock No.:405, it is written on August 30, 2022- product description
- Technical Parameters
machine is Chinese brand.
material: aluminum or aluminum alloy (1XXX, 3XXX, 5XXX, 8XXX series)
yield strength: 60-330Mpa
input coil width: 850-1700mm
output coil width: 850-1700mm
input coil thickness: max. 10mm
output coil thickness: min. 0.2mm
max. coil weight: 12 ton
coil ID: 510mm
coil OD: 2000mm
rolling speed: max. 1200m/min
main motor power: 2000KW ×2
uncoiler motor: 453KW ×2
recoiler motor power: 453KW ×3
work roll size: OD440×1900mm
back up roll size: OD1250×1850mm
machine total weight: approximate 1,000 ton
