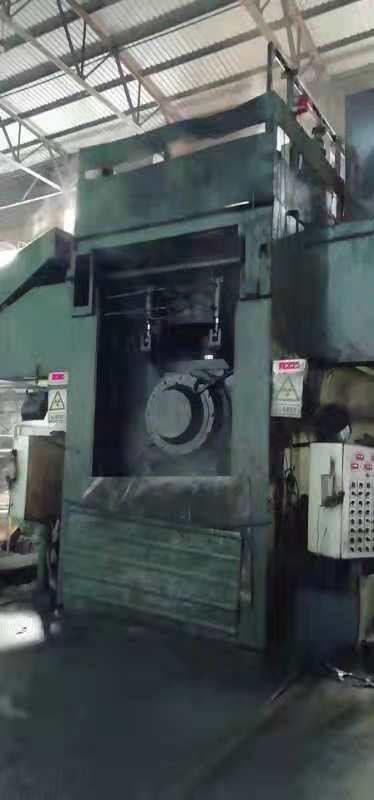

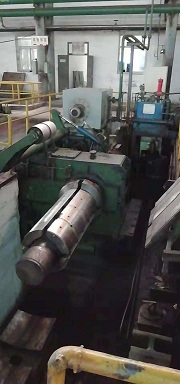

1250mm 6HI CRM  including the parts:

Loading car

Payoff

3Rolls straightener

unloading car

recoiler

change rolls car

change backup rolls car

exit rolling shear

vacuum stripper

γ thickness gauge

turner roll

wraper

flat bed fitter

rolling oil supply system

making oil box

oil mist lubrication decvice

lubricating station

screw down system

auxiliary hydraulic station

bending roll hydraulic station

CPC hydraulic station

oil de pot ventilation system

purging system

Material:SPHC

Material Thickness:1.2-3.5mm

Material Width:700-1250mm

Product Thickness:0.17-1.2mm

Product Width:700-1250mm

Max weight:20t

Max inner diameter:φ610mm

Max force: 12000KN

Max torque:80KNM

Rolling Speed:0-480-900m/min

Threading speed:18m/min

Working roll diameter:φ330mm

Working roll length:1400mm

Middle roll length:1400mm

Working roll bending force:350/210KN

Intermediate roll transverse force: 550/350KN

Intermediate roll transverse amount: 200mm

Max opening of work roll:20mm

Adjust the rolling line elevation speed:2.9mm/s

Adjust the elevation of the rolling length:115mm

Main Motor:Z710-2B

Main motor power:1000KW

Main motor voltage:660V

Main motor speed:450/1000 r/min

Recoil motor:Z710-4B

Recoil motor power:800KW

Recoil motor voltage:660V

Recoil motor speed:300/992 r/min
