used cold rolling mill

Your current location:首页 > Products > used cold rolling mill > used 750 4-hi reverse CRM

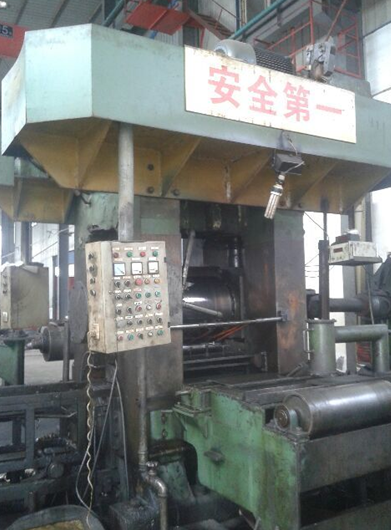

used 750 4-hi reverse CRM

  • product description
  • Technical Parameters
A.     Product information and machine specifications

minimum finished product thickness: 0.3mm

maker: china brand

manufacture year2012--2013

producing time more than 1 year

 on line

pressing typemotor mechanics

transmission typeack up rolls transmission

motor630KW

coiling motor315KW

back up rolls diameter560roll surface width680

working rolls diameter150rolls diameter750

Max coil width: 630 mm

Material: mild steel

rolling pressure: 700 tons

max speed: 200—240 m/minute


B.      scope of supply

rolling machinefront and rear platforms 2 coilershydraulic stationoil lubricating stationemulsion stationelectrical cabinet

technical materialelectrical drawing

 machine stops at beginning of this year, can only run without material now
