manufacture year: 2009

specs:

A. production capacity

1. hot rolling coil size: width 700mm 1350mm, coil diameter: 700mm 1800mm

2. thickness: 4mm(5%)

3. speed: 300m/min

recoiling tension: 300m/min max tension 36t, 210m/min max tension 54t

B. rolls specs

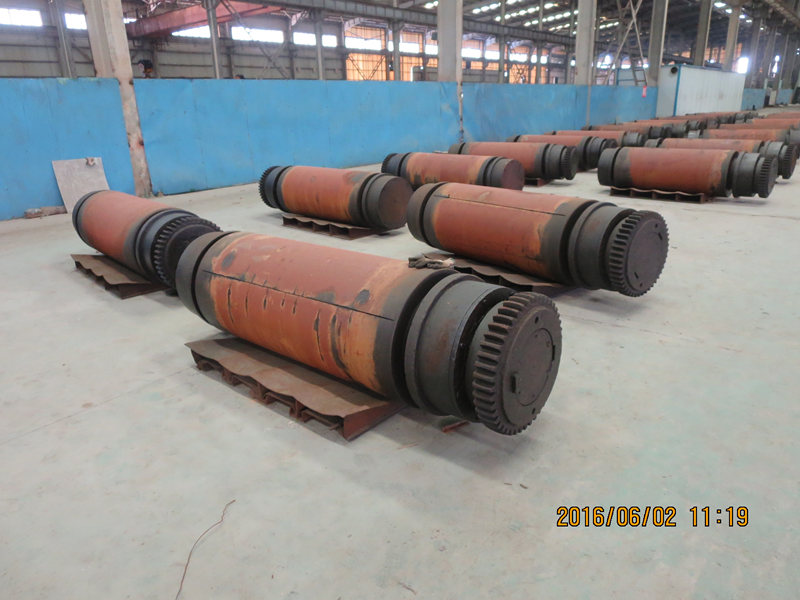

1. working rolls: Φ 160mm

2. middle rolls: Φ 145mm

3. side back up rolls: Φ 260mm

4. back up rolls: Φ 1050mm

C. transmission specs

1. recoiling transmission motor: 900kw*2

2. rotating speed: 0/413/1200RPM

3. reducer ratio: 1/10

4. main rolling motor: 1237kw*2

5. rotating speed: 0/380/800RPM

6. ratio: 1/8.5
