A.    rolling spec：

material：stainless steel 201、304

feeding thickness:≤3.0mm     feeding width: ≤1050mm

run out thickness:≥0.25mm     run out width: ≤1050mm

rolling speed:design speed V≤230m/min（with load 210m/min）

rolling force:P≤1500t

B.     Scope of supply

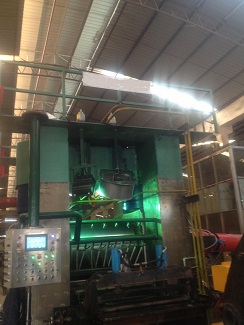

1.      Main rolling mill: Ф190 ／Ф900×1180 4-hi AGC reverse cold rolling mill

working roll diameter × roll width Ф190×1180㎜  material：9Cr2Mo

back up roll diameter × roll width Ф900×1150㎜   material：9Cr2Mo

roll changing: hydraulic changing

main transmission motors: Z630-4A  N＝780KW 2 units n=280/850r/min

2.      Hydraulic expanding uncoiler:

Cone size: Ф490-Ф518×1280mm

motor：Z4-315-42  N=315KW  n=750/1600r/min

reducer：850

max coil weight：20T  max coil diameter：φ1800㎜

3.      Recoilers: 2 units

Cone size: Ф500×1180mm

motor：Z630-4A  N=780KW  n=280/850r/min

reducer：ZLY710

recoiling tension：≤20T   max coil weight：20T  max coil diameter：φ1800㎜

4.      Hydraulic system: 11MPa 1 unit

5.      Oil lubrication system：125L/min   1 unit

6.      Electrical system: SIEMENS DC driver
