Manufacture time: 2013

1. Rolling requirement

a.       coil material type： pickled cold rolling structural carbon steel Q195-235, SPCC, SPCD, SPCE, 08AL

b.      coil specs： thickness 2.75mm(3.0)*680mm

c.       finished product specs：0.20*680 annealing in middle

d.      coil ID/ max coil OD：508/1800mm

e.       Max coil weight: 8000kg

2. main specs

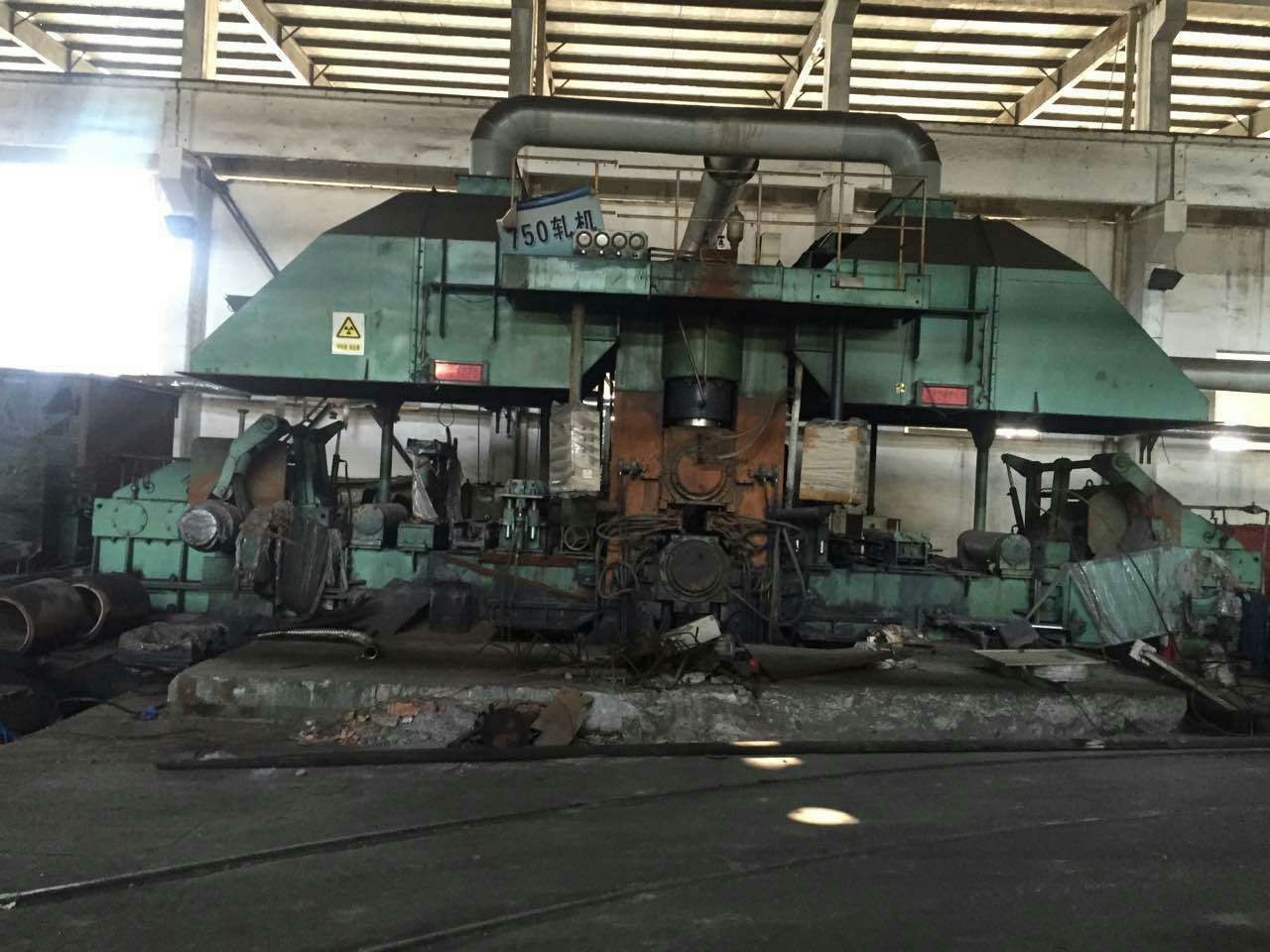

Rolling mill type: single stand 4-hi reverse

f.       rolling pressure P≤800T

g.      rolling speed: 360m/minute

h.      coiling tension：70KN

i.        working rolls: Φ155/Φ150*750

j.        back up rolls: Φ635/Φ610*700

k.      transmission type: back up rolls transmission

l.        left coiler motor: 355kw

m.    main transmission motor: 728kw

n.      Total installation capacity: 1800kw

3. Scope of supply

Coil moving car  2 units

Uncoiler  1 unit

5-roll leveler  1 unit

Left coiler  1 unit

Left craft plat form  1 unit

Main mill  1 unit

Pressing down plat form and ladder  2 sets

Smoke hood  2 sets

Stand fitting  1 set

Rolls fitting  1 set

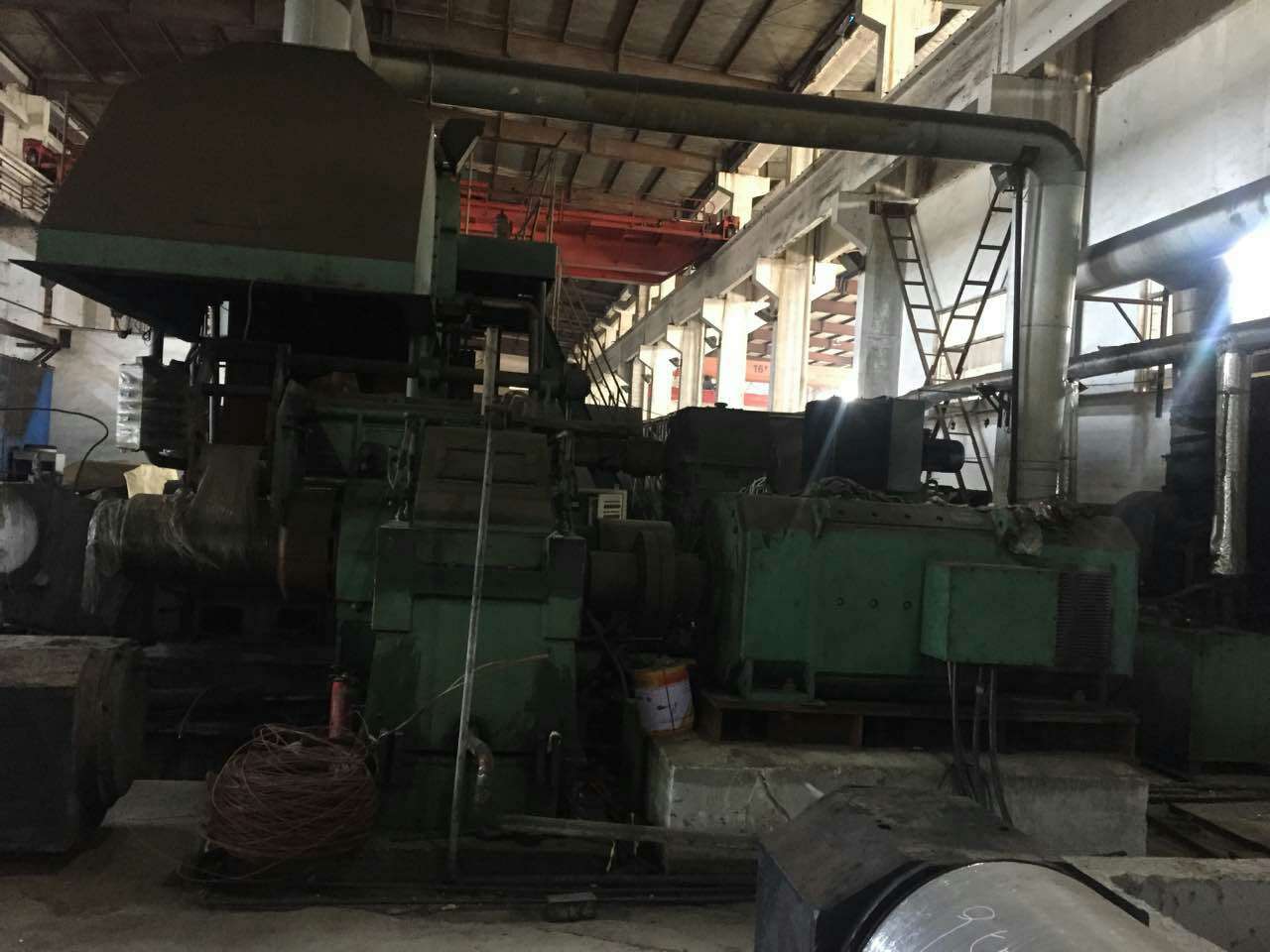

Main transmission device  1 set

Back up rolls changing device  1 set

Working rolls changing device  1 set

Right craft plat form  1 set

Right coiler  1 unit

Unloading car  1 unit

Lubrication pipe system  2 sets

Low pressure hydraulic station  1 unit

Oil lubrication station  1 unit

Constant pressure high pressure station  1 unit

Coil mist lubrication system  1 set

Foundation bolts  1 set

Thickness gauge 1 set(2 units)
