A.    Technical specs

Material type: Q195, Q235, 08A1, 20#, SPHC, SPHD

Material coil width x thickness: 800-1320 x 1.5-3.5mm

Finished coil width x thickness: 800-1320 x 0.2-2.0mm

Coil weight: 23.8t

Rolling force: 20000KN

Threading speed: -0.5m/s

Rolling speed: 15m/s(900m/minute)

Working roll: Φ420/380 x 1450mm

Middle roll: Φ480/430 x 1400mm

Back up roll: Φ1350/1280 x 1350mm

Middle roll moving distance: 330mm

Open mouth: 25mm max

Rolling torque: 150KN-M

Working roll bending force: +400KN

Middle roll bending force: +400KN

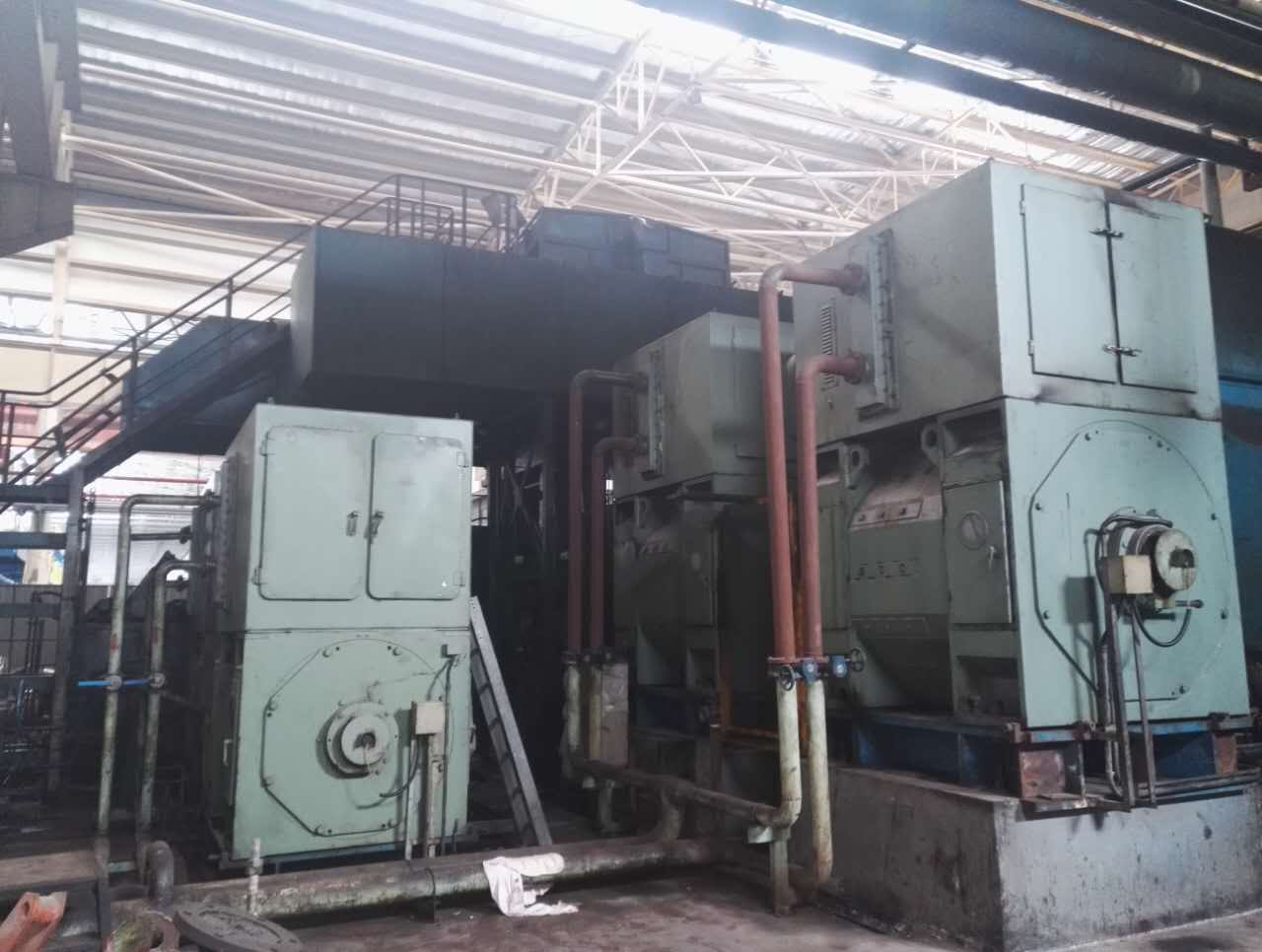

Main transmission motors: 2 x 2000KW

Recoiling max tension: 140KN

Recoiling motors: 2 x 1250KW

B.     Scope of supply

1.      Decoiler x 2

2.      Pinch straightener

3.      Left recoiling machine

4.      Left thickness gauge deoiling device

5.      6-hi reverse HC main mill

6.      Roll changing machine

7.      Main drive

8.      Right thickness gauge deoiling device

9.      Right recoiling device

10.  Coil aid

11.  Equipment piping

12.  Process lubrication device

13.  Thin oil lubrication device

14.  Oil and gas lubrication device

15.  Mist exhaust system

16.  Electrical control system
