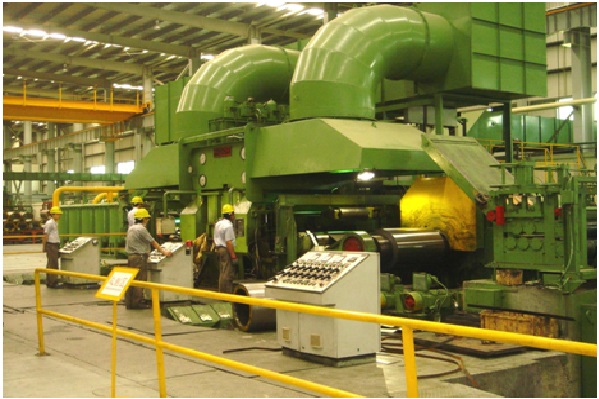

Used 20-hi cold rolling mill (India Brand)

  • product description
  • Technical Parameters

made in 2007, stop at 2017.3

made in india, MAGADH

hydraulic AGC system

ABB electrical control system

1specs

1material spec

material typehot rolling pickling low carbon steelgood quality low carbon steel

gradeQ195Q195Q215SPHCSPCCSPCDSPCE

material sizethickness1.8mm-4.5mm

width850mm-1250mm

IDØ610mm

ODØ1630mmMax

weight15TMax

2finished product size

thickness0.1mm-2.0mm

width800mm-1250mm

IDØ508mm

ODØ1630mmMax

weight15TMax

2main specs

1roll size

working roll      Ø68*1395mm

1st middle rollØ104*1419mm

2nd middle transmission rollØ173*1400mm

2nd middle passive rollØ173*1364mm

back up roll diameter:        Ø300mm

2max rolling force700T

      Pressing down: motor and mechanics

3tension

max uncoiling tension50KN

max recoiling tension300KN

4)rolling lubricationemulsion

5line speed

max rolling speed600m/min

(6production100000 tons/year

7motor power

main motor3210KW

recoiling motor power2250KW
