Product main technical conditions

（1）  Raw material specifications：

Raw material: Hot-rolled pickling ordinary low carbon steel、high quality low carbon steel

On behalf of the steel grade: Q195、Q215、Q235、08F wait

Raw material specifications: The thickness of the: 1.8mm-4.0mm

  The width of the:500mm-1295mm

   The inner diameter:610mm

 Outer diameter:1900mm(Max)

    Volume weight:23.5T(Max)

（2）  Finished product specification

       thickness :0.38mm-2.0mm

       width:500mm-1295mm

     inner diameter:508mm

     Outer diameter:1900mm(Max)

       coil  weight:23.5T(Max)

2、Equipment main technical parameters

（1）Roll size

Work roll roll surface: 435/406*1372mm

Support roller roller surface: 1435/1219*1372mm

（2）       Maximum rolling force:3300T

（3）uncoiler maximum tension:25KN

 Coiling maximum tension:150KN

（4）Mill lubrication : emulsion

（5）Uncoiling speed: 0.4-3.0m/s

The speed of rolling: 0-400m/min

（6）Production Capacity: 120000 tons/year

（7）Open book mechanical and electrical machine power:5HP

 Main motor power:2800KW

 Reel motor power:1000KW

Scope of supplying:

Uncoiler, leveler, shear, 2 coiler, rolling mill, electric system, hydraulic system. Thin oil station.

Thickness gauge (exclude garma radiation source)

Machine was made in 2007

Stopped running in 2015,  now is still on line.

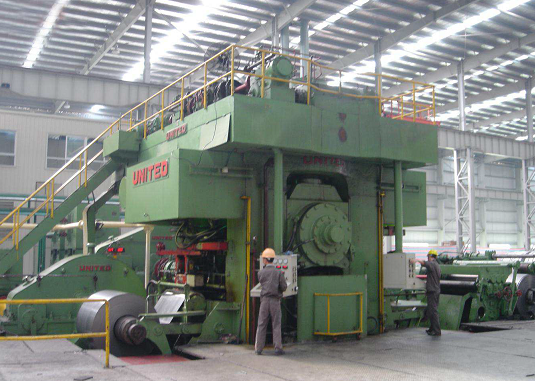

USA Brand: United
