A.    Technical specs

1.      Material specs

Material: aluminum and aluminum alloy

thickness≤4.0-8.0mm

width≤850-1250mm

coil ID/OD: Φ508/Φ1600mm

max coil weight: 16t

2.      Finished product specs

Material: aluminum and aluminum alloy

thickness≥0.3-0.8mm

width≤850-1250mm

coil ID/OD: Φ508/Φ1600mm

max coil weight: 16t

3.      Main specs

Rolling size: Φ280-Φ680 x 1350mm

Max rolling force: 8000kn

Rolling speed≤250m/min

Recoiling tension: 9-90kn

Max recoiling speed: 150m/min

Working roll length: 1450mm

Back up roll length: 1350mm

Rolling line standard height: +900mm

Normal hydraulic transmission: 10MPa

Roll bending hydraulic transmission: 16MPa

B.     Scope of supply

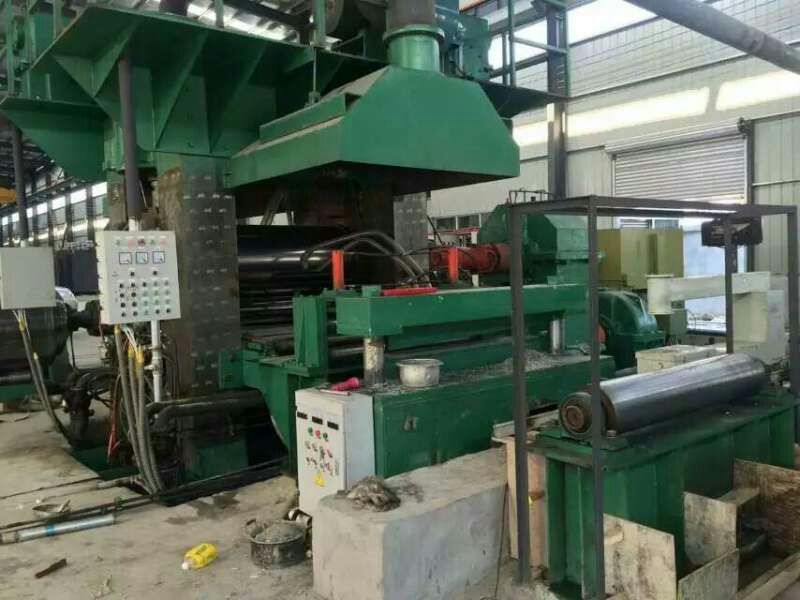

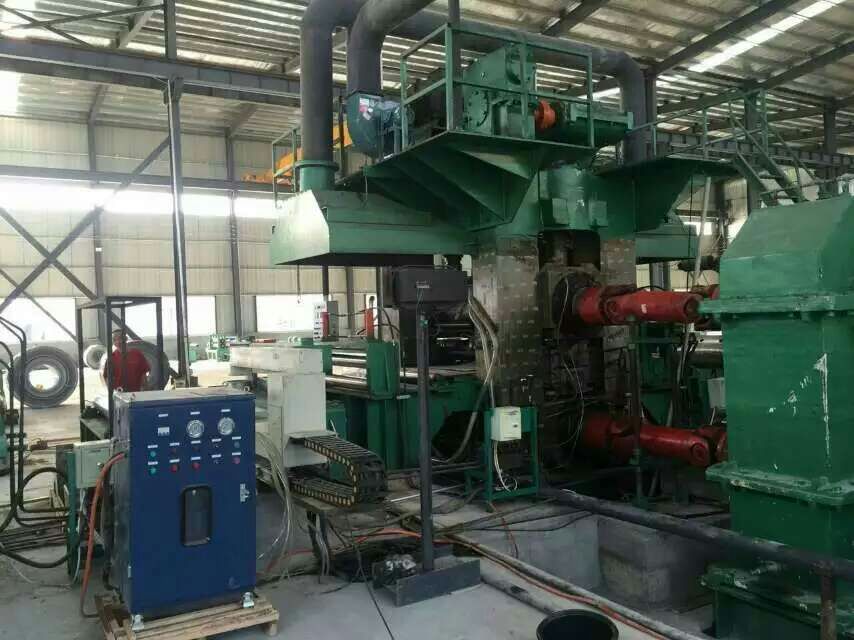

1.      Main rolling machine: Φ280-Φ680 x 1350mm 4-hi CRM

Main motor: 800kw

2.      Feeding craft plat form: pinch roll Φ250 x 1450mm

3.      Run out craft plat form: oil squeeze roll Φ140 x 1450mm

4.      Uncoiler: motor 480kw

5.      Recoiler:

6.      Oil lubrication system

7.      Hydraulic system

8.      Craft lubrication system(user supply)

9.      Electrical system
