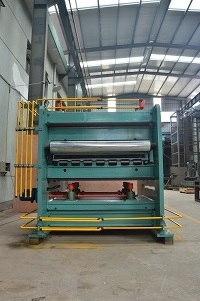

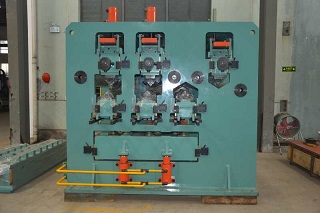

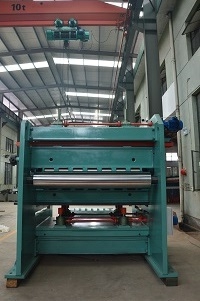

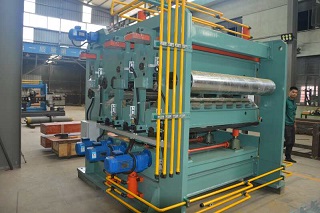

1500mm Stretching and Straightening Machine

used cold rolling mill

Your current location：首页 > Products > used cold rolling mill > 1500mm Stretching and Straightening Machine

1500mm Stretching and Straightening Machine.one year warranty,machine is finished in April 2018.The scope of supply is one set of 1500 Stretching and bend straightening without electrical and hydraulic control.

product description
Technical Parameters

Product variety, production capacity and technical data of Unit

Material: mild steel

Strip thickness：0.2-1.2mm

Specification of entry strip

Strip thickness：0.2-1.2mm

Strip width：600-1500mm

Specification of finished product

Strip thickness：0.2-1.2mm

Strip width：600-1500mm

Technical specification and parameter

Max unit speed： 200m/min

Max leveler tension：160kN

Transmission direction: From left to right

Roll diameter *length:

Upper bending working roll Φ30×1700

Upper bending intermediate roll Φ40×1700

Upper bending supporting roll Φ74×150

Lower bending working roll Φ30×1700

Lower bending intermediate roll Φ40×1700

Lower bending supporting roll Φ74×150

Lower straightening working roll Φ55×1700

Lower straightening intermediate roll Φ40×1700

Lower straightening supporting roll Φ74×150

Upper straightening working roll Φ75×1700

Upper straightening supporting roll Φ74×150

Turning roll Φ240×1700

Motor power and Outlet speed:

Bending roll box displacement motor 1.5KW 100r/min

Lower straightening roller box displacement motor 1.5KW 100r/min

Upper straightening roller box displacement motor 1.1KW 148r/min
