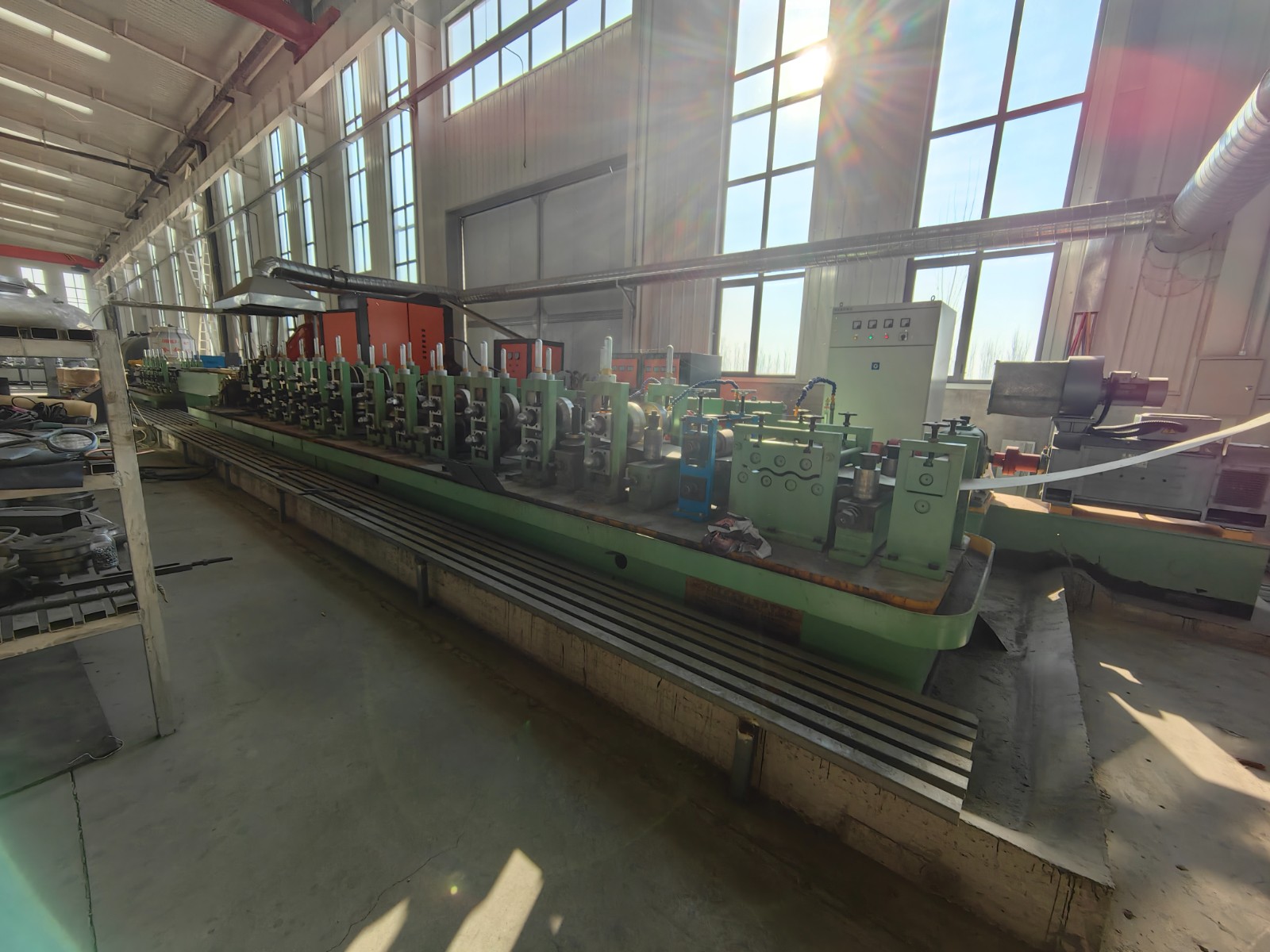

used 40×40mm～100×100mm ERW tubemill

used ERW tube mill

Your current location：首页 > Products > used ERW tube mill > used 40×40mm～100×100mm ERW tubemill

stock number: 604, it is written on 04/Dec/ 2024

product description
Technical Parameters

Input raw material

Material: Q195, Q235

Coil thickness: 1.5-4.0mm

Coil width: 160-400mm

Coil OD: 1000-1600mm

Coil ID: 510mm

Coil weight: max. 5000kg

Output tube

Tube OD: 40×40mm～100×100mm

Wallthickness: 1.2mm～3.0mm

Forming speed: 20M/min～90M/min

Tube length: 4M～6M

Scope of supply:

Uncoiler, shear welder, horizontal accumulator, forming machine, guiding device, Squeezing roller, deburring, cooling tank, sizing machine, rough leveler, cold saw, HF welder, electric control system, hydraulic system

Accumulator motor: 30kw, 18.5kw, diameter 5m

Forming gantry stands: 11

Vertical stands: 10

Side roller: 5

Gearbox: 11

Horizontal roller shaft diameter: 80mm, material: 42CrMo

Vertical roller shaft diameter: 50mm, material: 45#

Sizing gantry stands: 5 (all are universal stands)

Vertical stands: 5

Side roller: 5

Gearbox: 5, gearbox shaft material: 40Cr

Horizontal roller shaft diameter: 80mm, material: 42CrMo

Vertical roller shaft diameter: 50mm, material: 45#

Main motor: 132kw DC, 160kw DC

Cold saw motor: 18.5kw

300kw HF welder

Molds: 40x40, 40x60, 50x100, 100x100

Total installed motor power: approximate 692kw

Floor area: LXW 70mx5.5m
