used ERW tube mill
2007 used 5-12.5×300×300mm DFT
Stock No.: 599, it is written on 31/08/2023- product description
- Technical Parameters
used 5-12.5×300×300mm DFT
machine is made in 2007, in foundation.
input
coil width: 600-1200mm
coil thickness: 5-12.5mm
material: hot rolled coil, cold rolled coil
coil OD: 2000mm max.
coil weight: 20 ton max.
output
square tube: 150×150-300×300mm
line speed: 10-25m/min(max.)
horizontal shaft diameter: 180mm
horizontal stands: 9
vertical stands: 5
horizontal shaft diameter: 180mm.
forming machine, 90kw DC motorsx2
sizing machine, 185kw DC motor x1
800kw HF welder
scope of supply: storage table, coil car, uncoiler, coil opener, pinch leveler, crop shear, shear welder, 5 roll fin leveler,

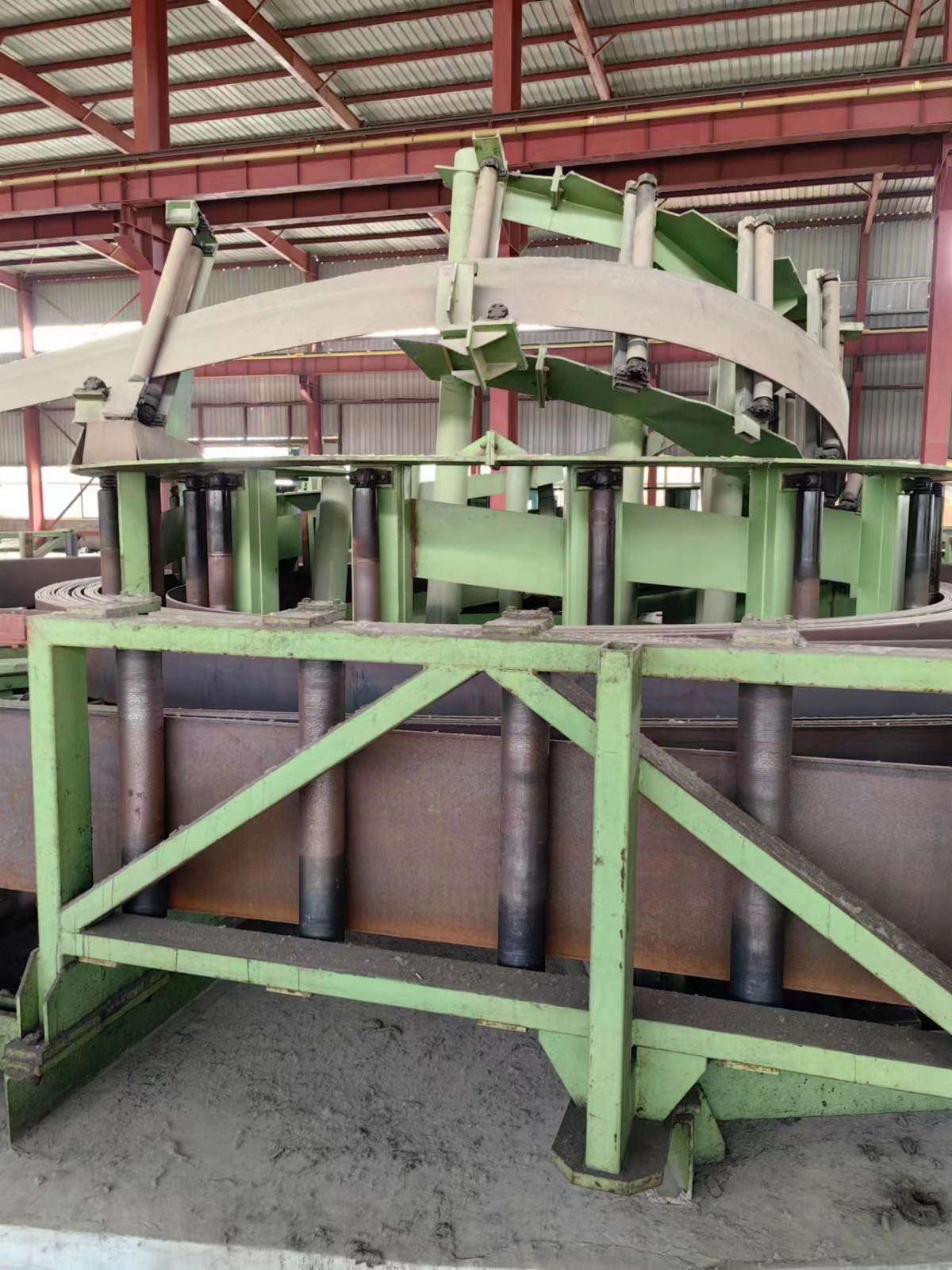

spiral accumulator, break down, fin pass, sizing machine, flying saw, cooling tank, conveyor
electric system, hydraulic stystem, molds, motors
