2007 Chinese Brand 400x400mm square tube direct forming tubemill

stock No.: 273, it is written on April 14, 2022
  • product description
  • Technical Parameters

machine in 2007, stopped running in 2015. dismantled now

machine total weight: approximate 900 ton

scope of supply:

coil car, uncoiler, leveler, shear welder, accumulator, forming and sizing machine, 800kw HF welder,

milling cutter, one set of rolls.

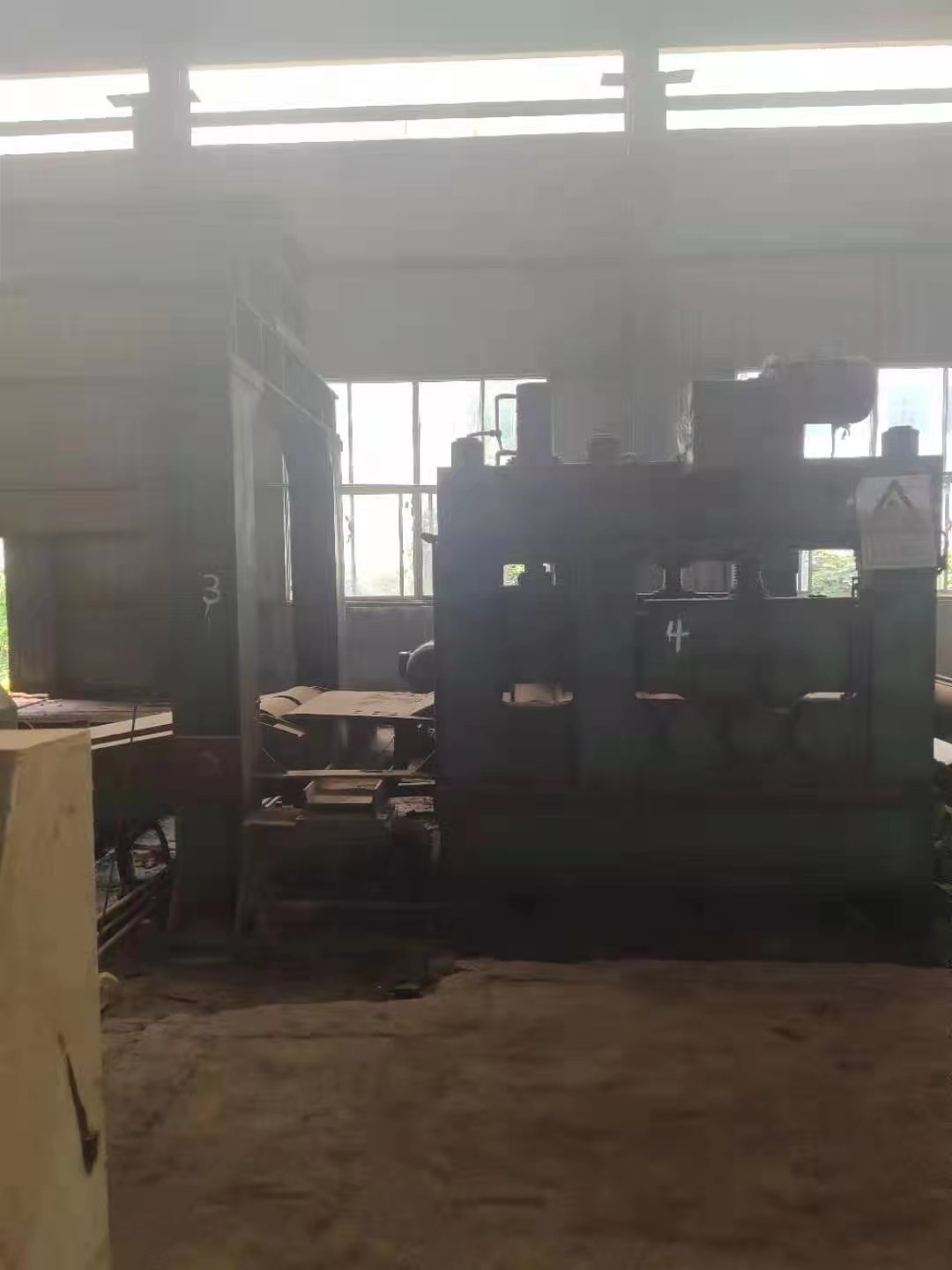

square tube direct forming machine.

Round tube out diameter range: 168-508mm

Square tube: 200×200 ~ 400×400

Rectangular tube W*H: (100-140)×(300-500)

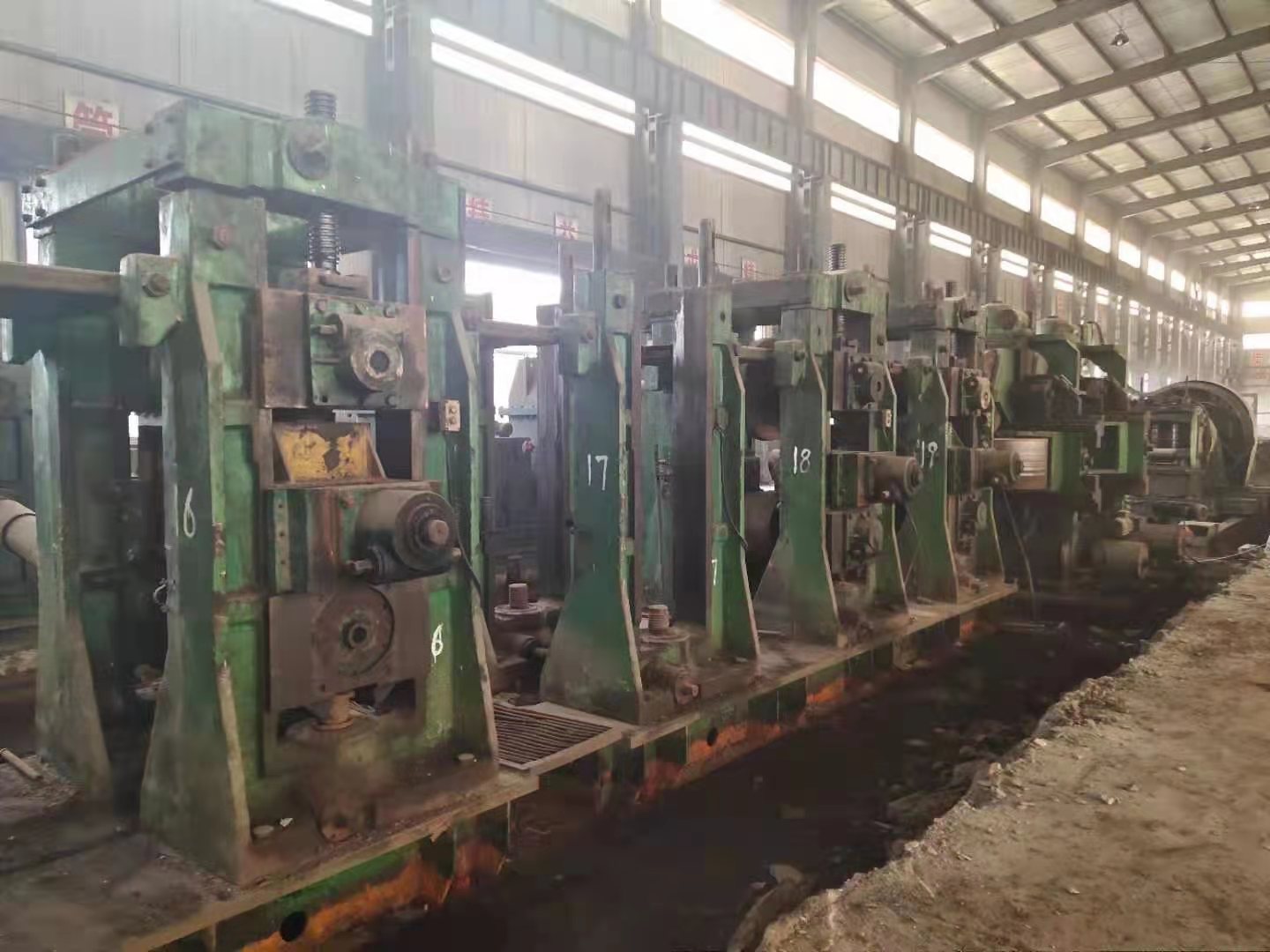

ERW tubemill with multiple function (both round and direct forming)

800kw HF welder, brand: Thermal tool

max wall thickness: 14 mm for round pipes

max square tube thickness: 12mm

Forming speed: 15-40 m/min

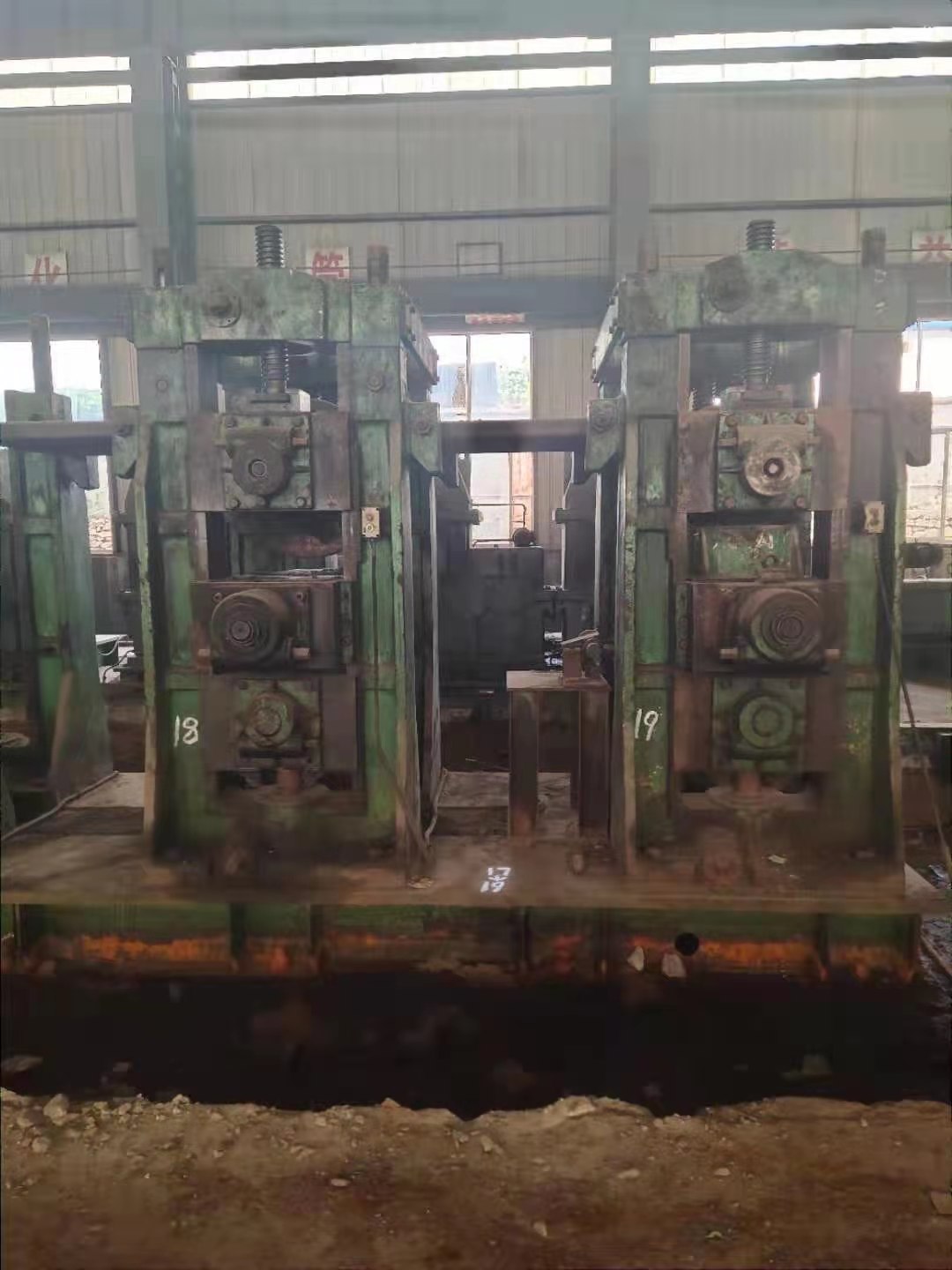

Forming device stand quantity and shaft diameter

Horizontal roll stand: 9 pcs shaft diameter: 240mm

Vertical roll stand: 10 pcs shaft diameter: 120mm

Universal stand: 6 pcs shaft diameter: 240mm

Sizing device universal stand: 6 pcs shaft diameter: 240mm

HF welder power: 800KW

Main machine motor : Z4-315-42 power: DC 250KW×4
