scope of supply:

double uncoiler, coil opener, 2+5 roll leveler, shear welder, forming machine, sizing machine, 600kw HF welder (Thermal tool), friction saw, run out table,

one set of rolls, no accumulator.

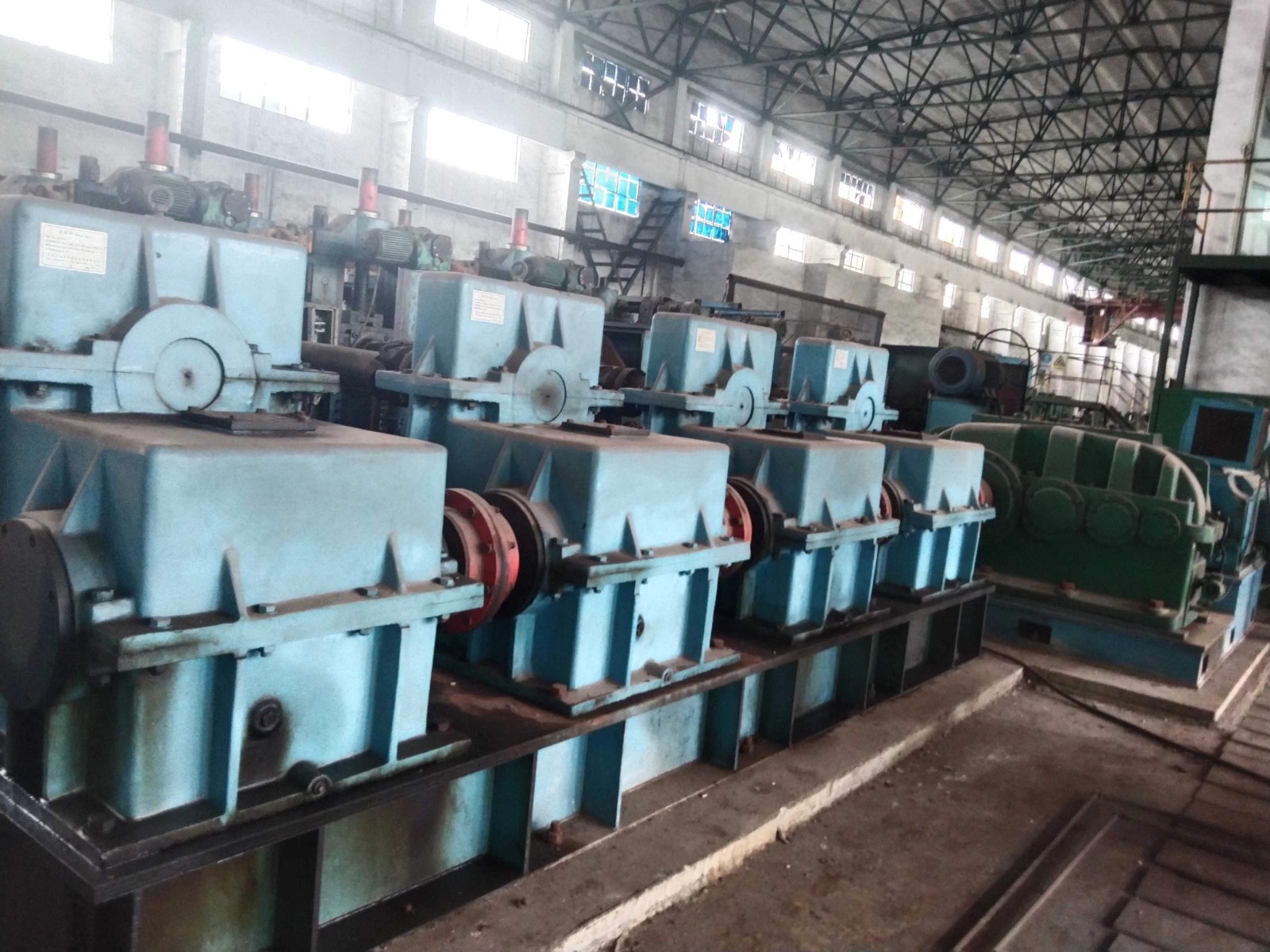

machine is dismantled

square tube size: 80×80-200×200mm, 50×100-150×250mm

wall thickness: 3-14mm

max. forming speed: 10-30m/min

forming stands: horizontal roll 12 stands,  vertical roll 4 stands

sizing stands: horizontal roll 4 stands

horizontal roll diameter: 220mm

vertical roll diameter: 130mm

main motor：Z4-315-12 200KW x2  750/1900 rpm (forming machine)

                       Z4-315-22 250KW   750/1600 rpm (sizing machine)

reducer: ZSY500-45  3 PCS  i=45

HF welder: Sematur  600KW

Friction saw: 200KW

pass line height: 950mm

material: low carbon steel, low alloy steel  tensile strength: ≤ 500Mpa, yield strength: ≤ 400Mpa

machine size: L x W x H  40000 x 6800 x 2700

machine total weight: approximate 500 ton
