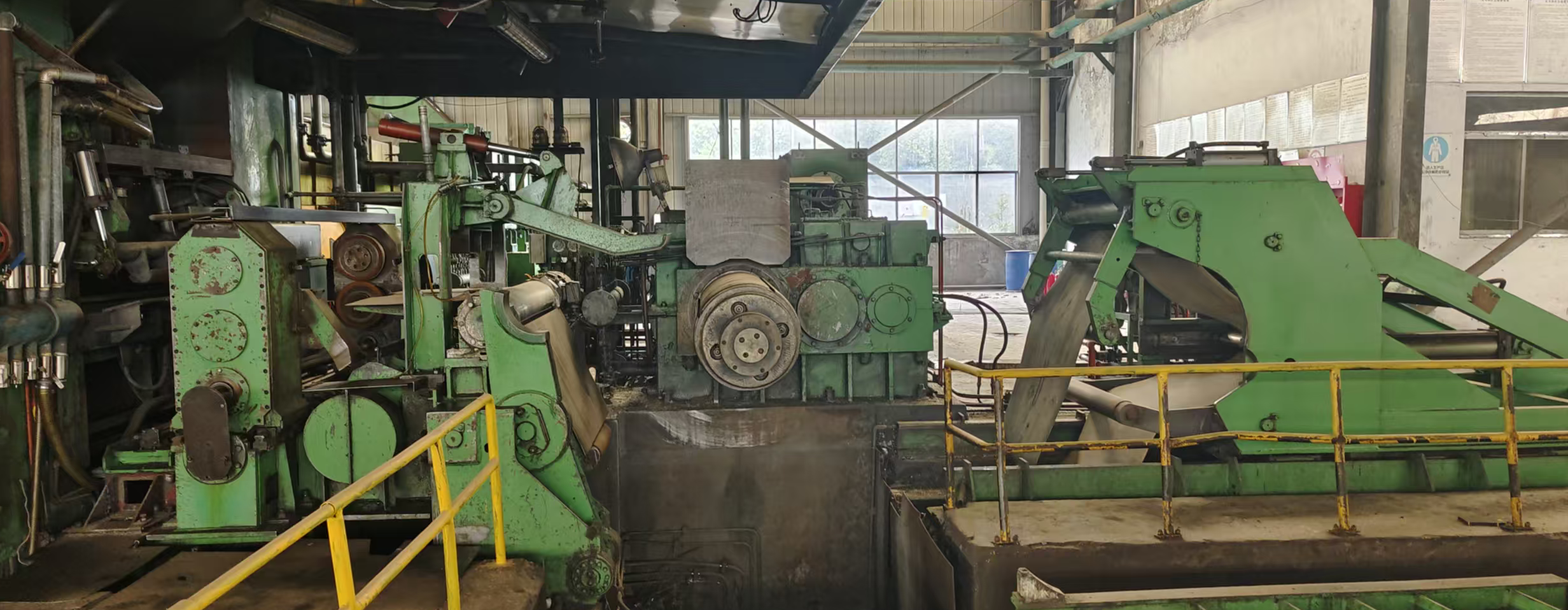

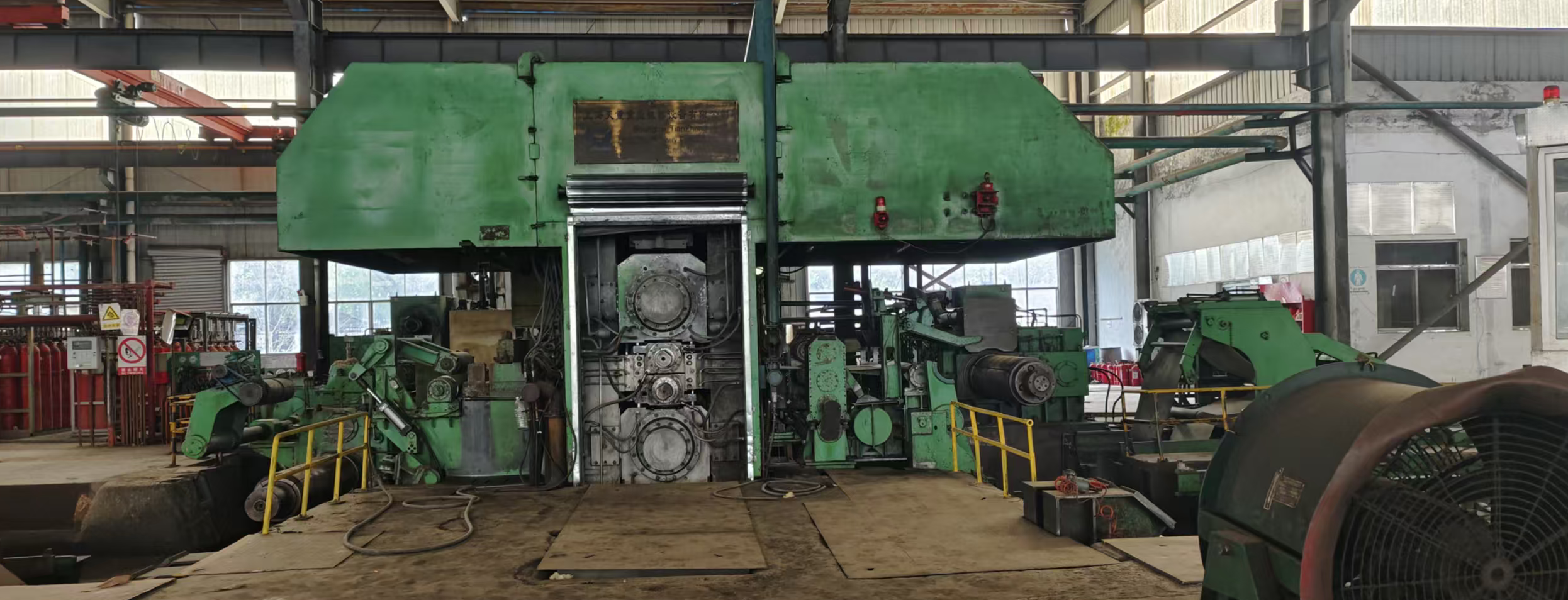

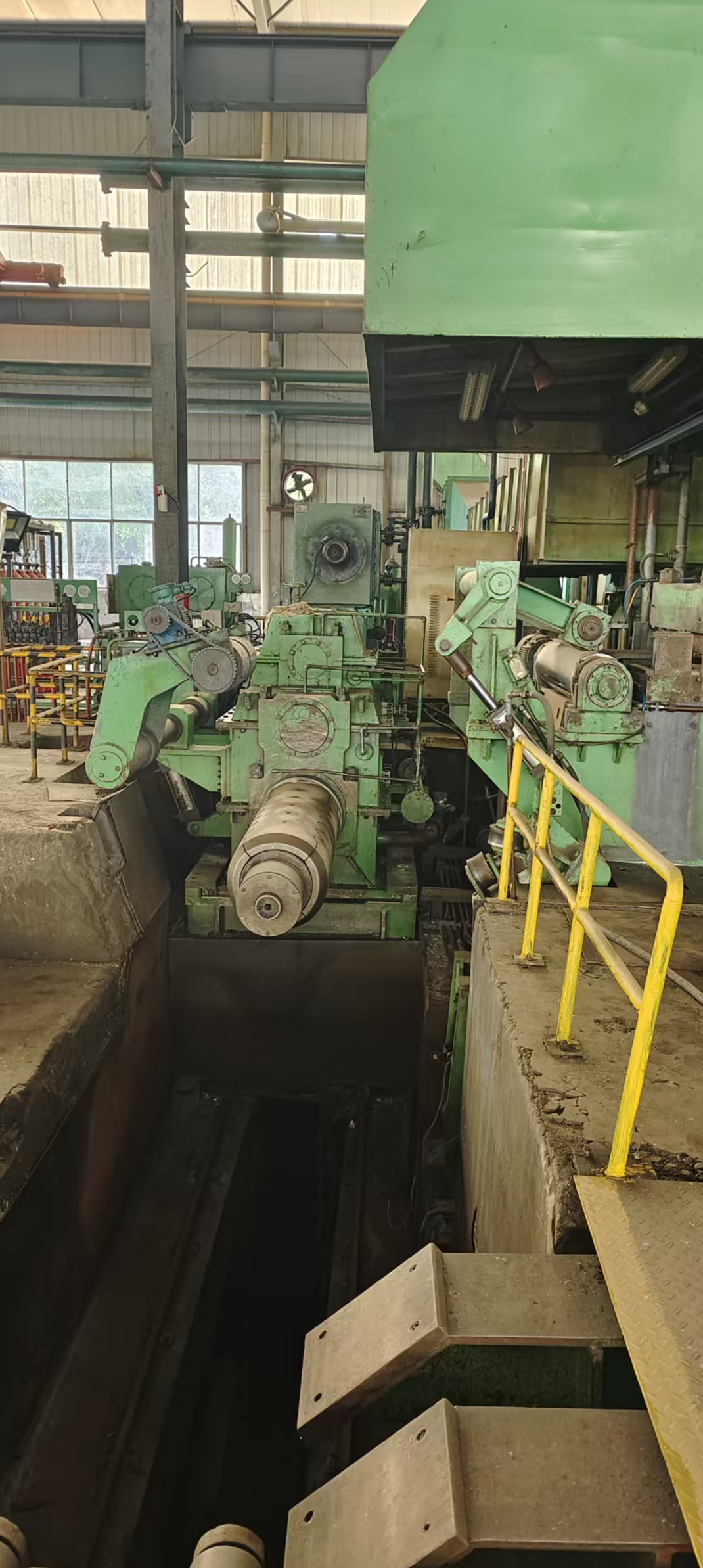

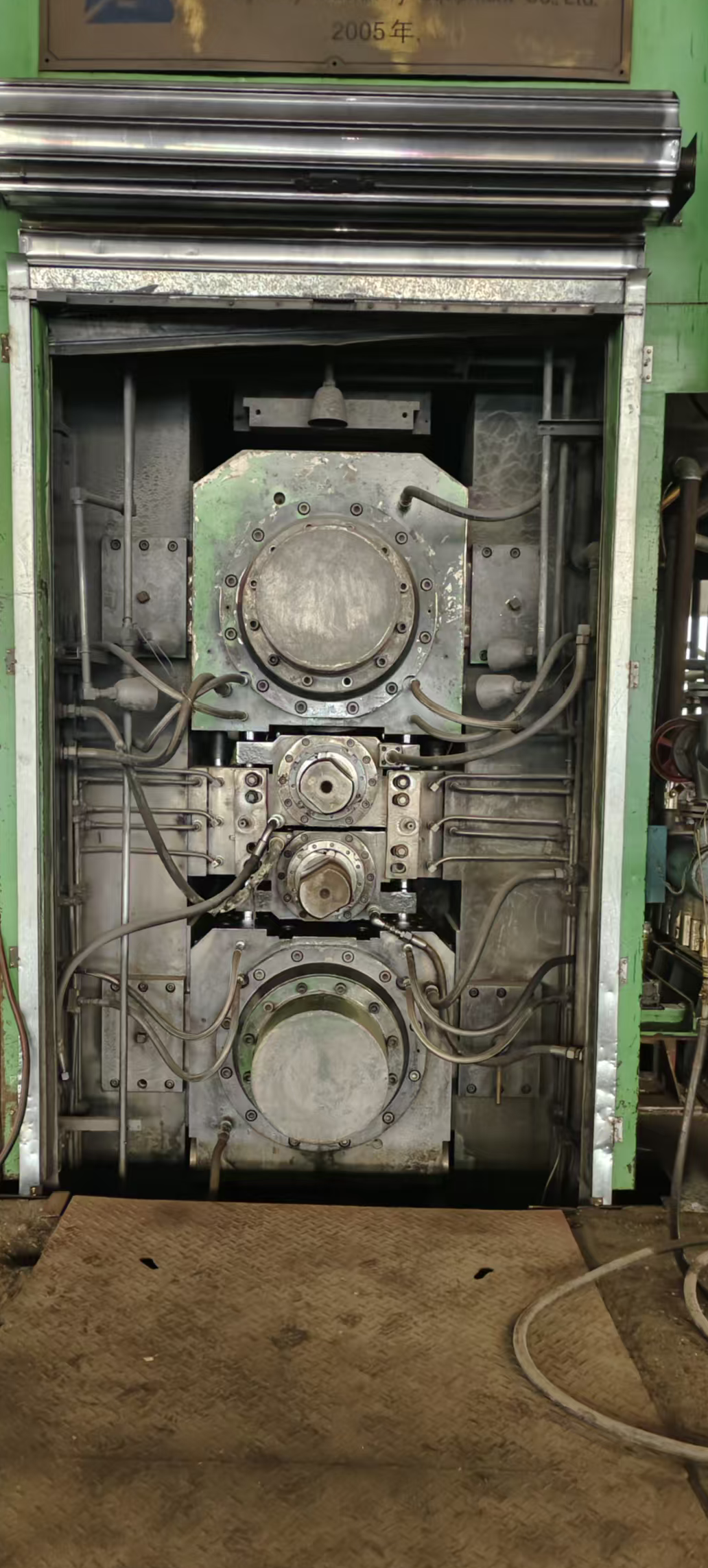

Mill Type: 1250 high-precision aluminum strip and foil cold rolling mill

Roll Dimensions: φ360 / φ860 × 1450 mm

Entry Width: 800–1280 mm

Entry Thickness: 6–8 mm

Finished Product Thickness: 0.05–4 mm

Push-up Cylinder Diameter: φ600 mm

Bending Cylinder Diameter: φ80 mm

Maximum Rolling Force: 800 tons

Maximum Bending Force: 28 tons

Unwinding Tension: 140–10,000 kg

Rewinding Tension: 80–10,000 kg

Maximum Rolling Speed: 700 m/min

Roll Cooling Capacity: 3000 L/min
