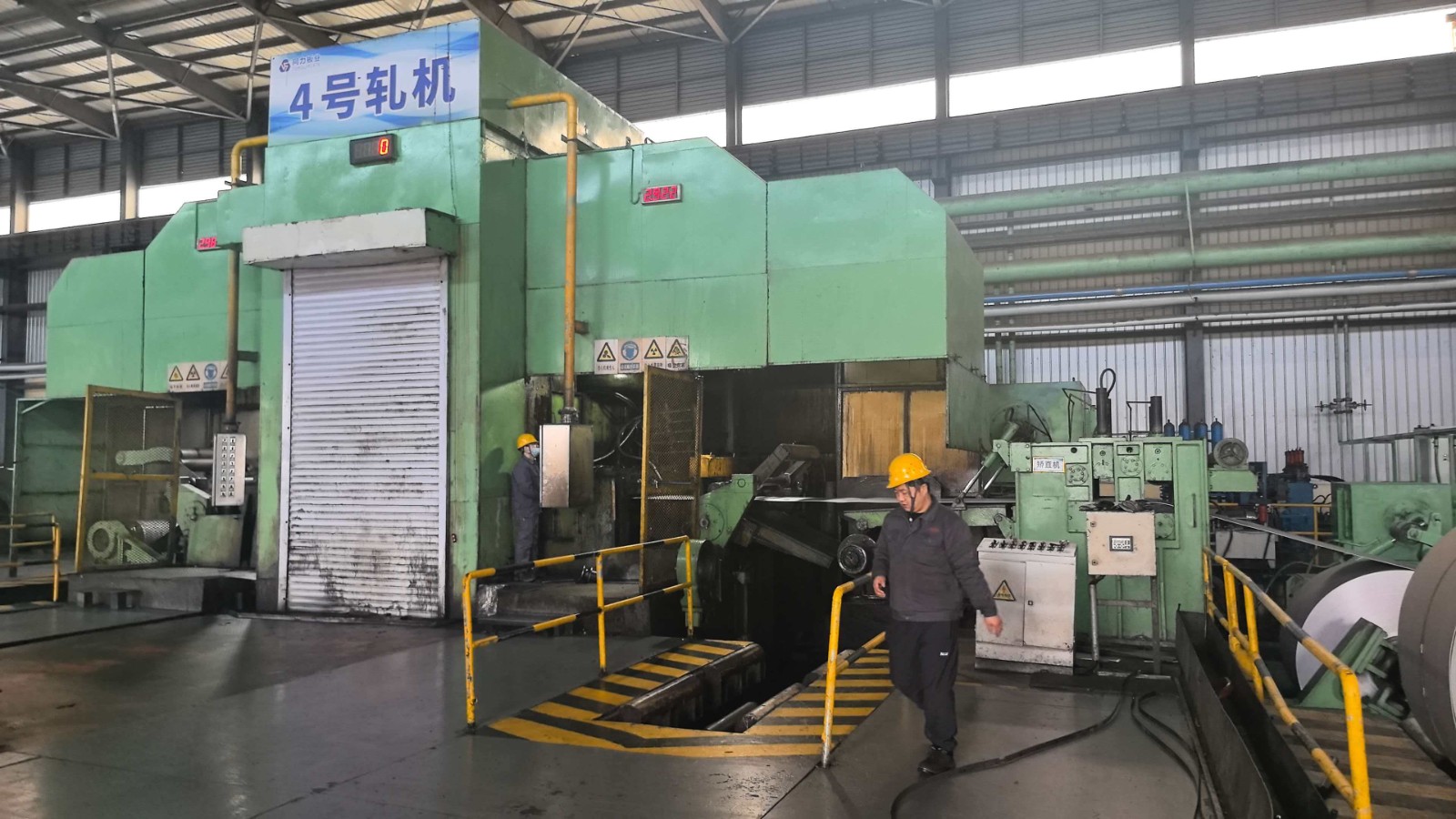

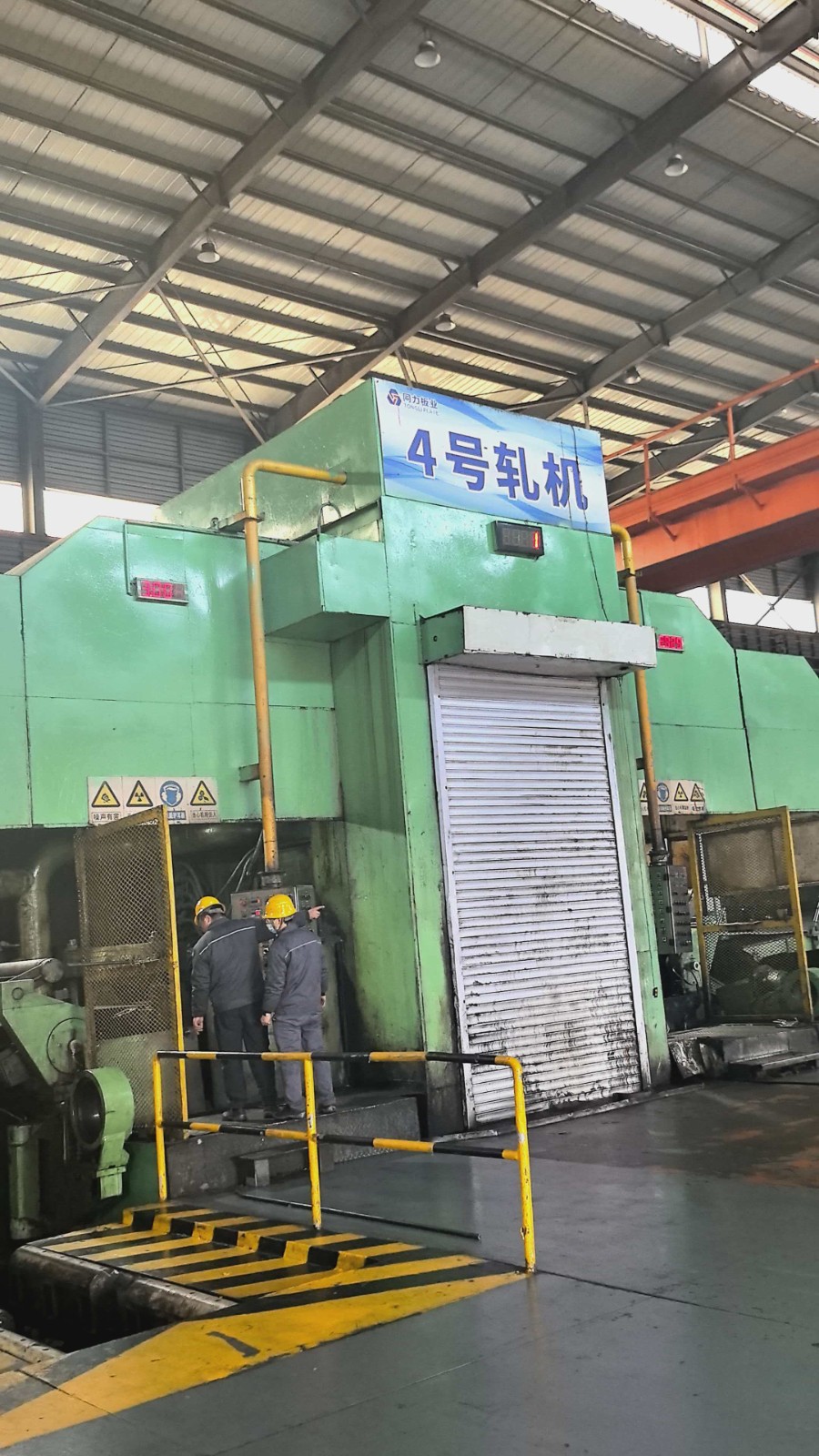

The equipment was installed, debugged, and put into operation in 2010 A comprehensive upgrade and renovation were carried out in 2024, increasing the speed to 1,200 m (with a completely new electrical control system, new main gearboxes, and new left and right winders, all replaced).

Technical parameters:

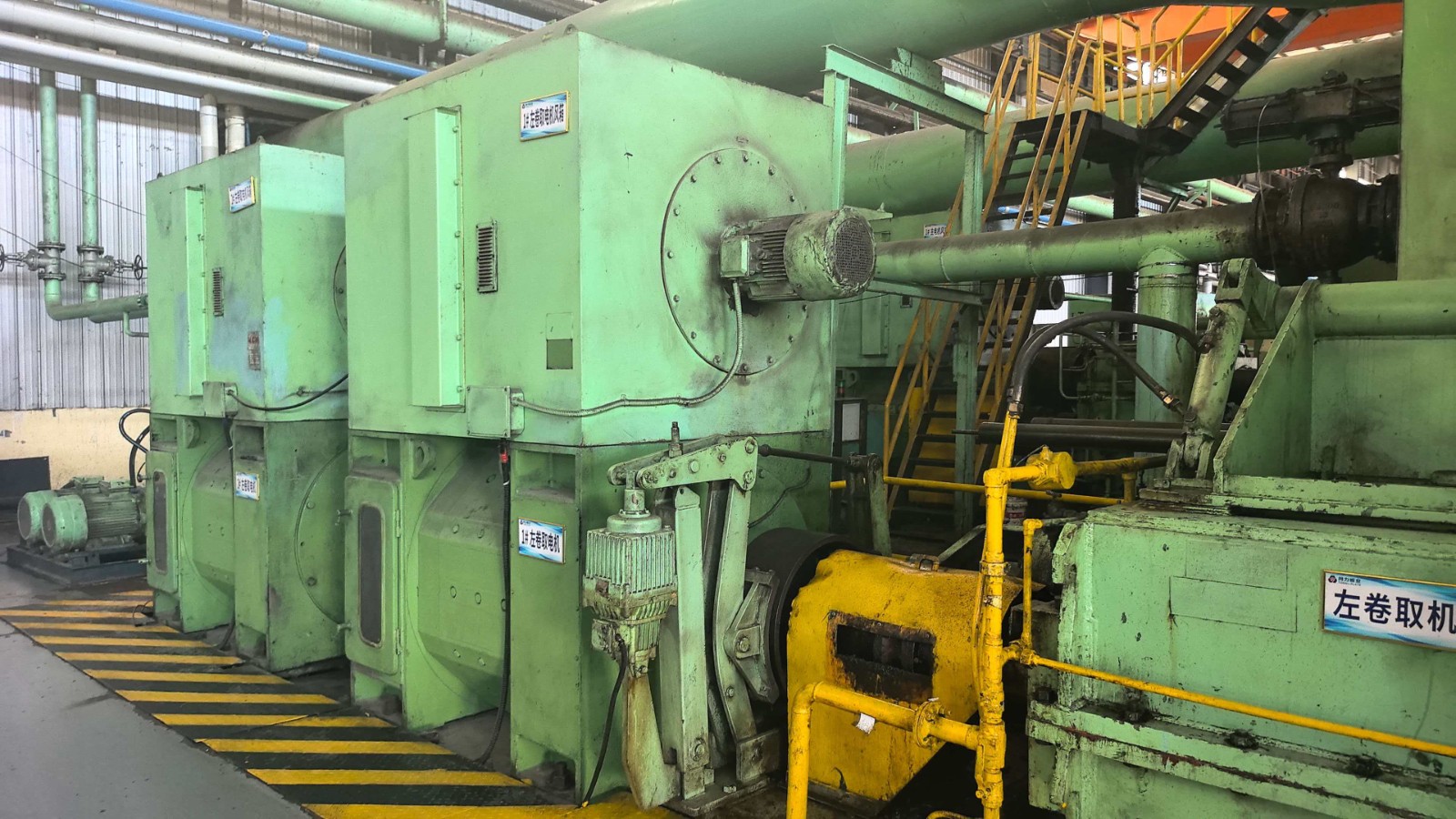

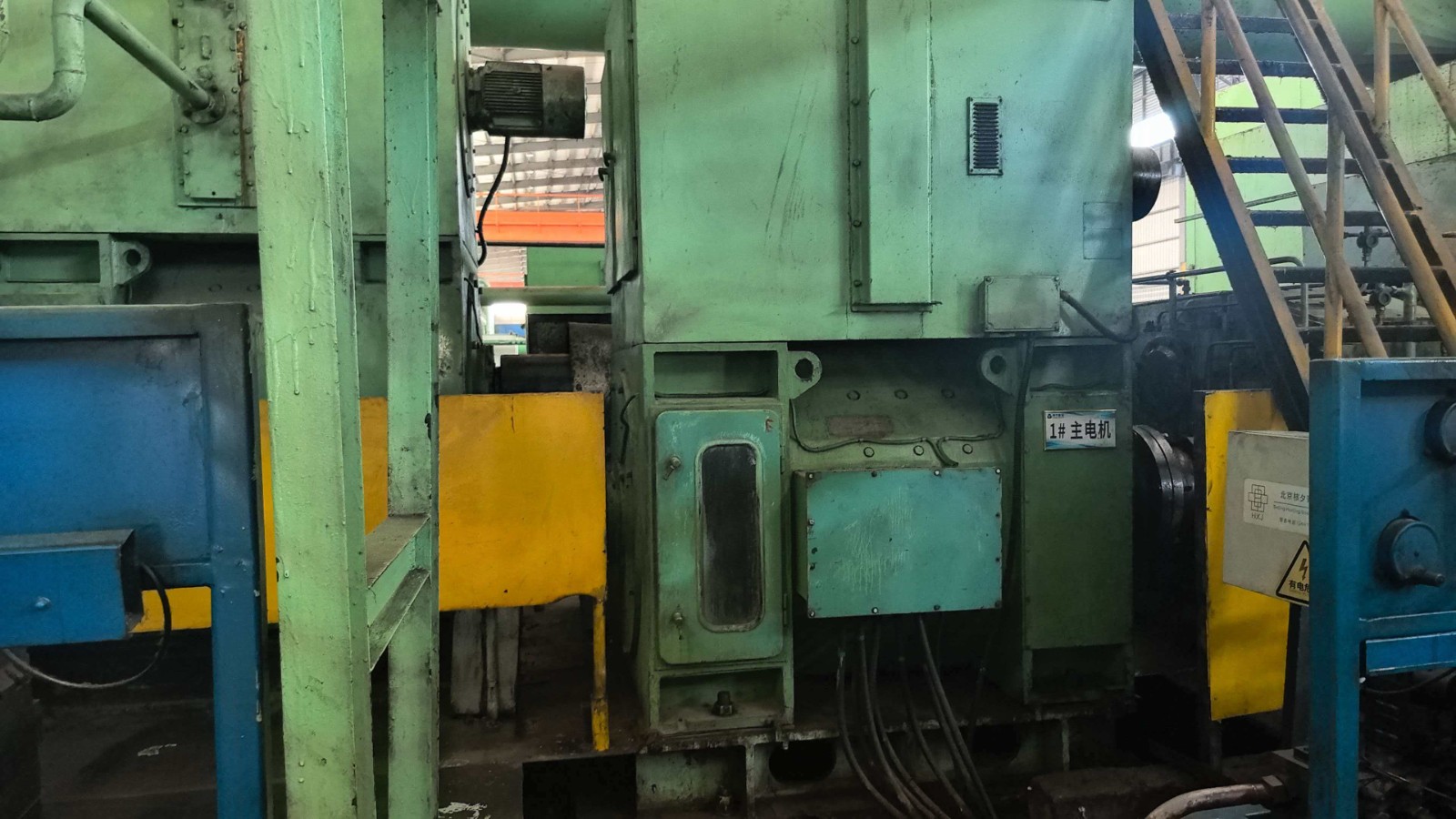

Main motor: 1,000 kW × 4 units;
Left and right winder motors: 1,250 kW × 2 × 2 units each;
Unwinder motor: 453 kW;
Work roll diameter: 390 mm – 355 mm × 1,450 mm roll face width;
Intermediate roll diameter: 445 mm – 400 mm × 1,400 mm;
Backup roll diameter: 1,250 mm – 1,150 mm × 1,350 mm;
Housing dimensions: 530 mm × 800 mm;
Rolling force: 1,800 tons;
Design speed: 1,200 m/min;
Design raw material thickness: 2 – 4 mm;
Finished product thickness: 0.2 – 1.5 mm.

max coil width：1250mm
