input material thickness:0.2mm(max)

input coil width:800-1250mm

max coil weight(uncoiler):9000kg

output material thickness:0.08-0.12mm

output coil width:780-1250mm

max coil weight(recoiler0：9000kg

working roll：dia260mm x width 1530mm

supporting roll: dia700mm x width 1450mm

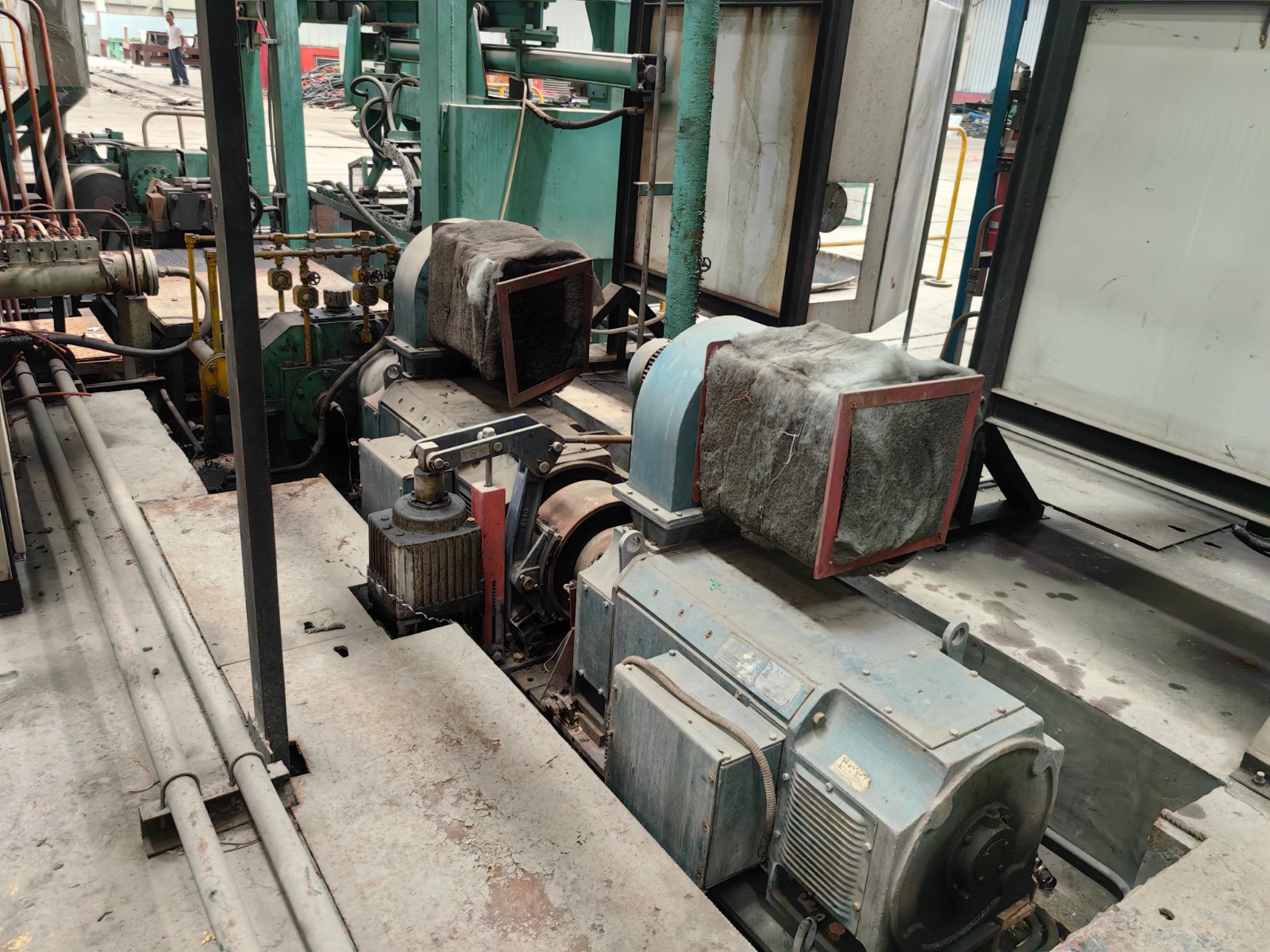

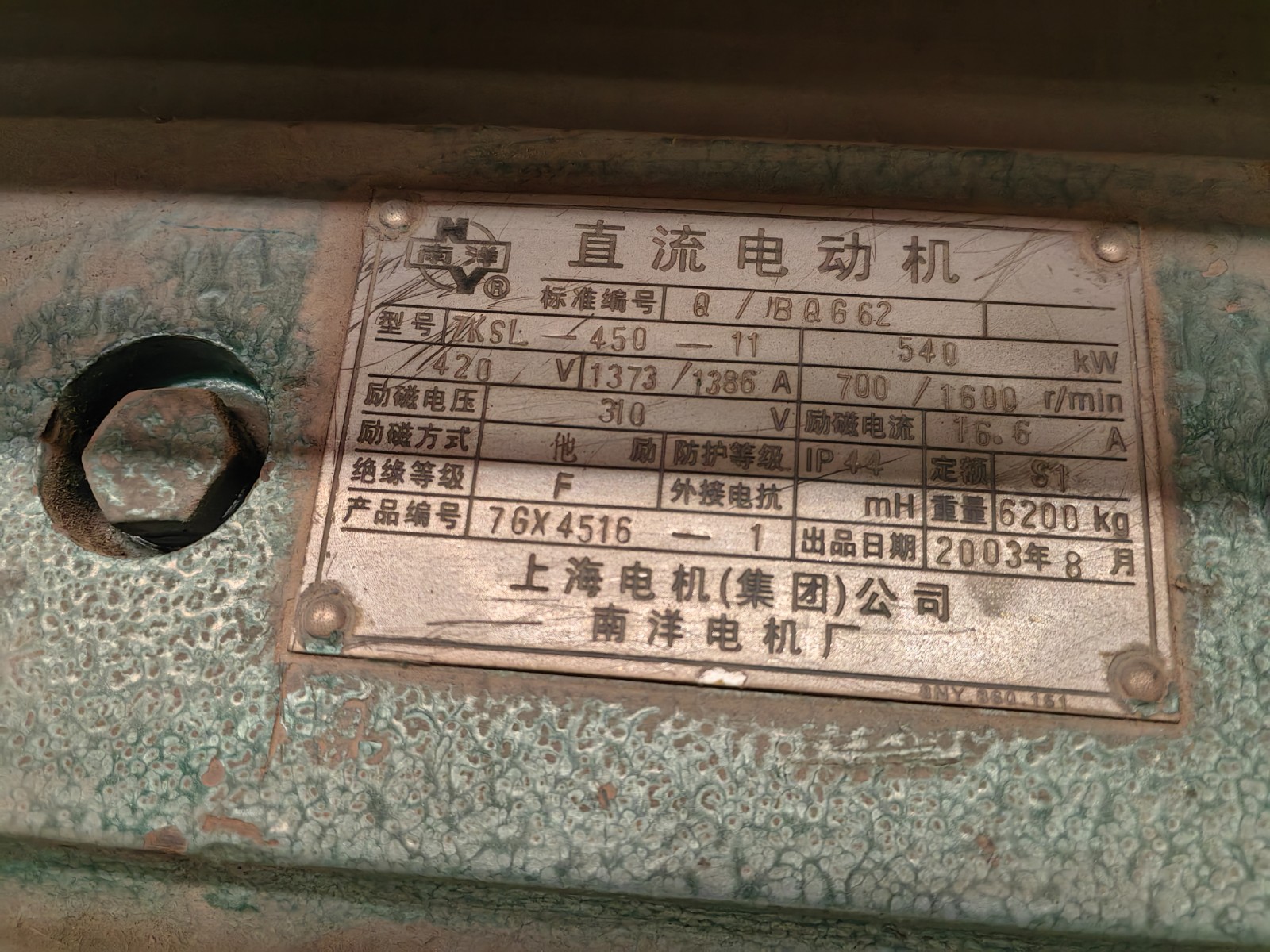

electric main motor: 540kw

uncoiler motor：49kw x 2

working roll base speed:max1200m/min

basic speed:600m/min

rolling speed:1440m/min

uncoiling speed:1008m/min

installed in 2003

stop working approx:2015
