Cold Rolling Mill

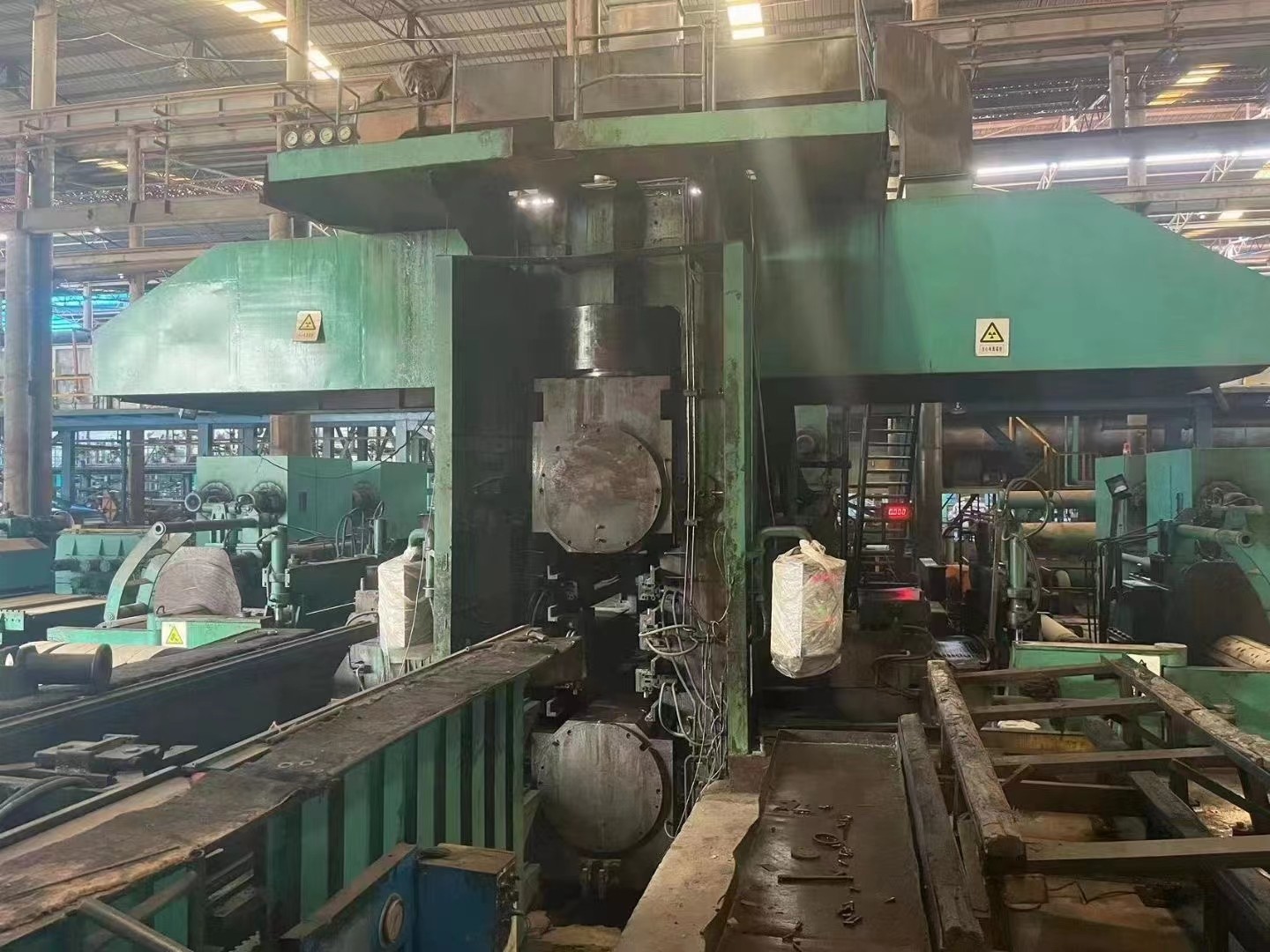

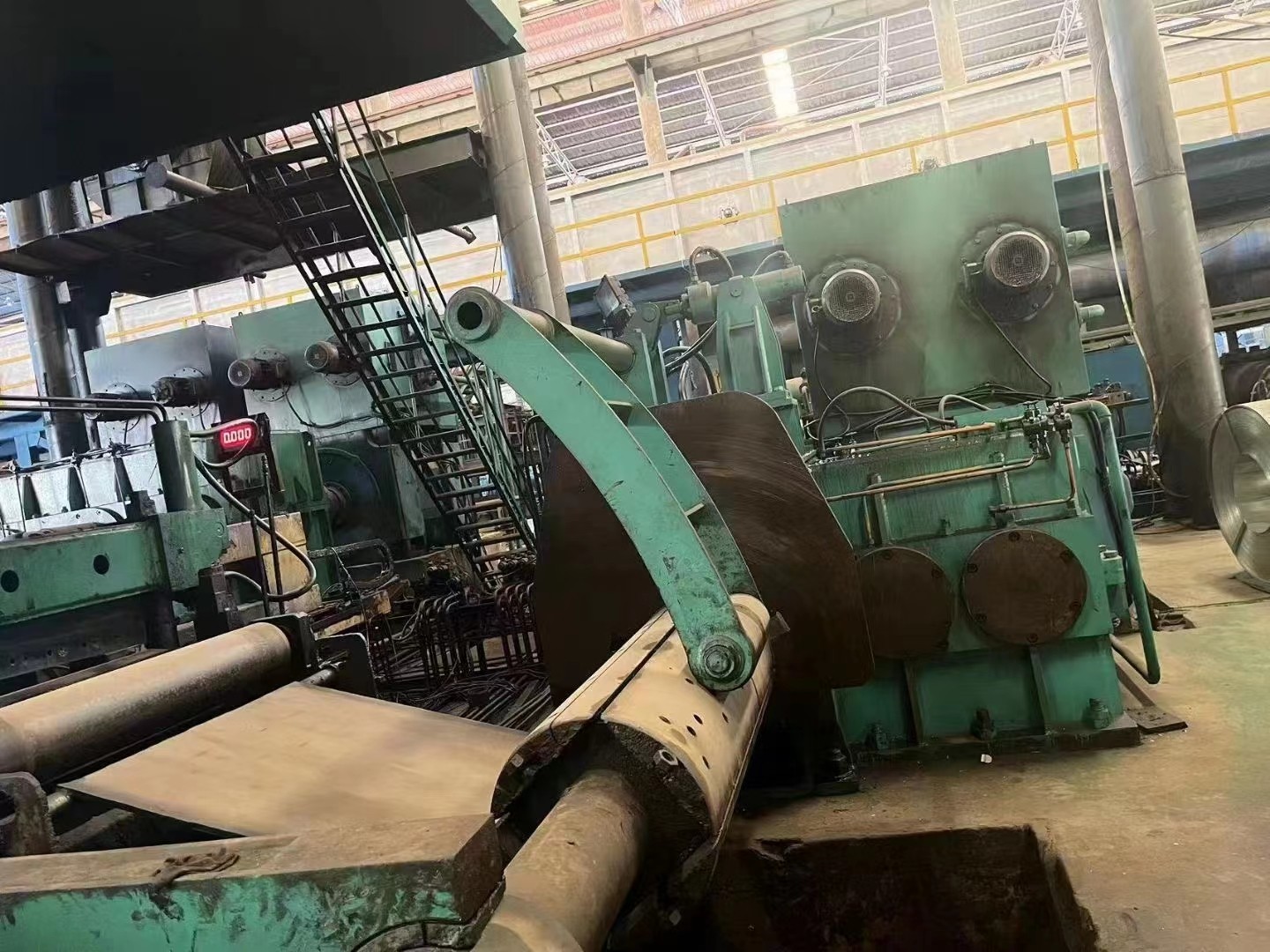

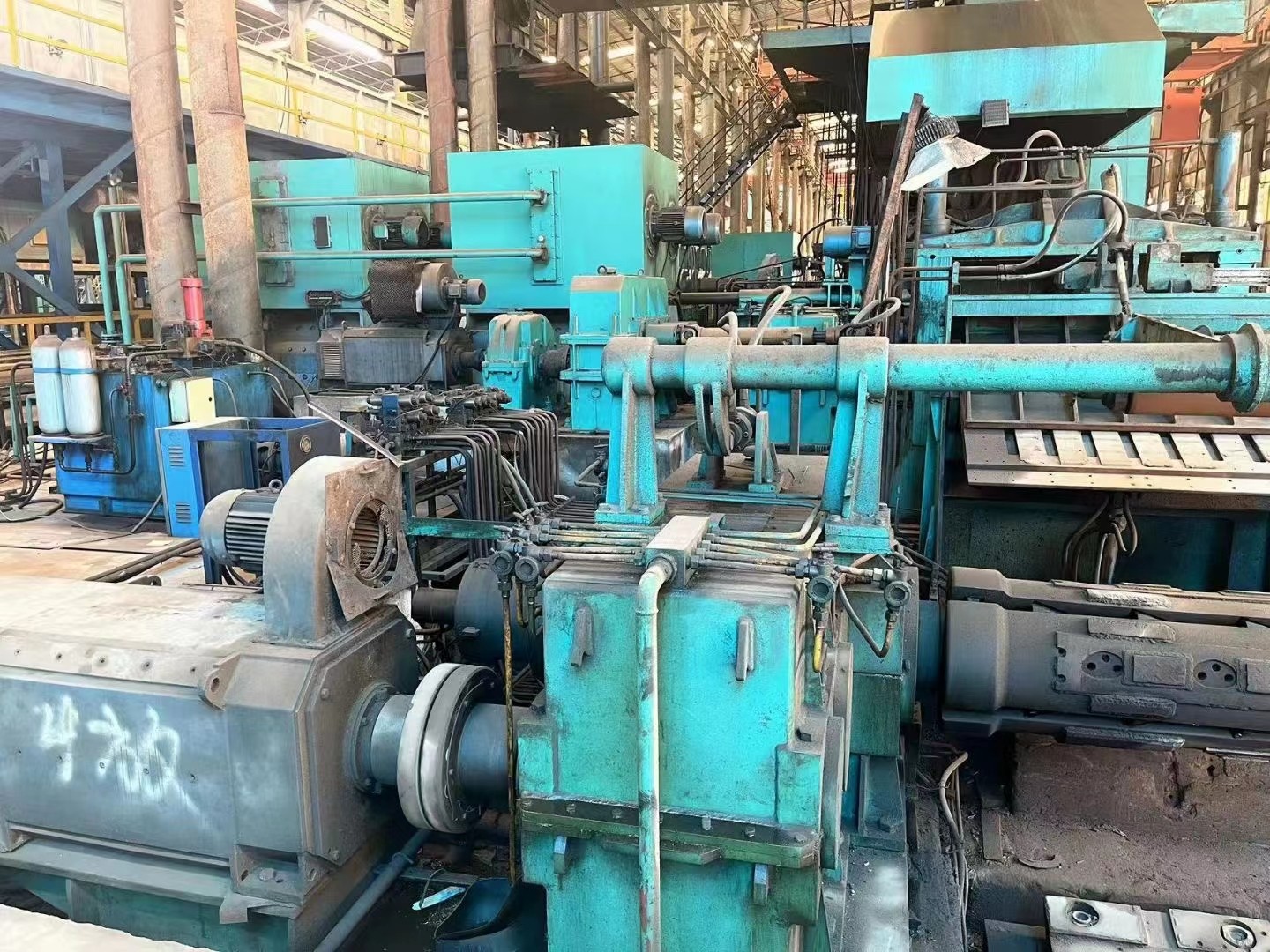

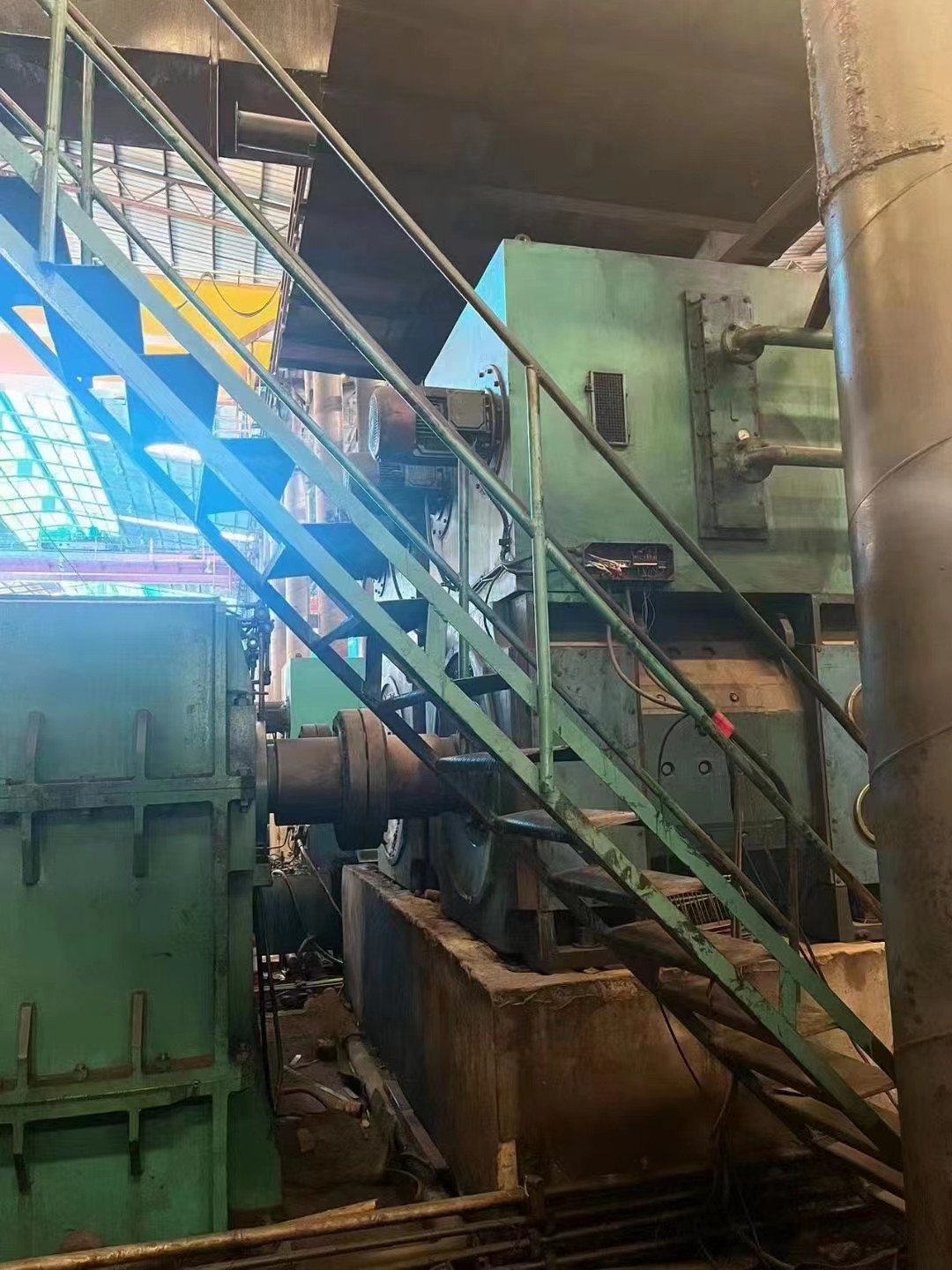

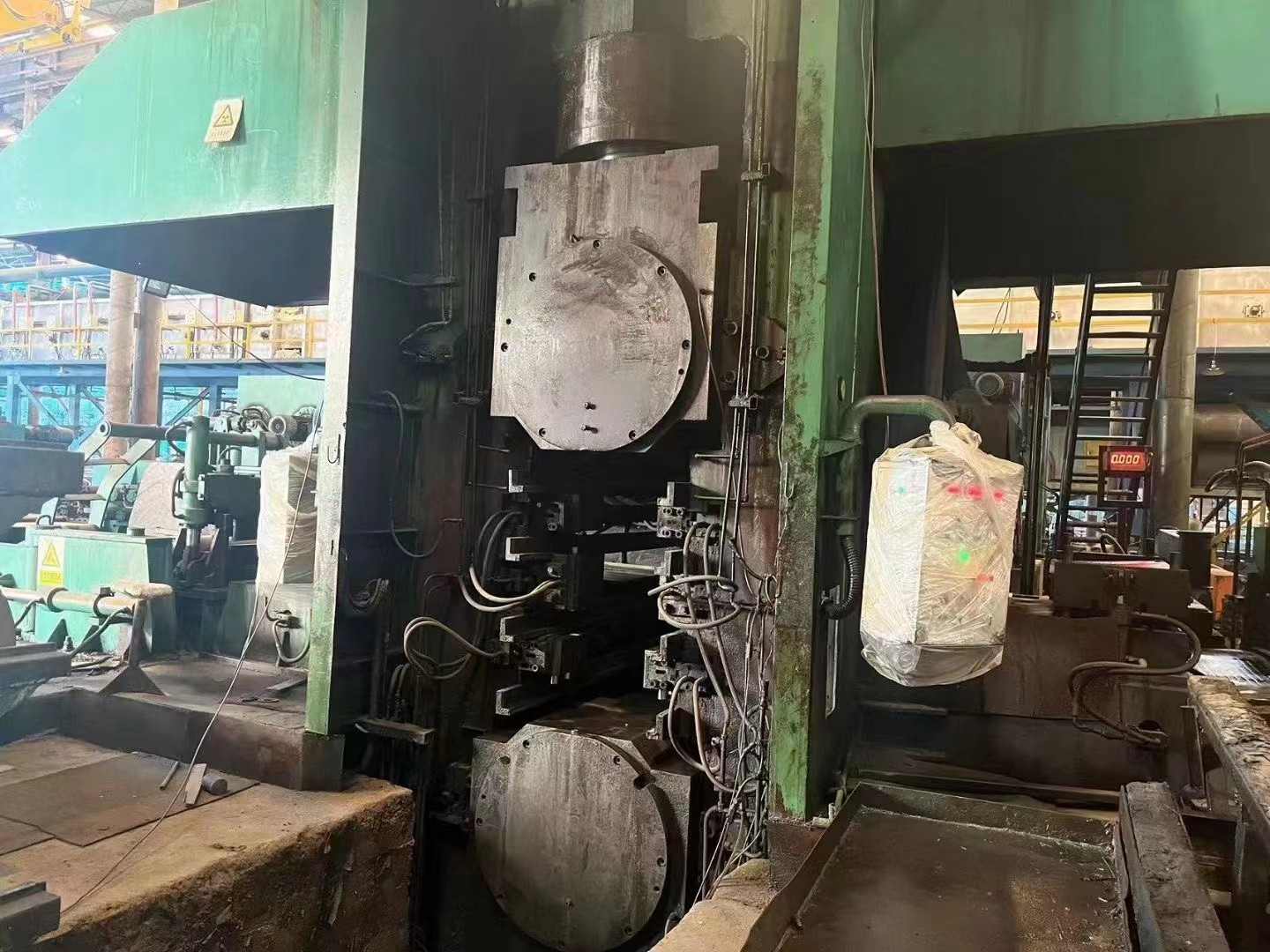

1250mm 6hi revisible cold rolling mill
No:631 written in:2025/6/26- product description
- Technical Parameters
Maximum coil width: 1250mm
Mild steel
Parameters of 1450 six-high reversible rolling mill
Roll system parameters:
Work rolls: 280*1450*2641 (mm)
Intermediate rolls: 390*1390*3530 (mm)
Backup rolls: 1150*1410*3288 (mm)
Mill housing dimensions: 590*620 (mm)
Motor parameters:
Uncoiler motor: 284 KW
Coiler motor: 1350 kW × 4
Main motor: 1350 kW × 2
Maximum speed: 700 meters/minute
2011年 manufacturing time:2011
2022年 last operation time:2022
If you want to quote or further information on this product, please fill out the form below.
