Cold Rolling Mill

Your current location:首页 > Products > Cold Rolling Mill > used 1250mm 4Hi irreversible foil No:1 Cold rolling mill aluminum

used 1250mm 4Hi irreversible foil No:1 Cold rolling mill aluminum

No:632    wirtten in:2025/6/27
  • product description
  • Technical Parameters

use 1250mm 4Hi irrevisible foil CRM

raw material thickness:0.7mm +-0.05mm

width:740mm-1250mm

max coil weight:9000kg(uncoiler)


product thickness:0.014mm-0.09mm

width:700mm-1250mm

coil weight:9000kg(recoiler)


support roll:dia610mm/dia610mm x 1450mm

working roll:dia260mm/dia230mm x 1500mm

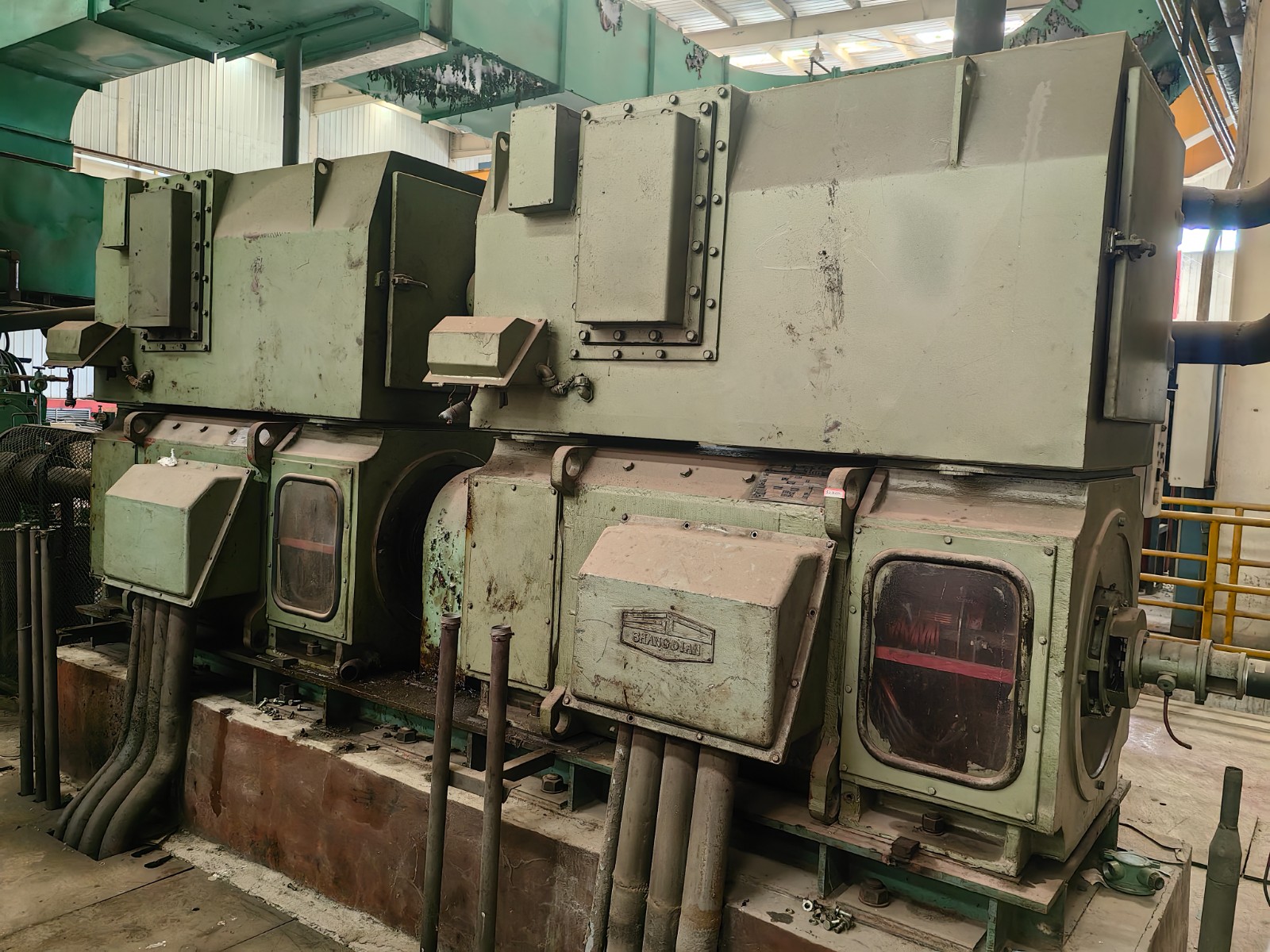

main machine power:530kw x 2

uncoiler power:80kw x 2

rolling speed:0-650-1500m/min

installation time:2003

stop running time:approx 2015
