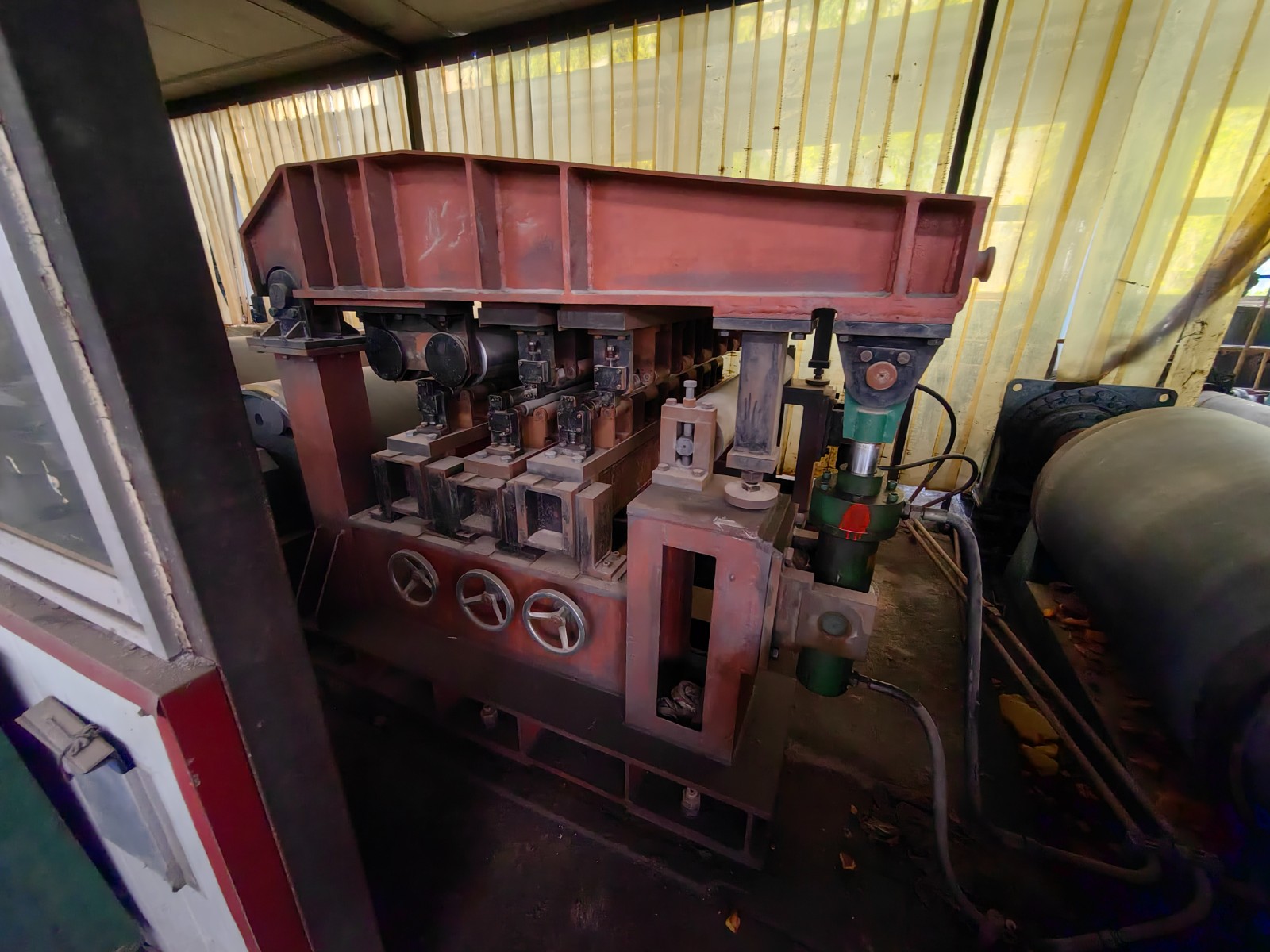

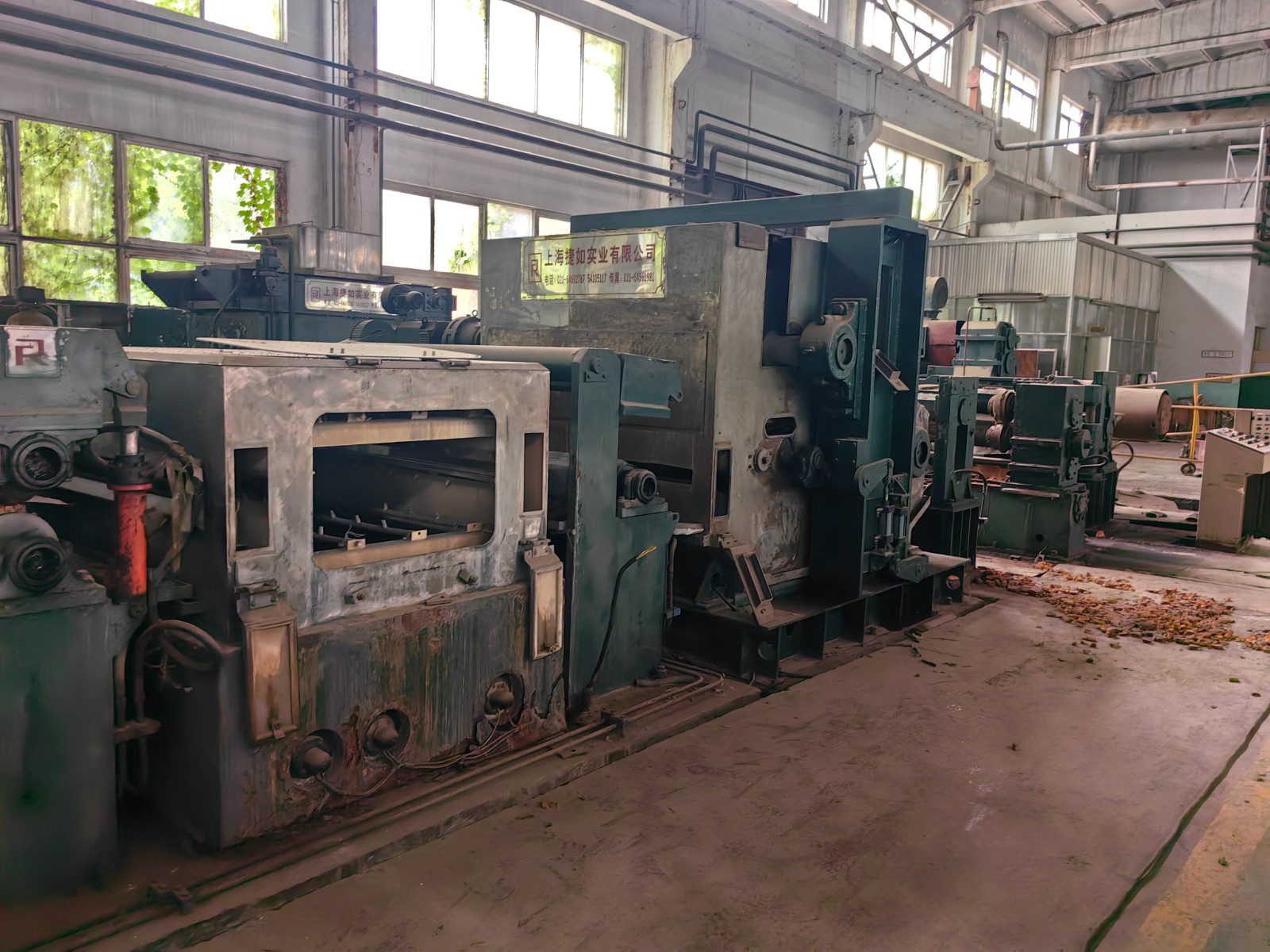

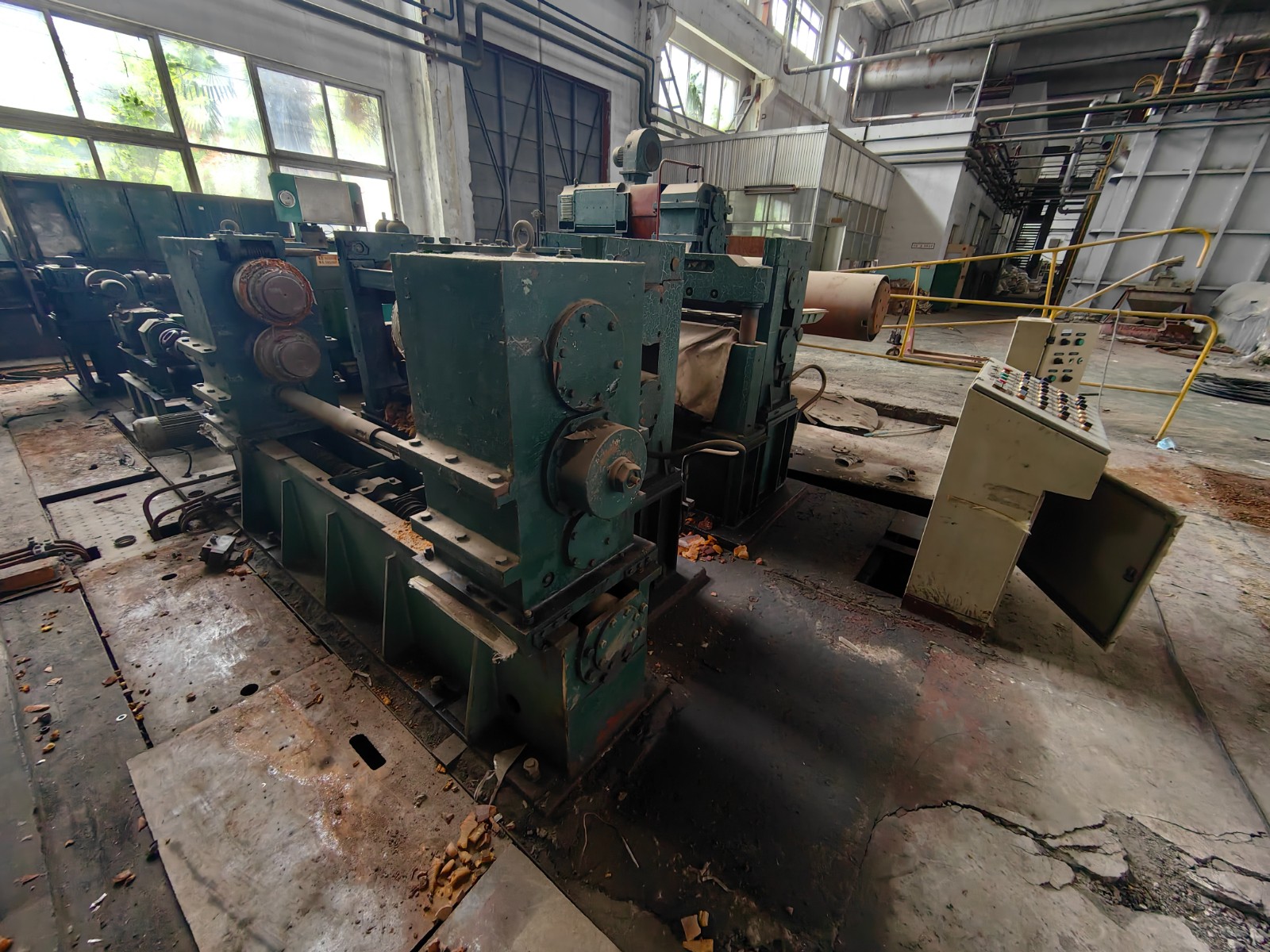

used tension leveler aluminum

No:635  written date:2025/6/27
  • product description
  • Technical Parameters

Incoming Material:

  1. Material: Aluminum and aluminum alloys (1000, 3000, 8000 series)

  2. Mechanical Properties:

    • Tensile Strength (σb): ≥45 kg/mm²

    • Yield Strength (σs): ≥35 kg/mm²

  3. Thickness: 0.1–1.2 mm

  4. Width: 600–1280 mm

  5. Coil Diameter: ⌀max = 1650 mm

  6. Coil Weight: Qmax = 7000 kg

  7. Sleeve Dimensions: ⌀505/⌀565 × 1500 mm

  8. Strip Flatness: ≤40 I

(2) Finished Product:

  1. Coil ID: ⌀565 mm (with sleeve)

  2. Thickness: 0.1–1.2 mm

  3. Coil OD: ⌀max = 1650 mm

  4. Width: Bmax = 1260 mm

  5. Flatness: ≤5 I

  6. Width Tolerance: +0.5 mm

  7. Coil Taper Tolerance: ≤1 mm

  8. Coil Lap Tolerance: ±0.5 mm

  9. Surface: Free from scratches

(3) Process Parameters:

  1. Threading Speed: Adjustable (0–15 m/min)

  2. Operating Speed: 15–150 m/min

  3. Speed Accuracy: ±0.05% (steady state)

  4. Line Elevation: +1000 mm

  5. Line Running Direction: Right to left

  6. Line Acceleration Time: 30 sec


    (4)electric motor parameters:high pressure pump electric motor:11kw x 2

                                                                         water supply pump electric motor:2.2kw x 2

                                                                         fliter pump electric motor:0.18kw

                                                                         heater pump electric motor:8kwx3

                                                                         washing roll electric motor:10kwx2
