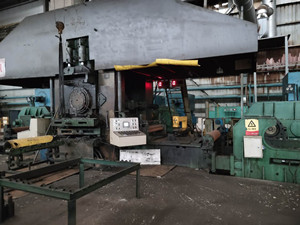

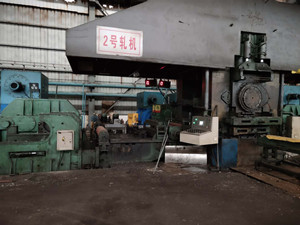

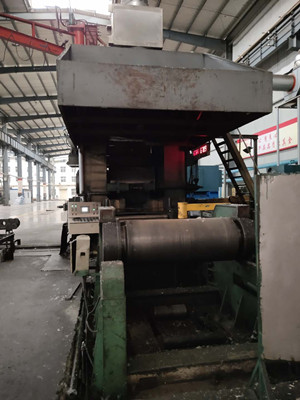

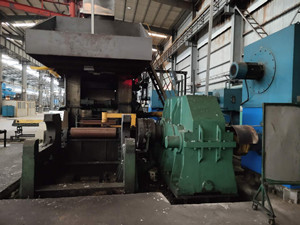

CR No.96 1200mm 18Hi Cold Rolling Mill
The 18Hi Cold rolling mill is made in 2013 and shut down in 2020.Its weight is approximate 650tons. The written date is July 1,2020.- product description
- Technical Parameters
Material Specifications：
Material：Stainless steel
Inlet thickness：2-3mm
Product thickness:0.22-0.5mm
Max coil width：1200mm
Max coil OD:2000mm
Max coil weight；30t
Rolling speed:180m/min
Working roll : width 1450mm diameter 140mm
Intermediate roll : width 1400mm, diameter 360mm
Back up roll : width 1380mm, diameter 1050mm
Left and right pinching roll: width 1450mm, diameter 135mm

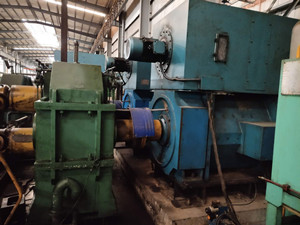

Main motor: 800KW*2
Left and right recoiler motor: 1237KW
Hydraulic AGC
