Technical parameters

Rolling material: aluminum and aluminum alloy :1000, 3000, 5000 series.

 Incoming material specifications:

slab thickness: 250-300mm:

slab width: 700-1250mm;

slab length: 4000

max slab weight:5070kg

Product specifications:

1. thickness of hot rolled plate: 6-20mm

width of hot rolled plate : 600m~1250mm:

length of hot rolled plate: 500mm

height of hot rolled plate stack: max 800mm

weight of hot rolled plate stack: max 4 tons

2. thickness of roll material: 6-12mm

width: 600-1260mm

ID:510mm,OD:1500mm

coil weight: max 5000kg

speed:0/40/120

maximum opening of mill:400mm

rolling force: max 10000kn

main motor: Z710-3P  1450KW

power supply: AC380V,50HZ 3ph;  AC220V, 50hz,single phase

Scope of supply:

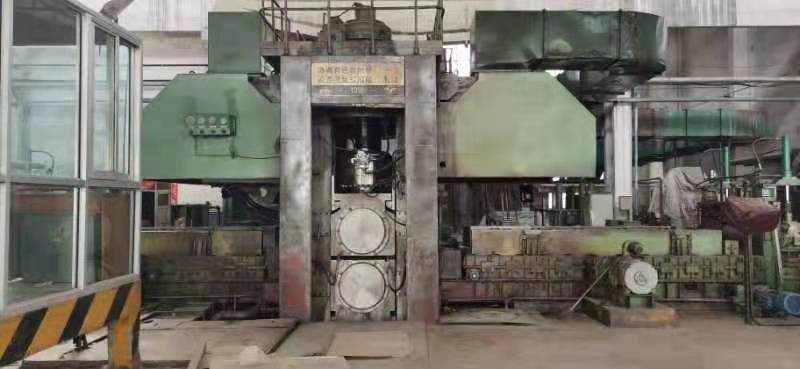

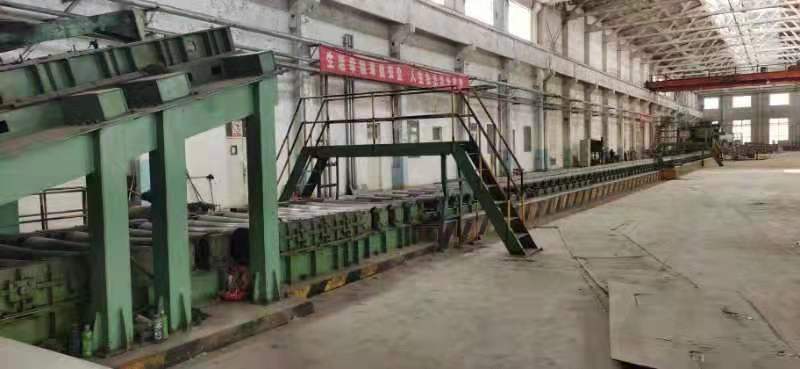

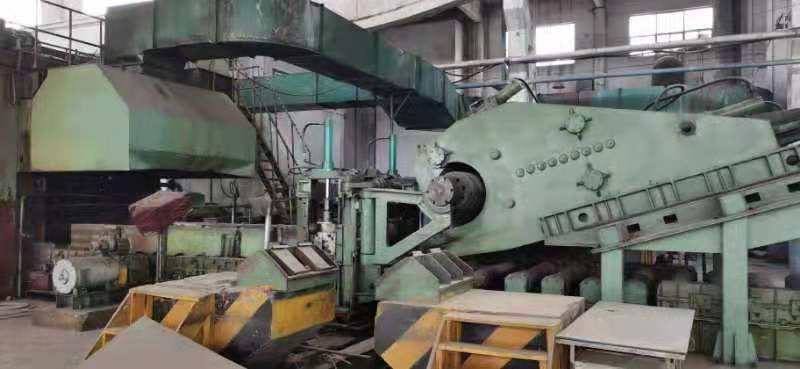

Main mill, work roll and bearing box, main drive motor reducer, drive shaft coupling, roller table, coiler, coiler motor, hydraulic system, electrical control system, emulsion system, front and rear centering mechanism
