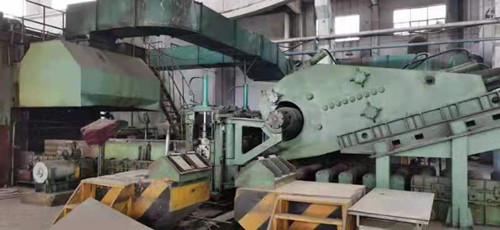

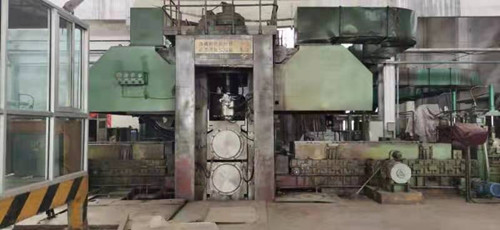

No. 191 Used 1250mm aluminum plate hot roll mill
Used 1250mm aluminum plate hot roll mill- product description
- Technical Parameters
Technical parameters
Rolling material: aluminum and aluminum alloy :1000, 3000, 5000 series.
Incoming material specifications:
slab thickness: 250-300mm:
slab width: 700-1250mm;
slab length: 4000
max slab weight:5070kg
Product specifications:
1. thickness of hot rolled plate: 6-20mm
width of hot rolled plate : 600m~1250mm:
length of hot rolled plate: 500mm
height of hot rolled plate stack: max 800mm
weight of hot rolled plate stack: max 4 tons
2. thickness of roll material: 6-12mm
width: 600-1260mm
ID:510mm,OD:1500mm
coil weight: max 5000kg
speed:0/40/120
maximum opening of mill:400mm
rolling force: max 10000kn
main motor: Z710-3P 1450KW
power supply: AC380V,50HZ 3ph; AC220V, 50hz,single phase
Scope of supply:
Main mill, work roll and bearing box, main drive motor reducer, drive shaft coupling, roller table, coiler, coiler motor, hydraulic system, electrical control system, emulsion system, front and rear centering mechanism
If you want to quote or further information on this product, please fill out the form below.
-
