used hot rolling mill
2015 used OD12-50mm bar mill
stock number: 593, it is written on 20/06/2024- product description
- Technical Parameters
2015 used OD12-50mm bar millmachine is made in Dec. 2014put into production in 2015stopped running in 2021capacity: 1,000,000 ton/yearmaterial: Carbon structural steel, high-quality carbon structural steel, low alloy steeloutput
renovation: in 2019, capacity: 1,600,000 ton/year
No. | bar OD mm | weight per meter kg/m | bar length m | rolling speed m/s | net rolling time s | total rolling time s | theory capacity counted by billet t/h | Yield rate % | Calculate yield t/h | Designned annual capacity t | Annual rolling time h |
1 | 12 | 0.89X4 | 698.3 | 13 | 53.7 | 58.7 | 152.2 | 97 | 147.7 | 80000 | 542 |
2 | 14 | 1.21X3 | 684.1 | 13 | 52.6 | 57.6 | 155.1 | 97 | 150.5 | 100000 | 665 |
3 | 16 | 1.58X2 | 785.6 | 16 | 49.1 | 54.1 | 165.2 | 97 | 160.3 | 120000 | 749 |
4 | 18 | 2.00X2 | 620.7 | 13.9 | 44.7 | 49.7 | 180 | 97 | 174.6 | 120000 | 687 |
5 | 20 | 2.47X2 | 502.8 | 11.26 | 44.7 | 49.7 | 180 | 97 | 174.6 | 120000 | 687 |
6 | 16 | 1.58 | 1571.2 | 18 | 87.3 | 92.3 | 96.9 | 97 | 93.9 | 5000 | 53 |
7 | 18 | 2 | 1241.5 | 18 | 69 | 74 | 120.8 | 97 | 117.2 | 5000 | 43 |
8 | 22 | 2.99 | 831.1 | 18 | 46.2 | 51.2 | 174.7 | 97 | 169.4 | 150000 | 885 |
9 | 25 | 3.86 | 643.6 | 14.42 | 44.6 | 49.6 | 180.1 | 97 | 174.7 | 120000 | 687 |
10 | 28 | 4.84 | 513.1 | 11.5 | 44.6 | 49.6 | 180.2 | 97 | 174.8 | 80000 | 458 |
11 | 32 | 6.32 | 392.8 | 8.8 | 44.6 | 49.6 | 180.1 | 97 | 174.7 | 40000 | 229 |
12 | 36 | 8 | 310.4 | 6.95 | 44.7 | 49.7 | 180 | 97 | 174.6 | 30000 | 172 |
13 | 40 | 9.88 | 251.4 | 5.63 | 44.7 | 49.7 | 180 | 97 | 174.6 | 20000 | 115 |
14 | 50 | 15.43 | 160.9 | 3.61 | 44.6 | 49.6 | 180.3 | 97 | 174.9 | 10000 | 57 |
1000000 | 6029 |

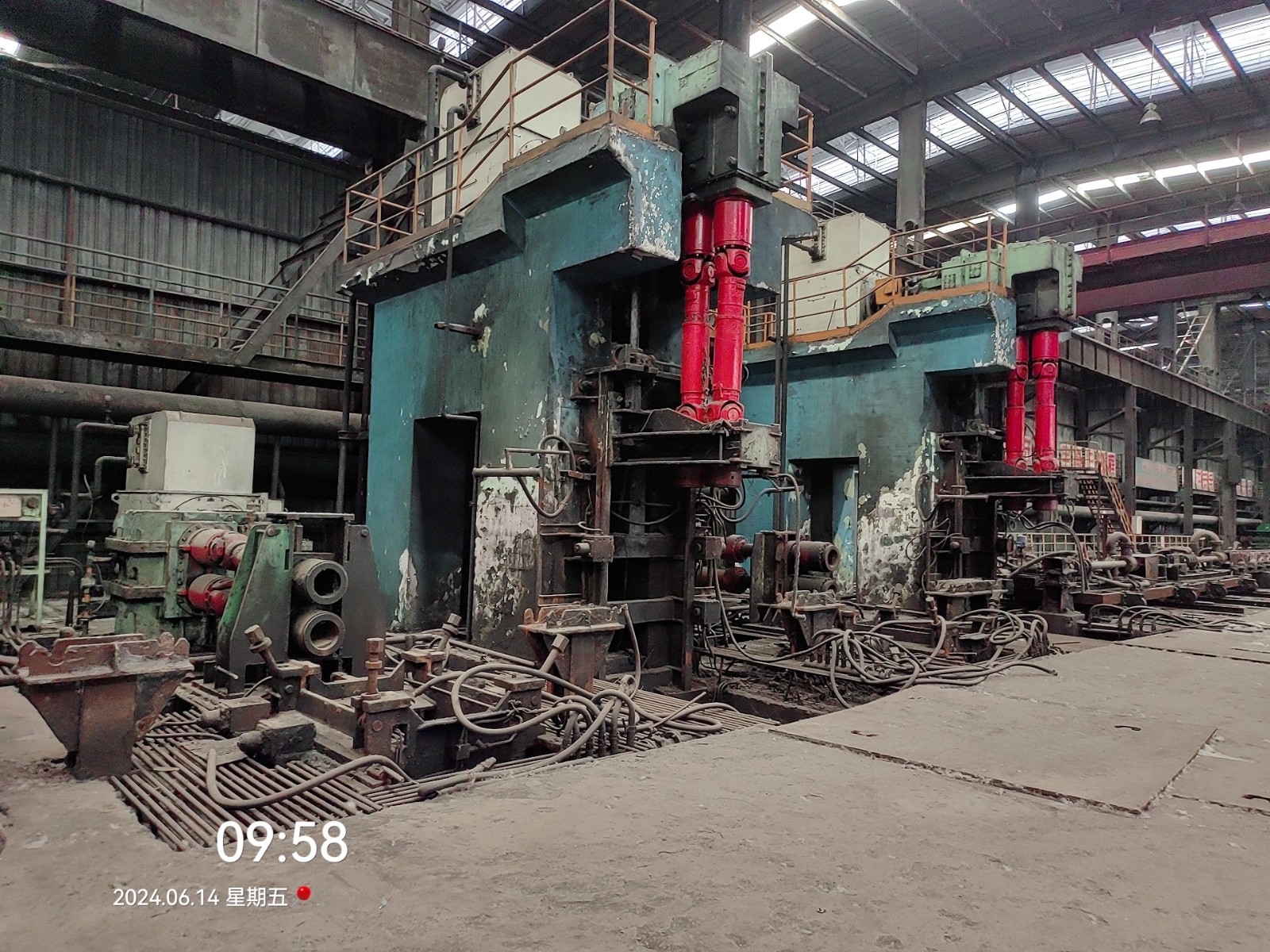

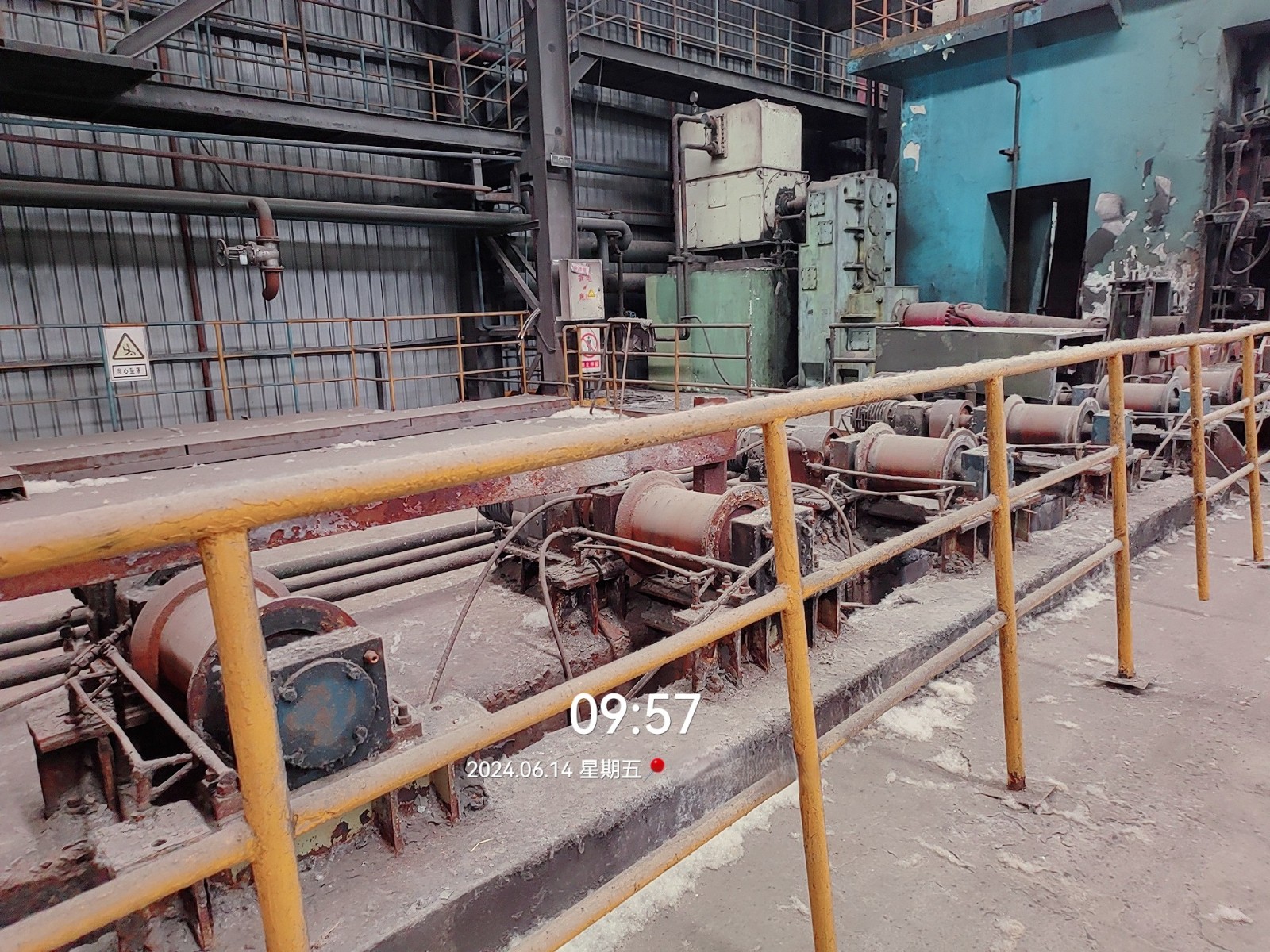

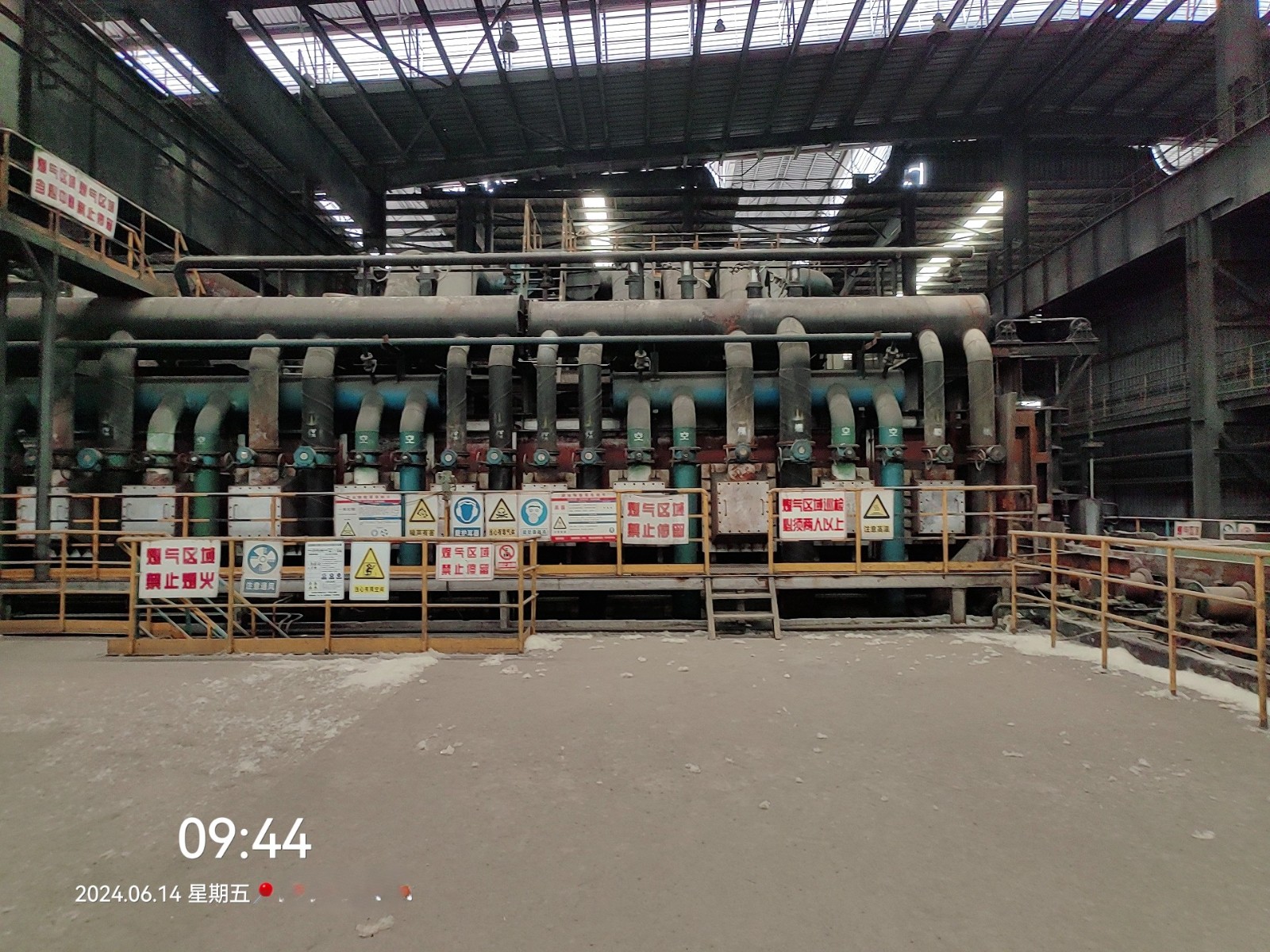

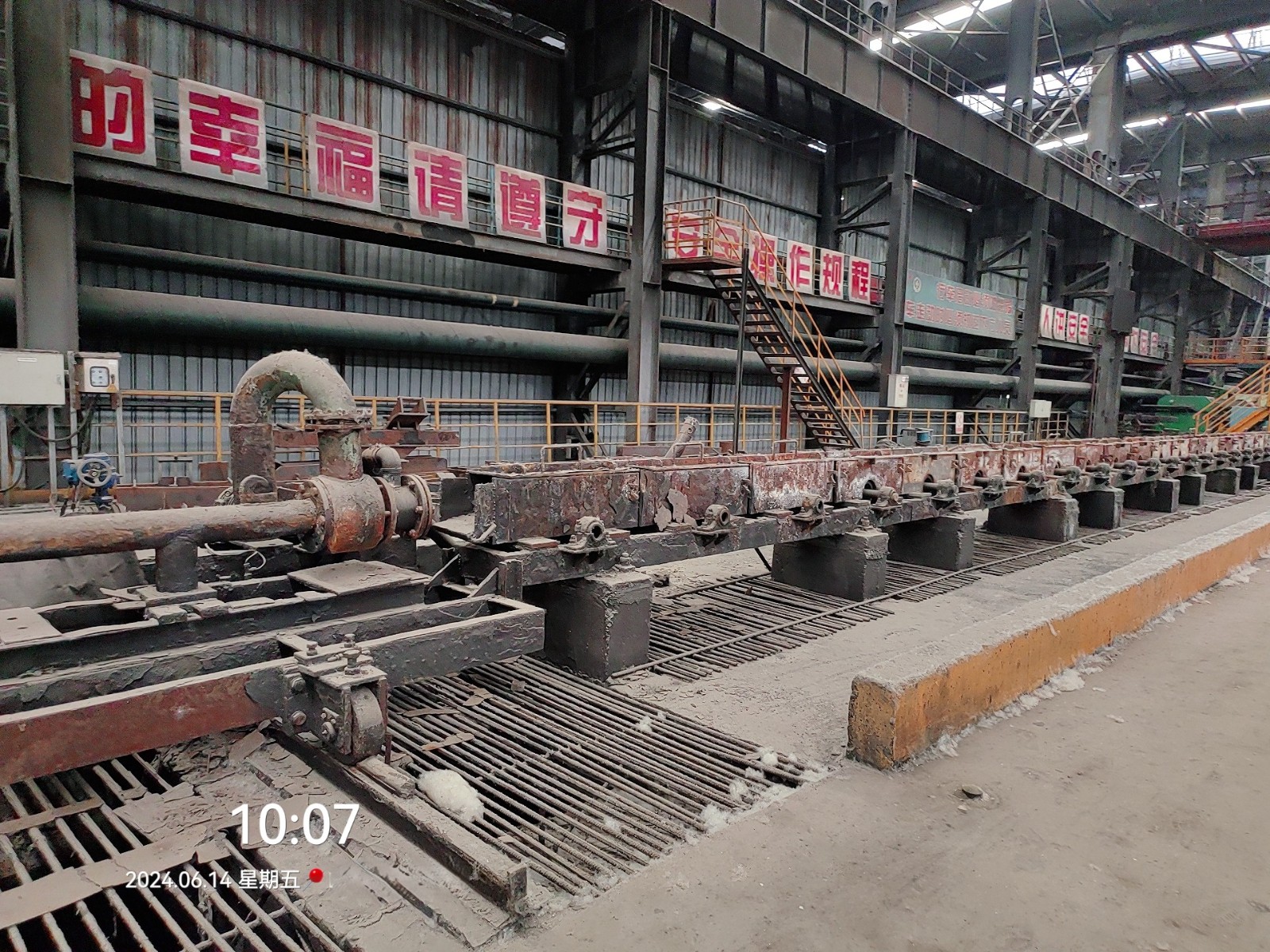

scope of supply:billet loading conveyor, billet pusher, walking beam, 180T/H furnace, after heating conveyor, Sponge iron deaerator,1H 550 hot rolling mill2V 550 hot rolling mill3H 550 hot rolling mill4V 550 hot rolling mill5H 550 hot rolling mill6V 550 hot rolling mill7H 450 hot rolling mill8V 450 hot rolling mill9H 450 hot rolling mill10V 450 hot rolling mill11H 450 hot rolling mill12V 450 hot rolling mill13H 350 hot rolling mill14V 350 hot rolling mill15H 350 hot rolling mill16H 350 hot rolling
17H 350 hot rolling mill 18H 350 hot rolling mill millcard shear x1pcsflying shear x3pcscold shear x2pcscooling bedsizing machineauto packing machineoutput conveyor systemweighing machinelifting systemhydraulic system electric control system
If you want to quote or further information on this product, please fill out the form below.
