used hot rolling mill

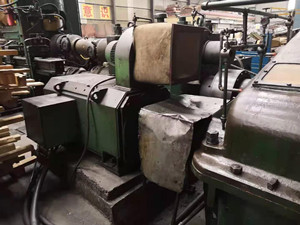

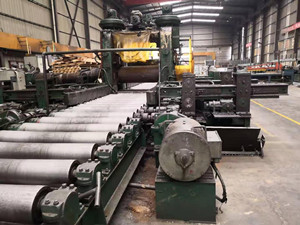

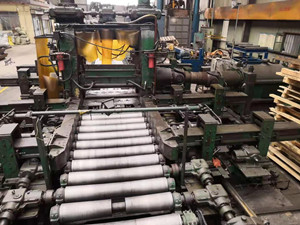

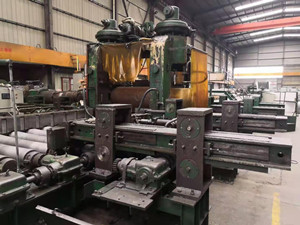

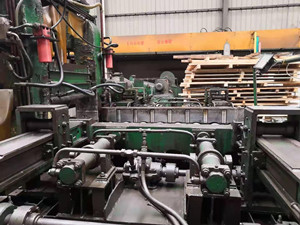

HRM No.139 Used 1250mm Aluminum plate hot rolling mill
Used 1250mm Aluminum plate hot rolling mill .It was shutdown in 2019.The written time is November 13,2020.
- product description
- Technical Parameters
Material: Aluminum alloy
Billet thickness:250-280mm
Billet width:800-1240mm
Billet length:3000mm
Production width: 1250mm
Production thickness:Min 8mm
Openness:300mm
Main rolling motor:600KW
Rolling force:1000tons
Rolling speed:120m/min
Working roll:φ560*1350mm
Roll table length:Approximate 80m
Total machine weight:Approximate 200tons
Scope of supply:
Mill housing
Roller lifting mechanism
Front roller table
Rear roller table
Roll balancing device
Transmission roller table
Travelling roller table
Aluminum ingot clamp pushing machine
Cutting head hydraulic shear
Screw down fine adjustment device
Emulsion filter unit
Screw down hydraulic system
Auxiliary hydraulic system
Online slitting saw
Hydraulic shear slitting saw with hydraulic station and operation console
Digital display console of rolling mill
Rolling mill drive and hydraulic electric control device
Roller crossing escalator
Thin oil lubrication system
Pneumatic purging system
Motor
Reducer
Gear box
Lubricating pump
Rolls
If you want to quote or further information on this product, please fill out the form below.
-
